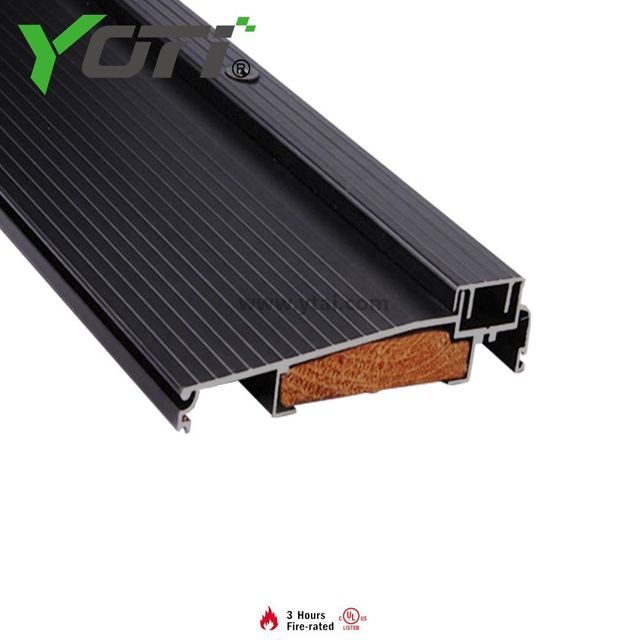

YDT505 Aluminum alloy adjustable home threshold/wooden window sill
- $10.00 / >=500 pieces
- 500 pieces
- Wenzhou Yongtai Electric Co., Ltd.
- Zhejiang, China
- Mr Yoga Liu
Product Detail
| model: | YDT505 | Design style: | Modern |
| Minimum Order Quantity: | 500 | Product Name: | Adjustable wooden threshold |
| Origin: | Zhejiang, China | Project solving capabilities: | graphic design |
| Warranty: | 1 year | Payment Terms: | L/C, D/P, T/T |
| Certificate: | ISO9001 | application: | Heavy duty door, hotel |
| width: | 5-3/5” | Brand Name: | Youdi |
| length: | 36",48",72",customized | Finish: | Polished/clear anodized aluminum/dark bronze anodized aluminum |
| After-sales service: | Online Technical Support | high: | 1-1/20” |
Product Description

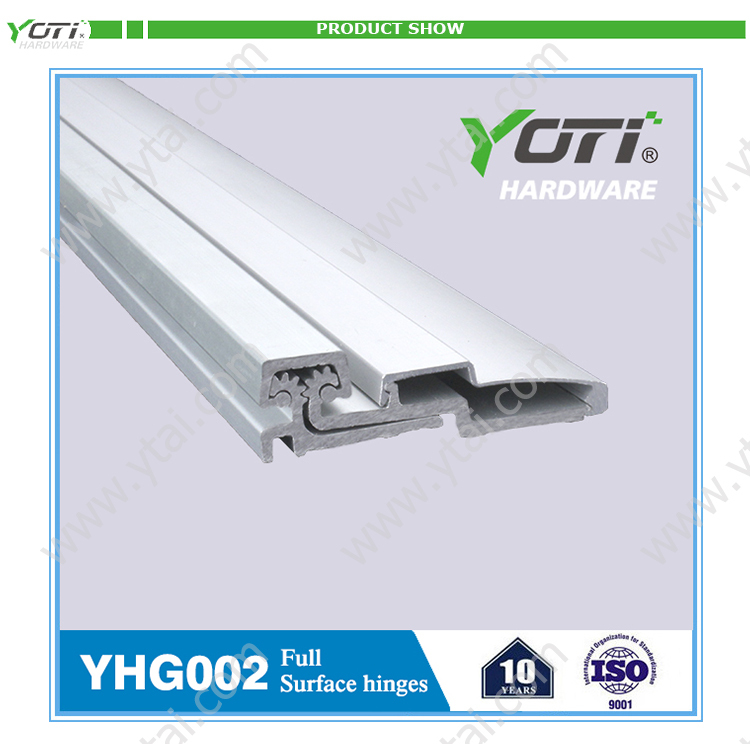

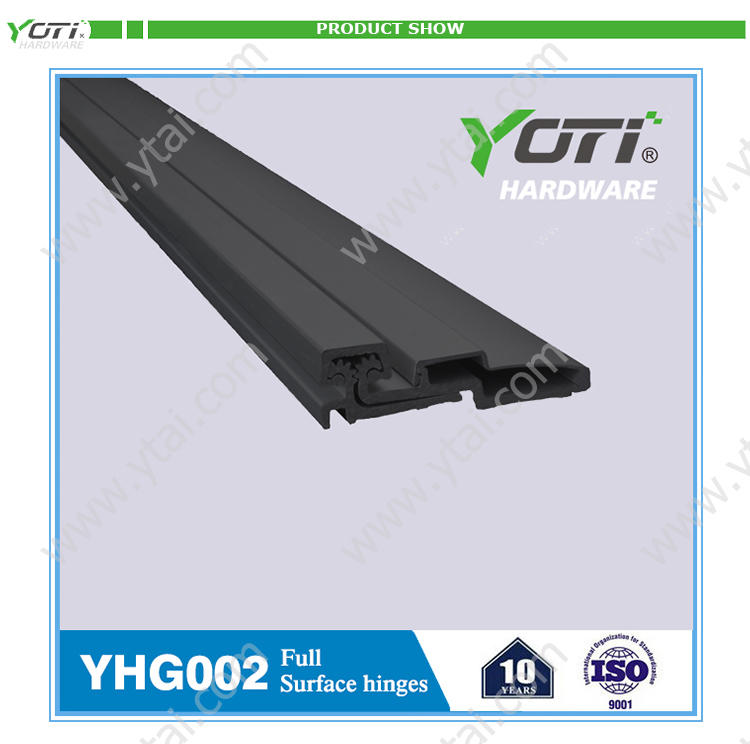

The Yoti Hinge is a unique geared hinge that outperforms most other entrance components because the weight of the door is distributed across the entire length of the door frame. It has been used in commercial and industrial buildings such as hospitals, schools, hotels, offices, airports, stadiums, storefronts, and in new construction. It is designed to provide superior performance.
Length (inches) | Length (mm) | Sexual door bolt (door) | Pan head (door) | Screws (door frame) |
83 | 2108 | 8 | 19 | 19 |
95 | 2413 | 9 | 19 | 19 |
119 | 3023 | 10 | twenty three | twenty three |

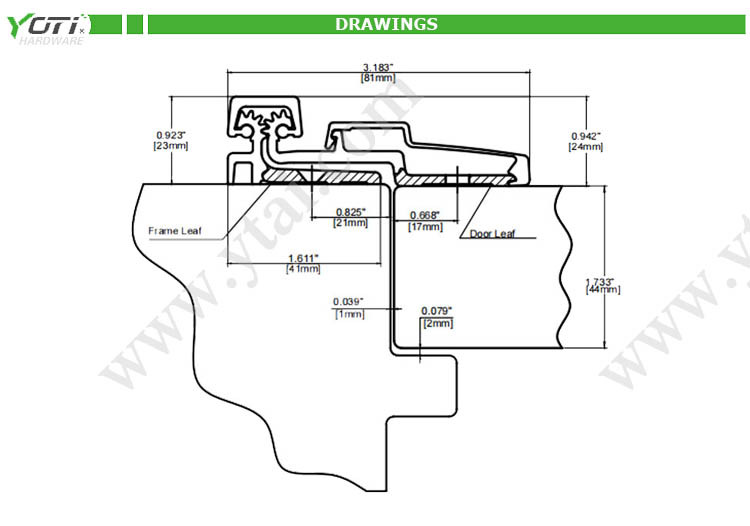

Clearance: Recommended minimum clearance on hinge side is 1/32" (1mm)
Plus standard edge gap
Minimum frame face size required is 1-5/8" (41 mm) plus 3/16"
(5 mm) rotational clearance
◇ Fasteners: 1/4-20 x 1-1/4" hexagonal bolt (screw + post)
#12-24 X 11/16" Flat Head Self Drilling Screw
◇ Length options: 83 inches, 95 inches, 119 inches and customized
◇Door reinforcement: No need
◇Frame reinforcement: No reinforcement required, load bearing capacity up to 200 lbs.
Uses 16-gauge channels and can handle weights over 200 lbs.
◇Certificate: ANSI & BHMA Level 1
Fire rating: UL 10B/10C
◇Special function: Replace existing doors and frames
Minimum frame is 7/8" and inset is 1/16"
Plus standard edge gap
Minimum frame face size required is 1-5/8" (41 mm) plus 3/16"
(5 mm) rotational clearance
◇ Fasteners: 1/4-20 x 1-1/4" hexagonal bolt (screw + post)
#12-24 X 11/16" Flat Head Self Drilling Screw
◇ Length options: 83 inches, 95 inches, 119 inches and customized
◇Door reinforcement: No need
◇Frame reinforcement: No reinforcement required, load bearing capacity up to 200 lbs.
Uses 16-gauge channels and can handle weights over 200 lbs.
◇Certificate: ANSI & BHMA Level 1
Fire rating: UL 10B/10C
◇Special function: Replace existing doors and frames
Minimum frame is 7/8" and inset is 1/16"
Detailed pictures
