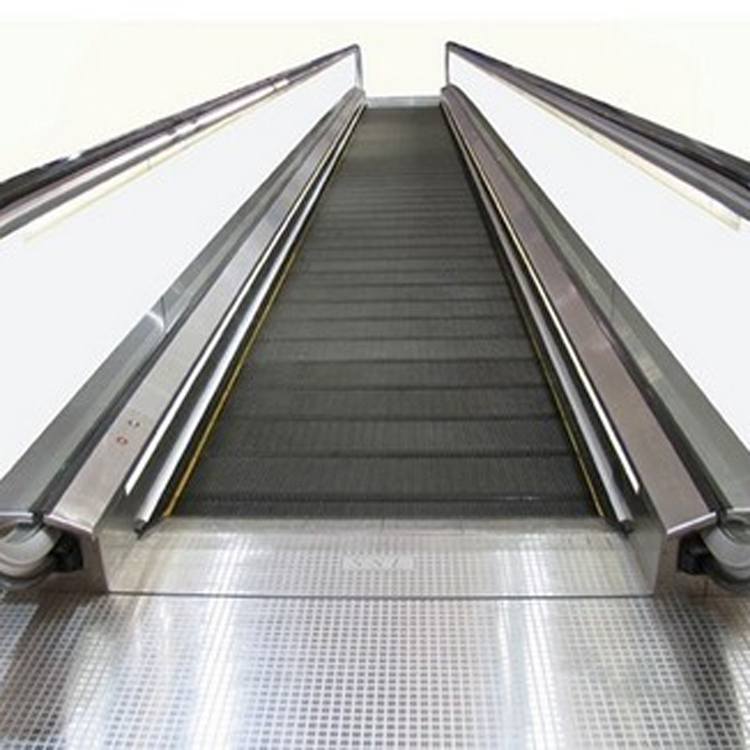

Sidewalks elevators escalators and moving walkways indoors
- $15000.00 /set
- 1 set
- Volkslift-Schindler Elevator Co., Ltd.
- Zhejiang, China
- Ms Volkslift Elevator
Product Detail
| After-sales service: | others | Certification: | ISO/CE/CU-TR/TUV/SGS/BUREAU |
| brand: | Volkswagen cable car | payment terms: | L/C, T/T, parallel escalator multiple payment methods |
| Place of origin: | Zhejiang, China | Project solution capabilities: | others |
| style: | Outdoor/parallel escalators | product name: | Sidewalks elevators escalators and moving walkways indoors |
| Rated speed: | 0.5 to | Supply capacity: | 500 units per month. Order more than 50 parallel escalators. You will be the first VIP. |
| port: | Shanghai/Parallel Escalator | model: | VKS-A-7 |
| Step width: | 600mm, 800mm or 1000mm | usage: | Subway/airport/mall moving sidewalk |
| Packaging details: | Packing plywood boxes, strapping, fumigation-free wood for moving walkways. | Warranty: | 1 year and 13 months |
| railing: | Tempered glass 10mm | Control of parallel escalators: | Frequency |
| type: | moving walkway |
The perfect experience is what VOLKLIFT dedicated to you
| Step distance(A) | Lifting height(H) | Motor power(KW) |
| 800 | 2500-3670 | 5.5 |
| 3671-4800 | 7.5 | |
| 4801-5100 | 8 | |
| 5101-6600 | 11 | |
| 6601-7500 | 13 | |
| 1000 | 2500-2950 | 5.5 |
| 2951-3900 | 7.5 | |
| 3901-4100 | 8 | |
| 4101-5490 | 11 | |
| 5491-6150 | 13 | |
| 6151-7000 | 15 | |
| 7001-7500 | 16 |
| Step distance(A) | A | Second | C | D | Second | F |
| 800 | 800 | 1038 | 1400 | 2900 | 3550 | 1400 |
| 1000 | 1000 | 1238 | 1600 | 3300 | 3950 | 1600 |
| Step distance(A) | Middle support | Support force R1 | Support force R2 | Support force R3 | Support force R4 |
| 800 | 0 | R1=(0.0039L+9.5)*2 | R2=(0.0039L+4.5)*2 | ||
| 1 | R1=(0.0039L+9.5)*2 | R2=(0.0039L+4.5)*2 | R3=0.00507*L*2 | ||
| 2 | R1=(0.0039L+9.5)*2 | R2=(0.0039L+4.5)*2 | R3=0.00507*(L+L)*2 | R4=0.00507*(L+L)*2 | |
| 1000 | 0 | R1=(0.0045L+11)*2 | R2=(0.0045L+5)*2 | ||
| 1 | R1=(0.0045L+11)*2 | R2=(0.0045L+5)*2 | R3=0.00585*L*2 | ||
| 2 | R1=(0.0045L+11)*2 | R2=(0.0045L+5)*2 | R3=0.00585*(L+L)*2 | R4=0.00585*(L+L)*2 |
VIEW MORE
