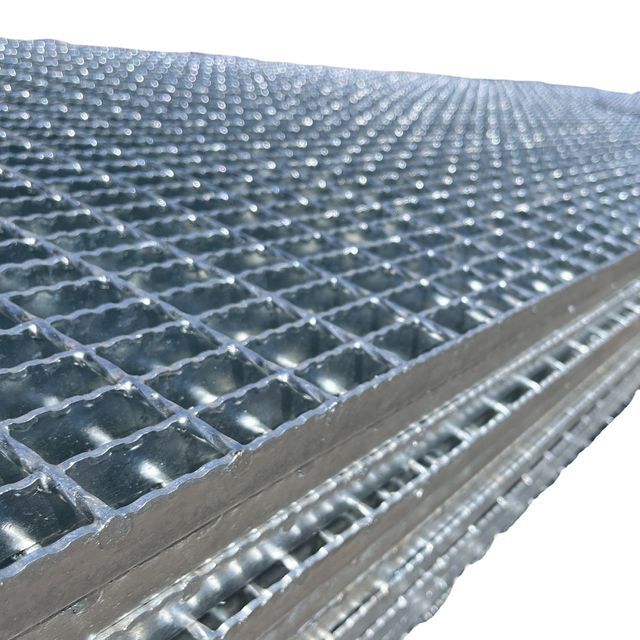

Xinboyuan factory hot dip welded steel grating floor metal grating walkway steel grating
- $26.00 / >=10 pieces
- 10 pieces
- Anping Xinboyuan Wire Mesh Products Co., Ltd.
- Hebei, China
- Ms Nancy Liu
Product Detail
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance | Whether alloy: | non-alloy |
| After-sales service: | Online technical support | port: | Tianjin harbor |
| Surface treatment: | hot dip galvanized | weight: | 2KG |
| design style: | industrial | Secondary or not: | non-secondary |
| Packaging details: | Customer requirements | factory: | Yes |
| type: | Flat, sawtooth, I-shaped steel grating | feature: | Corrosion resistance |

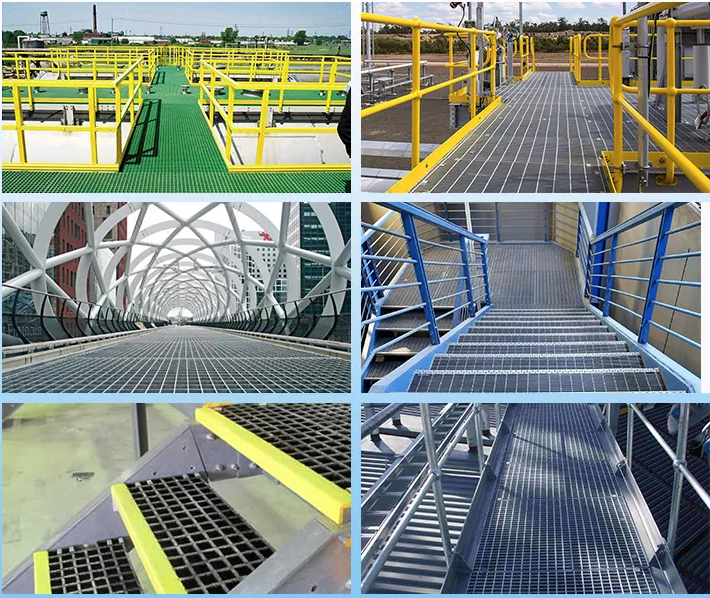

| Package preview: | application: | Warehouse, industrial platform | |
| color: | Silver, black, etc. | Project solution capabilities: | 3D model design |
| raw material: | Carbon steel/stainless steel/aluminum | Supply capacity: | 150 tons per day |
| brand: | Xinboyuan | Place of origin: | Hebei china |
| model: | steel grating | product name: | grating material |
| Certificate: | ISO 9001:2008 | Warranty: | More than 5 years |
Product Description
Steel grating description:

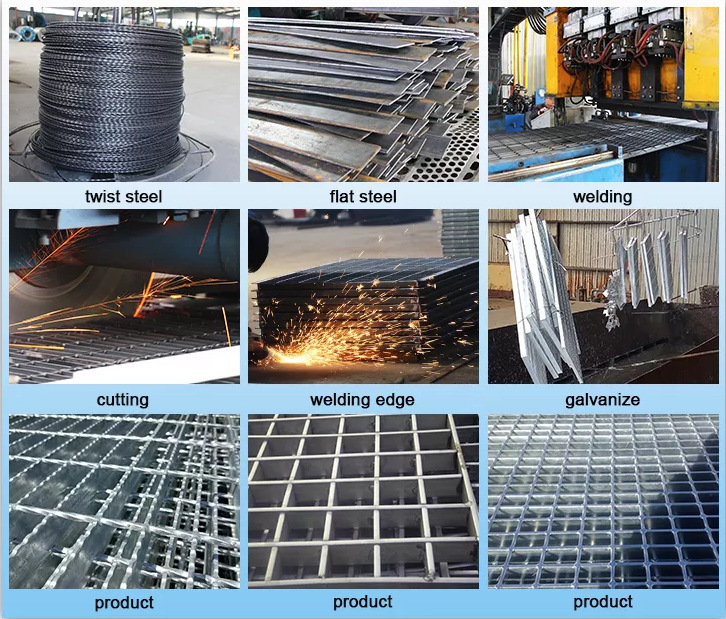

Steel grating is made of flat steel and horizontal steel/round steel welded at a certain distance. The steel grating produced by our company has the characteristics of high strength, light structure, high bearing capacity and convenient loading. Hot-dip zinc coating gives the product excellent anti-corrosion properties.
Specification
thing | describe |

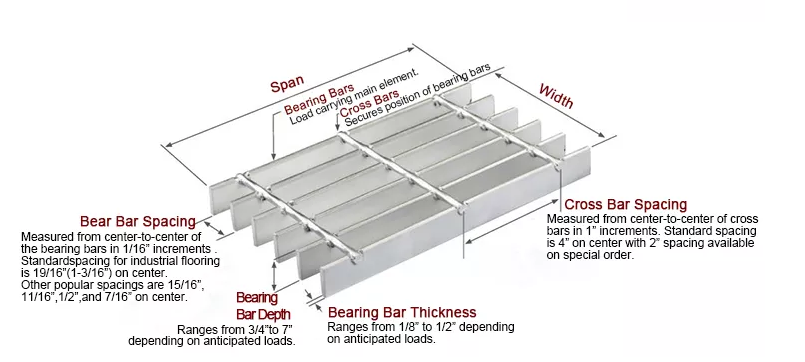

Bearing rod | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm, etc. I stick: 25x5x3, 30x5x3, 32x5x3, 40x5x3, etc. US Standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4' 'x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc. |
American Standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2, etc. | |
Torsional crossbar pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'', etc. |
Material grade | Mild steel, mild steel, etc. |

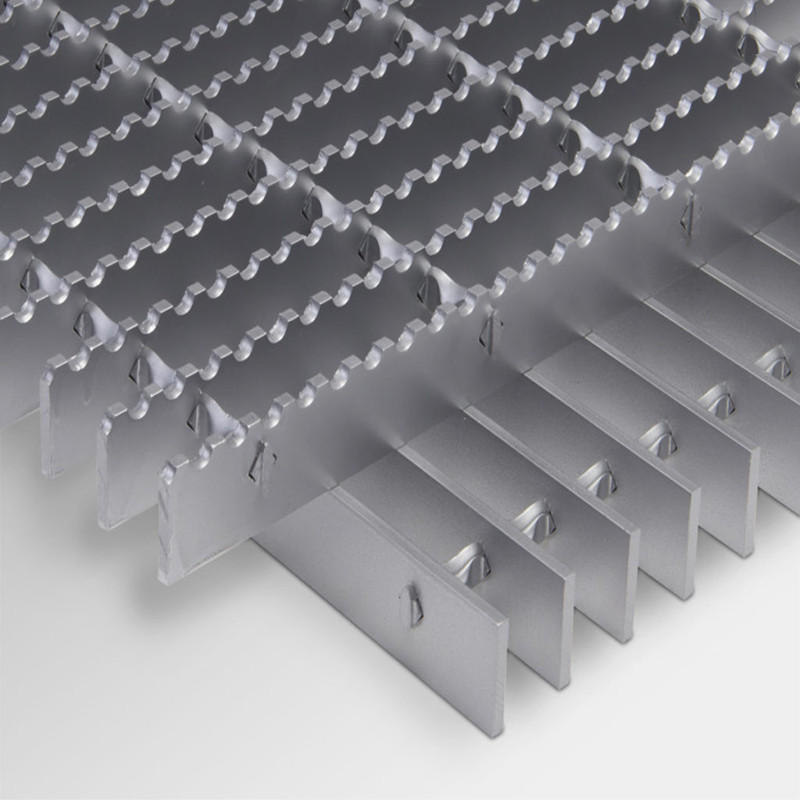

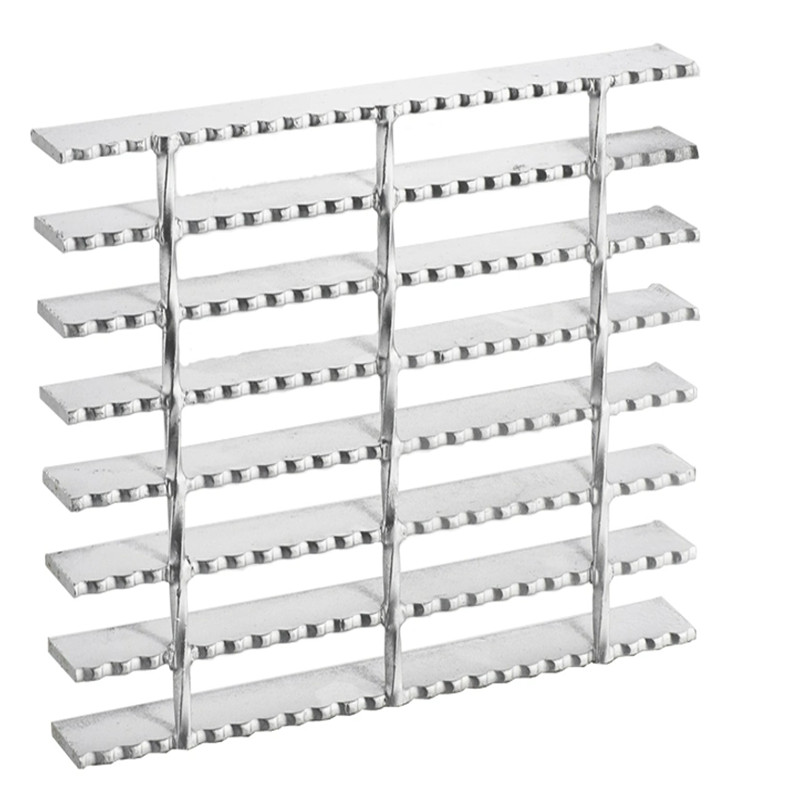

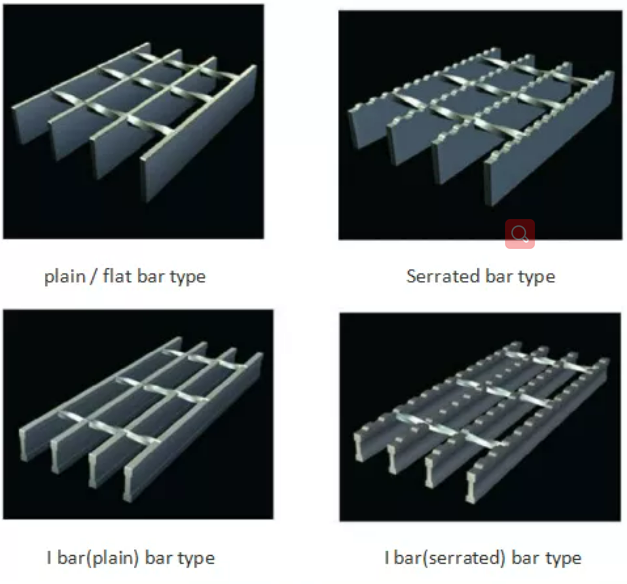

raster style | Normal/Smooth, Serrated/Toothed, I-Bar, Serrated I-Bar |
China: YB/T 4001.1-2007, United States: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS |
