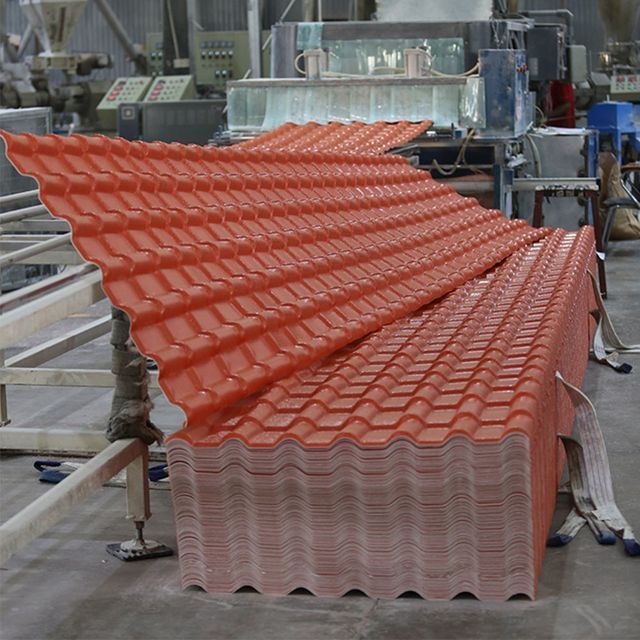

Impact resistance as roof board insulation synthetic resin roof tiles for house warehouses

Features:

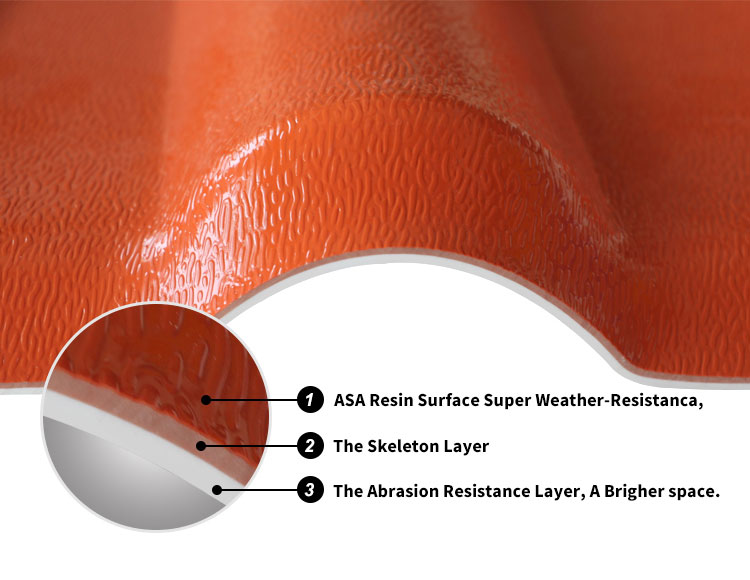

ASA synthetic resin tile adopts advanced three-layer co-extrusion technology.

It has outstanding corrosion resistance, heat insulation and impact resistance, providing

Our ASA roofing sheets offer long-term color stability and a long service life.

application:

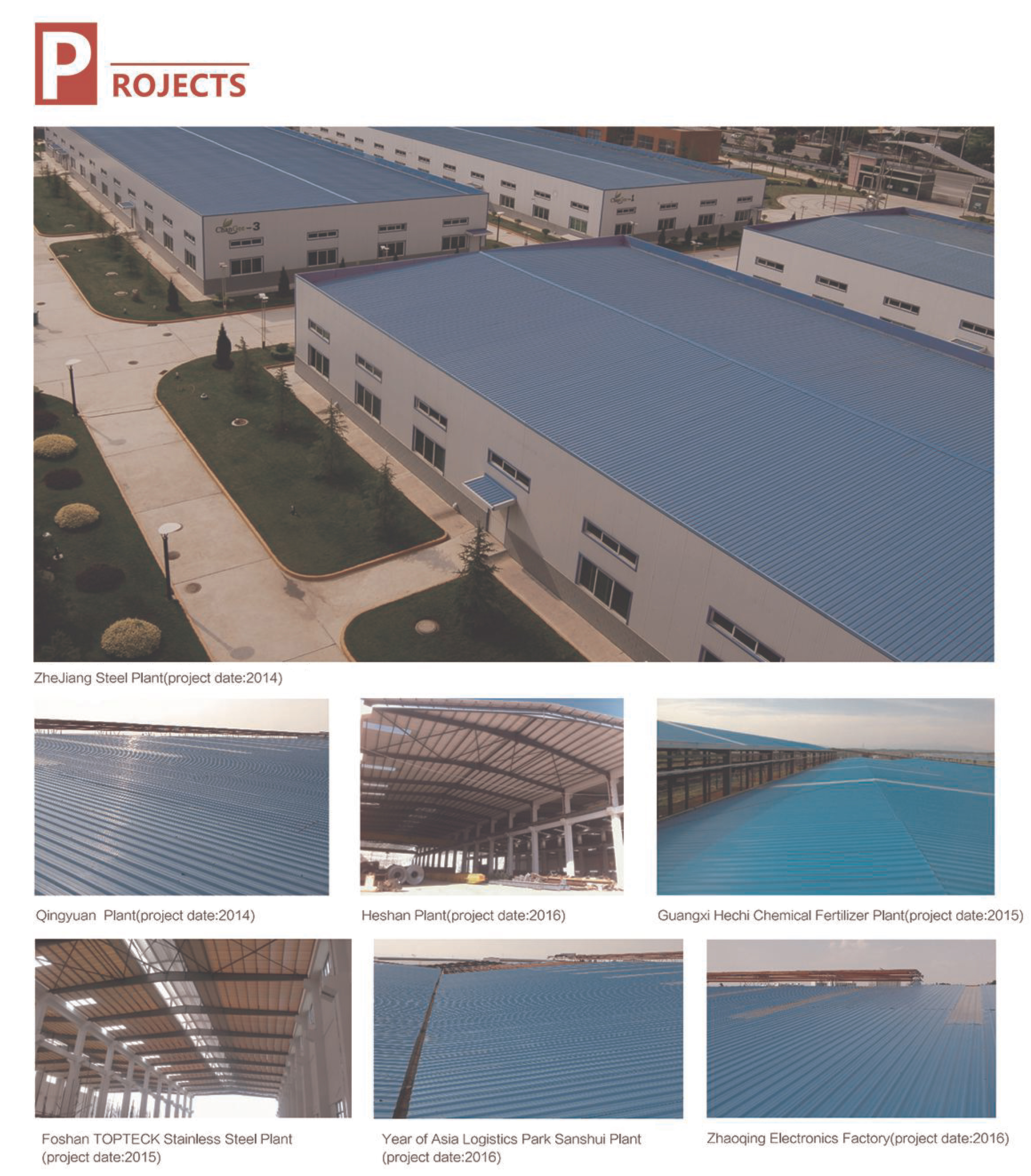

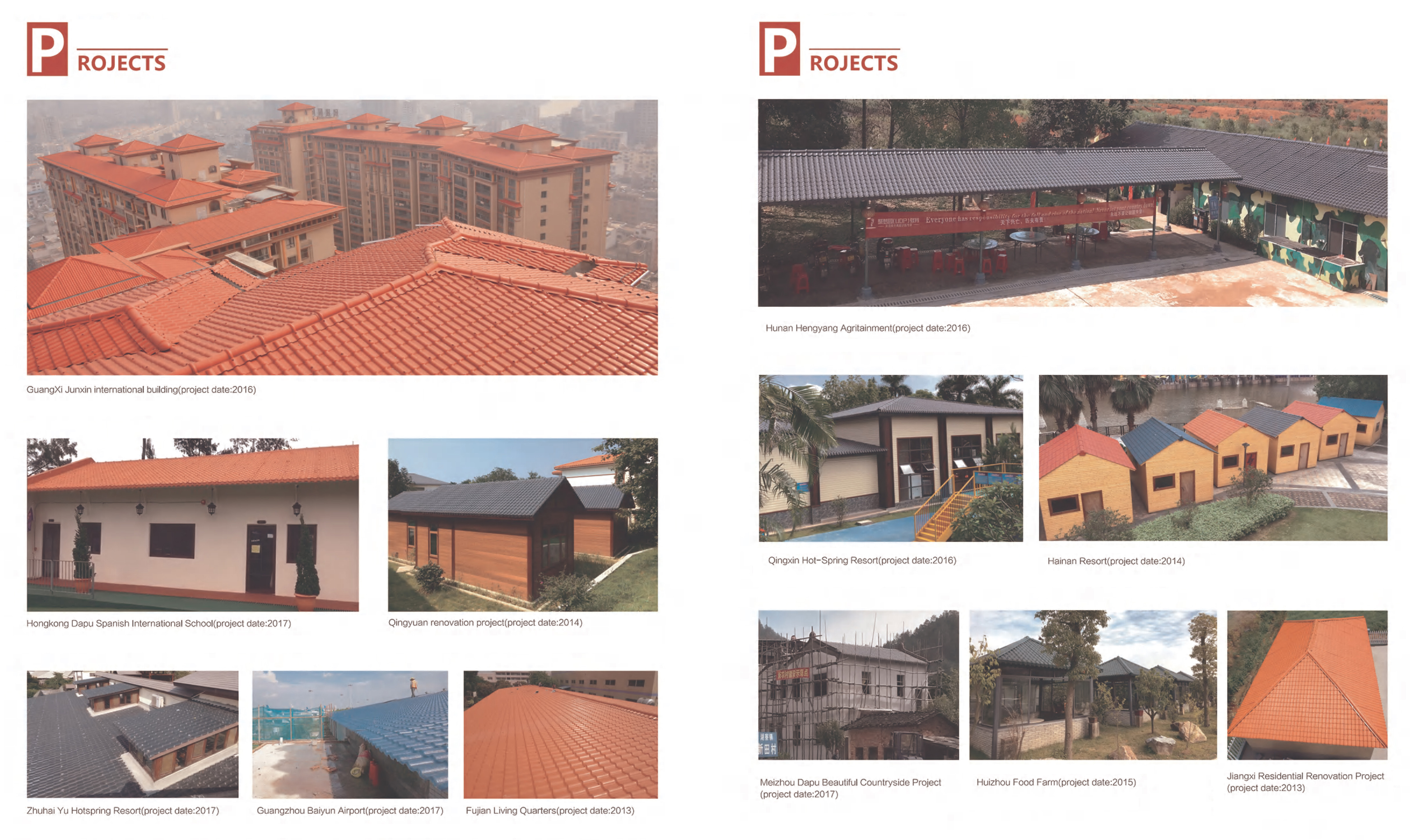

Synthetic resin tiles are widely used in public buildings, civil buildings, villas, row houses, gazebos, recreational clubs,

Hotels, resorts, flat slope reconstruction projects, rural reconstruction, new rural construction, etc.

Product performance:

1. Color fastness: 10 years without fading
The surface material is made of super weather-resistant ASA engineering resin, which has
Extraordinary durability in natural environments. even though
Under harsh conditions of UV rays, humidity, heat and cold.

2. Excellent corrosion resistance
Synthetic resin tiles can resist the corrosion of chemicals such as acids and salts
long-term use. In various harsh urban environments, there will be no rust, spots, etc.
Environmental conditions such as acid rain.

3. Strong impact resistance
After testing, a 1kg steel ball falls freely from a height of 3 meters without breaking
Synthetic resin tile, strong to withstand external impact.

4. Good load resistance
In a low temperature climate, even if the roof is covered with snow all the year round, synthetic resin tiles will
Won't break or tear. Tests also show that resin tiles will not deform and fall
Under the purlin spacing of 880mm, the additional load is 60kg.

5. Good sound insulation effect
Resin tiles have good sound insulation and noise reduction effects. When exposed to external noise
Such as heavy rain and high wind, it can both soundproof and absorb noise. test
The results show that the average sound insulation exceeds 30dB.

6. Fire resistance
The resin tile material is a refractory material, and the fire rating meets the
International CB 8624-2012 Level B1.

7. Easy to install
Synthetic resin tiles are easy to install, and the installation of tiles is more efficient and cost-effective-
Effective.

8. Self-cleaning
The surface of the resin tile is smooth and dense, does not absorb water, does not absorb dust,
It will be cleaner and brighter after being washed by rain.

Correct installation method and precautions:

1. Correct placement of tiles
a. Lap joint (roof length ≤ 15m)
b. Staggered (roof length ≥ 15m)

2. Correct use of special nails
a. The special nail must be nailed in the middle of the tile to be waterproof.
b. The fixed spacing of special nails is 50cm~100cm, preferably 4pcs/m2.
c. Special nails must be made from the lower end of the tile to the top of the roof to replace it.
Beautiful, airtight and tidy.

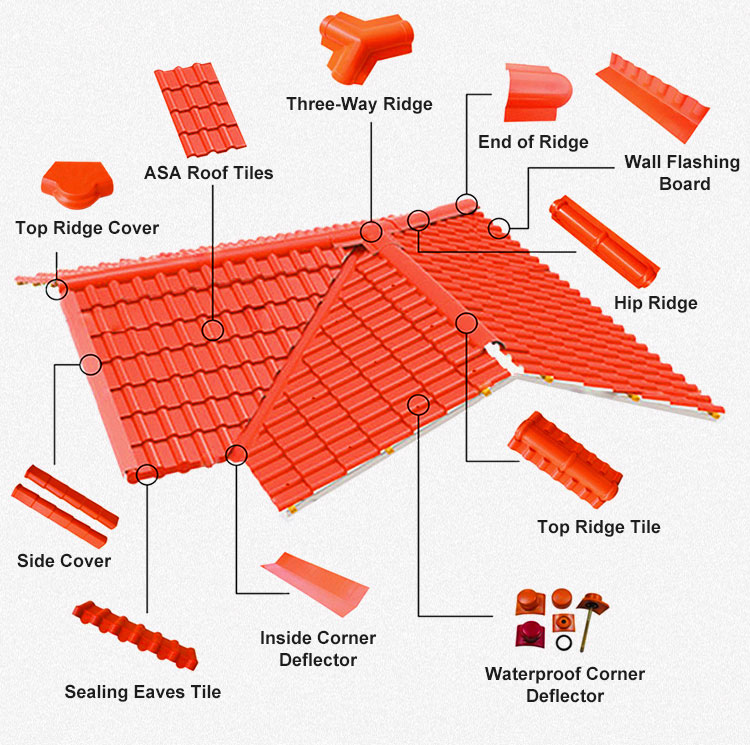

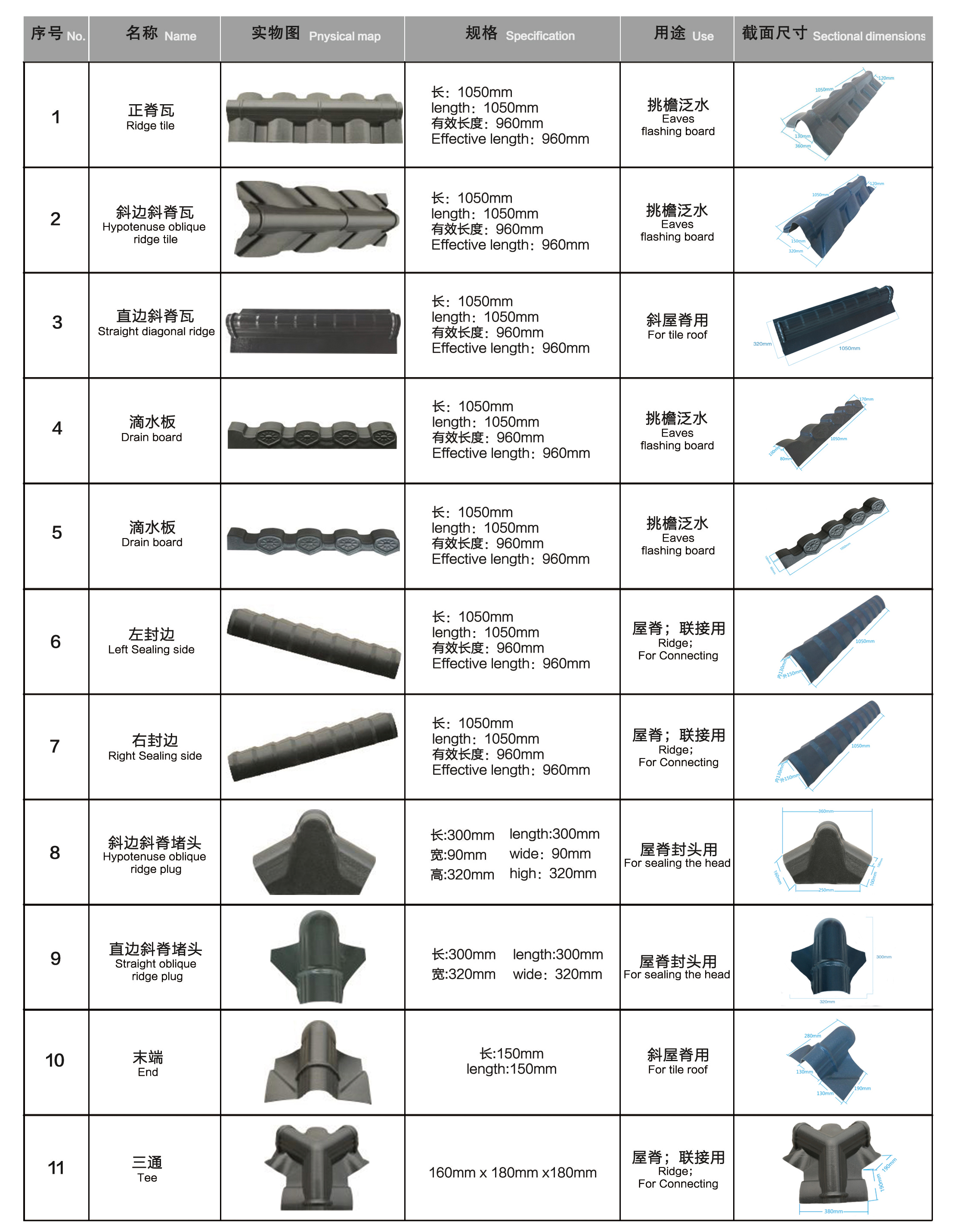

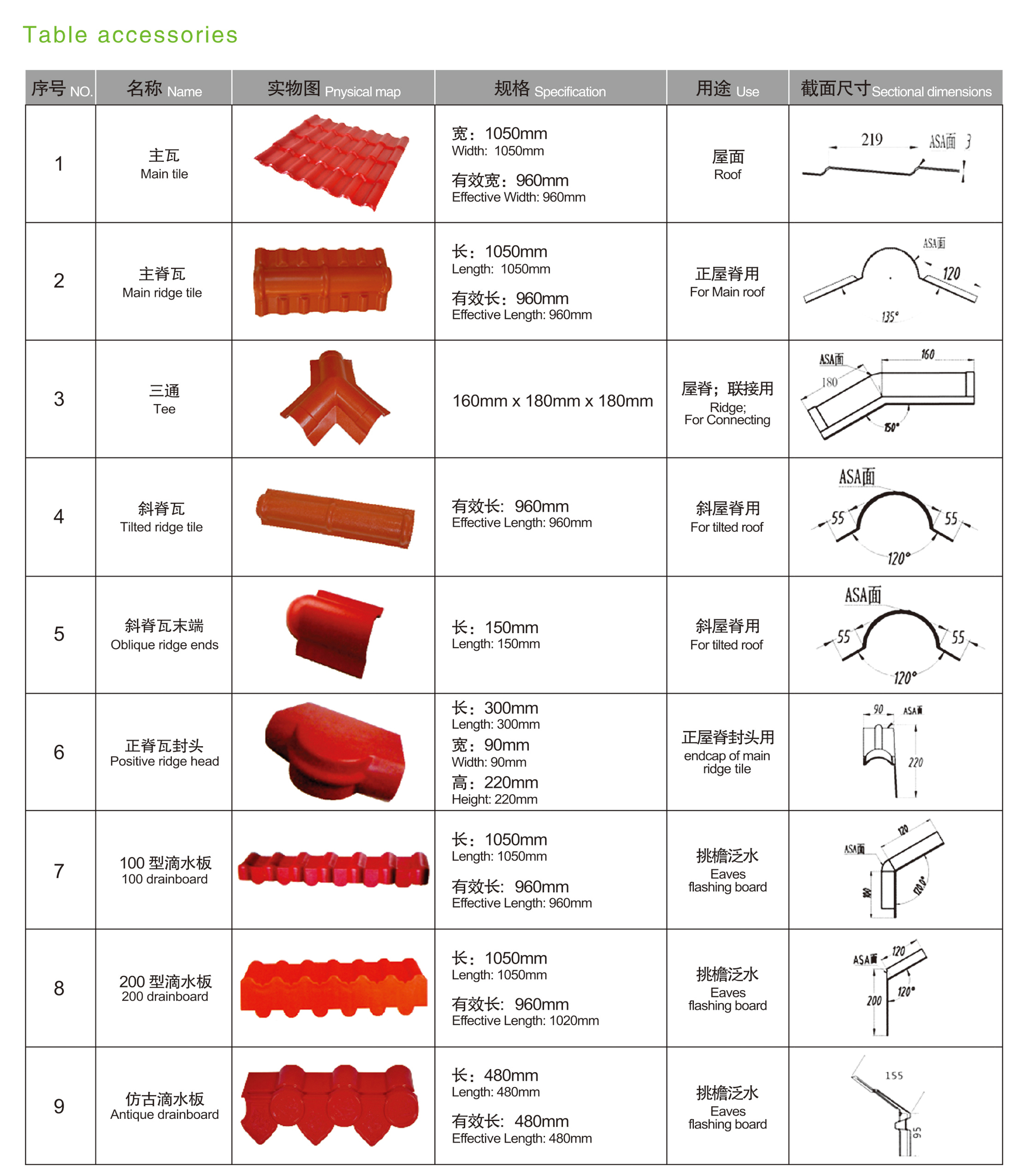

3. Install ridge tiles to seal the cornice
a. Separate the sealing strip in half, and cover the ridge tile according to the tile shape
The roof is secured with special nails.
b. Use cement to seal the joints of the horizontal tiles, directly cover the ridge tiles, and finish
Small tiles at the bottom of the ridge.
c. Install and nail the edge guard directly on the lower end of the tile or eaves.
d. The seams of roof tiles should be cut with scissors to fit the interface and overlap
Seal with glass glue.

4. Waterproof treatment of the protruding part
First make a V-shaped material as the water outlet, which can be of different materials,
According to the specifications, fix it on the bottom and install color steel tiles on it.

5. Connection and installation of inclined plane
It refers to the water receiving construction at the bottom behind the two roof tiles.
Cut by angle and length. First, install the water connection material (i.e. the gutter)
Underneath the tiles, then finish with a waterproof adhesive or cement.

Safety Instructions:
1. Wear necessary safety equipment, such as gloves, helmets, safety belts, etc.
2. The installer must be a certified professional.
3. The skeleton must be installed firmly.
4. Walk on the tiles, try to step on the middle part of the tiles, not the edge
Install.
5. Care should be taken when installing in bad weather.

company culture:

FAQ:

1. How do I know your quality?
Detailed photos and free samples of high solutions will be able to verify our quality.
2. Are you a trading company or a factory?

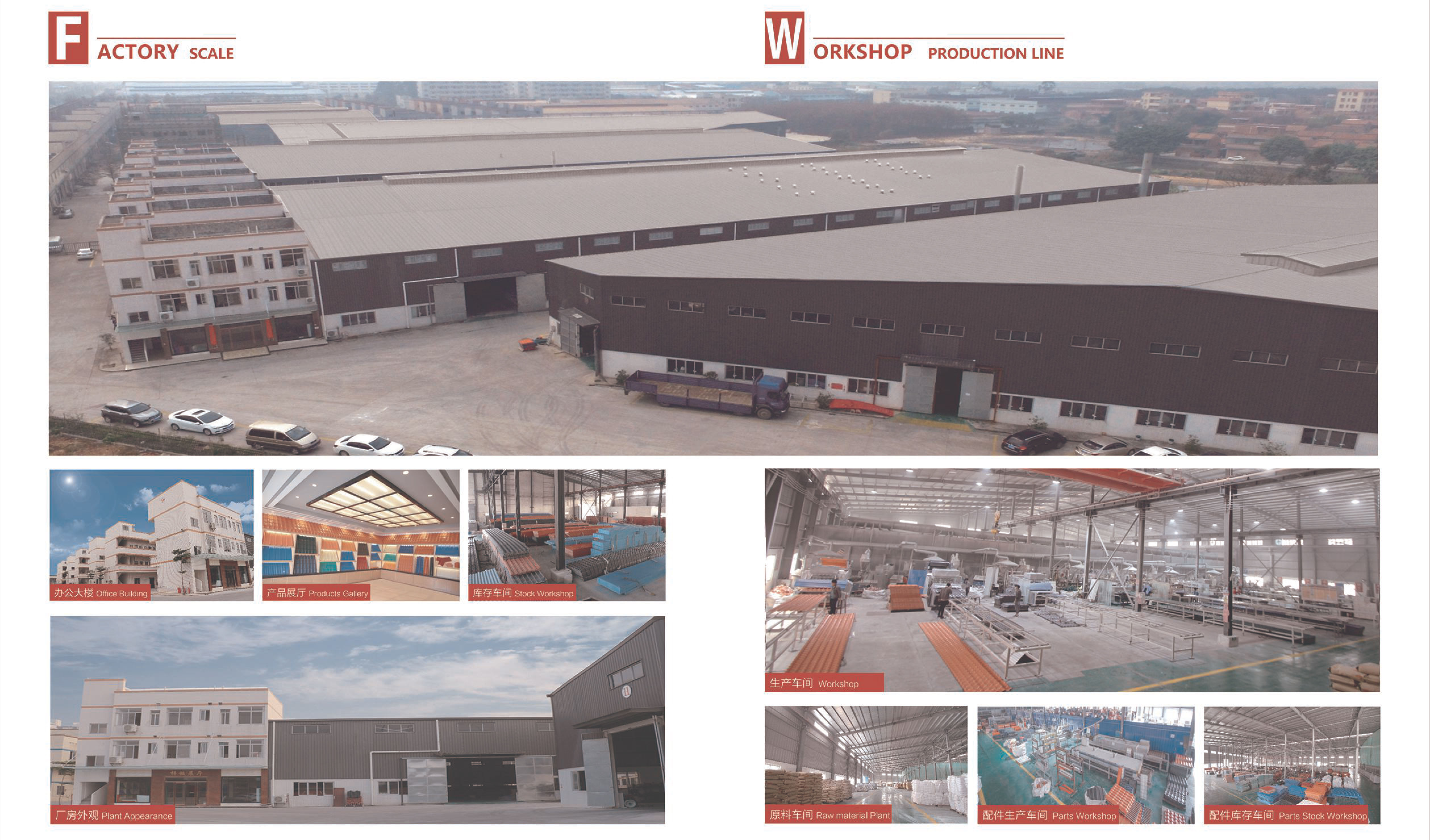

we are factory. We manufacture products ourselves.
3. I am a homeowner and I need a small quantity, what should I do?
Please inquire with our sales team if it is in stock or if we have a local distributor.
4. Can door-to-door service be provided? Or can I have the tiles delivered to my door?
Yes, we offer home delivery to make your job easy.
5. Can I get a sample first? How is it charged?
Yes, free samples are available with freight collect or prepaid.
6. What should I do if the tiles are broken during the transition process?
All of our products are insured, our after sales will sort out our reasons and make sure you are properly compensated.
7. Can you make products with our designs?
Yes, we do OEM and OBM.
8. How do I pay?
We received PayPal Western Union and direct bank transfer to our company account. If none of the above are available, we will issue you a PayPal invoice and you will simply pay with your credit card

If you have more questions, please feel free to contact us, thank you
