passive house home nfrc triple glazed european windows UPVC tilt and turn windows
-
$158.00 / 10 - 99 square meters
$128.00 / 100 - 499 square meters
$98.00 / >=500 square meters - 10 square meters
- Jiangsu Tegood Building Materials Technology Co., Ltd.
- Jiangsu, China
- Mr Evan Lu
Product Detail
| Wall thickness: | ≥3.0 mm | Supply capacity: | 10000 square meters per month |
| feature: | folding screen | Origin: | Shanghai |
| Project Solution Capabilities: | overall project solution | hardware: | German hardware, open hinge hardware, standard windproof |
| Package preview: | Sealing system: | 3 EPDM rubber | |

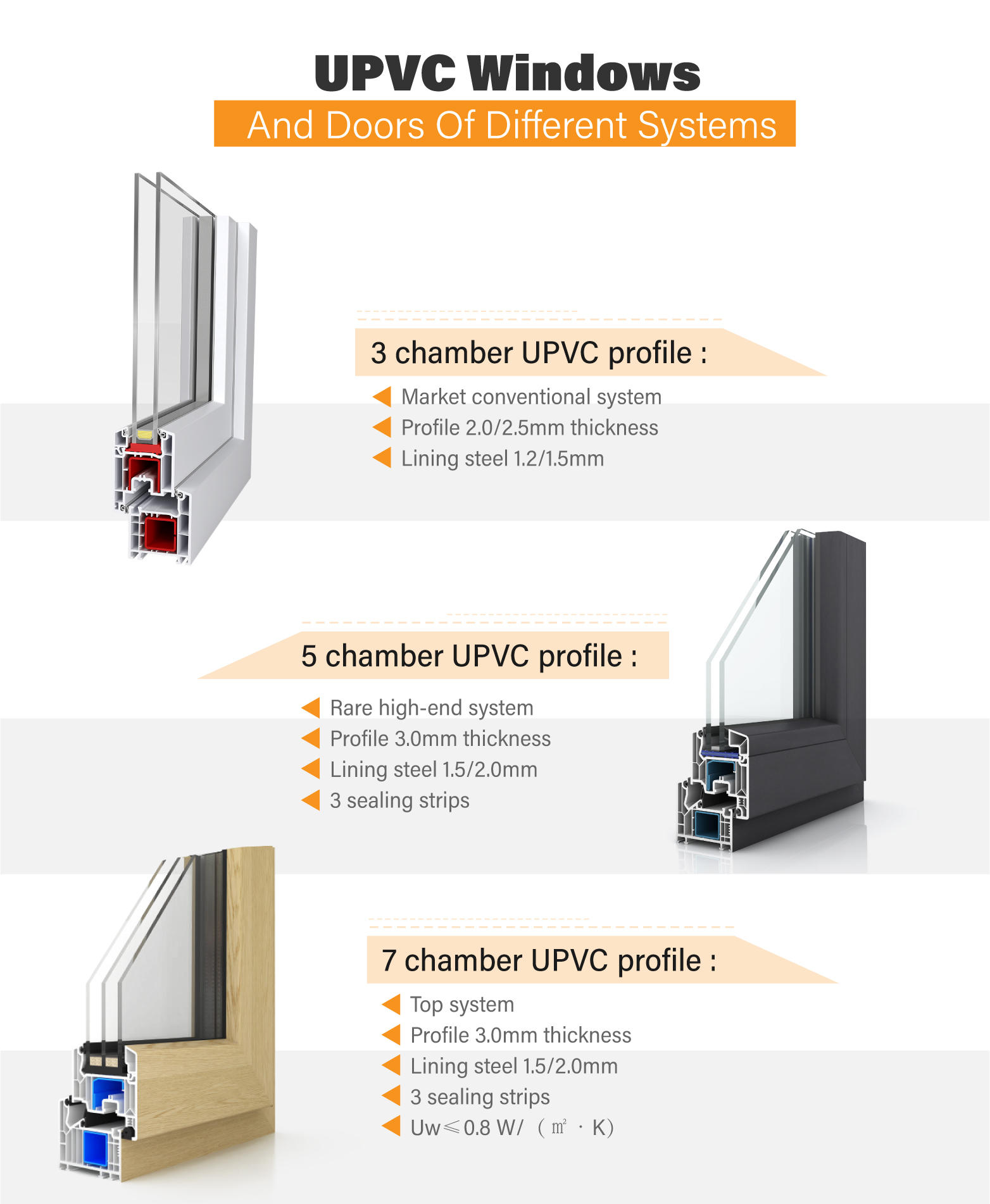

| model: | PWV82W | Chamber design: | 7 cavities |
| Curtain Type: | blinds | Frame Material: | plastic |
| Screen material: | glass fiber | Frame Thickness: | 82 mm |
| design style: | French | Open mode: | vertical |
| Packaging Details: | 1. Bubble bag, 2. Bubble bag + wooden frame, 3. Bubble bag + wooden box. If the container is full, we recommend using bubble bags. It can save more space and hold more goods in the same container. Usually, the package is bubble bag + wooden frame. The best packing is bubble bag+wooden box, some bulk goods and some developed countries, such as America Australia and some European countries need wooden box packing, because of their special requirements and wooden box can protect the goods | Function: | insulation |
| Material: | pvc | Warranty: | over 5 years |
| port: | Shanghai | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Open: | swing | Well: | Less than 0.8W/㎡ |
| Surface treatment: | German RENOLIT color film | glass thickness: | 30/36mm/45mm |
| After-sales service: | On-site inspection, online technical support, on-site training | brand: | Tegood |
| application: | villa | color: | do what you want |
| Glass: | 6GLow-e+12A+6GLow-e+12A+6GLow-e |
Specification
type | tilt and turn windows |
frame material | PVC |
frame thickness | 70-82mm |
sealing system | 3 EPDM rubber |
Insulation strip material | PA66+GF25 |

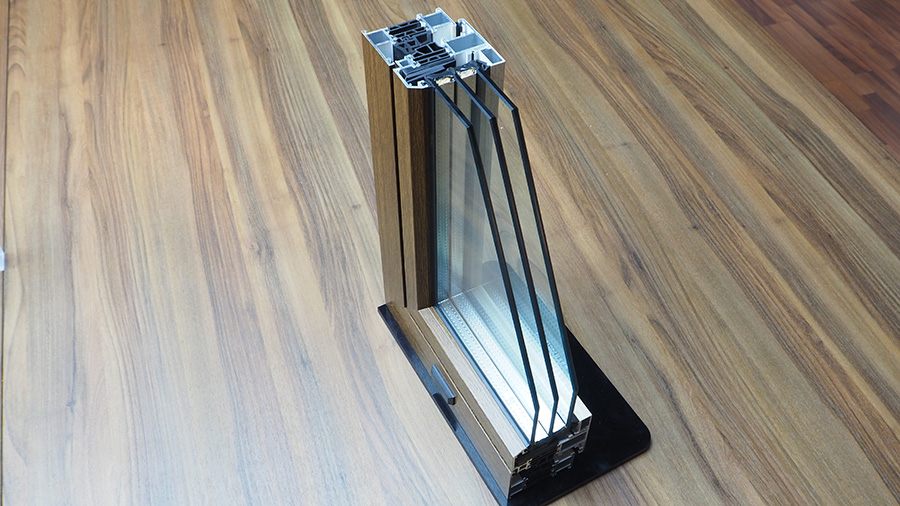

Glass | 6G low radiation+12A+6G+12A+6G |
glass thickness | 32-45mm |
color | Double-sided conventional color film, double-sided optional, optional color film (marking) |

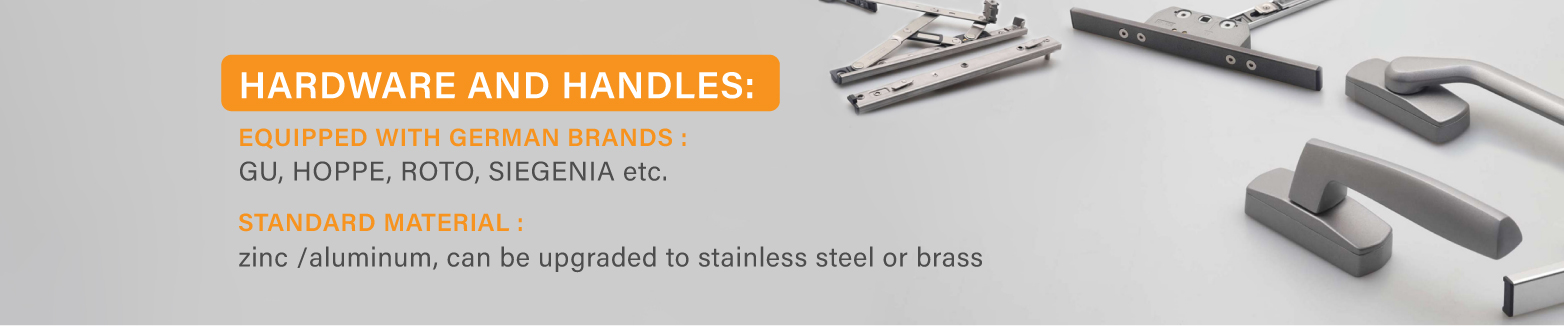

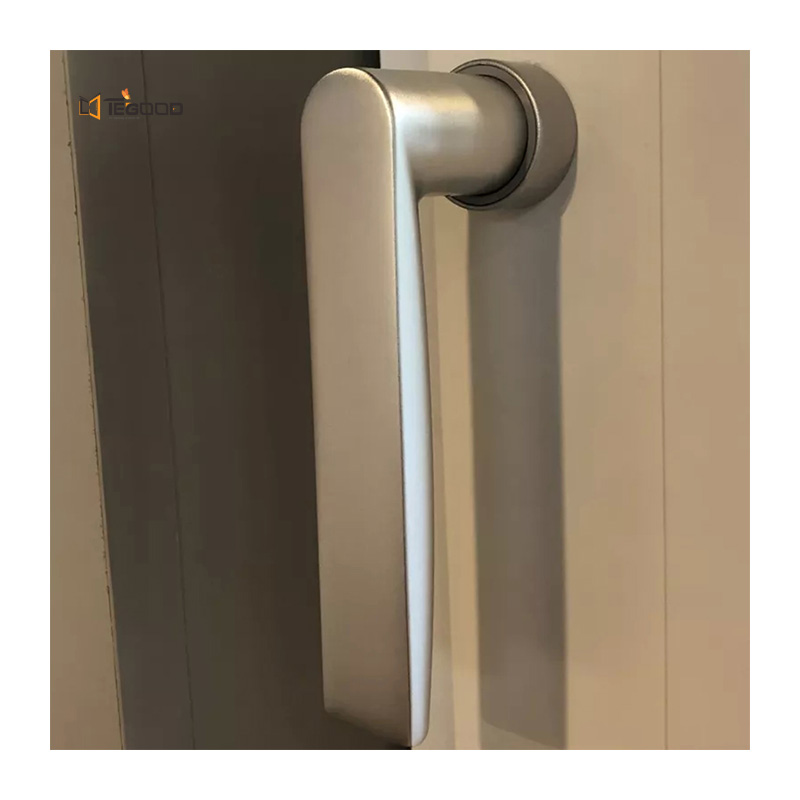

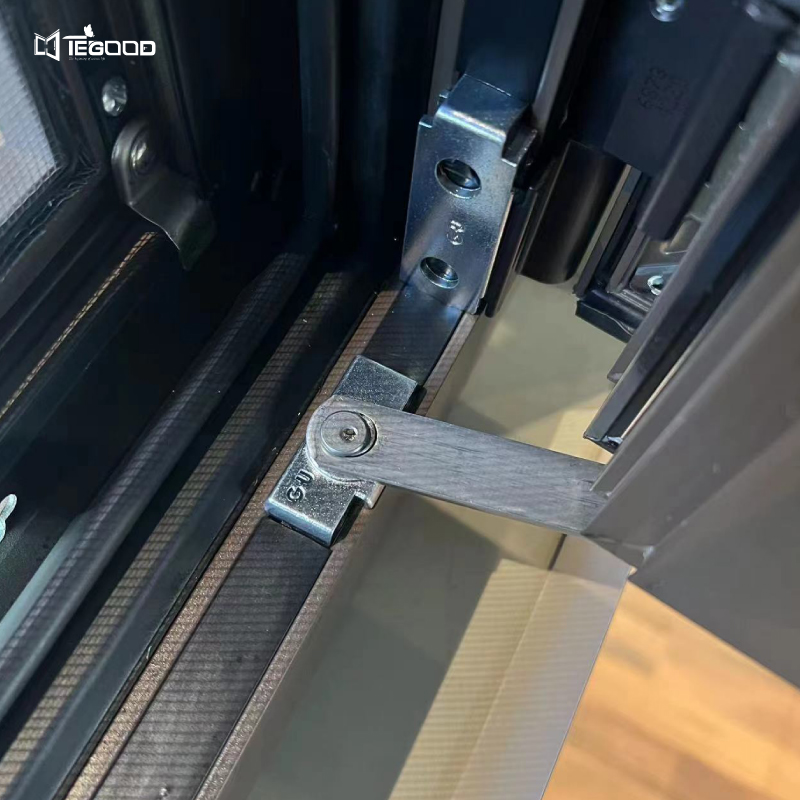

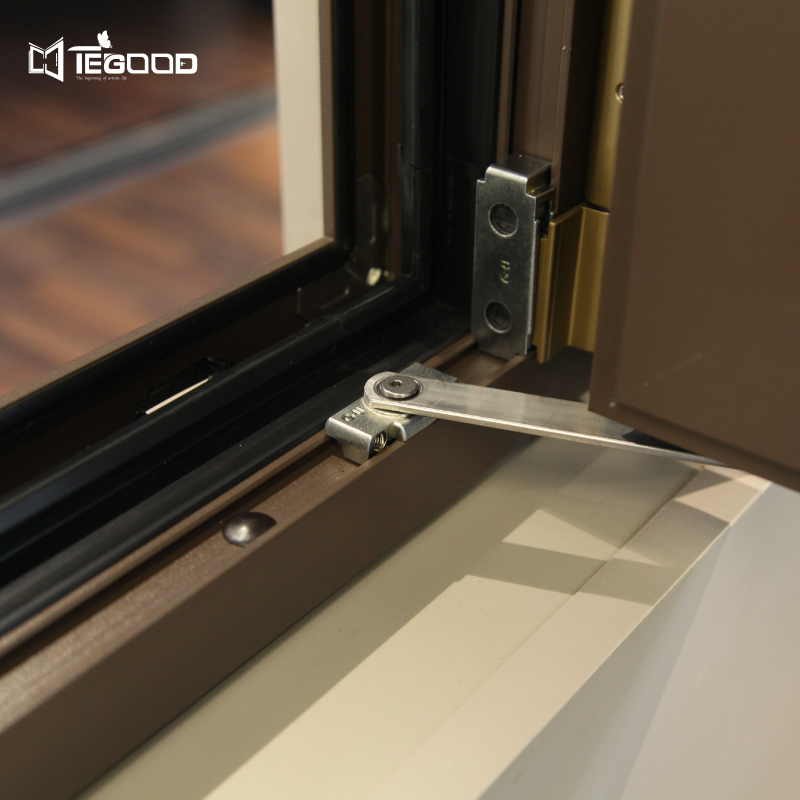

hardware | 130 kg hardware bearing, hidden hinge, standard windproof bracing |
water tightness | Level 6 |
air tightness | level 8 |
Wind resistance | level 4 |
U-factor | 0.14w/m².k--0.5w/m².k |
sound insulation | 42 decibels |

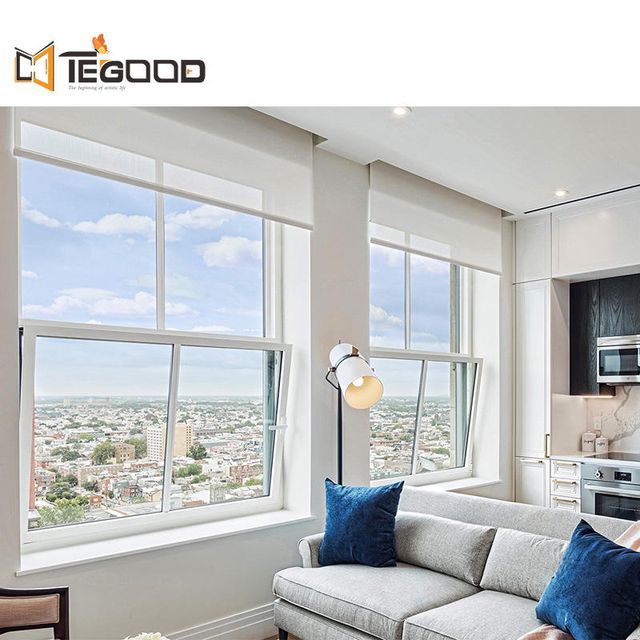

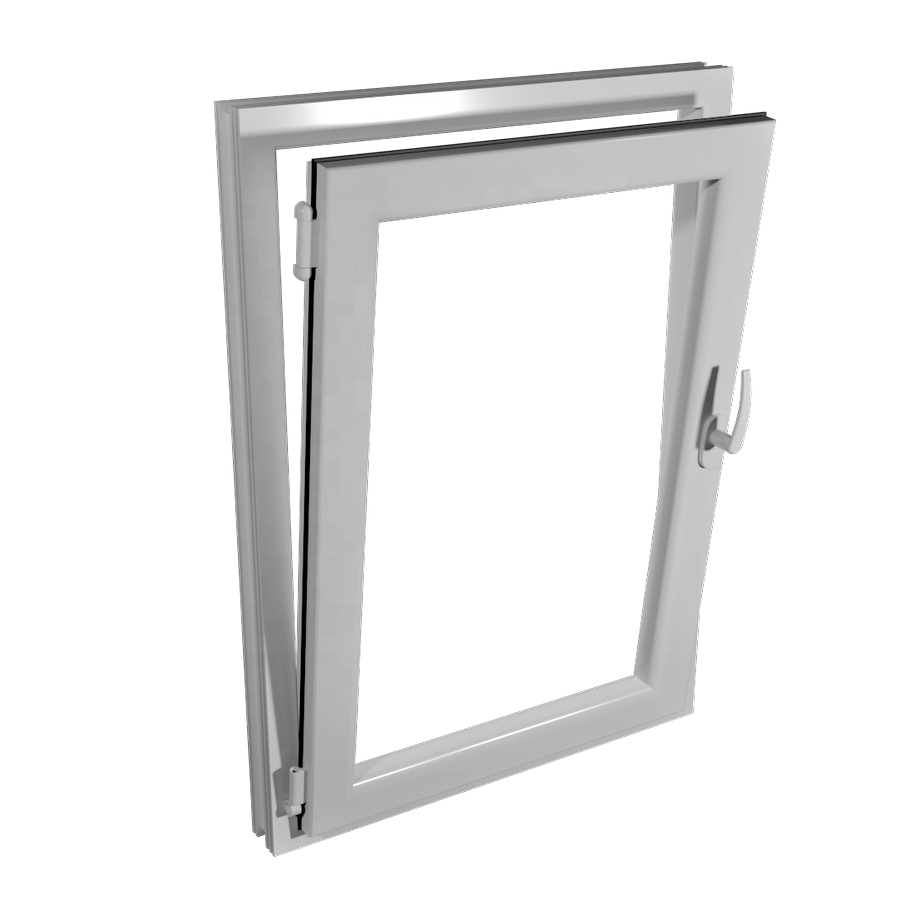

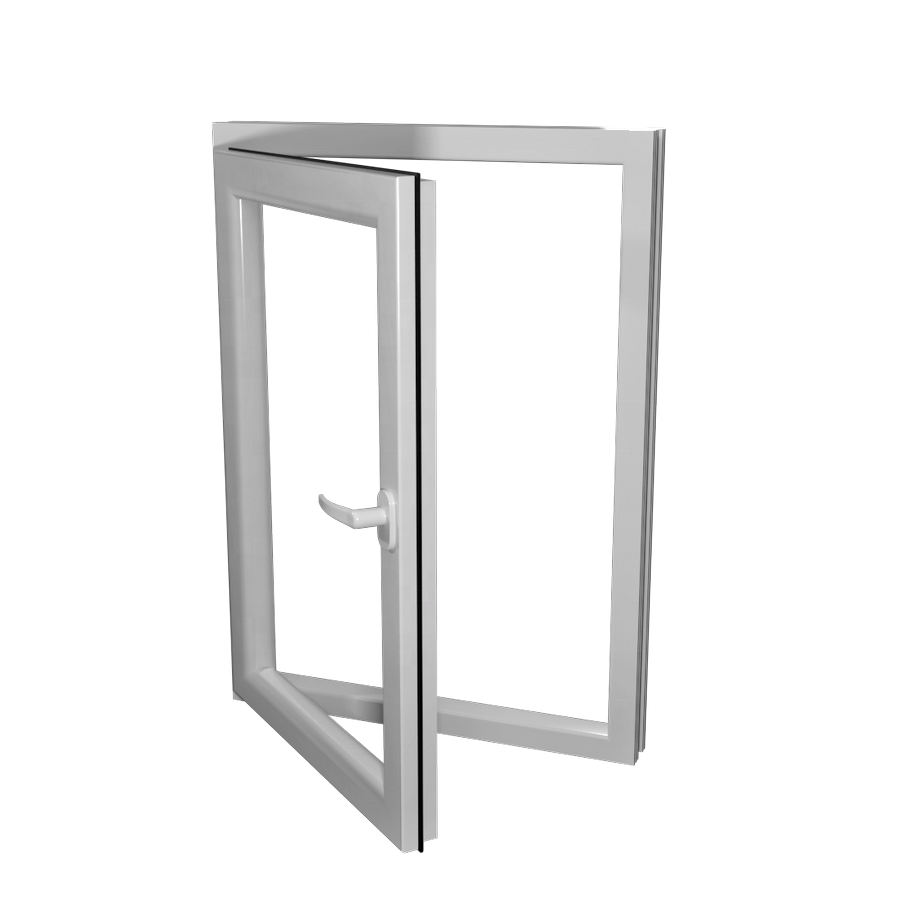

tilt and turn windows
Inward opening windows are a European classic and serve a dual function.

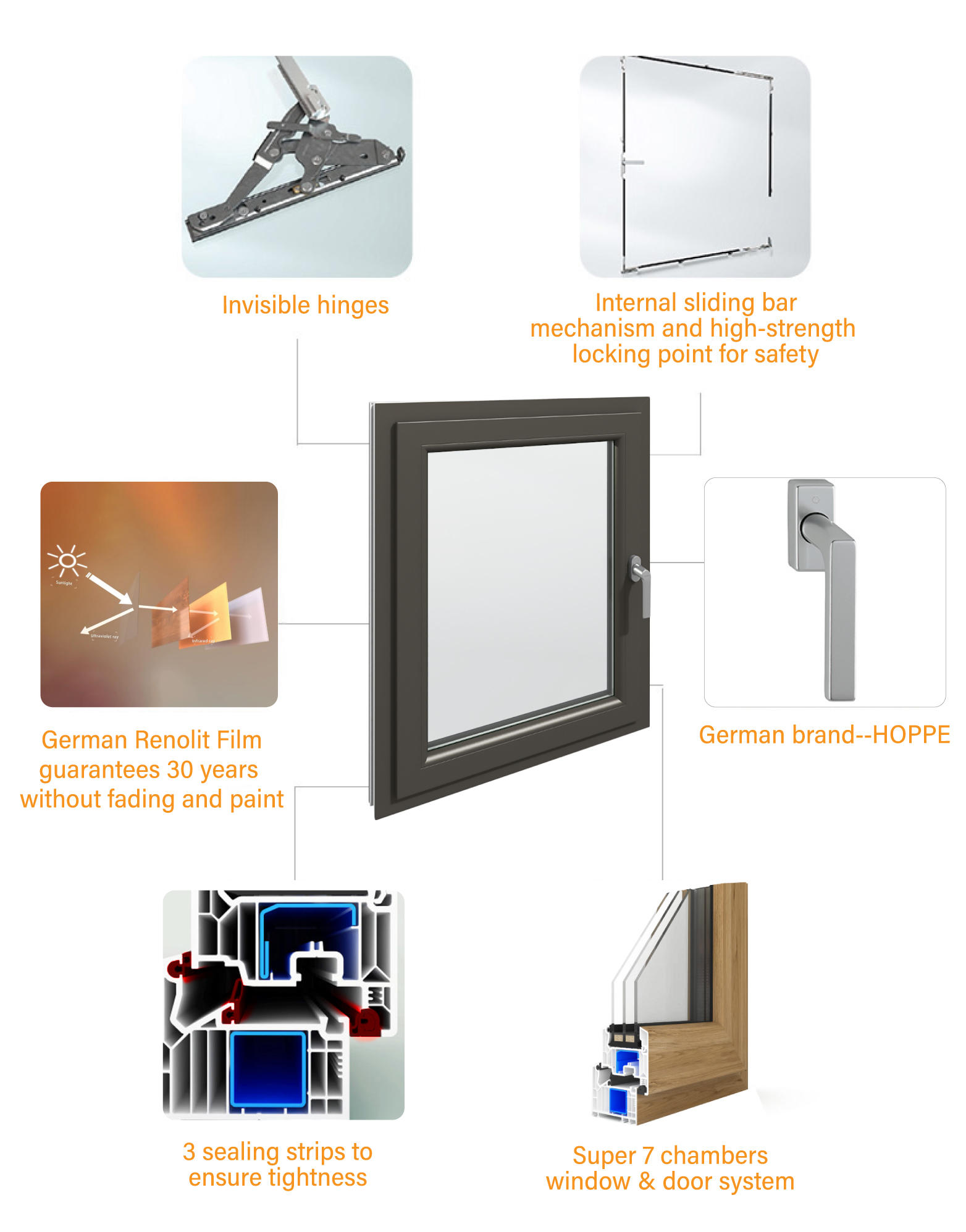

Our tilt and pivot windows achieve superior energy efficiency, airtightness, water resistance and sound control. The innovative and easy-to-operate European windows also provide good natural ventilation, high security and are easy to clean.
1. Multi-functional design, flexible ventilation; 2. Very suitable for small spaces; 3. Easy to use and maintain; 4. Air-tight insulation; 5. Wide field of view; 6. Safety function.
1. Multi-functional design, flexible ventilation; 2. Very suitable for small spaces; 3. Easy to use and maintain; 4. Air-tight insulation; 5. Wide field of view; 6. Safety function.

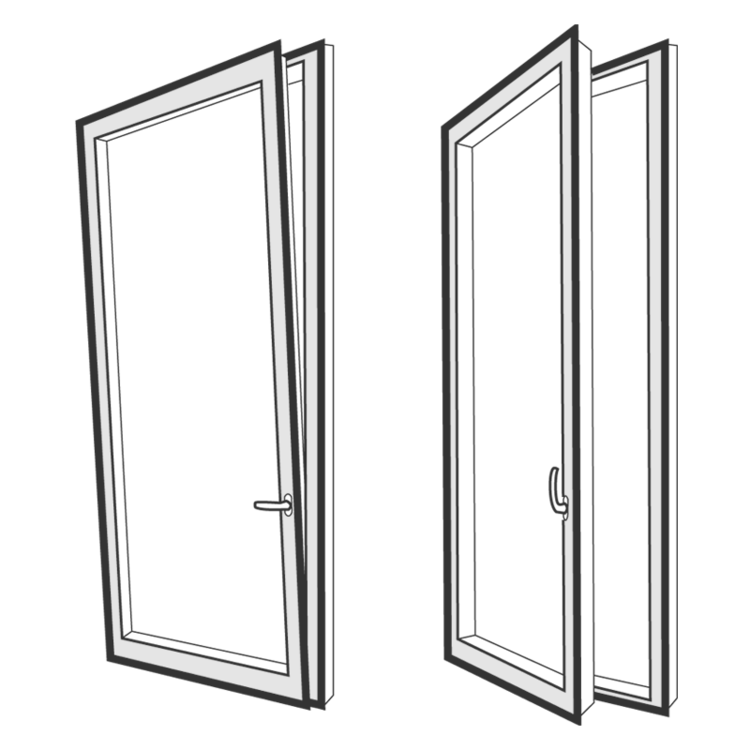

Steering state

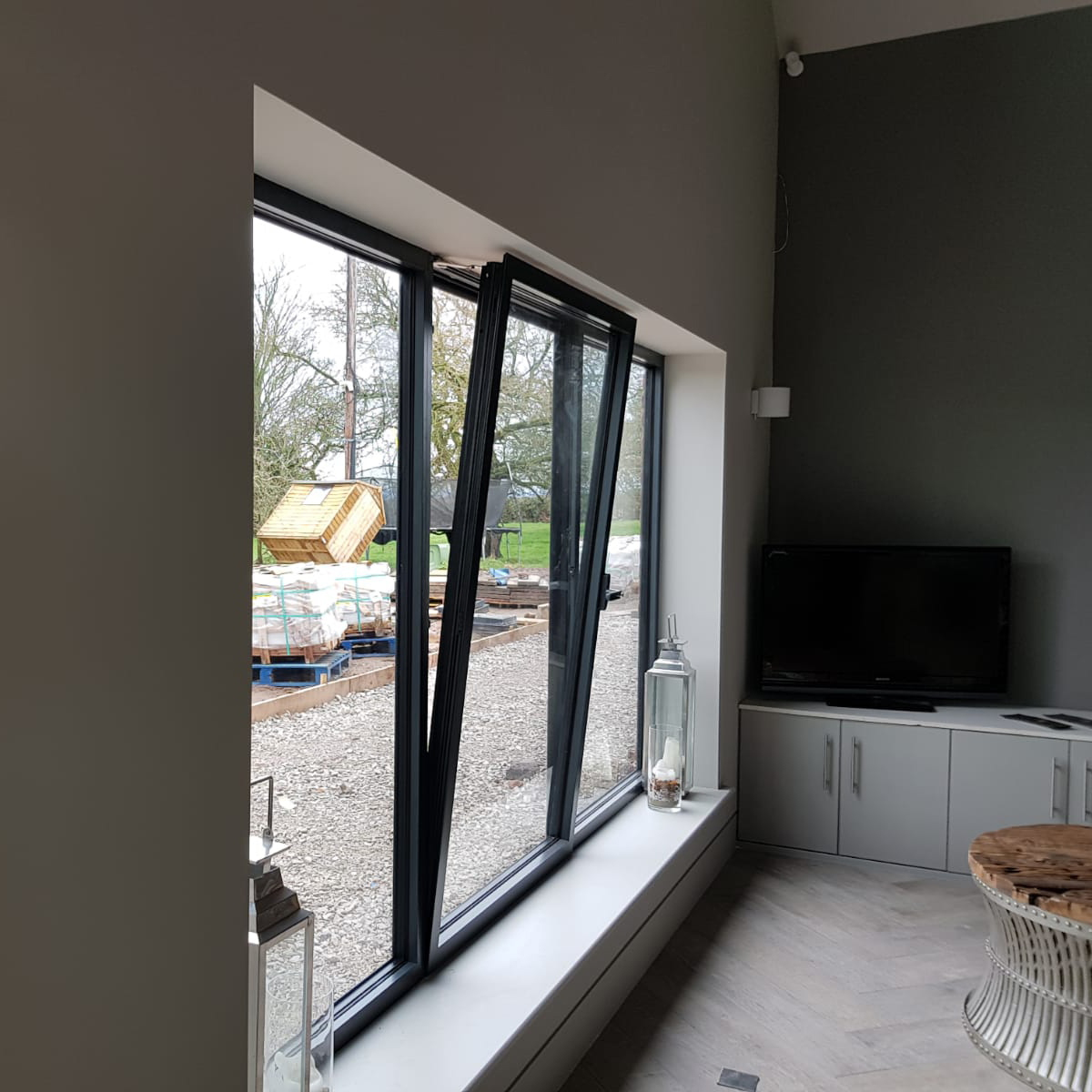

lean state
IGCC Compliant Privacy Glass

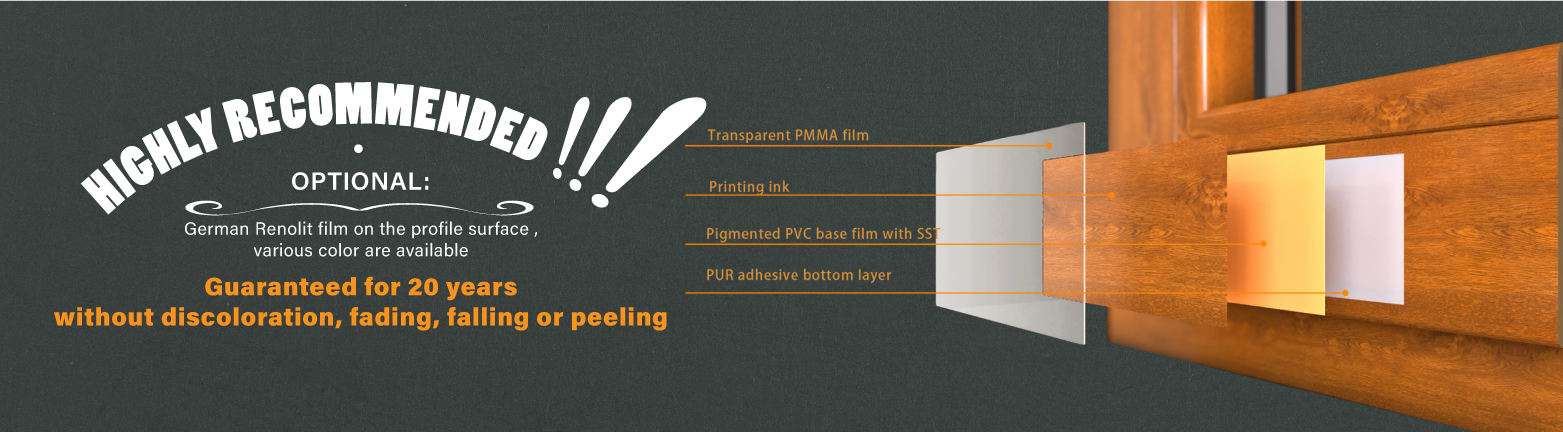

What is RENOLIT Film
①PMMA film
The unique SST solar thermal shielding technology reduces the impact of sunlight and heat on the surface of the profile and reduces the temperature of the profile, thereby ensuring that the profile does not deform even under strong sunlight and ensures the airtightness of the window.
② Printing ink
Rich colors and realistic textures.
③PVC base
The façade has strong anti-fading ability, does not fade or fall off. Easy to clean, clean as new.
④PUR bonded bottom layer
The coagulation process is irreversible, the coagulation strength is high, and the water resistance is good
* The surface material is imported from Germany;
* You can choose real wood grain style to save precious wood resources by means of technology;
* The surface is weather-resistant, acid-resistant, aging-resistant, corrosion-resistant, wear-resistant, pollution-resistant and easy to clean;
* The normal service life outdoors is more than 30 years;
* SST solar thermal shielding technology reduces the internal temperature of the profile;
* 50μm polyacrylate, anti-99% ultraviolet rays, improve the anti-ultraviolet ability of the profile, prolong the service life, 12000 hours aging resistance (xenon lamp) test.
The unique SST solar thermal shielding technology reduces the impact of sunlight and heat on the surface of the profile and reduces the temperature of the profile, thereby ensuring that the profile does not deform even under strong sunlight and ensures the airtightness of the window.
② Printing ink
Rich colors and realistic textures.
③PVC base
The façade has strong anti-fading ability, does not fade or fall off. Easy to clean, clean as new.
④PUR bonded bottom layer
The coagulation process is irreversible, the coagulation strength is high, and the water resistance is good
* The surface material is imported from Germany;
* You can choose real wood grain style to save precious wood resources by means of technology;
* The surface is weather-resistant, acid-resistant, aging-resistant, corrosion-resistant, wear-resistant, pollution-resistant and easy to clean;
* The normal service life outdoors is more than 30 years;
* SST solar thermal shielding technology reduces the internal temperature of the profile;
* 50μm polyacrylate, anti-99% ultraviolet rays, improve the anti-ultraviolet ability of the profile, prolong the service life, 12000 hours aging resistance (xenon lamp) test.

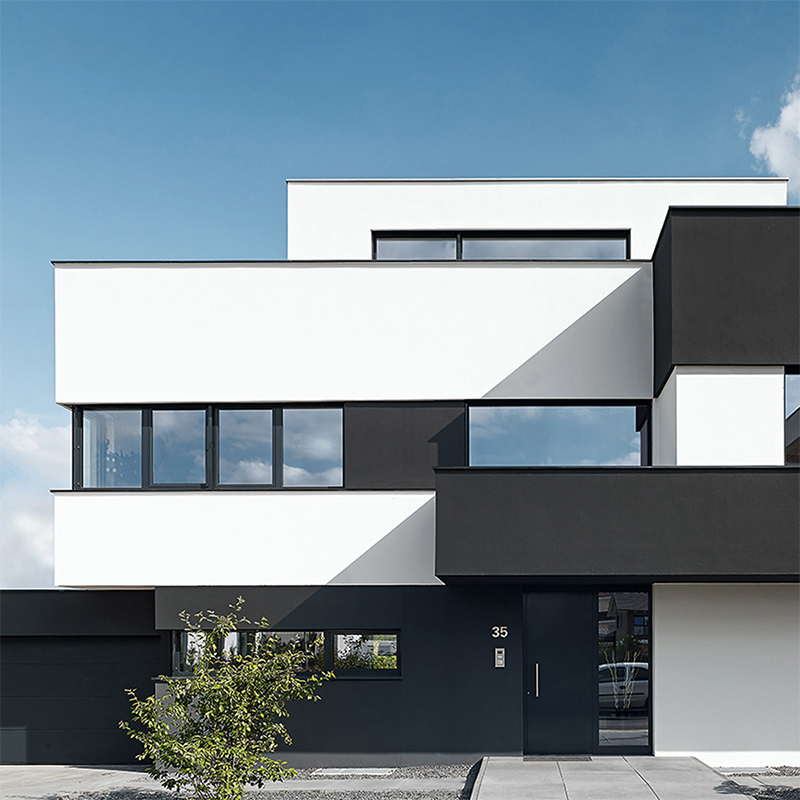

Tegood doors and windows case

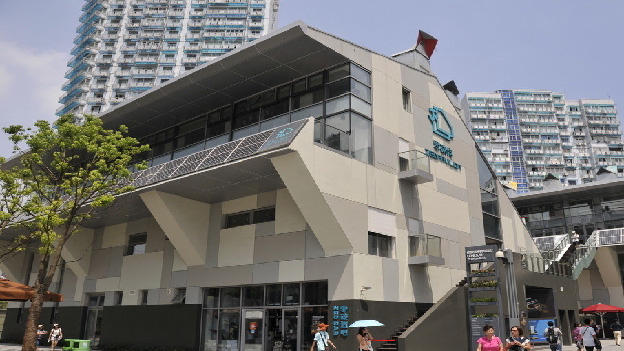

public building
World Expo. London Zero Carbon Pavilion
China Shanghai

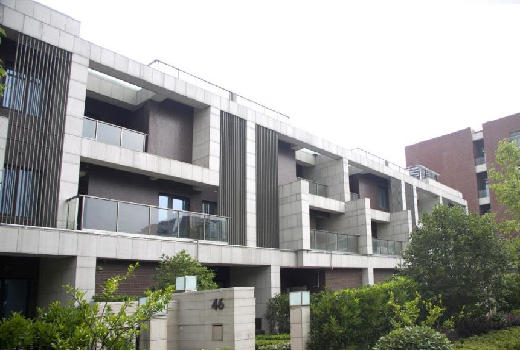

Sanxiang Sea Residence Shenzhen, China

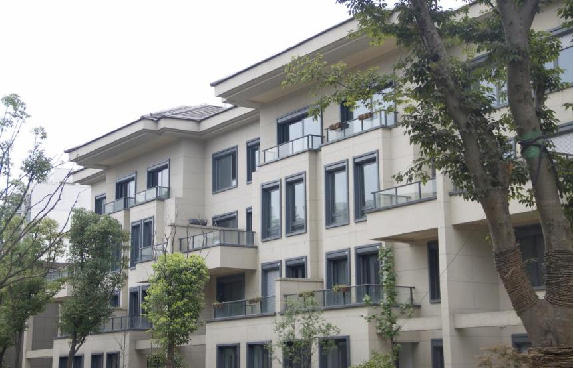

Suzhou Overseas Chinese Town Villa, China

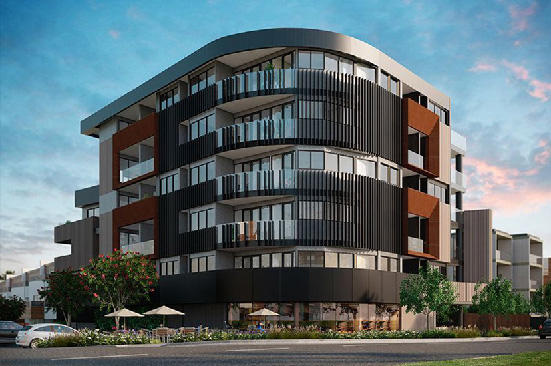

Mixed use of double glazing and interlayer for commercial system in Melbourne, Australia - 5 floors

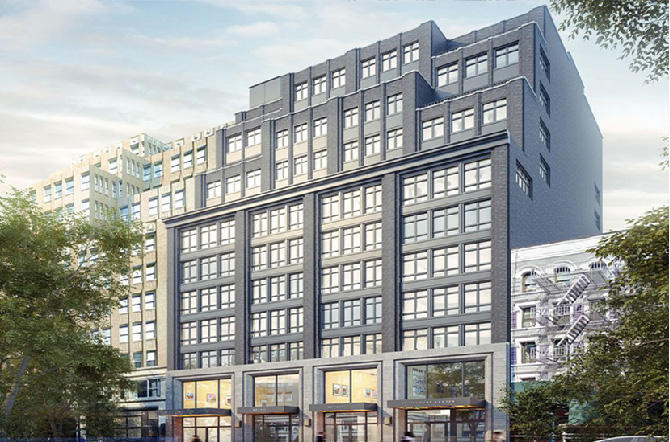

New York. USA
commercial residential building
Project area: 8,000 square meters

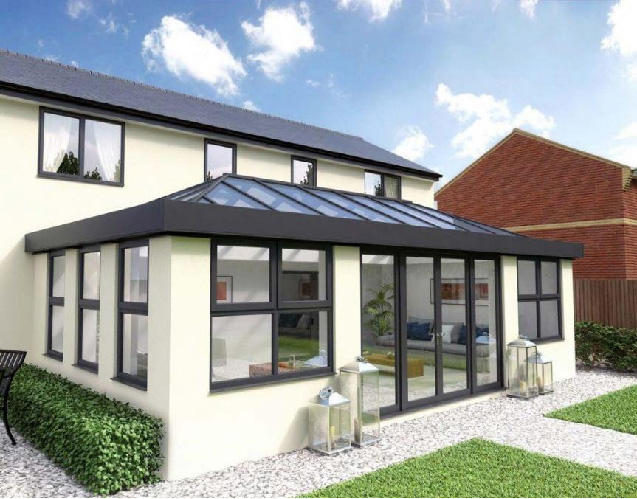

glass house uk

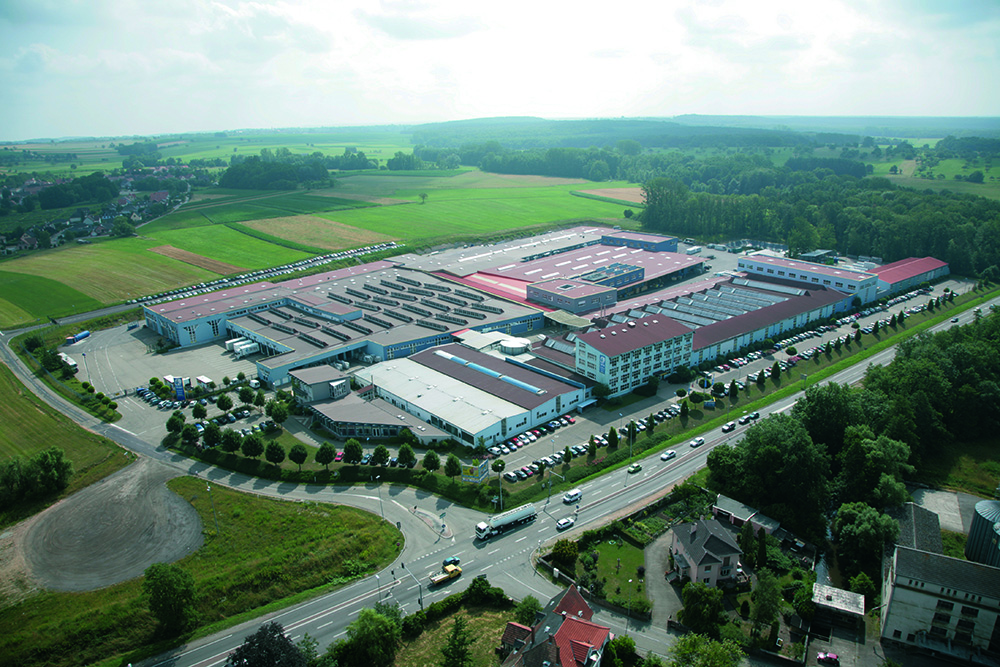

About the company
Company Profile
who are we?
Tegood windows, one of the top manufacturers in China, has more than 15 years of experience. Our factory is located in Shanghai, China, covering an area of 10,000 square meters, with an annual output value of about 100 million.
What do we do?
We mainly focus on high-end aluminum and UPVC doors and windows, passive energy-saving doors and windows, custom railings, glass houses, etc. The main markets are North America, Europe, Australia, Singapore, etc.
Why choose us?
Our goal is to provide customers with one-stop service of high-quality doors and windows. The unique design is not only more beautiful in appearance, but also more durable in daily use. Powerful protection for you and your home. Renolit film imported from Germany is rarely used on the surface of doors and windows, but we can do it.
It is designed to protect the door and window frames for 20 years against fading and peeling paint. Make your windows and doors stand out from the ordinary.
Plus, our products and designs isolate noise and provide outstanding thermal insulation. Won a number of certificates and patents. Tegu is the endorsement brand of Chinese system doors and windows.
Tegood windows, one of the top manufacturers in China, has more than 15 years of experience. Our factory is located in Shanghai, China, covering an area of 10,000 square meters, with an annual output value of about 100 million.
What do we do?
We mainly focus on high-end aluminum and UPVC doors and windows, passive energy-saving doors and windows, custom railings, glass houses, etc. The main markets are North America, Europe, Australia, Singapore, etc.
Why choose us?
Our goal is to provide customers with one-stop service of high-quality doors and windows. The unique design is not only more beautiful in appearance, but also more durable in daily use. Powerful protection for you and your home. Renolit film imported from Germany is rarely used on the surface of doors and windows, but we can do it.
It is designed to protect the door and window frames for 20 years against fading and peeling paint. Make your windows and doors stand out from the ordinary.
Plus, our products and designs isolate noise and provide outstanding thermal insulation. Won a number of certificates and patents. Tegu is the endorsement brand of Chinese system doors and windows.

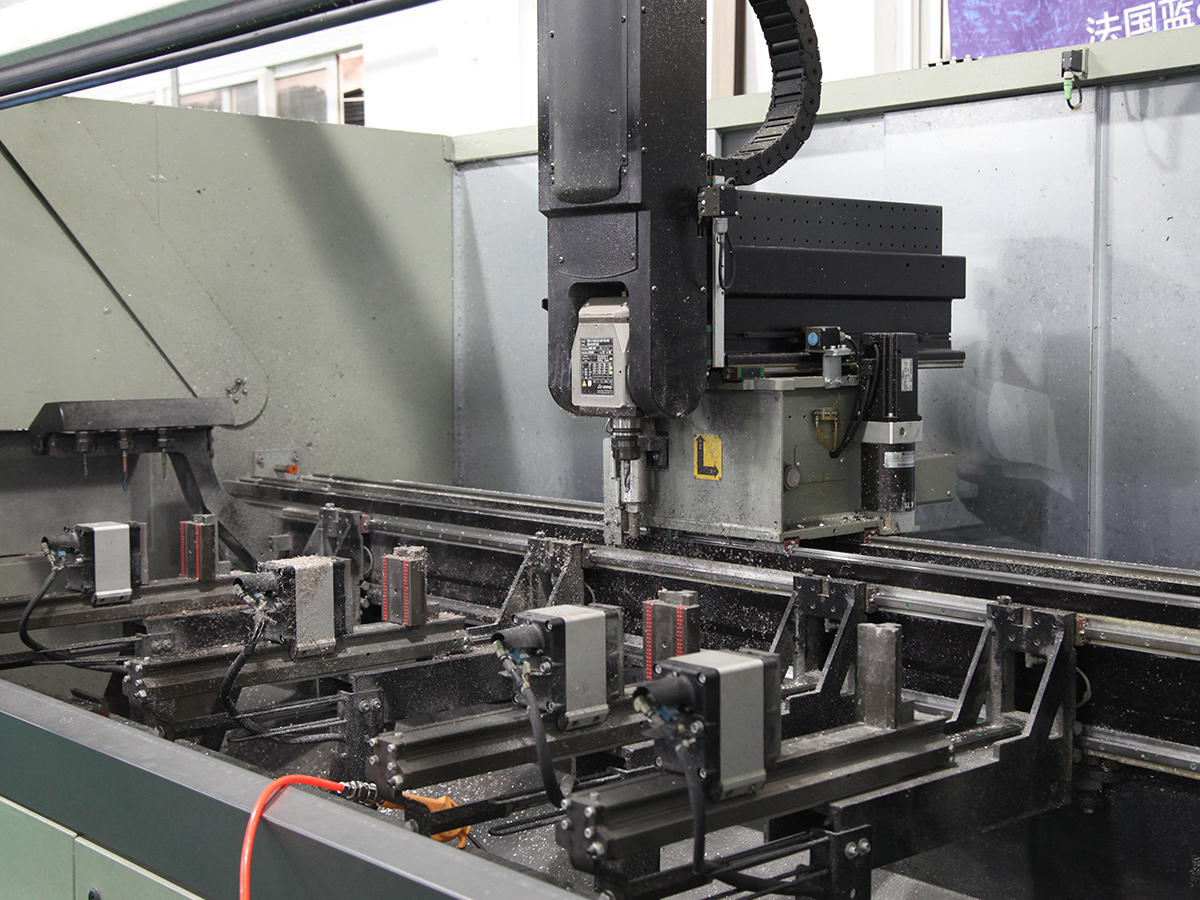

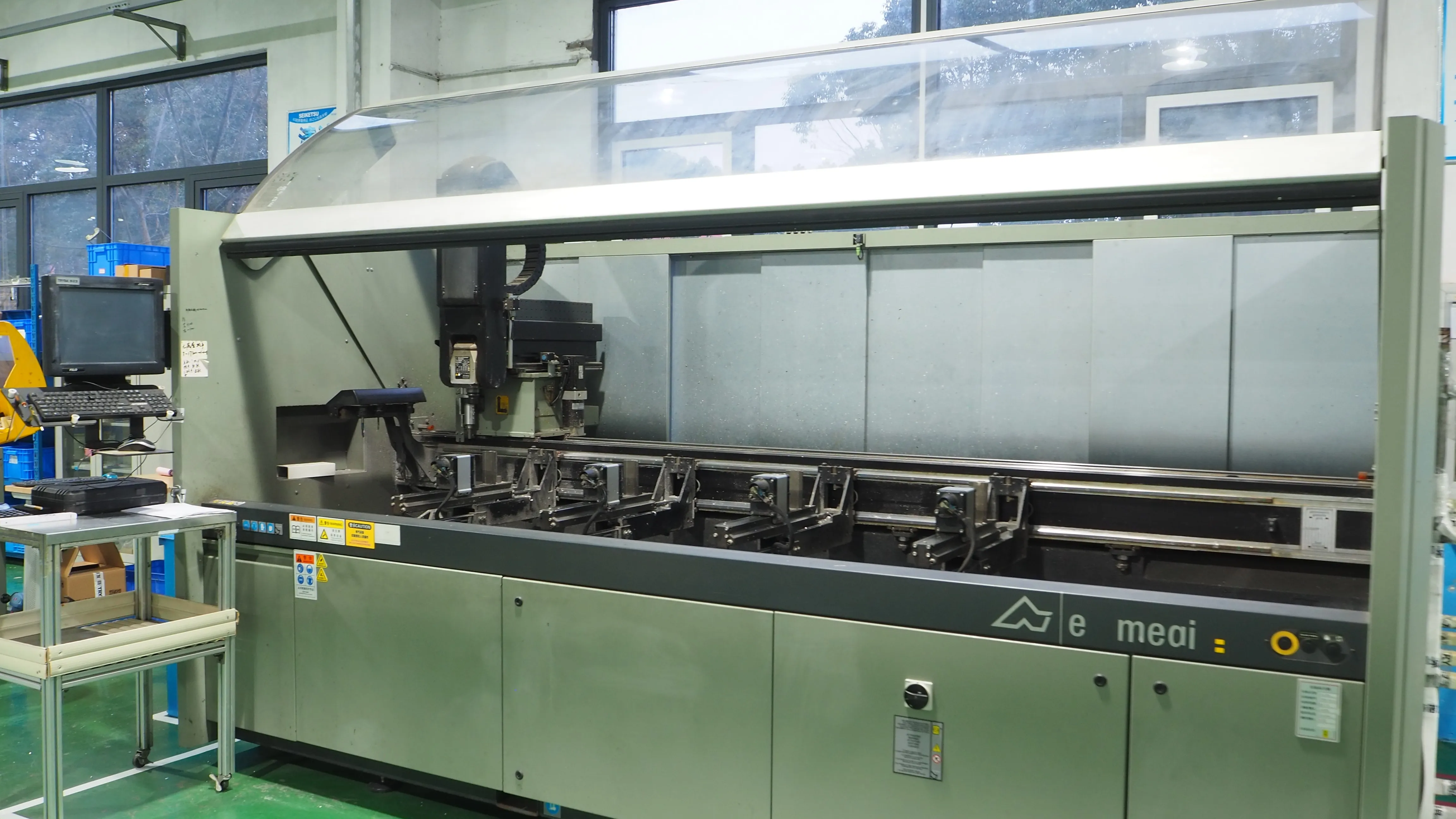

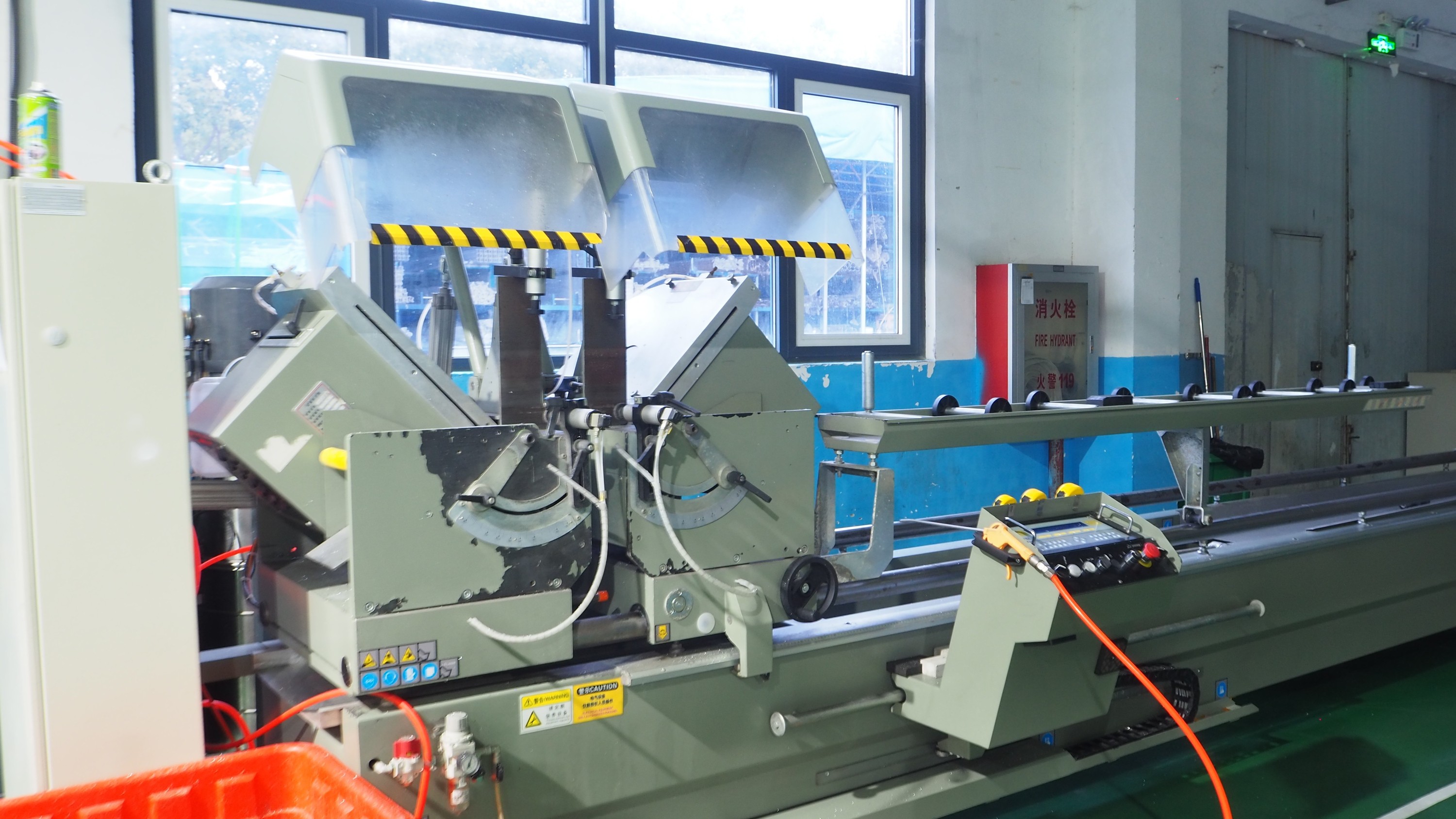

Workshop Details

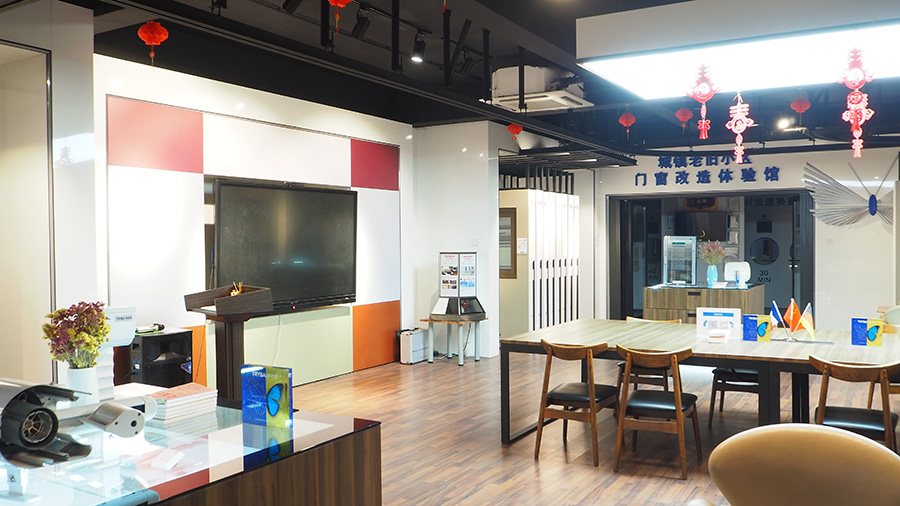

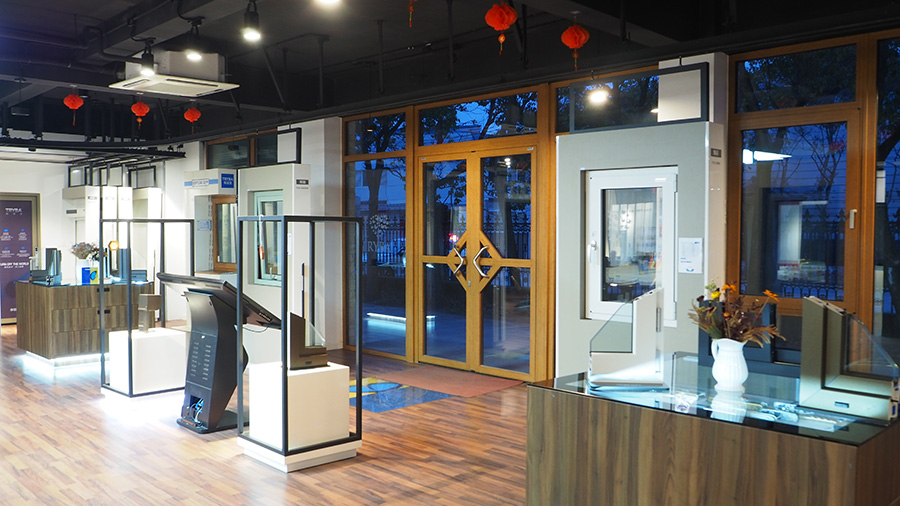

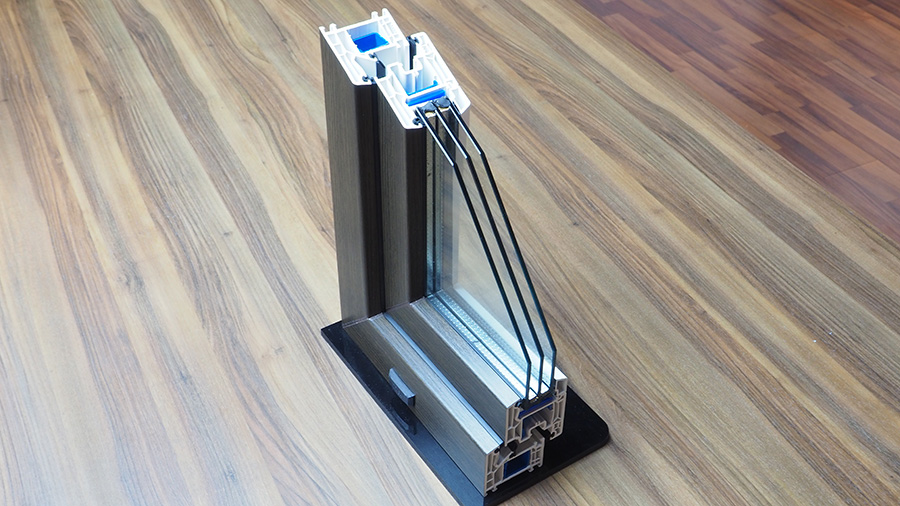

Sample room
