28828221 25ft 12/2 w/ground, Romexs Yellow or White Residential Indoor Wire Type NM-B Cable
-
$1.20 / 500 - 4999 meters
$0.35 / >=5000 meters - 500 meters
- Shanghai Kmcable Group Co., Ltd.
- Shanghai, China
- Ms cindy guo
Product Detail
| insulation: | PVC insulated cable | Supply capacity: | 10 million meters per week |
| model: | NM-B power cord | Package: | 100m/roll |
| shape: | flat cable | Insulation Materials: | pvc |
| Conductor material: | copper | application: | home wiring cables |
| Packaging Details: | Packing is our standard export packing | Package preview: | |
| Origin: | China Shanghai | Rated voltage: | 300/500V or 450/750V |
| port: | Shanghai | Voltage: | 450/750V300/500V300/300V.(600/1000V |
| Certification: | neutrophils | product name: | NM-B power cord |
| jacket: | Special PVC | payment terms: | Western Union, T/T, MoneyGram |
| conductor: | flexible copper | nuclear: | 2-5 cores |
| brand: | Kunming Cable | Conductor Type: | hard |
| type: | Insulation | standard: | UL719 |
Product Description
Type NM-B (Non-Metallic Sheathed Cable) is intended for general use as defined in Article 334 of the National Electrical Code (NEC). NM-B type cables are typically used in residential fixtures, switches and loads rated for at least 90°C. Type NM-B ampacity limits shall be in accordance with the 60°C conductor temperature rating specified in the National Electrical Code. Model NM-B is rated at 600 volts and is suitable for both exposed and concealed work in normally dry locations. Model NM-B can be installed or hung in air voids and joints and in block or tile walls that are not exposed to or affected by excessive moisture or moisture.

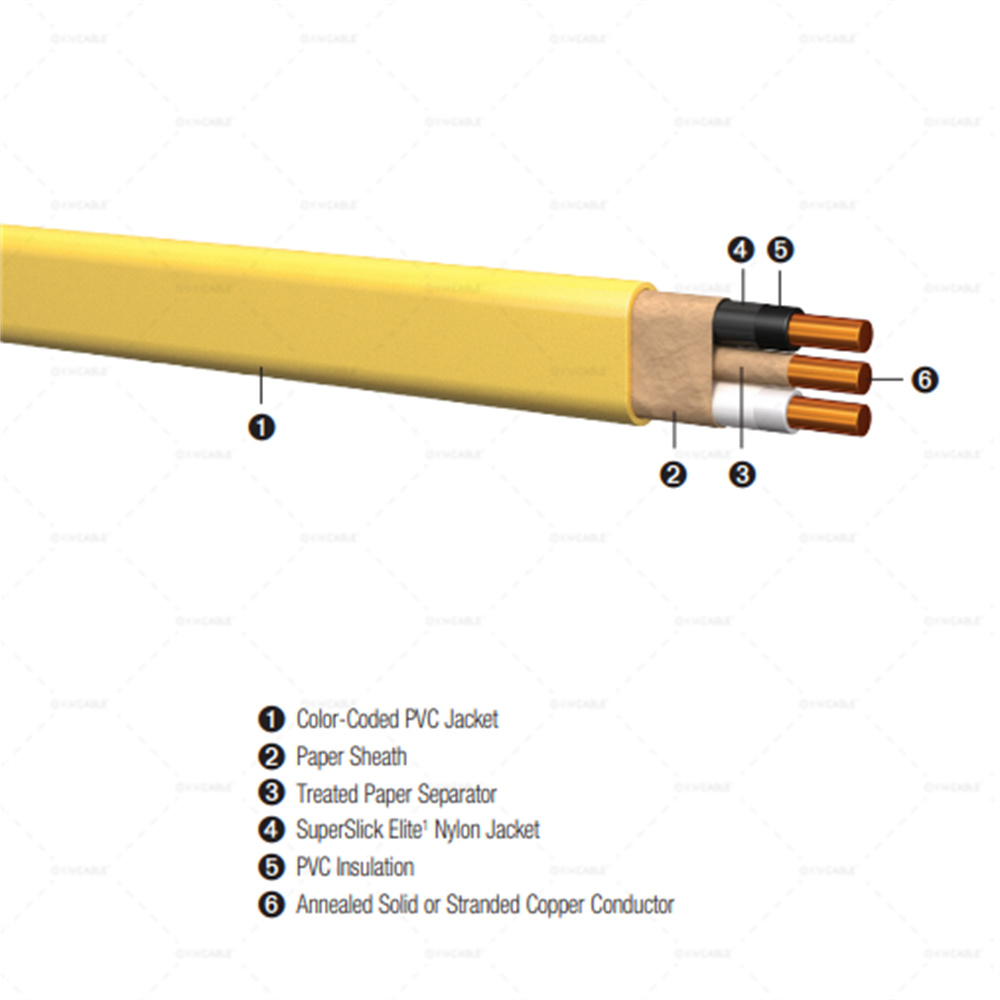

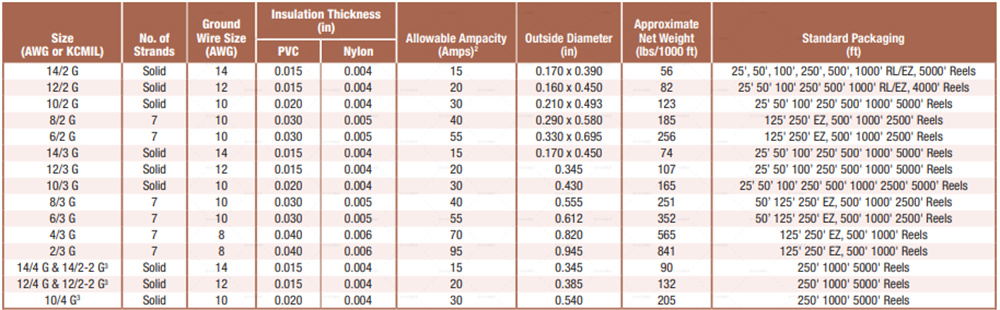

Specification

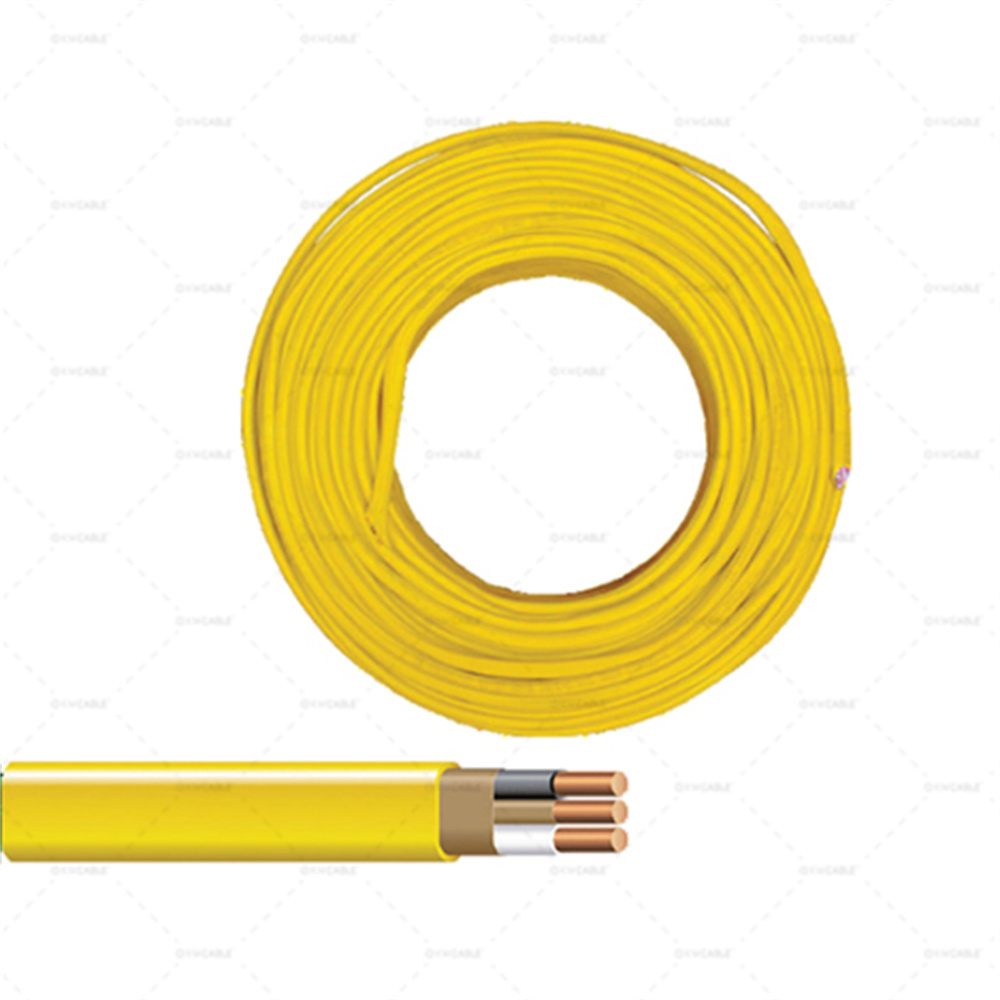

detailed picture

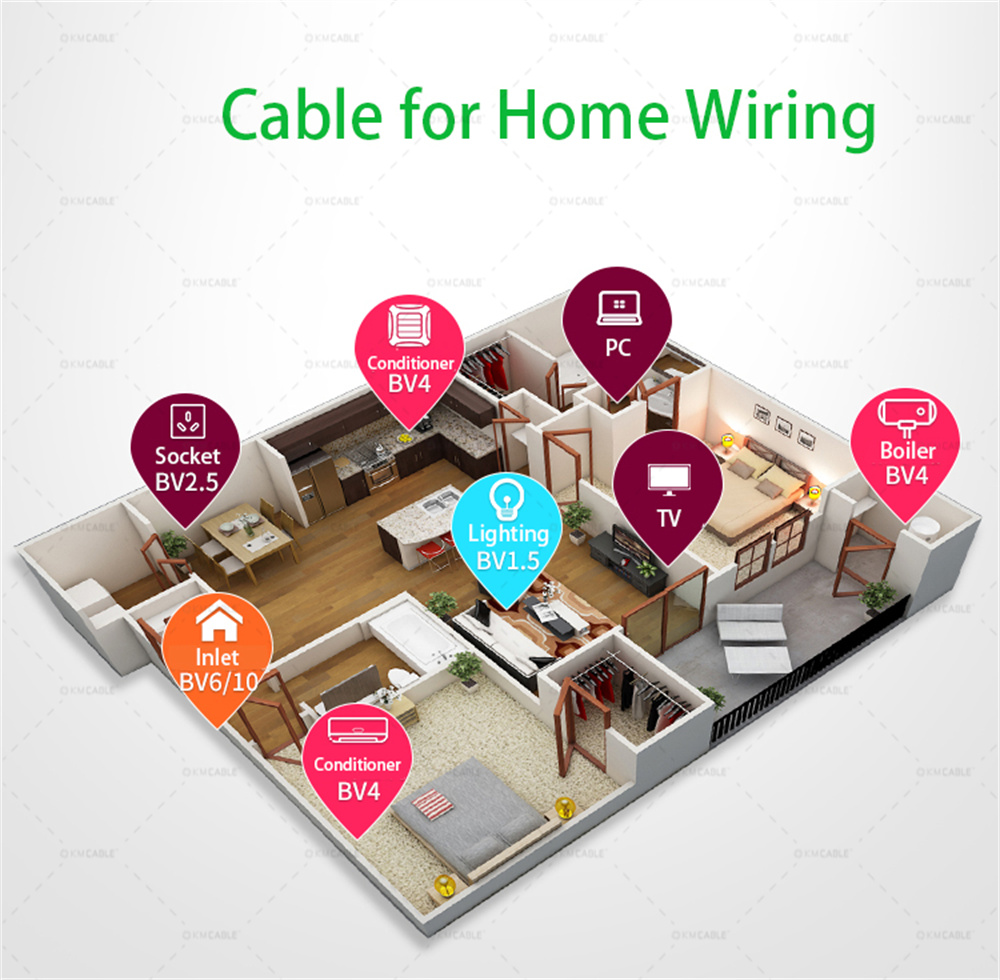

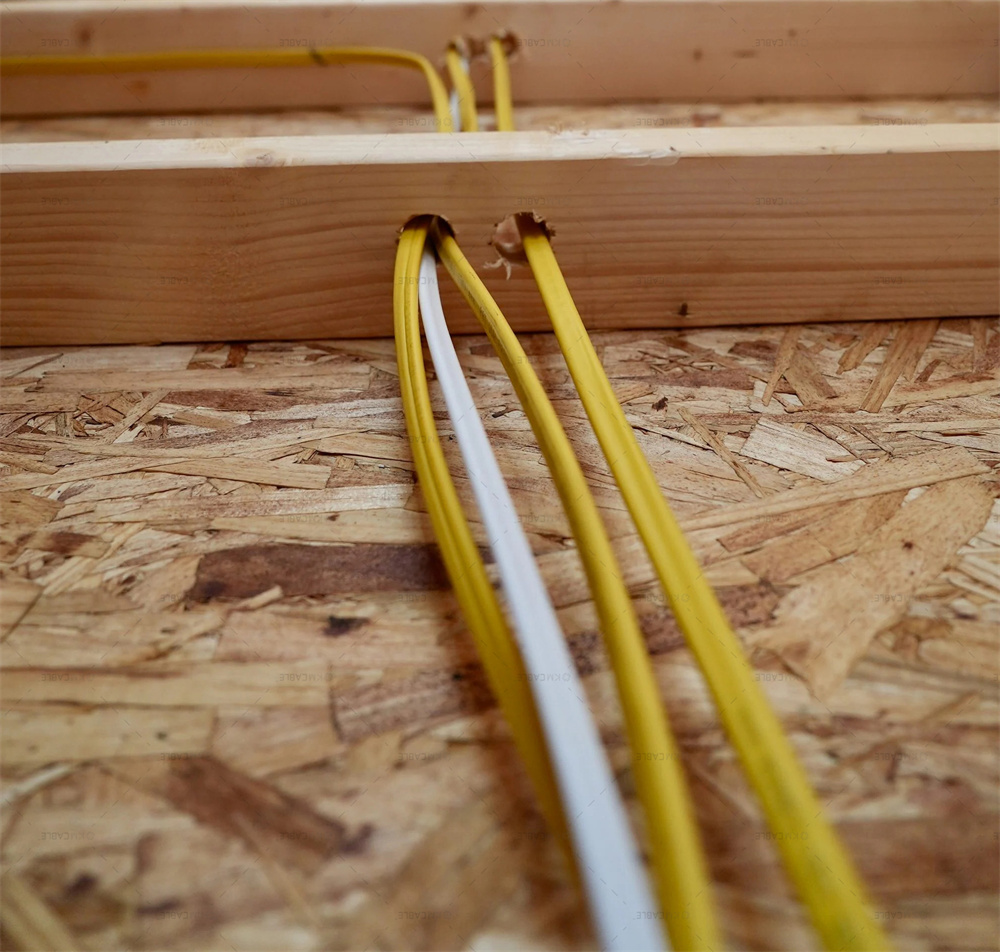

application
