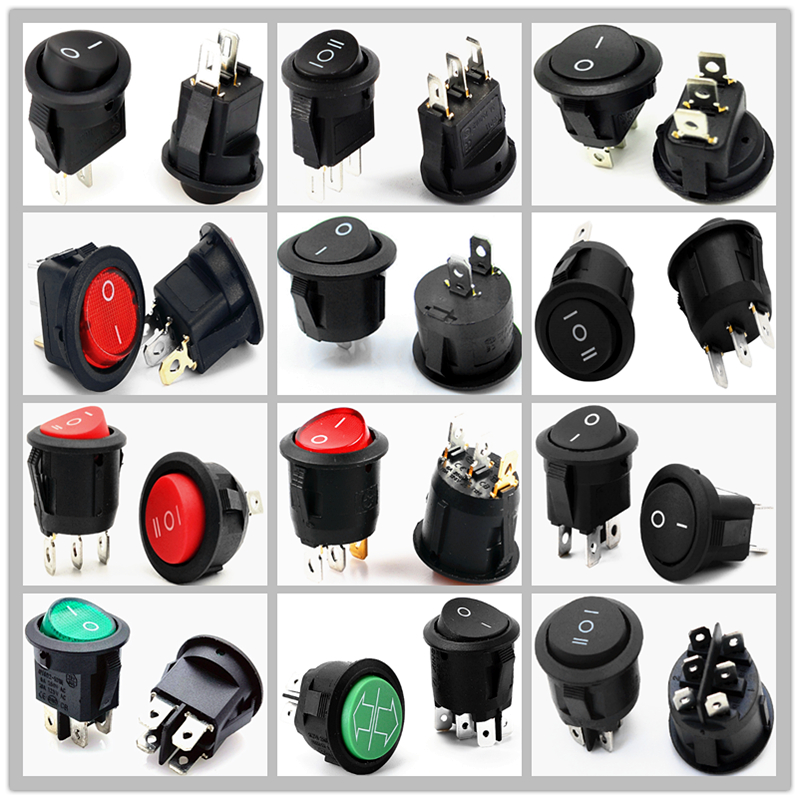

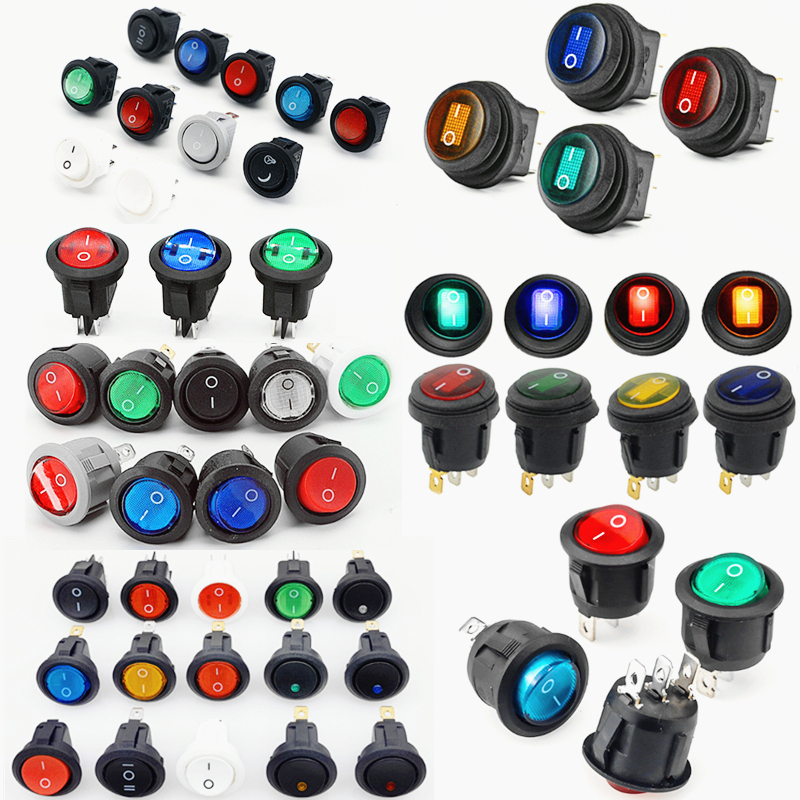

Waterproof Round Switch 15MM / 20MM / 22MM LED Illuminated Kcd1 / 12 Volt / 24 Volt / 220 Volt / 3/4 Pin 2 Way Rocker
- $0.05 / >=100 pieces
- 100 pieces
- Yueqing Leniu Electronics Co., Ltd.
- Zhejiang, China
- Mr Zhang Bing
Product Detail
Origin: | Zhejiang, China | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
maximum. Voltage: | 250V/125V | Certification: | CQC/CE/CB/IEC/TUV |
brand: | Le Niu | maximum. current: | 3A/6A/10A |
model: | KCD1/KCD11/KCD1-105/KCD1-101 | Mechanical life: | 10000 times |
Whether smart: | No |
Product Soldering: PTI 175

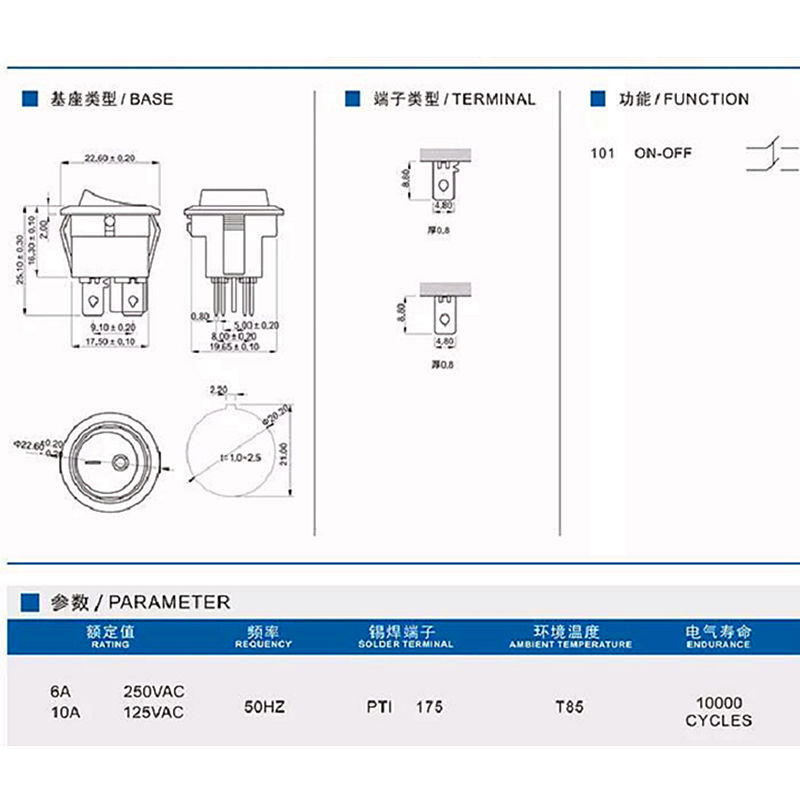

Product size: 15/16/20/22MM
Product configuration:With LED or without LED
product material:copper, iron, silver
Product power:3A/6A/10A 250V/125V

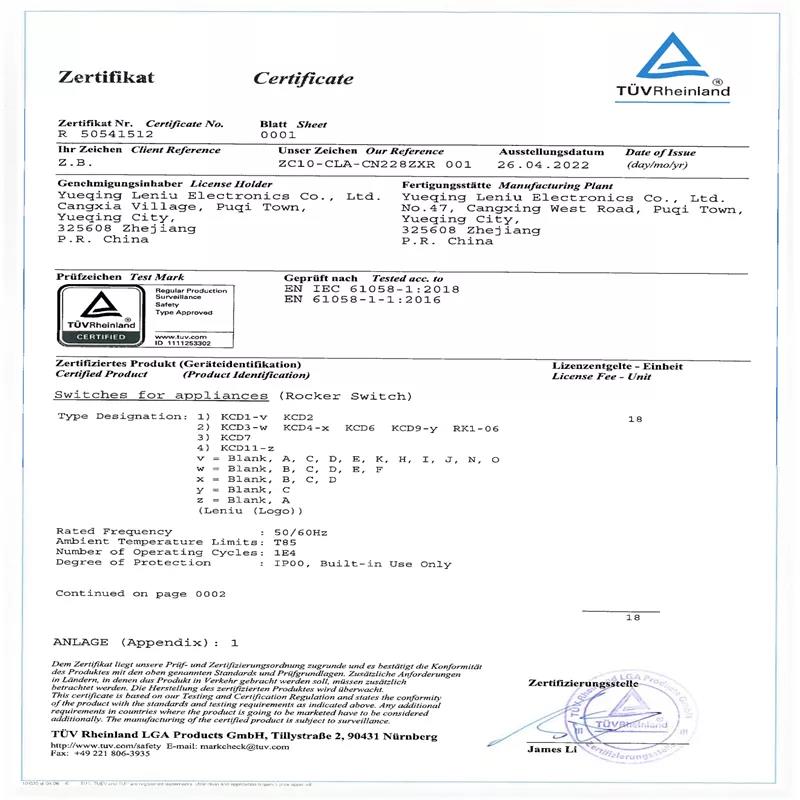

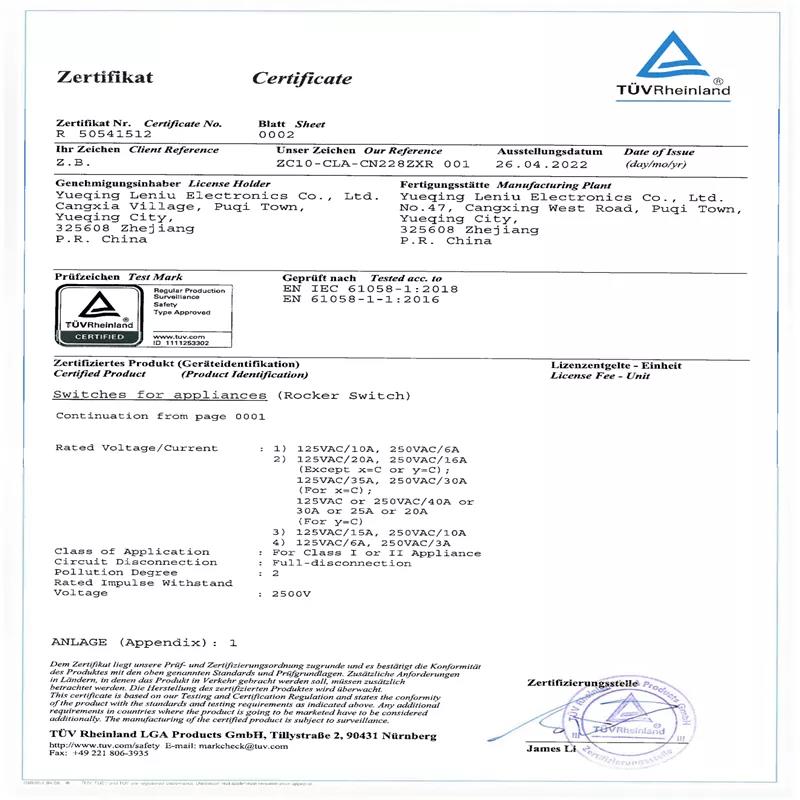

certified product:CCC, CQC, CE, CB, TUV
Product temperature: T85/1E4/IP66/IP65/IP67/IP64
Product lighting:Optional 12V 24V 110V 220V (customized)
Product color:Red, yellow, blue, green, black, white, gray (support customization)
Product number:Kcd1/Kcd1-101/Kcd1-102/Kcd1-103/Kcd1-104/Kcd1-105
Kcd11-101/Kcd11-102/Kcd11-103
Product terminal:

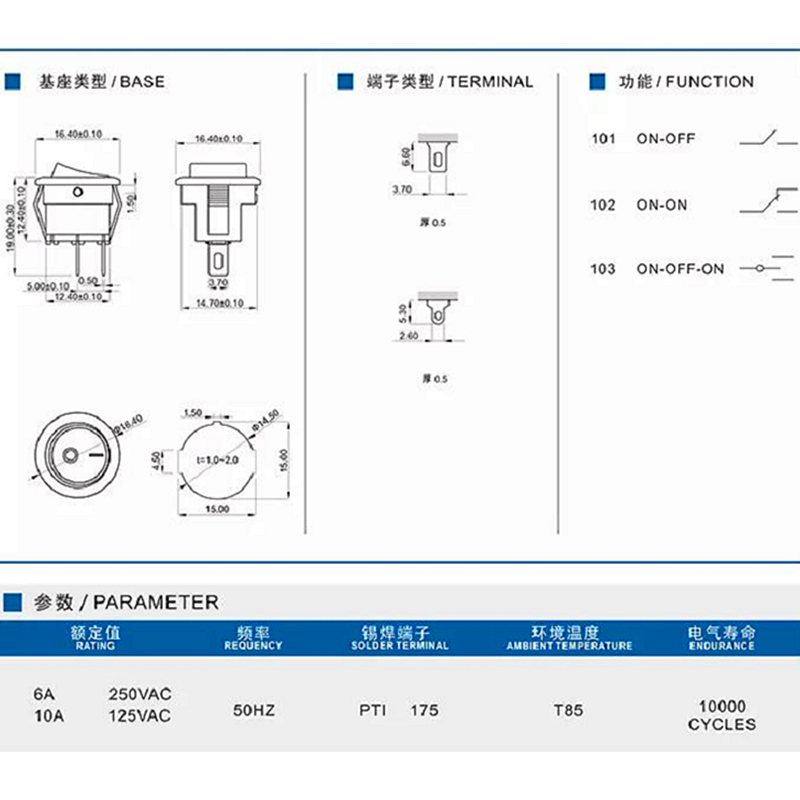

15mmpinElective
2 pins/3 pinsround switch pin
(3.7X6.6 mm and 2.6X5.3 mm)
Product FeaturesElective:
No. 101: ON-OFF (with lights(no lights)
No. 102: On-On (no lights)
No. 103: ON-OFF-ON (no lights)
22mmpinElective
2Pin/3Pin/4Pin/5Pin/6Pin round switch pin
(4.7X7.00mm)
Product FeaturesElective:
No.101: Switch (no light)
No. 102: On-On (no lights)
No. 103: ON-OFF-ON (no lights)

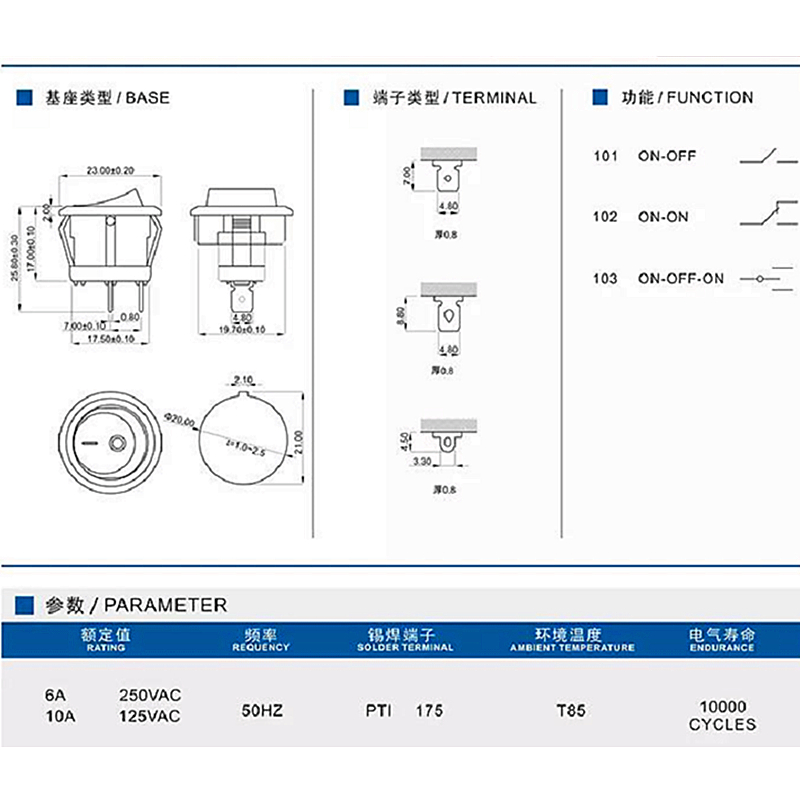

20mmpinElective
2Pin/3Pin/4Pin round switch pin
(4.8X8.8mm)
Product FeaturesElective:
No. 101: ON-OFF (with lights(no lights)

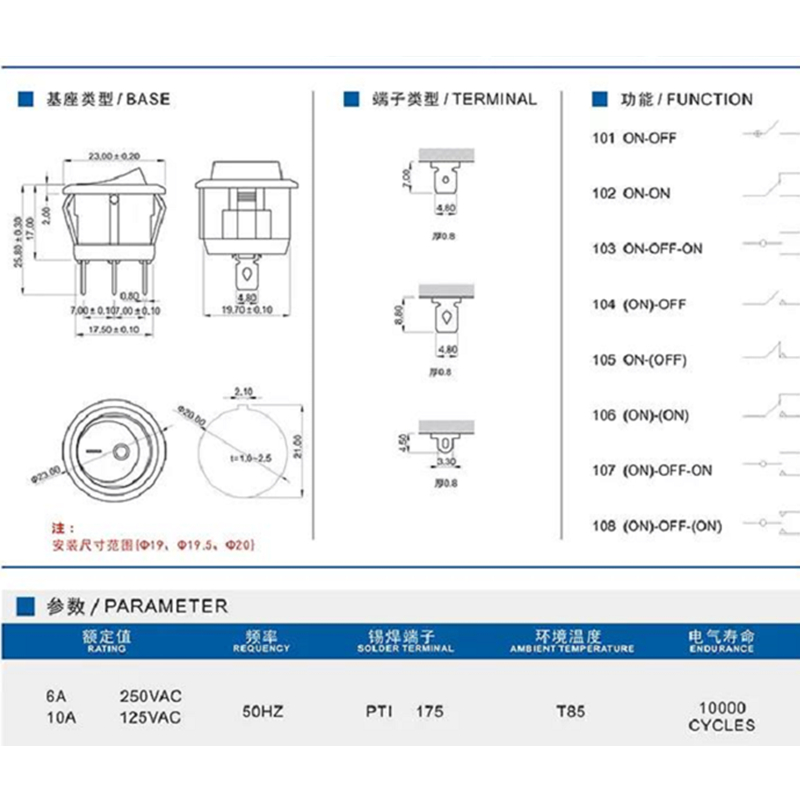

20mmpinoptional customization
2Pin/3Pin round switch needle
(4.8X7.0mm and 4.8X8.8mm and 3.3X4.5mm)
Product FeaturesElective:
No. 101: ON-OFF (with lights(no lights)
No. 102: On-On (no lights)
No. 103: ON-OFF-ON (no lights)
No.104: (on) - off (no light)
No.105: On-(Off) (No light)
No.106: (on) - (on) (no light)
No. 107: (on) - off - on (no light)
No.108: (on)-off-(on) (no light)
Product function description:
101: switch(Press the power, press the power, referred to as: self-locking switch,
Usually applicable to: printers, electronic scales, etc. Main control power circuit switch,
Turn on the power when in use, turn off the power after use)
No. 102: ON-ON(Press the power release button to turn off the power,
Abbreviation: momentary switch or reset switch or normally closed switch
No. 103: On-Off-On(Press on-press off-press on to control the power supply,
Abbreviation: 3-position switch, usually applicable to: speed regulation of motors, blowers, fans, etc.
Stepless speed regulation, forward rotation, reverse rotation, double control of one product
dual-purpose multi-purpose power switch)
No. 104: (ON) - OFF(Usually Power On - Press Power Off, Idle/Normal State: Power On, Abbreviated: Normally Open Switch)
No. 105: ON - (OFF)(Usually shut down and press power on, idle/normal state: power off,
Abbreviation: normally closed switch)
No. 106: (open) - (open)Press power off release power on,
Referred to as momentary switch or reset switch or normally open switch
No. 107: (ON) - OFF - ONOne-side press to start power off/one-side press to power on, referred to as single reset switch or single momentary switch
No. 108: (ON) - OFF - (ON)Press both sides to start the power - let go to turn off the power, referred to as double reset switch or double momentary switch
(Note: Due to many factors such as language translation and product market cycle, the above data is for reference only, please contact the online seller service consultation for specific matters)
Rated working voltage, rated current | 3A/6A/10A/125V/250V |
Operating temperature rangeTemperature | -25+85℃ |
contact resistance contact resistance | <0.03Ω |
Actuation force | 1.3+0.5N |
Insulation resistance Insulation resistance |
