quick open faucet filter
- $0.30 / >=3000 pieces
- 3000 pieces
- Ningbo Fenghua Jintong Sanitary Ware Co., Ltd.
- Zhejiang, China
- Ms Maggie Ma
Product Detail
model: | JF18M8R90 | place of origin; place of origin: | Zhejiang, China |
type: | faucet cartridge | port: | Ningbo |
Material 2: | ceramics | brand: | Giti |
use: | faucet | weight: | 20-120 grams |
Material: | brass | payment terms: | L/C, T/T |
Supply capacity: | 200000 pieces per month | size: | 1/2 3/8 3/4 |
Packaging Details: | According to buyer's design and demand | Shipping Details: | 30 days |
Material: | ceramics | color: | yellow |
We mainly produce metal products, brass cartridges,
Faucet fittings, brass valves, angle valves, PP-R pipe fittings and sanitary ware.
We already have 20 years of operating experience,
Strong technical force and perfect marketing system

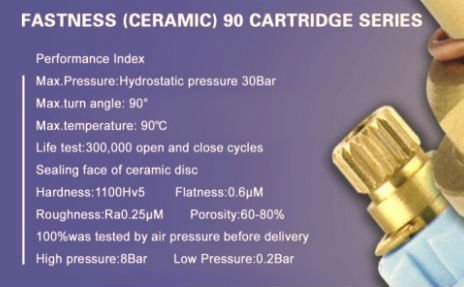

Specifications¶m
◊Instructions for use
maximum. rotation angle | 90° | maximum. temperature | 90° | |||||||||||||
The relationship between pressure and flow | ||||||||||||||||
Pressure (Mpa) | 0.05 | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | ||||||
average traffic | 16.8 | 22.9 | 28.0 | 32.5 | 36.0 | 38.7 | 40.6 | 42.4 | 43.3 | 47.6 | ||||||
Assembly method | Threaded connection G3/4" |
◊ Performance testing
strength test | Static pressure 3.5Mpa | Torque test | ≥15Nm | ||
When the static pressure is zero, the left and right rotation torque Nm | 0.15-0.25Nm | ||||
Sealing test | static pressure | Air | high pressure | 1.0Mpa | |
low pressure | 0.02Mpa | ||||
cold water | high pressure | 2.5Mpa | |||
low pressure | 0.05Mpa | ||||
dynamic pressure | 0.3Mpa | ||||
life test | 300,000 opening and closing cycles |
◊ Ceramic
Ceramic Process Requirements | ||||
Ceramic disk sealing surface | hardness | ≥1050HV5 | roughness | ≤Ra0.2um |
Flatness (light band) |
Performance:

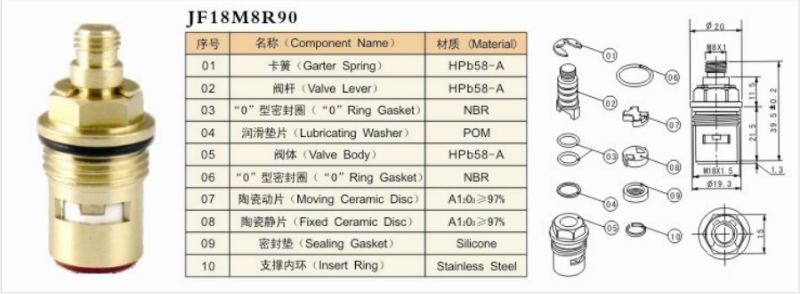

Design sketches and construction drawings:
Precise and reliable components:
