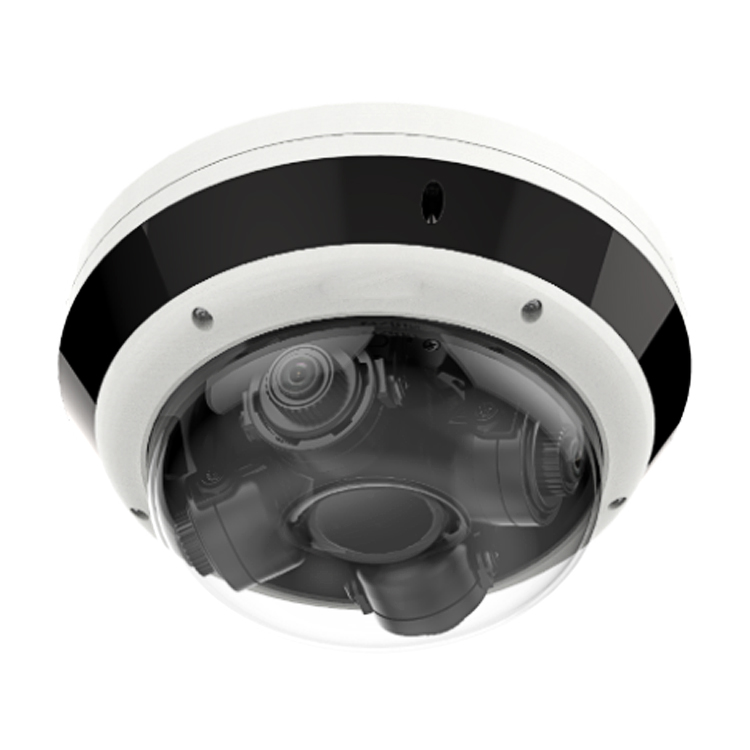

4 Way Multi-Sensor 360 Degree Panoramic Camera DS-2CD6D54G1-IZ(S) Camera 360 Degree

What are the specifications of this product?

4-way multi-sensor IP camera

• One machine with four adjustable lenses, covering the maximum 360° field of view, ensuring no blind spots in monitoring, and the monitoring tilt angle can be adjusted
• Up to 5 MP per lens captures sharp images and more details for display on the video wall
• Clear images in strong backlight with 120 dB true WDR technology
• Waterproof, dustproof (IP67) and vandal-resistant (IK10)
• 3D DNR technology provides clear and sharp images
• -S: Provide audio and alarm interface

• camera
• Image Sensor 1/2.7" Progressive Scan CMOS
• minute. Illumination Color: 0.0125 Lux @(F1.9, AGC ON) Black & White: 0.0025 Lux @(F1.9, AGC ON), 0 Lux (with IR)
• Shutter speed 1 second to 1/100,000 second
• slow shutter is
• Day and Night IR Cut Filters
• Angle Adjustment Pan: -60° to 60°, Tilt: 10° to 90°, Rotation: 0° to 350°
• Wide dynamic range 120 decibels

• lens
• Aperture F1.9
• Focus manual, semi-automatic
• FOV Horizontal FOV 100° to 49°, Vertical FOV 72° to 36.4°, Diagonal FOV 134.4° to 61.4°
• Lens mount Ø14
• Lens Type Zoom Lens, 2.8 to 8 mm

• illuminator
• Infrared range up to 30 m
• Wavelength 850nm

• video
• maximum. Resolution 2560×1920
• Stream defined by Video Stream3
• Main Stream 50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
• Substream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 24 fps (704 × 480, 640 × 480)
• Third stream 50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Video compression main stream: H.265+/H.265/H.264+/H.264 sub stream: H.265/H.264/MJPEG third stream: H.265/H.264
• H.264 type Baseline Profile/Main Profile/High Profile
• H.265 Type main introduction
• Video bitrate 32 Kbps to 16 Mbps
• SVCH.264 encoding
• H.264+ mainstream support
• H.265+ mainstream support

• sound
• Audio Compression Band-S Model: G.711/G.722.1/G.726/MP2L2/PCM
• Audio bit rate-S model: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
• Ambient Noise Filter Belt-S Models: Yes
• Audio Sampling Rate-S Models: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

• Smart feature set
• Smart Event cross detection, can configure up to 4 lines Intrusion detection, can configure up to 4 areas Area entry detection, can configure up to 4 areas Area exit detection, can configure up to 4 areas Unattended baggage detection, can configure up to 4 areas Object removal detection in four zones, up to 4 zones configurable scene change detection, audio anomaly detection (-S), defocus detection
• Basic event motion detection, video tampering alarm, abnormality (network disconnection, IP address conflict, illegal login, hard disk full, hard disk error)
• Regions of interest 4 fixed regions per stream and dynamic face tracking
• Linkage upload to FTP/NAS/memory card, notify monitoring center, send email, trigger alarm output, trigger video recording, trigger snapshot

• image
• Image Enhancement BLC, HLC, 3D DNR, Defog, EIS
• Image settings Rotation mode, saturation, brightness, contrast, sharpness, AGC, white balance are adjustable through the client or browser
• The target crop is
• Day/Night Switching Day/Night/Automatic/Scheduled/Triggered by Alarm Input (-S)
• Image overlay can overlay LOGO image on 128×128 24-bit bmp format video
• Signal to noise ratio ≥ 52 decibels

• network
• Network storage microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
• Protocol TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• APIOpen network video interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Secure Password Protection, Complex Password, HTTPS Encryption, 802.1X Authentication (EAP-MD5), Watermark, IP Address Filter, Basic and Digest Authentication for HTTP/HTTPS, WSSE and Digest Authentication for Open Network Video Interface
• View up to 20 channels simultaneously in real time
• User/Host Up to 32 users. 3 user levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web browser IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11

• interface
• Communication interface without -S model: 1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232 with -S model: 1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232 1 RS-485 interface (Half Duplex, HIKVISION, Pelco-P, Pelco-D, Adaptive)
• AudioWith -S Models: 1 Input (Line In), 1 Output (Line Out), 3.5mm Three-Contact
• Alarm Band-S models: 2 inputs, 2 outputs (24 VDC max, 1 A)
• Onboard Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB

• agree with
• EMC47 CFR Part 15, Subpart B; EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011 +A1:2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
• Safety UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252 (Part 1): 2010+ A1: 2013+A2:2015
• Chemistry 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
• Protection class IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

• General
• Firmware version V5.5.32
• Web client language 32 languages ​​English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian , Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General functions Anti-flicker, 3-bit stream, heartbeat, mirror image, privacy mask
• Reset via reset button on camera body, web browser and client software
• Startup and Operating Conditions - 30 °C to 60 °C (-22 °F to 140 °F), 95% humidity or less (non-condensing)
• Storage conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power supply 12 VDC±20%, reverse polarity protection; three-core terminal block 24VAC±20%; PoE (802.3at, category 4)
• Power Consumption and Current 12 VDC, 1.8 A, 22 W 24 VAC, 1.4 A, 22 W PoE (802.3at, 42.5 to 57 VDC), 0.44 to 0.33 A, 19 W, Class 4
• Material Bubble and IR Cover: Plastic, Camera: Metal
• Dimensions Camera: Ø250 × 114.9 mm (9.8" × 4.5") With package: 336 × 261 × 293 mm (13.2" × 10.3" × 11.5")
• Weight Camera: 2.2 kg (4.9 lbs) Packaged: 3.9 kg (8.6 lbs)
