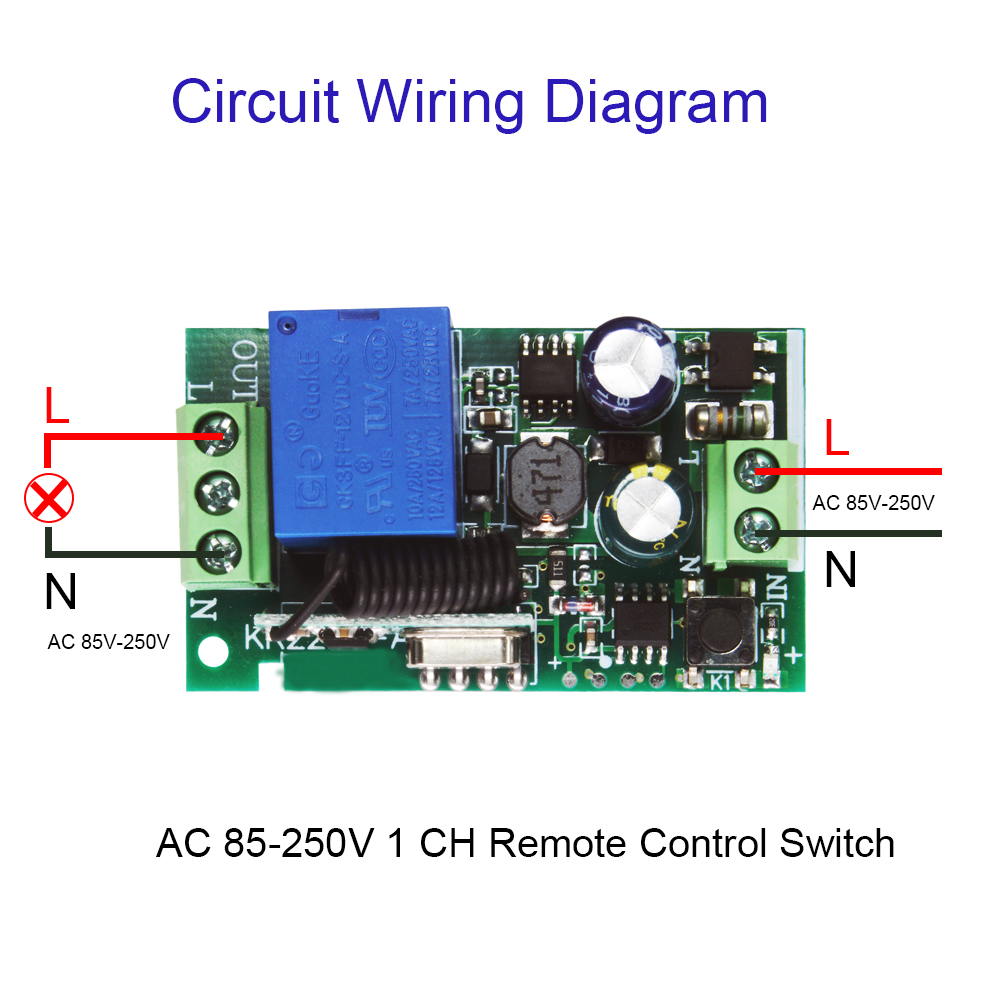

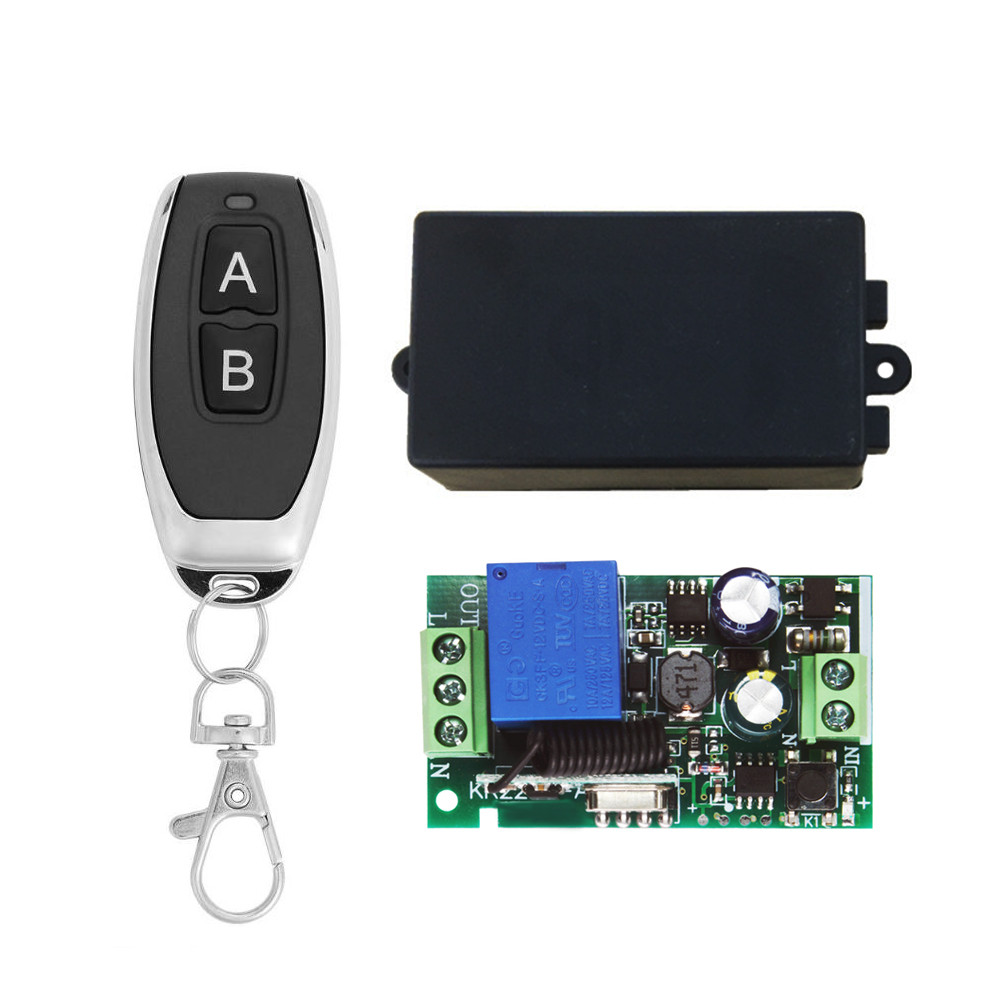

433 Mhz Wireless Remote Control Switch 220V 10A 1CH Relay Receiver Module 433 Mhz Remote Control RF Relay Transmitter

Operation introduction:

About working mode:

Learn to code (temporarily):

Press the learning button once, the LED light on the receiver will flash once. When the LED is on, press any button on the remote, the LED on the receiver will flash 3 times and turn off. Indicates that the pairing is successful.

Learn to code (toggle):

Press the learn button twice, the LED on the receiver will blink twice. When the LED light is on, press any button on the remote control, the LED light on the receiver will flash 3 times and turn off. Indicates that the pairing is successful.

Learning code (latch):

NOTE: LOCK mode requires 2 different buttons, the first is "ON" and the second is "OFF". Example: Button A = On, Button B = Off. Press the learn button on the receiver 3 times to start the lock mode setting. After a short wait, the LED on the receiver will blink briefly and then turn off. Press remote control button A, LED flashes 5 times. Press remote button B. The LED blinks 5 times. After 3 seconds, the LED indicator lights up again, indicating that the remote control and the receiver are paired successfully. A = on, B = off.

Receiver code reset/clear:

Press the learn button on the receiver 8 times, the code will be cleared. After clearing, all remotes need to be re-paired to control the receiver again.
