European-style high-quality energy-saving heat-insulating aluminum triple-glazed passive house windows

  • $115.00 / 10 - 19 square meters
    $110.00 / 20 - 49 square meters
    $100.00 / >=50 square meters
  • 10 square meters
  • Hangzhou Minglei Industry Co., Ltd.
  • Zhejiang, China
  • Mr Andy Yu

Product Detail

model:ML-22224Glass type:Triple-layer insulation glass, vacuum glass
Package preview:feature:Tilt and turn, magnetic screen
Packaging Details:Seaworthy export strong wooden box + plastic belt + protective film + airbag.Advantage:Energy efficient
Opening mode:horizontalbrand:Ming Lei
Function:insulationMaterial:aluminum
Warranty:5 yearscolor:white, grey, champagne, brown, bronze, silver, wood grain, RAL colors
Package:wooden boxHarmonized Standards:ISO9001, CE, PHI, AS2047, AAMA/WDMA
After-sales service:online technical supportSurface treatment:Electroplating, anodizing, fluorocarbon paint, electrophoresis
Curtain Type:blindsapplication:villa
hardware:Domestic system or German systemSealing strips and silicone:Rubber sealing strip imported from Germany
Supply capacity:1000 square meters per monthScreen material:Stainless steel
place of origin; place of origin:Zhejiang, Chinadesign style:modern
Open style:swingProject solution ability:overall project solution
payment terms:L/C, T/Tport:Shanghai/Ningbo Port
Frame material:aluminum alloyProfile thickness:1.8mm-2.5mm, according to customer requirements
Product Details

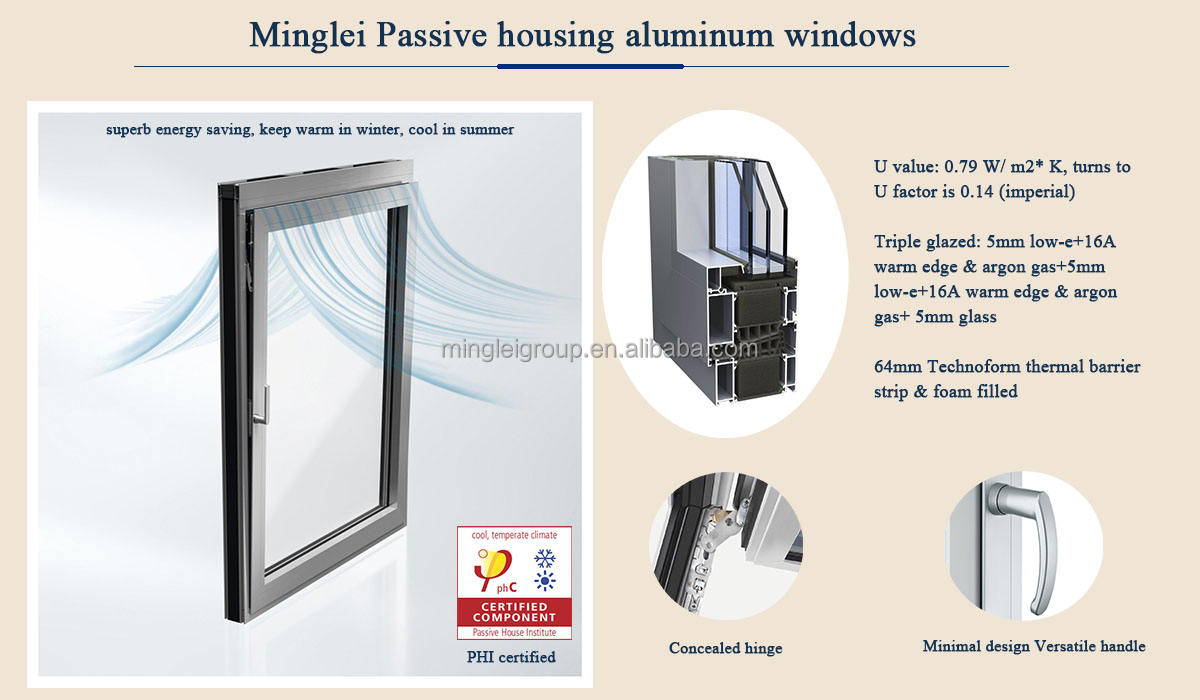

What are passive windows?
Passive windows are very energy efficient windows.
1. Introduction
6063-T5 thermal insulation aluminum alloy
2. Introduction to the brand
German system, domestic system
3. Surface finish
Powder coating, anodizing, wood grain transfer printing, electrophoresis, fluorocarbon paint.
4. Profile thickness
1.7mm,
5. Glass option
triple insulating glass: 5/6mm+ 16A+5/6mm+16A+5/6mm, warm edge spacer low-e & argon gas
7. Hardware
Brands imported from Germany
8. Seal
EPDM sealing strip imported from Germany, black or gray
9. Screen optional
stainless steel mesh
10. Shade
Blinds, roller blinds, etc.
11. Application
Commercial buildings, office buildings, apartments, villas, basements, gardens, hotels, hospitals, residences.

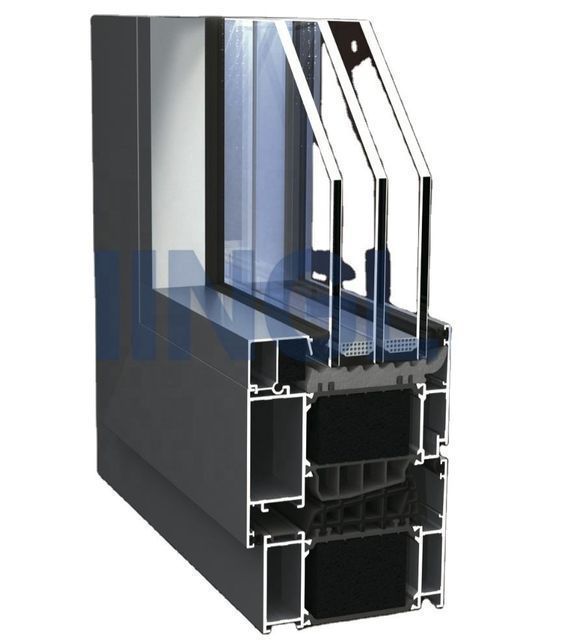

Real picture of Tilt&Turn window (101 series passive window)

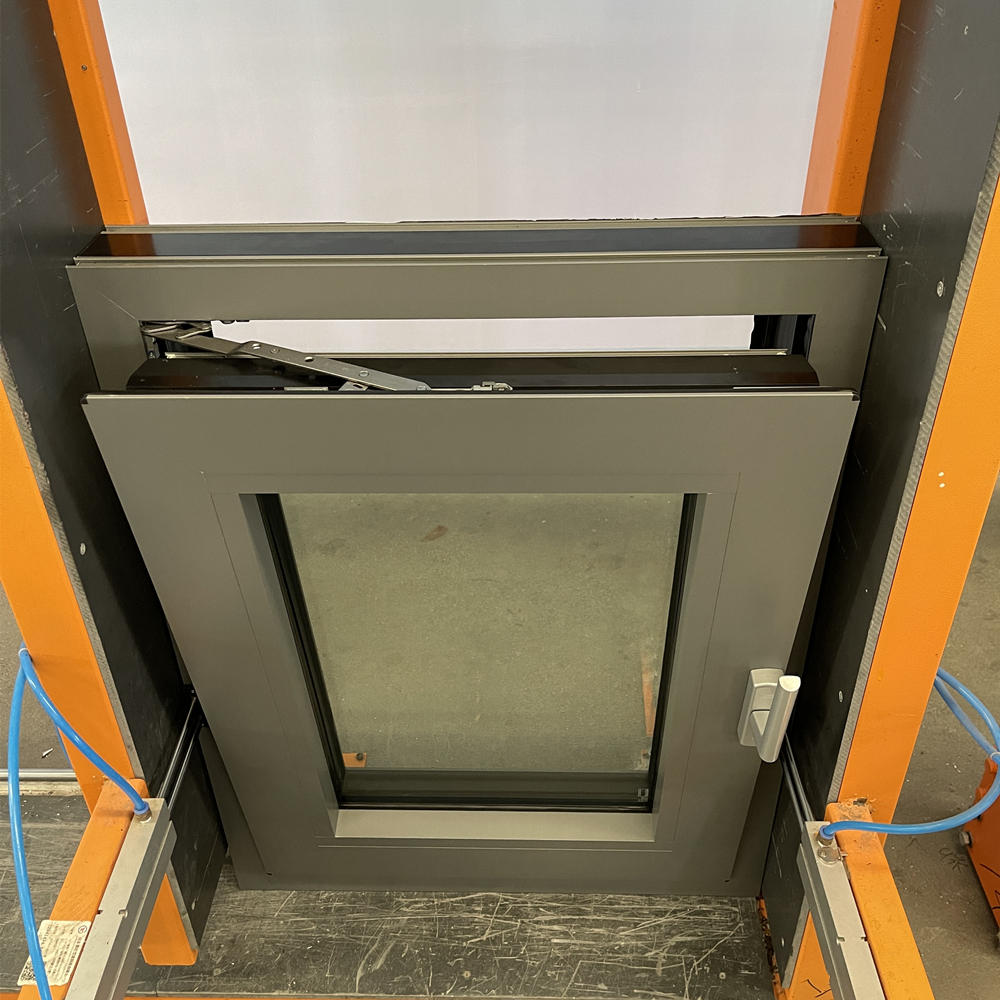

tilt and turn window

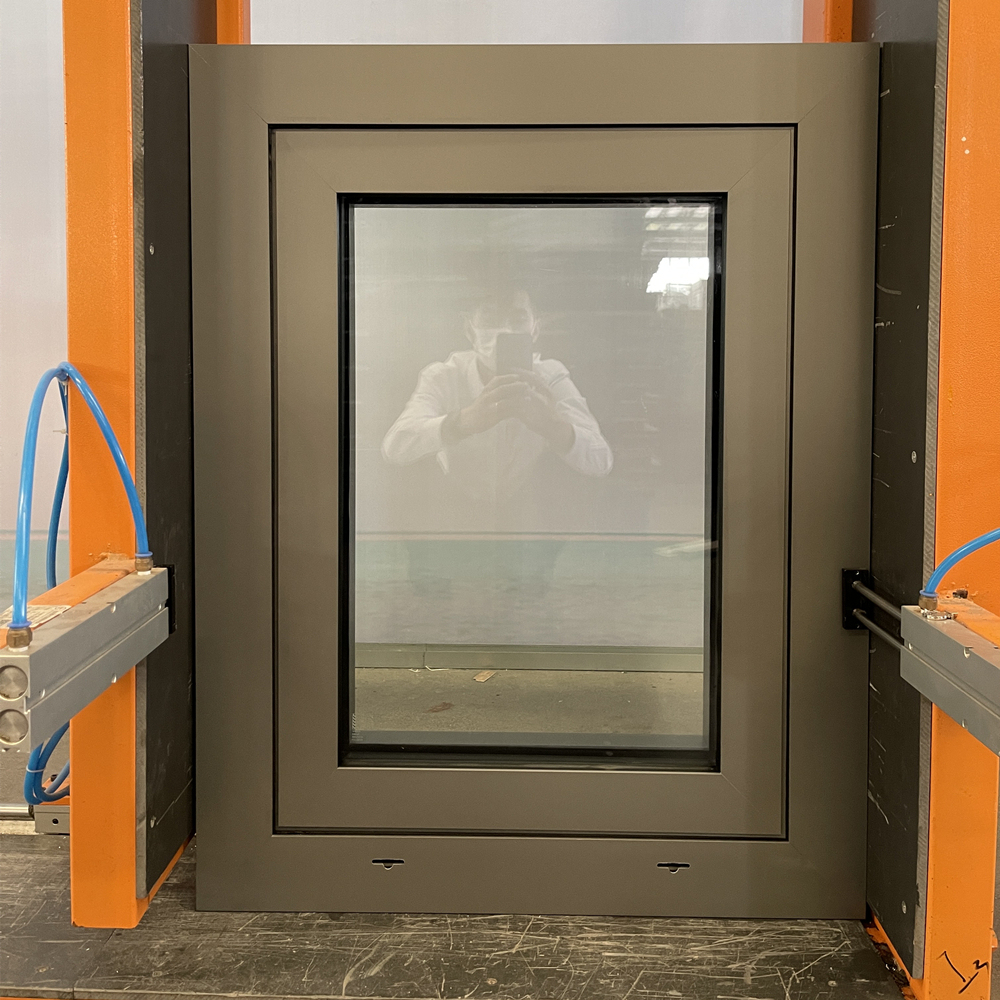

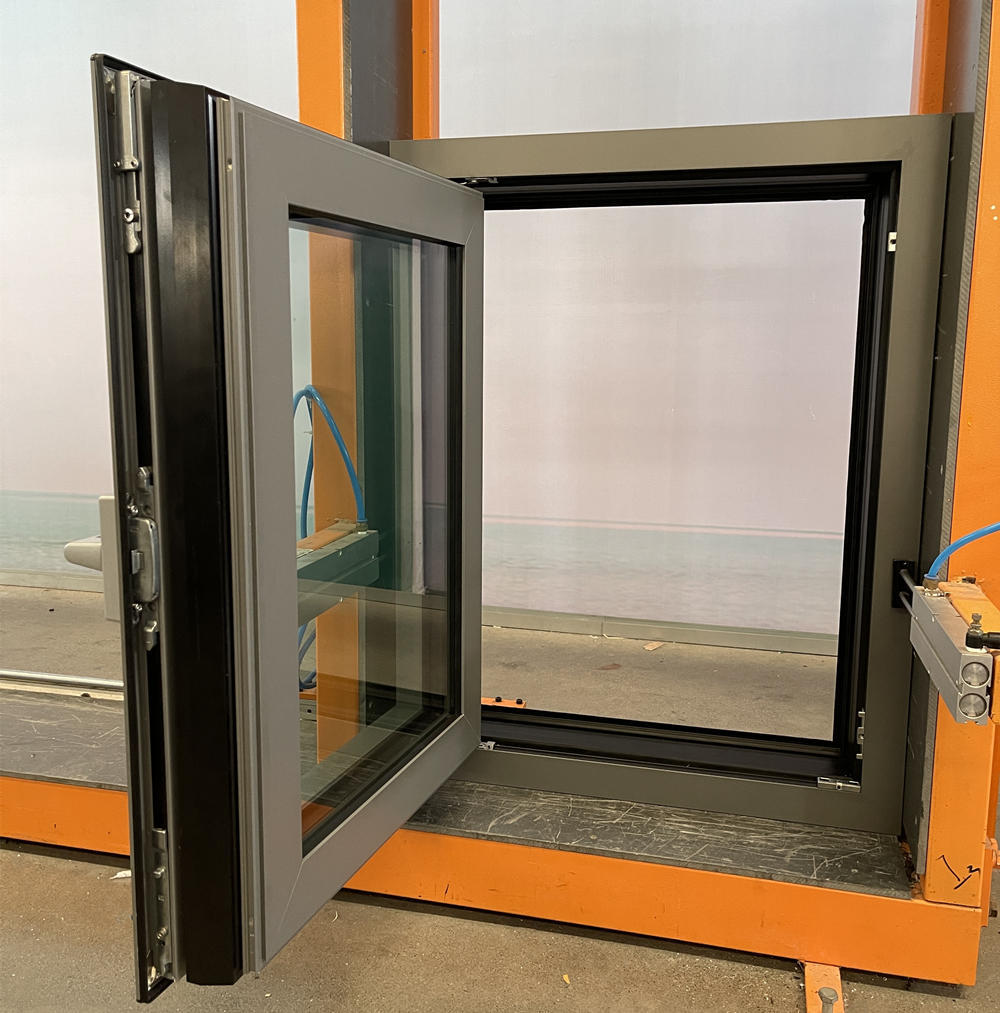

Tilt and turn window (inward opening)
tilt and turn rear window

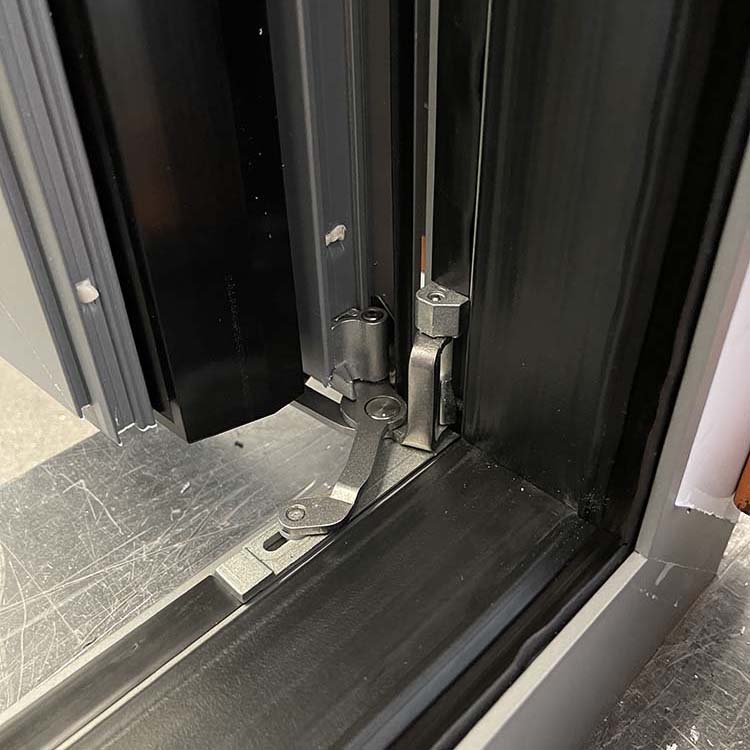

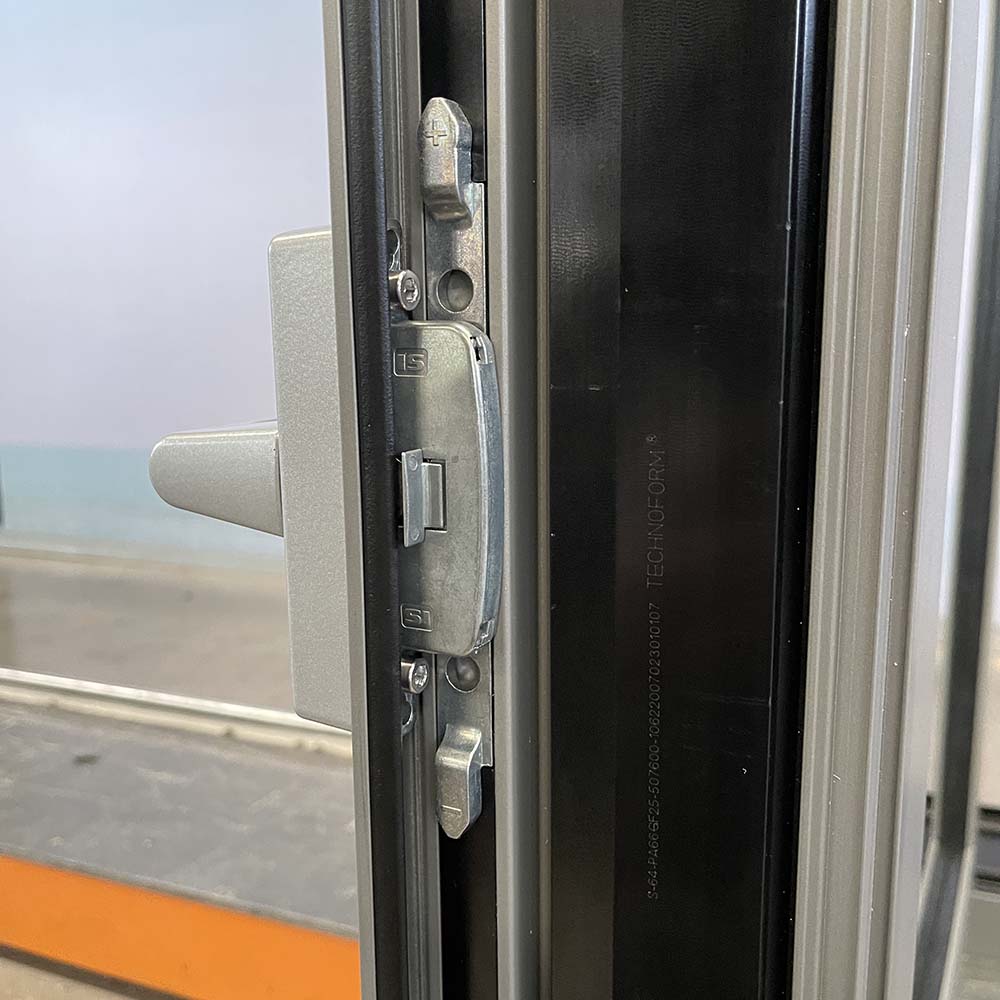

hidden hardware hinge

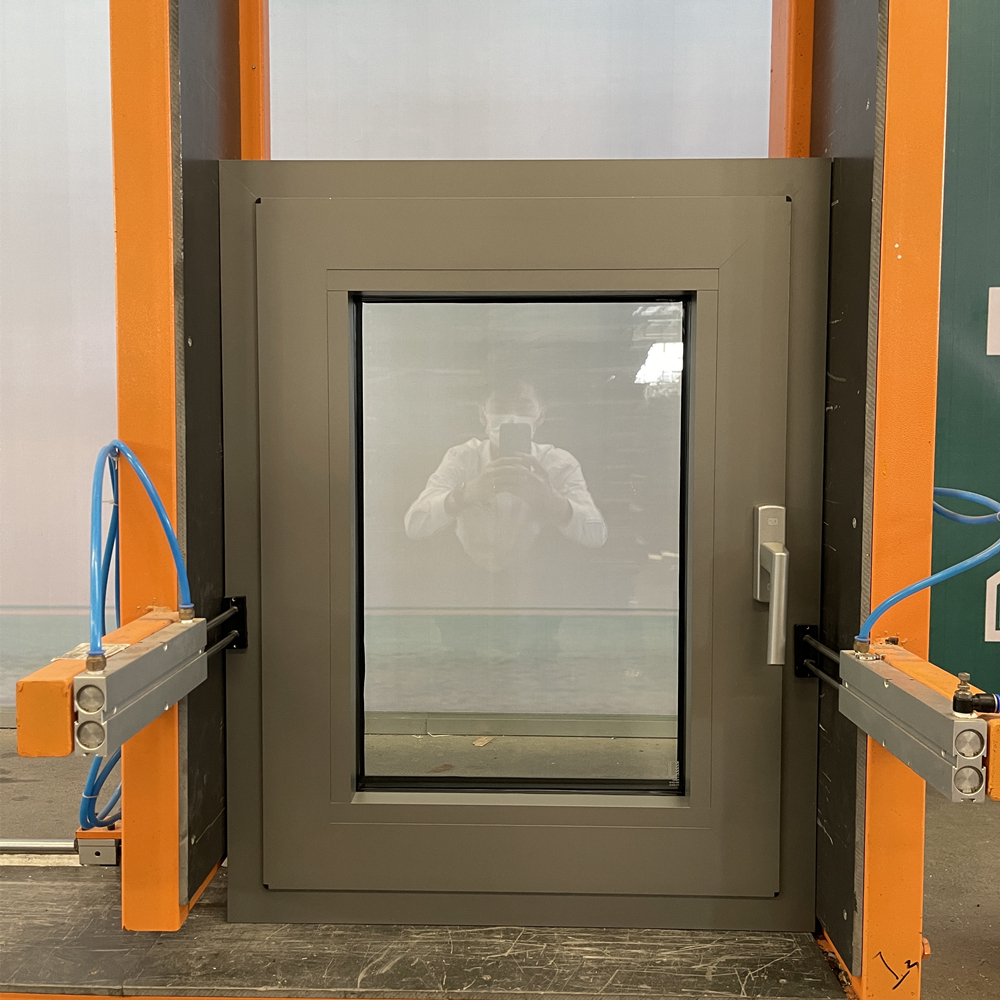

Tilt&Turn window
Why choose passive windows?

- Lower energy bills

- Increased comfort in the home

- Better natural light due to slim profile

- increase home value

- Updated interiors with quality window aesthetics

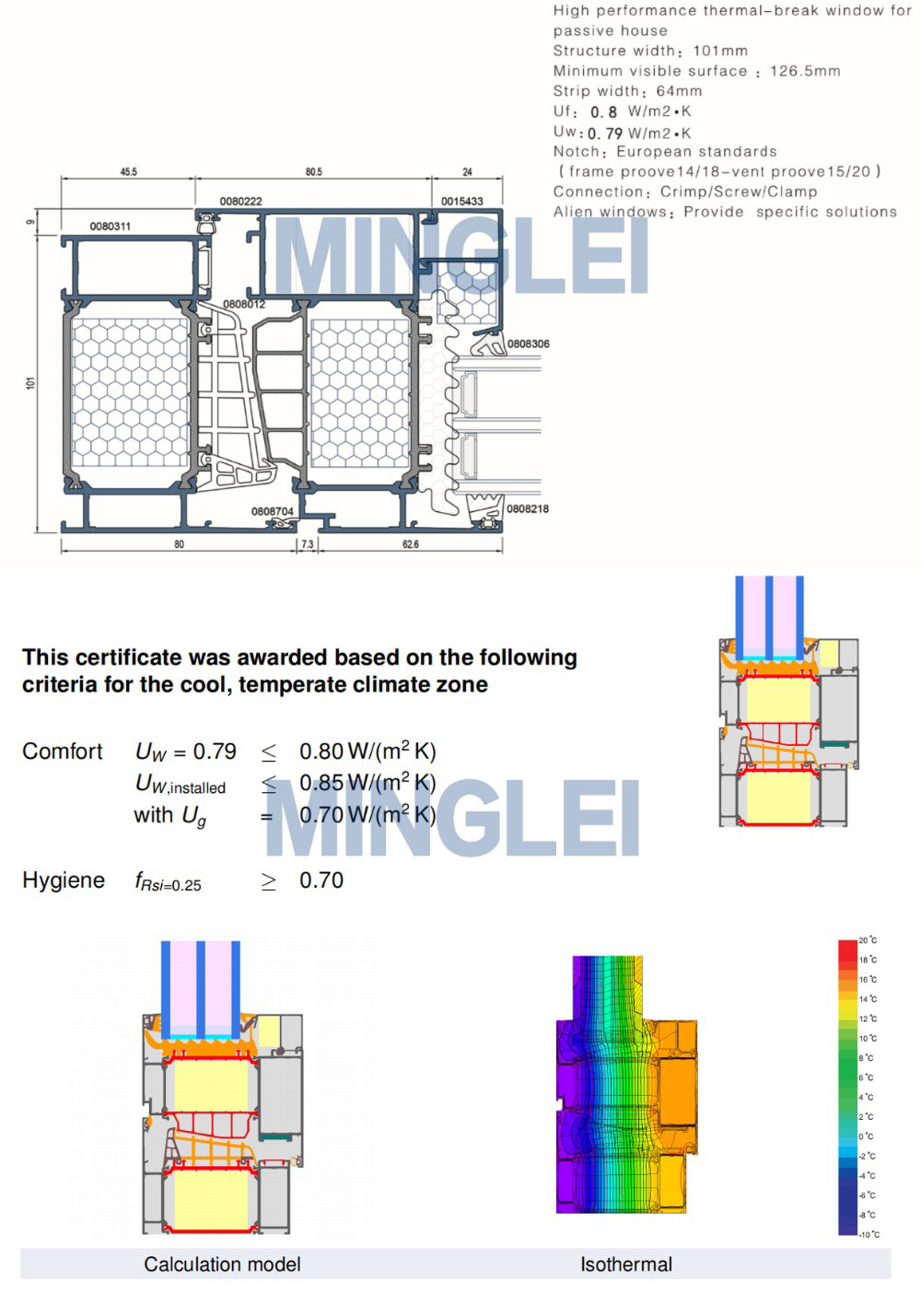

detailed drawing







hardware:

Brands imported from Germany

hidden hardware








Thermal strip: 64mm wide special-shaped multi-cavity Tylenol brand PA66 nylon

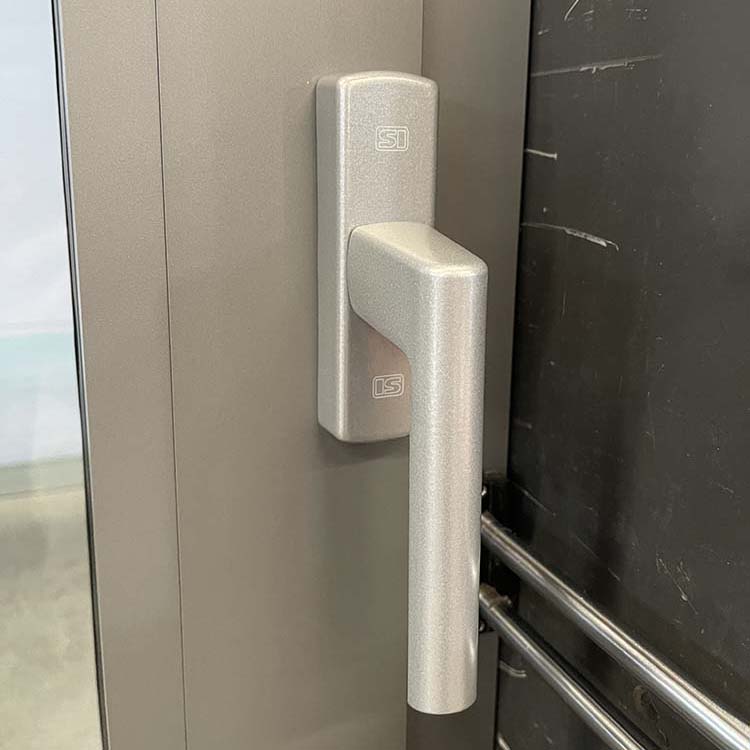

deal with:

Brands imported from Germany








Safe Corner, a thoughtful choice.

The corner of the window sash is made of PA66 nylon corner protector, which is safe and beautiful.

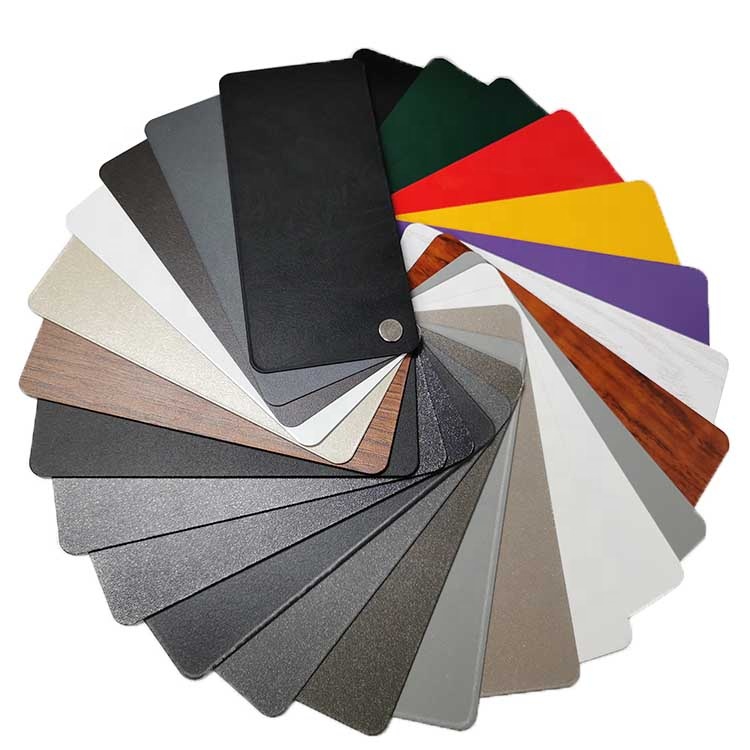

custom color

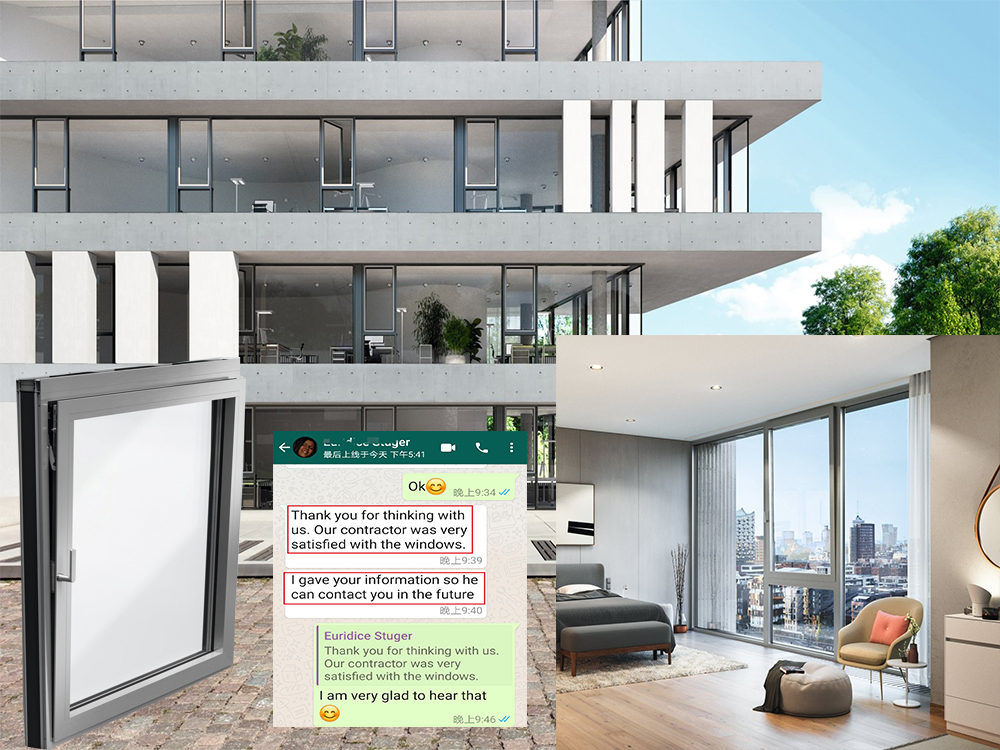

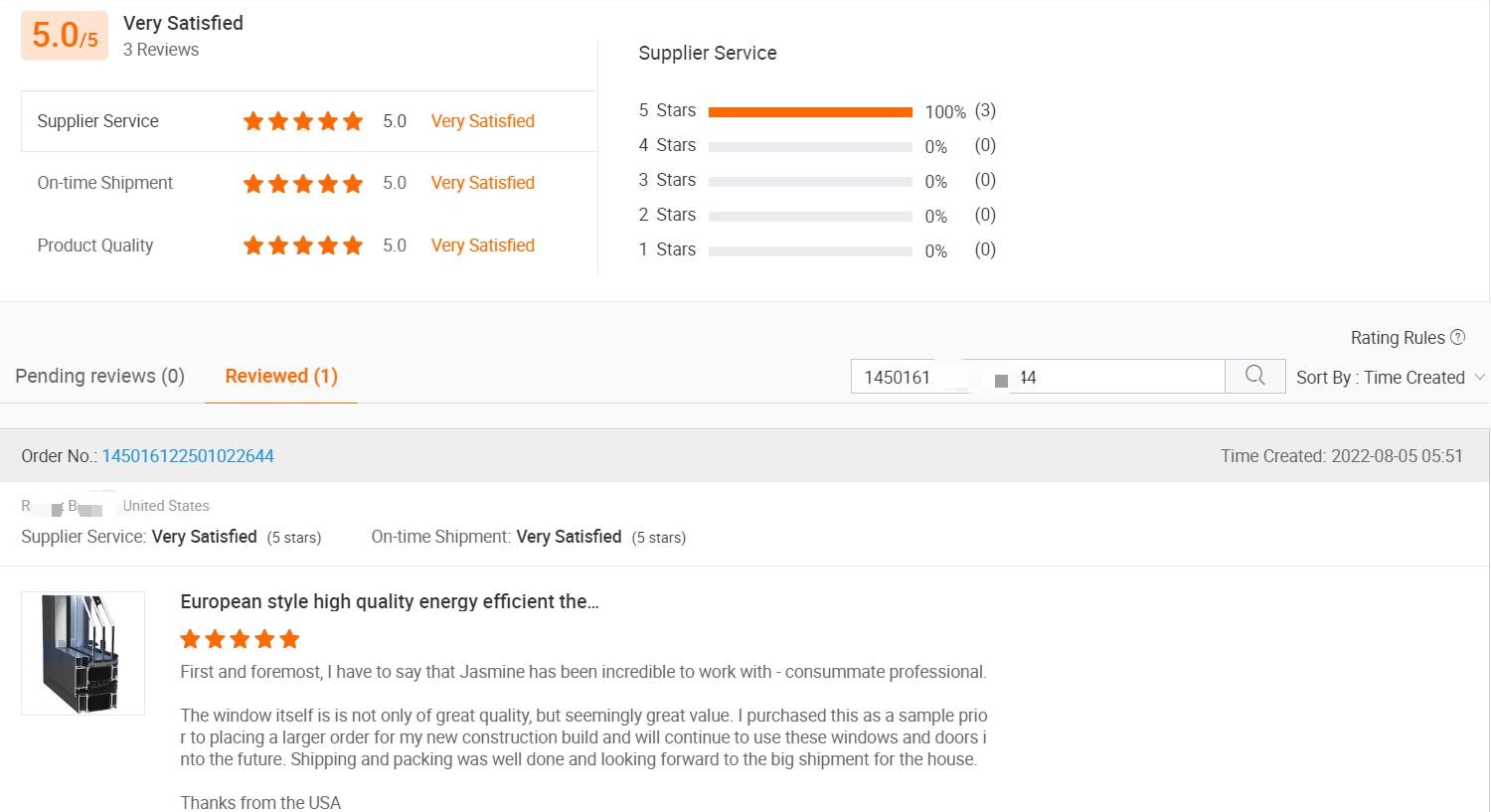

Customer Feedback
