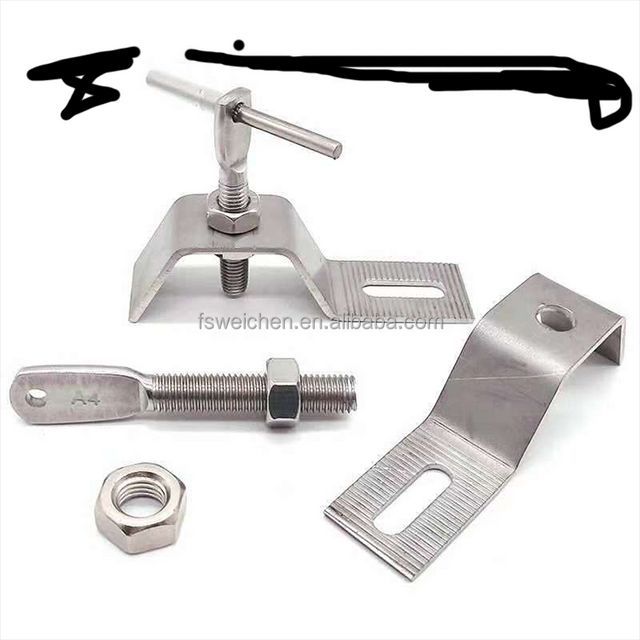

Stainless Steel Stone Clamp Wall Bracket Marble Corner Stone Cladding Fixing System
-
$0.30 / 1 - 99 pieces
$0.28 / >=100 pieces - 1 piece
- Wisine Fasteners And Metal Import And Export Co., Ltd.
- Guangdong, China
- Mr Liu Henry
Product Detail
| usage: | wall bracket | application: | Concrete walls; Hollow block walls; Solid blocks; Composite substructure |
| design style: | contemporary | type: | stone fixing |
| Warranty: | over 5 years | model: | anchor |
| Carrying capacity: | 1300N | brand: | prestige |
| product name: | stone cladding fixing bracket | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| delivery time: | 15~20 days | After-sales service: | Online technical support, on-site installation, on-site training |
| port: | Shanghai, Guangzhou, Ningbo | Package preview: | |
| Package: | carton | Main load type: | permanent load; variable load |
| application: | office building | Packaging Details: | box+box+pallet |
| Project Solution Capabilities: | Graphic design, 3D model design, overall project solution, cross-category integration | Surface treatment: | clearly |
| Product Category: | Stone Z bracket | Material: | Stainless steel 304 316 |
| Origin: | Guangdong, China | Supply capacity: | 50 tons per month |

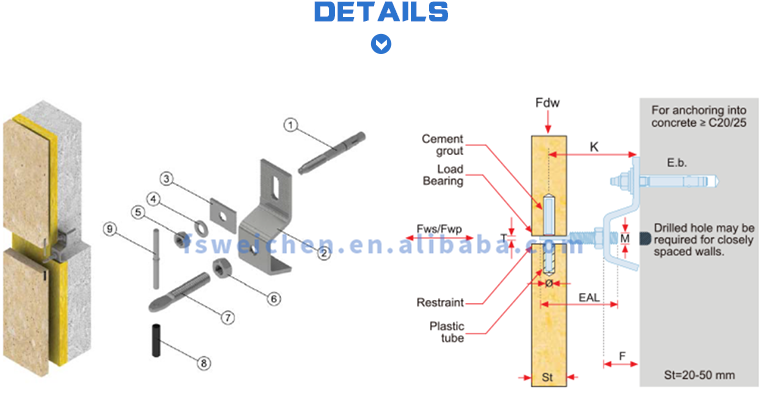

Product Details
product name | Stone Fixed Cladding Z Anchor | |||||||
Material | Stainless Steel: SS303, SS304, SS316, SS201, SS904L; Carbon Steel; Aluminum | |||||||
standard | DIN, JIS EN ISO, AS, GB, ASTM ANSI | |||||||
surface treatment | Normal, Sandblasted, Polished | |||||||
Production Process | Machining and CNC, cold forging, stamping, welding, bending | |||||||
Process characteristics The surface of the product is smooth without burrs and cracks, the interface is smooth, and the structure is stable. Grinding finely, uniform bearing capacity. | ||||||||
projection | dead load | Forming size | wind pressure | Expansion bolt size | Pin size | Adjusting Arm Metric Dimensions | Adjust Arm Plane Thickness | Adjust arm length | |
Diameter (mm) | Flight distance (N) | Diameter (mm) | Fwp(N) | EB(mm) | Ø(mm) | m (mm) | Thickness (mm) | Electronic aluminum (mm) | |
45 | 200 | 10 | Chapter 312 | 5 | M10 | 3.5 | 60 | ||
55 | 200 | 20 | Chapter 312 | M8×80 | 5 | M10 | 3.5 | 60 | |
75 | 200 | 40 | Chapter 312 | M8×80 | 5 | M10 | 3.5 | 60 | |
95 | 200 | 60 | Chapter 312 | M8×80 | 5 | M10 | 3.5 | 60 | |
55 | 300 | 20 | Chapter 468 | 5 | M10 | 3.5 | 60 | ||
75 | 300 | 40 | Chapter 468 | M8×80 | 5 | M10 | 3.5 | 60 | |
95 | 300 | 60 | Chapter 468 | M8×80 | 5 | M10 | 3.5 | 60 | |
115 | 300 | 80 | Chapter 468 | M8×80 | 5 | M10 | 3.5 | 60 | |
55 | 400 | 10 | 624 | 5 | M12 | 4.5 | 70 | ||
75 | 400 | 20 | 624 | M8×80 | 5 | M12 | 4.5 | 90 | |
95 | 400 | 40 | 624 | M8×80 | 5 | M12 | 4.5 | 90 | |
115 | 400 | 60 | 624 | M8×80 | 5 | M12 | 4.5 | 90 | |
75 | 500 | 20 | 780 | 5 | M12 | 4.5 | 90 | ||
95 | 500 | 40 | 780 | M8×80 | 5 | M12 | 4.5 | 90 | |
115 | 500 | 60 | 780 | M8×80 | 5 | M12 | 4.5 | 90 | |
135 | 500 | 80 | 780 | M8×80 | 5 | M12 | 4.5 | 90 | |
75 | 600 | 20 | Chapter 936 | 6 | M14 | 5.5 | 90 | ||
95 | 600 | 40 | Chapter 936 | M10×90 | 6 | M14 | 5.5 | 90 | |
115 | 600 | 60 | Chapter 936 | M10×90 | 6 | M14 | 5.5 | 90 | |
135 | 600 | 80 | Chapter 936 | M10×90 | 6 | M14 | 5.5 | 90 | |
75 | 800 | 20 | 1235 | 6 | M14 | 5.5 | 90 | ||
95 | 800 | 40 | 1235 | M10×90 | 6 | M14 | 5.5 | 90 | |
115 | 800 | 60 | 1235 | M10×90 | 6 | M14 | 5.5 | 90 | |
135 | 800 | 80 | 1235 | M10×90 | 6 | M14 | 5.5 | 90 |
