Noise Barrier Metal Steel Noise Barrier System
-
$26.50 / 10 - 999 square meters
$24.80 / 1000 - 1999 square meters
$22.10 / >=2000 square meters - 10 square meters
- Anping County A.S.O Metal Wire Mesh Products Co., Ltd.
- Hebei, China
- Ms Linda Ren
Product Detail
| model: | Noise barrier 02 | Key words: | Noise Barrier System |
| Project Solution Capabilities: | 3D model design, overall project solution, others | feature: | Effective Railway Noise Barriers |
| Panel style: | Shutter type, punching type | Warranty: | 3 years |
| brand: | asso | Supply capacity: | 5000 Sets Cyclone Barbed Wire Price Per Week Philippines |
| design style: | contemporary | product name: | Noise Barrier Metal Steel Noise Barrier System |
| Certification: | ISO9001 | port: | Tianjin |
| Packaging Details: | Noise Barrier Metal Steel Noise Barrier System is packaged in a plastic bag. Railway noise barrier accessories are packed in cartons and plastic bags. We can also package railway noise barriers according to your requirements. | type: | Noise Barrier System |
| Package preview: | Material: | Aluminum plate | |
| thickness: | 0.6-1.5mm | Origin: | Hebei china |
| After-sales service: | Online technical support, on-site installation | MOQ: | 200 |
| application: | outdoor | color: | black gray green purple |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | size: | 0.5*2m/0.5*2.5m/0.5*3 |
Noise Barrier Metal Steel Noise Barrier System
Product Description

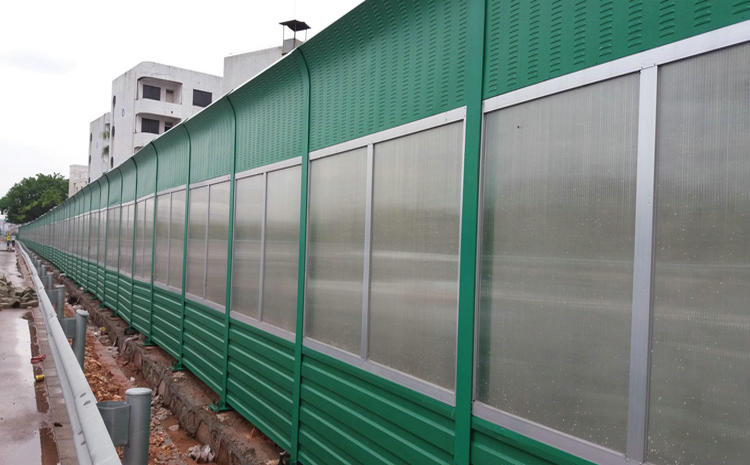

Noise Barrier Metal Steel Noise Barrier System

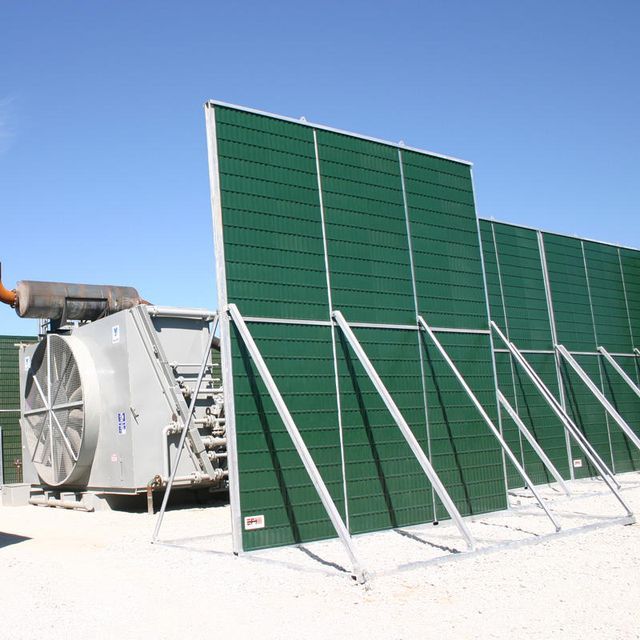

The sound barrier is mainly used for noise reduction of noise sources such as roads, expressways, viaducts, etc. it is a barrier setting

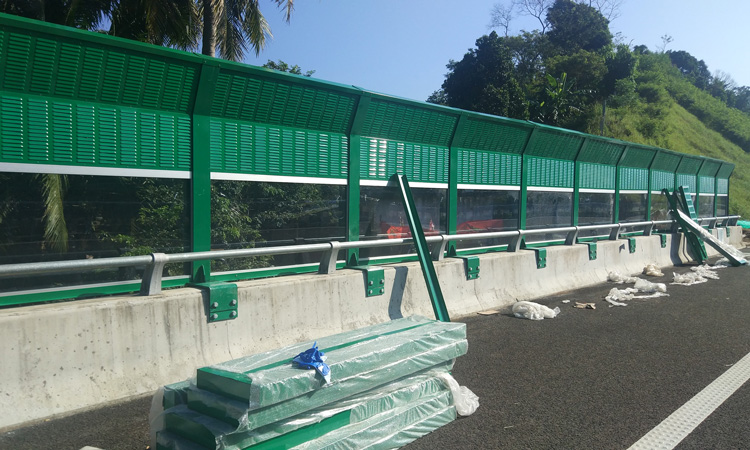

It is located next to roads and railways to reduce the impact of vehicle noise on nearby residents.
It is located next to roads and railways to reduce the impact of vehicle noise on nearby residents.
The height of the sound barrier is between 1m-5m, covering the average value of the validity period
Noise reduction up to 10-15dB(A) (125Hz-40000Hz, 1/3 octave)
1.color: blue, green, blue, opal, brown, silver gray, red (other colors can be ordered upon request
2.Material: PC board, acrylic board, steel plate or aluminum board
3.inner material: Glass wool, rock wool
Noise reduction up to 10-15dB(A) (125Hz-40000Hz, 1/3 octave)
1.color: blue, green, blue, opal, brown, silver gray, red (other colors can be ordered upon request
2.Material: PC board, acrylic board, steel plate or aluminum board
3.inner material: Glass wool, rock wool
product specification
product name | Noise Barrier Metal Steel Noise Barrier System |
Material | Aluminum sheet, galvanized sheet (40-60g/2 or high zinc rate 200g/m2) |
panel thickness | 80mm, 100mm, 120mm. |
length | 2000 mm, 2500 mm |
width | 500 mm |
plate thickness | 0.5-1.2mm. |
Types of plate holes | Round hole, louver hole. |
Panel surface type | Flat, concave-convex panels. |
H-pillar (mm) | Common shapes, arc, angled, top arc, top angled, irregular. |
Three-layer structure of aluminum sound barrier | * First layer: perforated aluminum sheet or louvered aluminum sheet. * Layer 2: Filled with sound-absorbing material, such as glass wool. * Layer 3: Aluminum plate with smooth surface. |
color | green, gray, white |
Product Details
Noise Barrier Metal Steel Noise Barrier System

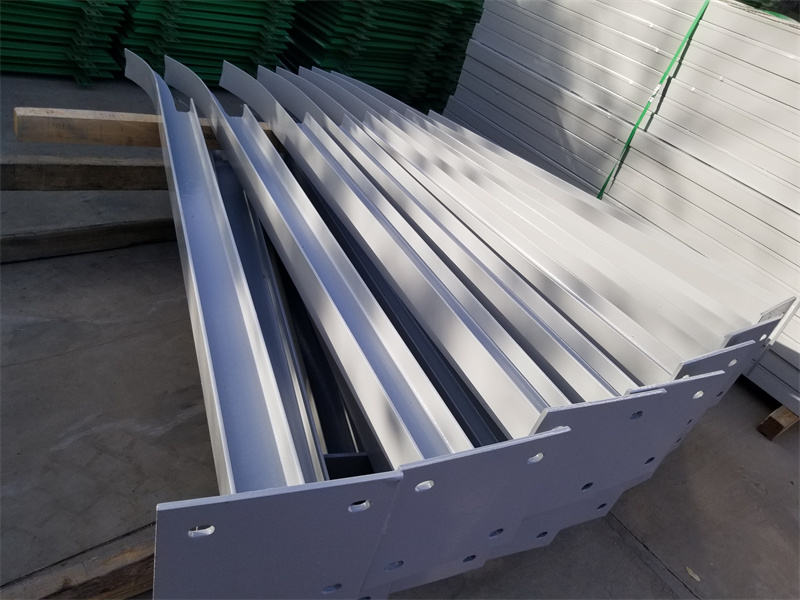

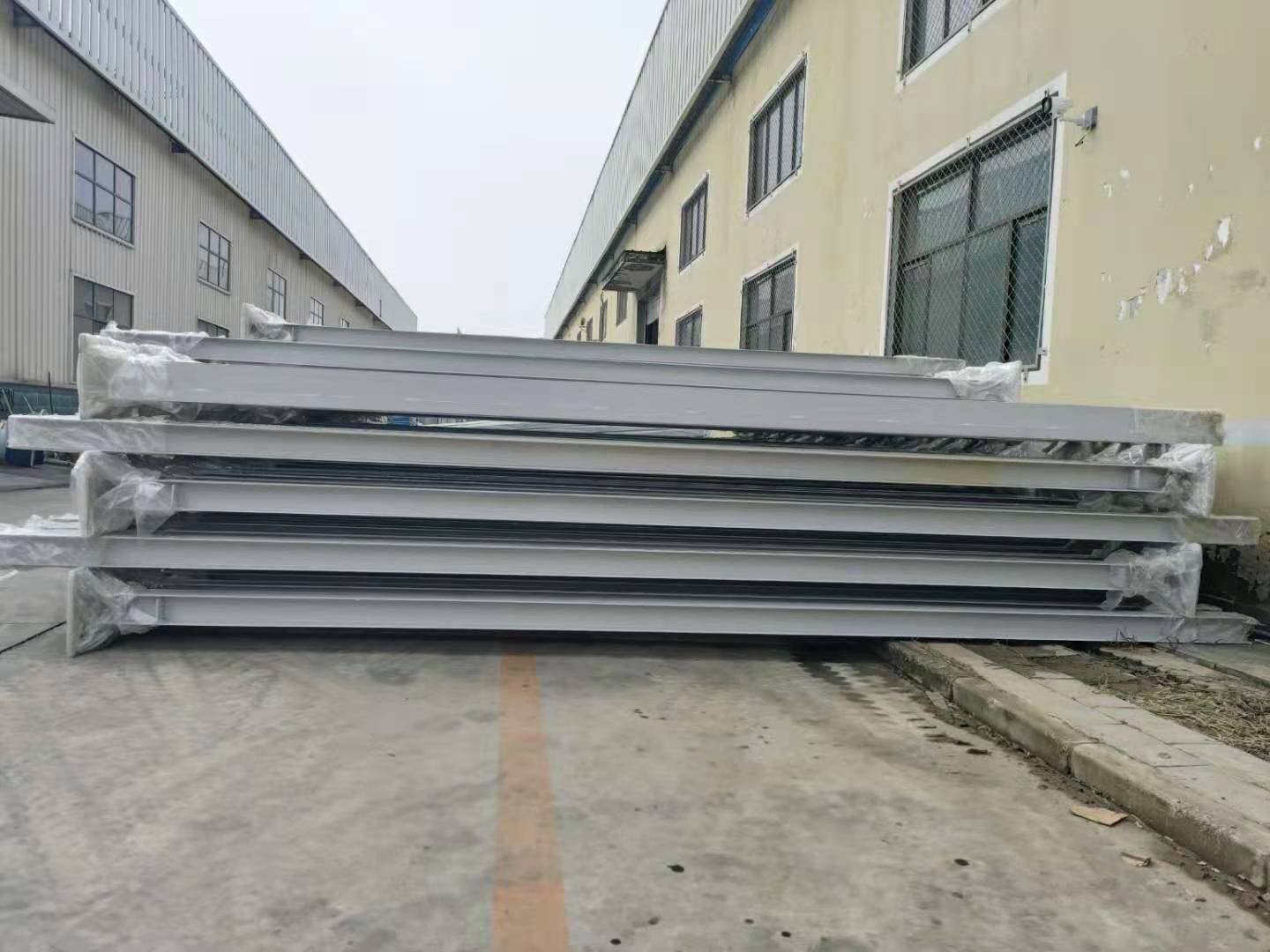

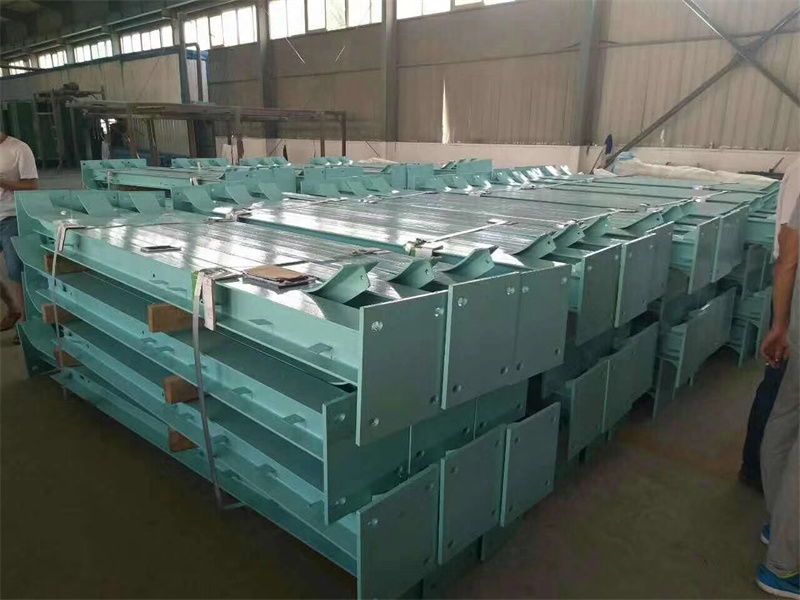

Sound Barrier Columns.
Common dimensions of H-shaped columns:
100x100x6x8 mm
125x125x6.5x9 mm
150x150x7x10 mm
175x175x7.5x11mm etc.
100x100x6x8 mm
125x125x6.5x9 mm
150x150x7x10 mm
175x175x7.5x11mm etc.
more types

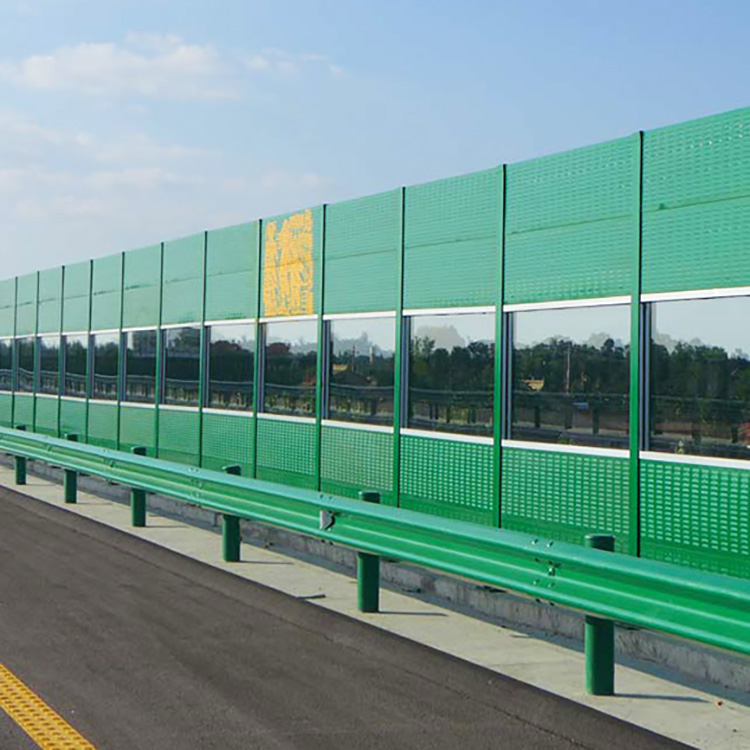

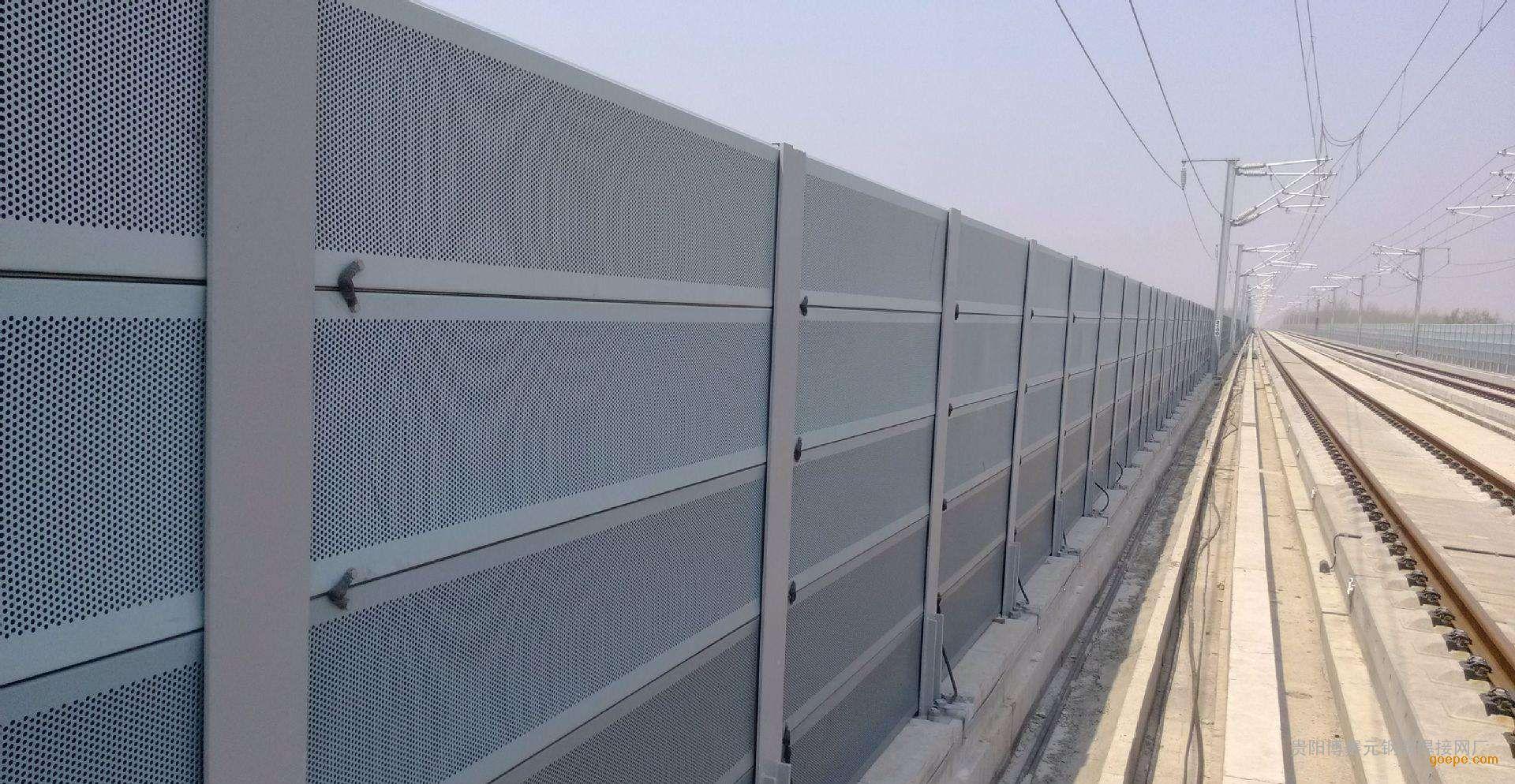

Noise barrier - perforated

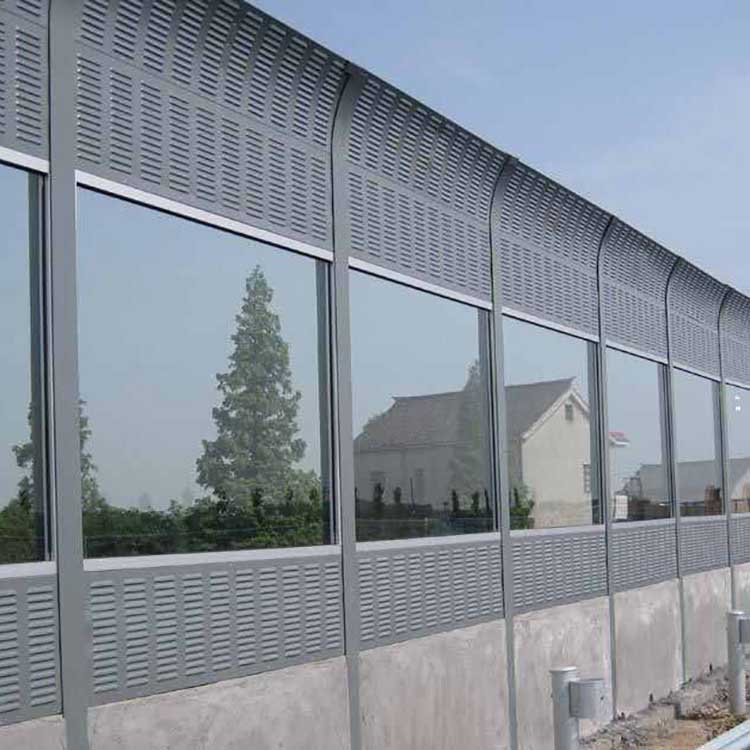

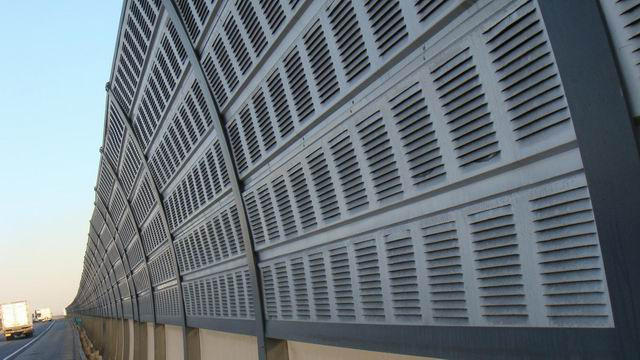

Noise barrier--louver hole

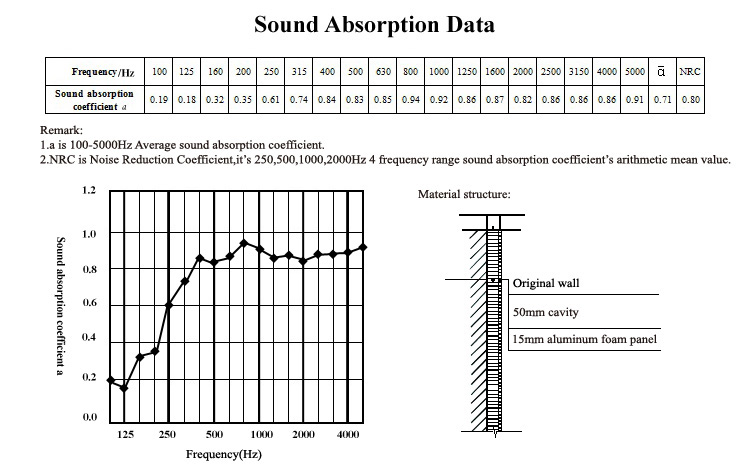

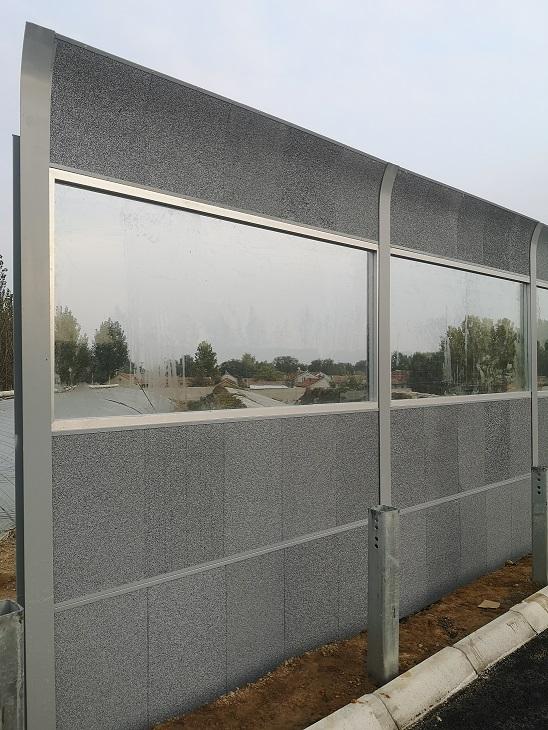

Noise barrier - aluminum foam

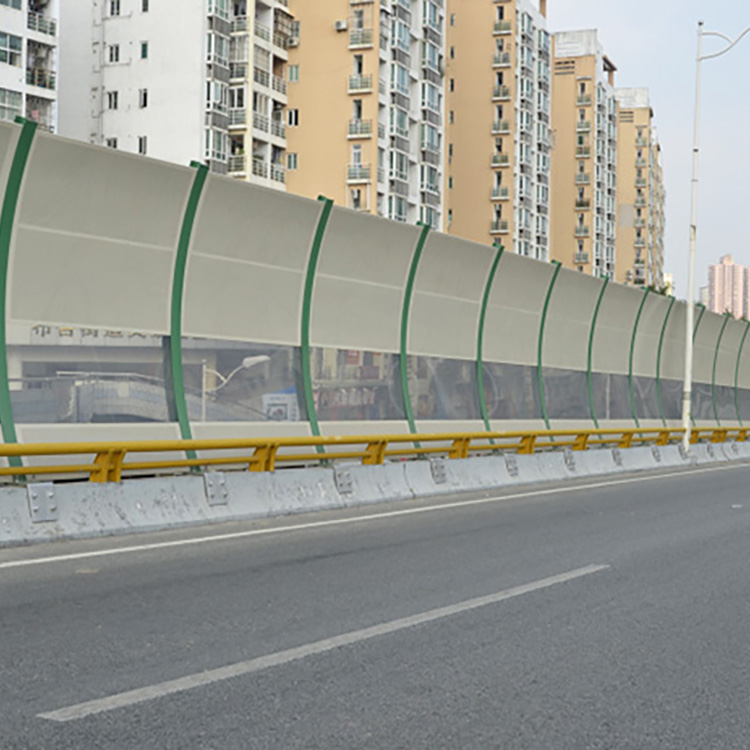

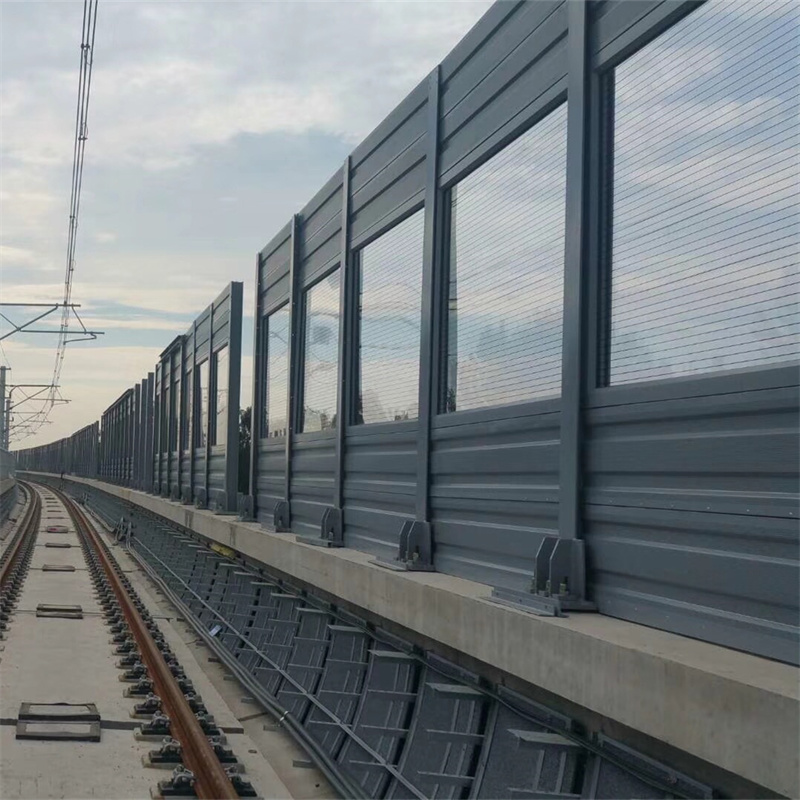

Noise barrier - acrylic sheet
application
applicationNoise Barrier Metal Steel Noise Barrier System
1) Roof lighting panels and sunshades for office buildings, department stores, hotels, stadiums, schools, amusement centers, hospitals,
etc.
2) Lighting for skylights, corridors, balconies, aisles and subway entrances, walkways.
3) Advertising light boxes and signboards.
4) Riot shields, bulletproof materials
5) Greenhouses, agricultural greenhouses, zoos, botanical gardens.
6) Industrial roof and glass
7) Pool Roof/Cover/Sheet
etc.
2) Lighting for skylights, corridors, balconies, aisles and subway entrances, walkways.
3) Advertising light boxes and signboards.
4) Riot shields, bulletproof materials
5) Greenhouses, agricultural greenhouses, zoos, botanical gardens.
6) Industrial roof and glass
7) Pool Roof/Cover/Sheet
VIEW MORE
