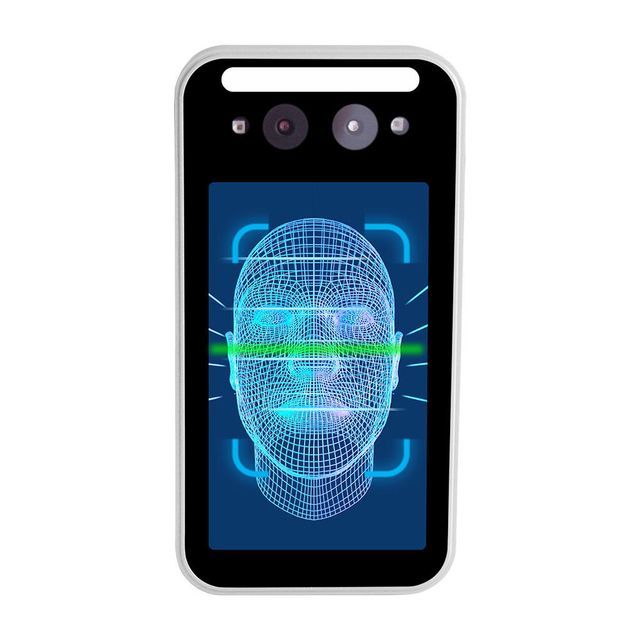

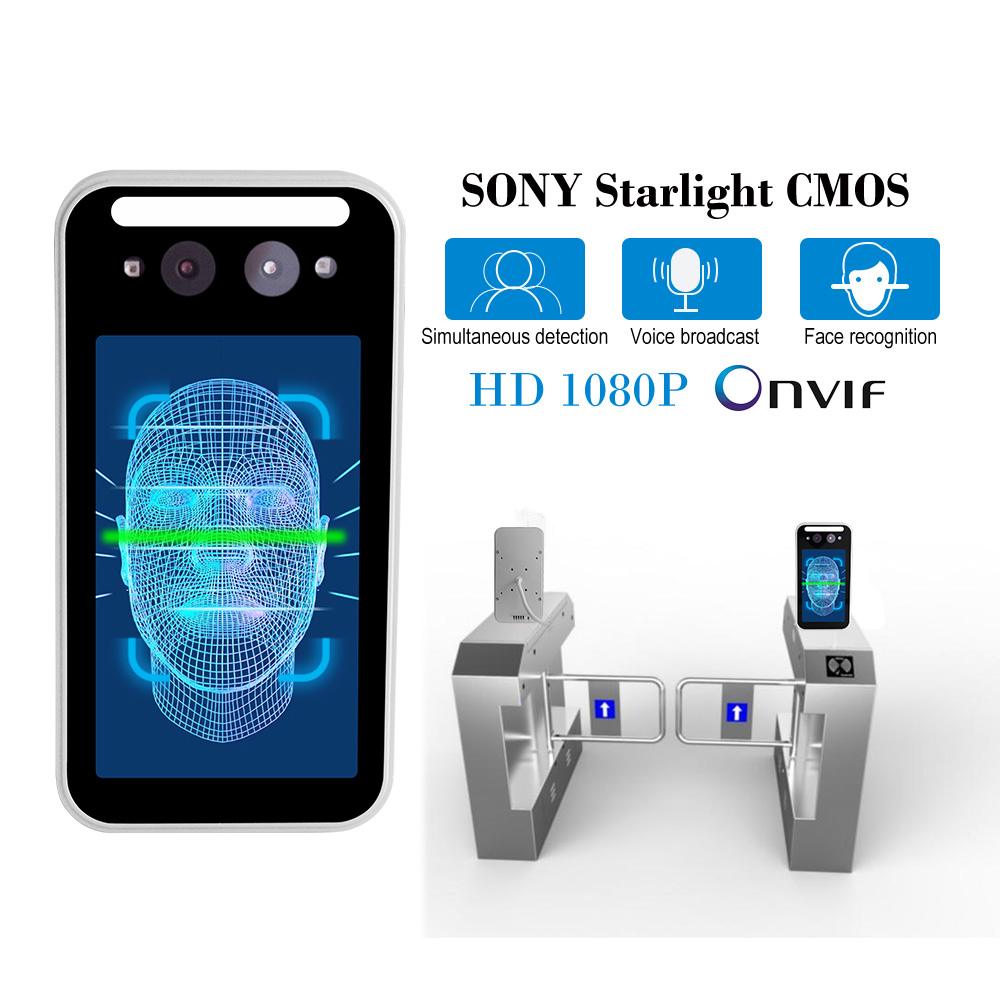

2.0MP starlight live face recognition terminal LCD screen face access control system binocular face recognition camera

Product Detail

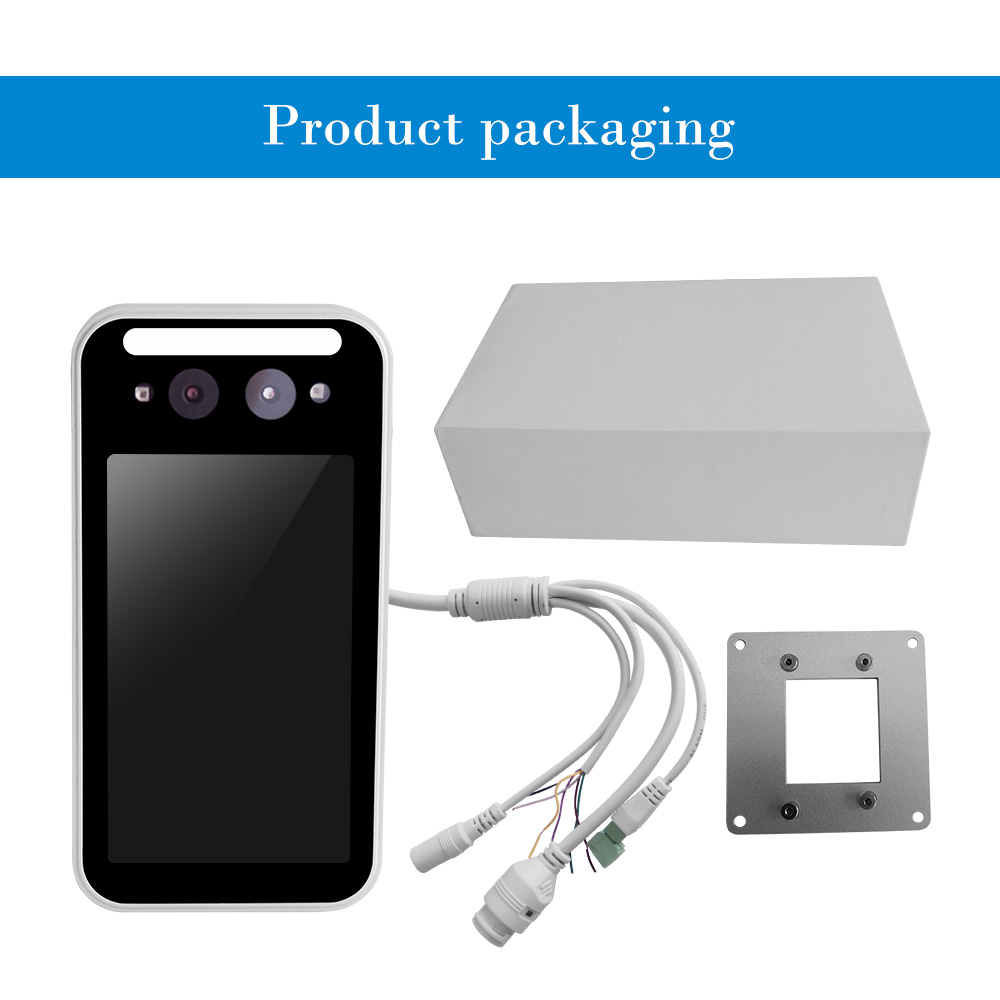

Certificate:ISO FCC CE RoHSPackaging Details:Standard carton packaging/carton packaging
Warranty:1 yearspecial function:Waterproof/weatherproof
Origin:Guangdong, ChinaPackage preview:
Key Features:face recognition camerawaterproof:IP66 waterproof
Material:MetalSales unit:single product
Gross weight per piece:1.000 kgsolve:2.0 Mpixes - Starlight
Single pack size:19X10X7 cmmodel:ASIH4-15
sensor:CMOSbrand:Axis



Resolution up to 2M (1920X1080@30fps)

1. Three-dimensional modeling, industrial-grade design, adjustable pitch angle, left and right rotation

2. One machine completes the face capture and comparison function

3. Support multi-task cascaded convolutional neural network live detection switch, sensitive detection, effectively prevent deception of photos, videos, etc.

4. Using deep learning algorithm, the face database can reach 20,000

5. The import of face templates is flexible, supporting single and batch image file import and batch export

6. Provide real-time monitoring and face comparison screen after login

7. Support whitelist personnel, blacklist personnel, appointment personnel, etc.

8. It can run stand-alone in disconnected mode

9. Provide 485, I/O input and output, Wiegand and other peripheral interfaces

10. Support unified entry of ID card

11. Provide automatic sleep and fast wake-up

12. Support voice broadcast

13. Support automatic text-to-speech conversion

14. Support access record excel export

15. Support day and night, smooth, backlight, ISP automatic adjustment

16. Support nvr access

17. Support FTP/HTTP upload

18. No TF card access records support 100,000 records

19. Support TF video

Internet function

protocol

IPv4, TCP, NTP, FTP, HTTP, RTSP

Interface Protocol

Network video interface, RTSP protocol

safe mode

Authorized username and password

Activity linkage

Snapshot TF card storage, alarm output linkage, Wiegand output linkage, voice broadcast

System Upgrade

Support client upgrade

face recognition

The detection mode supports live detection, automatically filters faces on printing paper and mobile phone screens



Identify face size

Interpupillary distance ≥ 60 pixels; Face pixels ≥ 150 pixels

face database

Support built-in ≤10000 face numbers; support black and white, visitor list control

posture

Can be captured within 25 degrees tilt and 60 degrees left and right; can be compared within 20 degrees pitch and 30 degrees left and right;

jam

Ordinary glasses, short forehead hair does not affect recognition

expression

In general, slight expressions do not affect recognition

Face capture rate/comparison accuracy

Capture rate ≥ 98% (meet the above conditions); Hit rate ≥ 95%

responding speed

≤1 second

face recognition

Support 1:1/1:N

local storage

Support storage of 100,000 identification records

Identification area

full screen recognition

upload method

TCP, FTP, HTTP, SDK upload

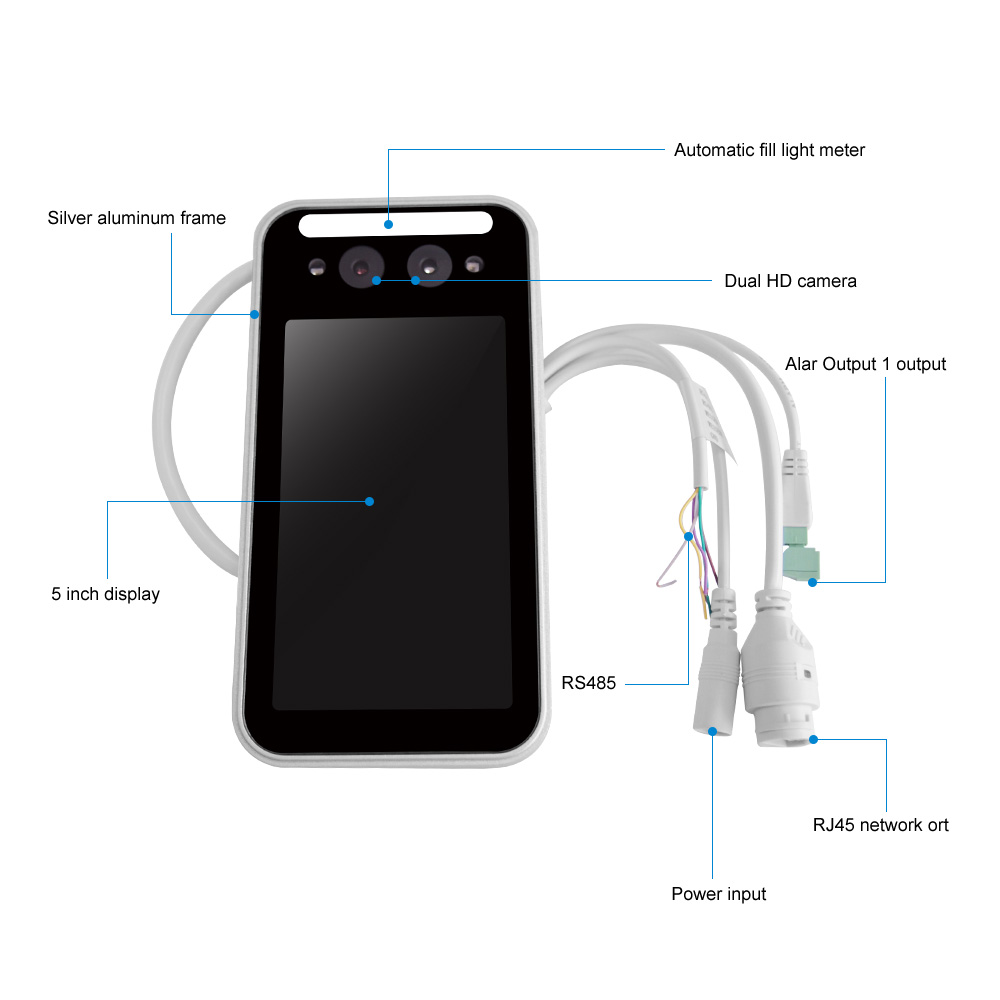

interface

Network Interface

RJ45 10M/100M network adaptive

Alarm Output

1 output

RS485 interface

support 1

TF storage

Maximum 128G local storage

Wiegand interface

Support Wiegand 26, 34 protocol

reset button

support

normal features

Operating temperature

-30℃～60℃

Working humidity

0-90%

waterproof

Main part IP67 (speaker IP66)

strength

DC 12V

Power consumption (maximum)

≤7W

Dimensions (mm)

165mm(H)*85mm(W)

Weight / grams)

to be determined







1. About samples: How can I get a sample?

Once received your sample payment and its courier, then send samples

for you. The sample price is the same as the price on the price list. fast transfer

The cost depends on the quantity of samples.



2. About the price list: Can I get your price list?

Yes, please tell us the product (and its code) and order quantity, then we will

Offer prices via email. Our price list will be updated monthly.



3. About the shipment: what type of shipment will you use?

We usually ship the product to your door by express or by air to your nearest placeAIRPORT. If the order quantity is large, we can ship by sea container.



4. About payment: what payment terms do you use?

We accept TT (Telegraphic Transfer, MoneyGramor Western Union) as payment method for small amountsL/C for small orders and larger orders.



5. About MOQ: What is your minimum order quantity?

Our minimum order quantity is 20 pieces per model, but we accept small orders as trial orders.



6. Regarding salary: What is your company's salary policy?

If our products have quality problems, we can compensate buyers for their losses. for small quantities

Problematic products, we can replace new ones in the next order. For larger numbers of questions

product, we can accept returning faulty products, then we check and replace

They go through quality products.



7. About Sole Distributor: How can I become your Sole Distributor?

We have a special policy for exclusive distributors. Please contact our sales staff for related documents.



8. About OEM: Can we place an order to produce our own brand products in China by OEM?

sure. OEM is welcome.

Any other questions, welcome to contact our sales staff.

Thank you for your attention
