Soundproof closed cell aluminum foam board aluminum foam

Product Detail

size:Customized according to customer requirementsOrigin:Shandong Province, China
design style:contemporarythickness:5~100mm or customized
type:aluminum foampayment terms:Western Union, L/C, D/P, D/A, T/T, MoneyGram
After-sales service:online technical supportSupply capacity:100,000 tons per month
Sound absorption:2~25J/cm3application:roads, buildings, etc.
model:AFPport:Qingdao Port
rigidity:Elastic modulus 0.7~1.4GPaWarranty:over 5 years
brand:BaotongCompressive strength:1~35Mpa
Advantage:Sound absorption and noise reductionPackaging Details:1 Standard export packaging: inner anti-collision protection, outer export wooden box packaging. 2 Express, air, sea to find the most suitable way according to customer's requirements. 3 Responsible for the damage during transportation, the damaged parts will be replaced for you free of charge.
product name:aluminum foamPackage preview:
Project Solution Capabilities:not anyApplication fields:Road, interior, building decoration, composite board
Material Density:0.05~0.8g/cm3MOQ:10
Best quality 100% Made in China
Ultra-light recyclable pure foam aluminum wall panel
20 years warranty

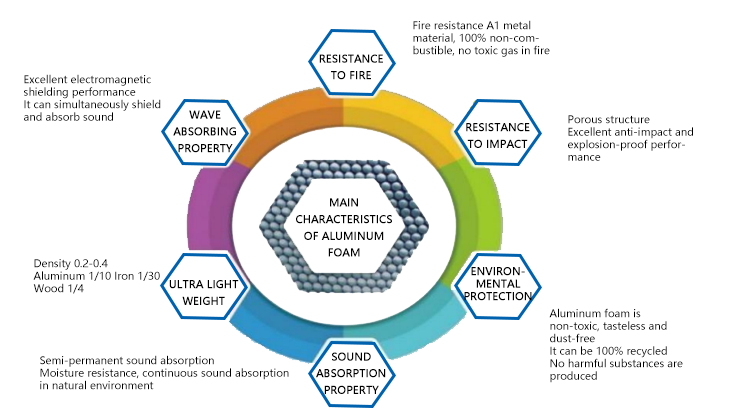

Foamed aluminum is a new type of light metal material produced by foamed aluminum alloy according to the principle of bionic structure. It is light and strong, and its density is lower than that of water. It has many excellent properties such as sound insulation and noise reduction, electromagnetic shielding, energy absorption and buffering, flame retardant and explosion-proof, and is widely used in equipment manufacturing, transportation facilities, architectural decoration, civil panels and other fields.
Its porous structure endows AlumiFoam with excellent energy absorption properties such as shock absorption, sound absorption, heat insulation and explosion protection. AlumiFoam is non-flammable. In the event of a fire, non-toxic fumes will be produced. 100% recyclable.
Product parameters
Aperture
Main 5-10 mm
density
0.25 g/cm3-0.85 g/cm3
color
We can paint different colors according to customer needs
thickness
6 -300 mm
size
Available 600*600mm.1200*600mm. Maximum size 2400*800mm
shape
Mainly. Control panel; customized special shape acceptable
Performance
Fingerprints
simile
Comment
density
Commonly used 0.1~1.0 g/cm3
1/10 aluminum and 1/4-1/3 water.
The actual controllable density range is 0.05-2.7 g/cm3
Compressive strength
1-35Mpa
Under the same weight, the specific strength is 5 times that of steel and 2 times that of aluminum.
rigidity
Elastic modulus 0.7-1.4GPa
The stiffness ratio is 50-100 times that of aluminum alloy.
When large metamorphosis occurs, native honey bees
thermal expansion rate
(14-20)x10-6°C
Equivalent to concrete.
Thermal Conductivity
0.2-0.8W/(m·K)
1/10 of stone, 1/4 of cement, similar to wood.
heat resistance
No deformation at 780°C, heat resistance at 1000°C
Combustible materials whose combustion performance reaches and exceeds GB8624 (Class A)
100% flame retardant
energy absorption
2-25 J/cm3
The best energy-absorbing cushioning material ever produced by man.
When the strain rate is high, the energy absorption capacity increases, specifically by 20-100%.
sound-absorbing
Noise Reduction Coefficient NRC 0.4~0.8
Some sound-absorbing materials that are fire-resistant and do not degrade in wet environments.
Absorb more than 70% of the sound
sound insulation
20-40 decibels
It is six times that of ordinary plastic.
Eliminates 80-90% of the sound
Electromagnetic shielding
60~100 decibels
Excellent high-power electromagnetic shielding material, the shielding efficiency is more than 30 times that of ferrite,
Industrial pure iron and other materials.
High electromagnetic shielding, shielding more than 90% of electromagnetic waves.
Support sample service, please contact me for details~

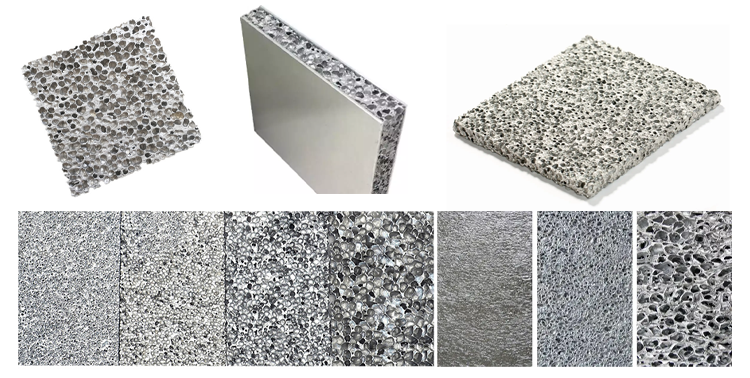

Aluminum foam products
Aluminum foam can also be made into a sandwich structure. It is a high-strength and very light board. Aluminum, copper, and titanium sheets can be bonded on both sides of the foamed aluminum to make a sandwich panel. The surface of the foamed aluminum has a good decorative effect and can be painted. The layer has almost no damage to the sound absorption effect of foamed aluminum.
Our advantage
scope of application

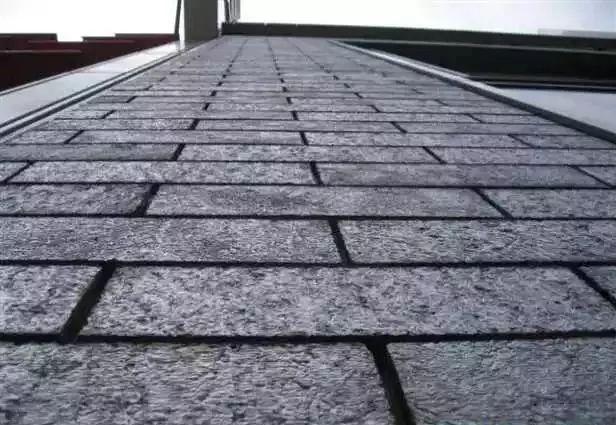

Aluminum foam can be painted in other rich colors, or in patterns of stone, wood and other materials, and can be used in any design for indoor and outdoor decoration of buildings and other materials.
Specifically, the main application of foamed aluminum in the construction field can be summarized as
> Aluminum foam plywood can be used to make walls and roofs of large-span buildings (such as Olympic venues, hangars, exhibition centers, factories, theaters, etc.);
> Aluminum foam sandwich panels can be used to make recording studios, karaoke, concert halls, cafes, and office spaces;
> The foam aluminum bare board can be used to produce sound-absorbing decorative boards in recording studios, theaters, lecture halls and other places;
> Aluminum foam material is placed under the floor, which can play the role of sound insulation between floors; > Aluminum foam sandwich panel can be used to make soundproof doors;
> The aluminum foam sandwich panel can be used as sound insulation device for noisy equipment (such as large air conditioners, air compressors, grinders, etc.).
