New Design Wholesale China Leading Trubolt Electronic Lock Owner Manual Double Cylinder Electric Wheel Lock

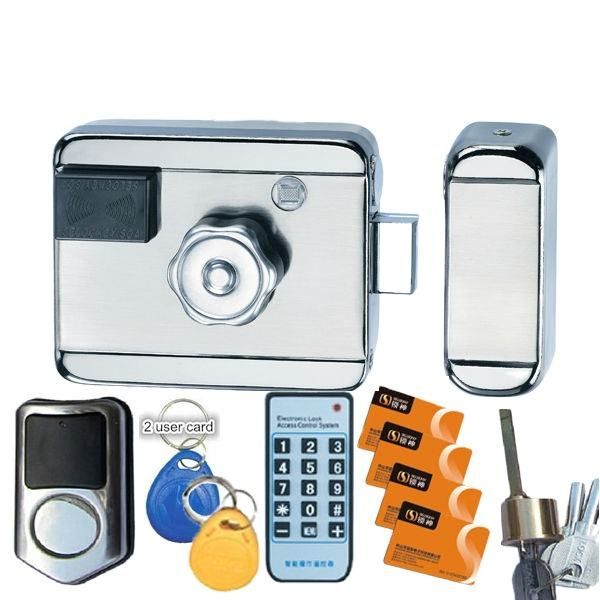

MI card smart RIM lock with remote control and wireless alarm

Item No.: LY09BM6

feature:

1. Door sensor, automatic locking, mute, deadbolt suffocation alarm, anti-theft alarm.

2. The door lock has audible and visual prompts and alarms. If the lock is opened by mistake or without entry, it will be automatically locked after 5 seconds.

3. The working voltage is DC12V; there is a backup power supply in the lock body, which can work in case of power failure.

4. Electronic remote control, automatic locking, and try to lock it many times until it is locked safely.

5. Built-in wireless sending and receiving module, which can send and receive door opening signal and alarm signal wirelessly.

6. Double-sided lock, double-sided reading head, left and right opening, inward opening, and outward opening can be freely installed with locks. There is no need for any modification with traditional electronic locks, and the rim lock with external enable signal can be connected. Cooperate with building intercom, access control, and intelligent security systems.

7. The lock body is made of 2mm thick steel plate, and the lock tongue is made of all steel, with a protrusion of more than 20mm, which meets the GA/T73-94-5.1.6B standard.

8. Metal reducer with higher strength and long life.

9. Both the card swiping screen and the probe are made of 304 stainless steel, which is anti-damage and rust-free, and is safer.

10. Imported brushless motor is used, which makes the work safer and overcomes a series of problems such as excessive driving current caused by DC motor stalling.

10. Use the IC card key, which cannot be copied. You can use the remote and a spare mechanical key to open the lock.

11. Relevant functions can be added or canceled freely according to user requirements.

parameter:

Card issuing method: remote programming, mother card, network

Card type: IC card;

Card capacity: 1010, and can be expanded.

Card sensing distance: >25 mm

Wireless remote control distance>50 meters

Working temperature: -30~50℃

Humidity: <95%

Working voltage: DC 10~18V

Unlock signal voltage: DC 6V~30V

Built-in voltage: 6V (4*AA batterRight now);

Low voltage alarm: ≤4.5V 8%

Working current (maximum): <500mA

Quiescent current: <76uA

Support external alarm power: <10W*

Anti-interference: IEC801-5 standard

Anti-surge: IEC801-5 standard

Working life: >1,000,000 times

Door opening records: 2048, support expansion but BM serial port

Networking method: TTL232 or RS485 (BM serial port)

Emergency opening:
a. Activate with a manager card
b. Use a covered mechanical keyhole. Remove the card reader panel, find the cylinder inside the panel, and open it with the mechanical key.
c. When the battery is low, use the external battery box to open the locker.

application:

Buildings, rental houses, access control systems, etc.

payment terms:

TT, Western Union, Escrow, Paypal.

Thank you for viewing, if you need cabinet lock network solutions or prices, please send us an inquiry!

Outside your home:

sameOutdoor lock bodymatch differentinside the lock,        B2   A3     B1     A2     A1   (Please click to view other items)

detail:

Package:

Neutral packing.

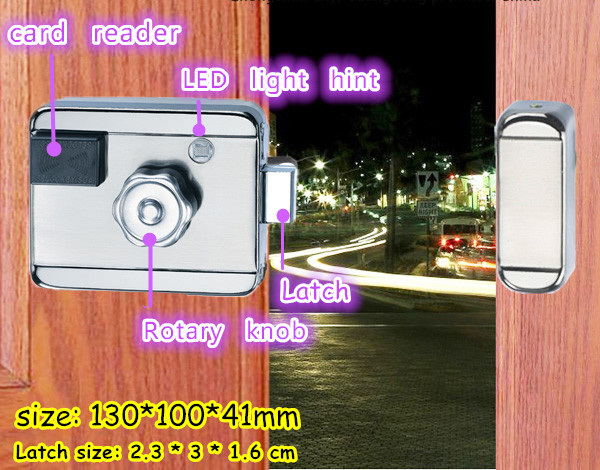

Product size: 130*105*40mm

Packing box specification: 1 piece/box, 0.15kg/piece

Carton size: 540*380*450mm, 16 boxes/carton, 23kg, 0.1CBM

Thank you for viewing, if you need cabinet lock network solutions or prices, please send us an inquiry!

Smart cards we can produce:

http://icowcn.en.alibaba.com/product/1566304046-218920487/Newest_I_button_cards_Dallas_1971_card_TM1971_card_256_bit_EEPROM_use_as_keys_or_identification.html

TM card: DS1990A, RW1990, DS1991, DS1971, DS1963...
RFID card, EM4100, EM4305, T5567 / T5577, Mifare 1, Mifare S50, Mifare S70...

Electronic cabinet locks we can produce:

http://icowcn.en.alibaba.com/product/1576796410-218920494/2013_Smart_Design_Gym_Locker_Lock_refrigerator_door_lock.html

TM1990A ibutton card key electronic cabinet lock;

EM4100 ID card key electronic cabinet lock;

Mifare One smart card key electronic cabinet lock;

Group cabinet lock network solution;

Electronic door lock network solution;

Customization is also available.
