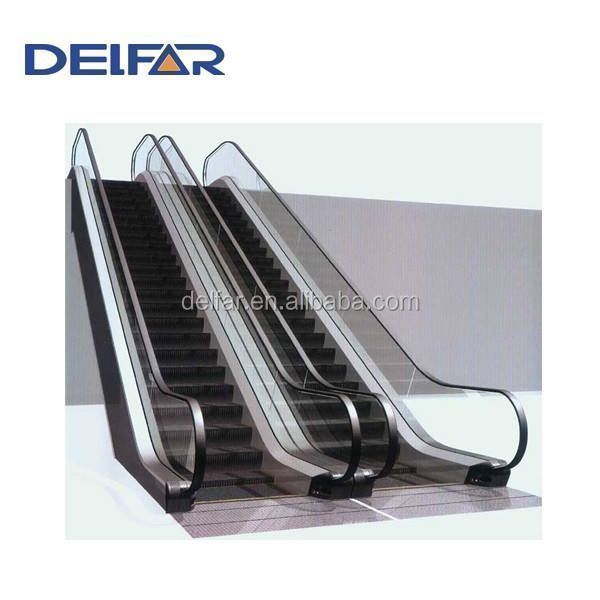

Cheap price and high quality escalator
- $11000.00 /unit
- 1 unit
- Delfar Elevator Co., Ltd.
- Zhejiang, China
- Mr Benson Benson
Product Detail
| application: | office building | Package preview: | |
| model: | Germany | brand: | delfa |
| railing: | tempered glass | Bottom plate: | Hairline St. British stone. |
| port: | Shanghai | armrest: | black rubber |
| Packaging Details: | Use strong export plywood box, suitable for long-distance transportation, moisture-proof, moisture-proof, shock-proof, rust-proof. | After-sales service: | online technical support |
| truss: | Welded mild steel (angle steel) | inclination: | 35° and 30° |
| Step width: | 600/800/1000 | design style: | modern |
| payment terms: | L/C, T/T | maximum. high: | 3.0≤H≤10.0 |
| Introduction to the interior: | Hairline St. British stone. | Step/Tray: | Stainless steel |
| Supply capacity: | 10000 units per year | Warranty: | 1 year |
| Project solution ability: | Graphic design, 3D model design, overall project solution, cross-category integration | Skirting: | Hairline St. British stone. |
| place of origin; place of origin: | China |
company information
Delfar Elevator Co., Ltd.is a professional elevator company that designs and manufactures complete sets of elevators, escalators and moving walks, as well as elevator components. The company covers an area of more than 40,000 square meters, with a factory building of more than 17,000 square meters and an office area of more than 3,000 square meters. DELFAR currently has 135 employees, including 52 engineers and technicians.
Certificate
Product Description
For escalators, we have 30° and 35° angle designs, which can meet the needs of major shopping malls, shopping centers, supermarkets, subway stations, airports, etc.
Escalator Construction Parameters
| 30° escalator structure size | ||||||||||
| Model | stroke height (mm) |
Nominal speed (Miss) |
Maximum conveying capacity (person/hour) |
inclination | Number of flat steps | Motor Power (kilowatt) |
A(mm) | B(mm) | C(mm) | Diameter (mm) |
| DE(600/30°) | 3000≤H≤6000 | 0.5 | 3600 | 30 | 2 | 8 | 600 | 838 | 1200 | ≥1260 |
| DE(800/30°) | 3000≤H≤5000 | 0.5 | 4800 | 30 | 2 | 8 | 800 | 1038 | 1400 | ≥1460 |
| 5000 | 11 | |||||||||
| DE(1000/30°) | 3000≤H≤4500 | 0.5 | 6000 | 30 | 2 | 8 | 1000 | 1238 | 1600 | ≥1660 |
| 4500 | 11 | |||||||||
| 35° escalator structure size | ||||||||||
| Model | stroke height (mm) |
Nominal speed (Miss) |
Maximum conveying capacity (person/hour) |
inclination | Number of flat steps | Motor Power (kilowatt) |
A(mm) | B(mm) | C(mm) | Diameter (mm) |
| DE(600/35°) | 3000≤H≤6000 | 0.5 | 3600 | 35 | 2 | 8 | 600 | 838 | 1200 | ≥1260 |
| DE(800/35°) | 3000≤H≤5500 | 0.5 | 4800 | 35 | 2 | 8 | 800 | 1038 | 1400 | ≥1460 |
| 5500 | 11 | |||||||||
| DE(1000/35°) | 3000≤H≤4500 | 0.5 | 6000 | 35 | 2 | 8 | 1000 | 1238 | 1600 | ≥1660 |
| 4500 | 11 | |||||||||
Advantage:
(1) The truss adopts first-class angle steel, which has a unique structure, high strength and durability.
(2) The overall design is simple and smooth, inclusive.
(3) Advanced international technology guarantees the accuracy of stepping.
(4) The diameter of the stepping roller is large, the operation is stable, the noise is low, and the service life is long.
(5) The entrance of the humanized handrail is fixed with a brush.
security system
arrange plan
our service
workshop
Packaging and Shipping
