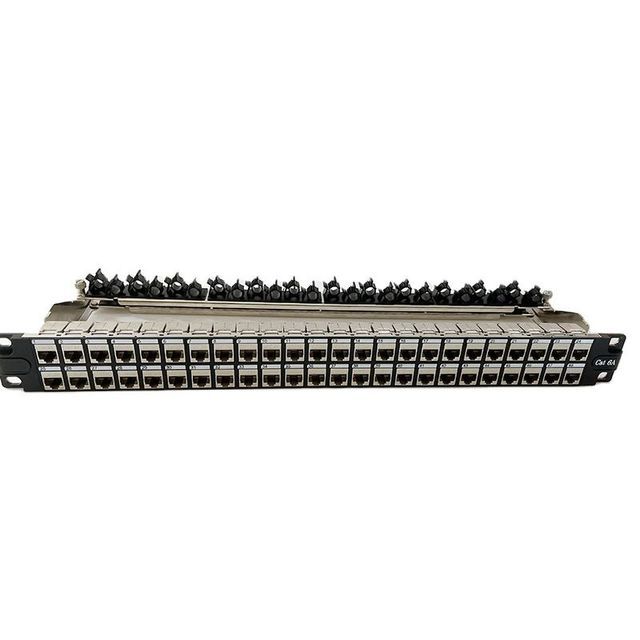

High Density Patch Panel 1U 48 STP FTP Cat6A Ports with RJ45 Keystone Jack
-
$53.00 / 100 - 499 pieces
$51.00 / >=500 pieces - 100 pieces
- Ningbo Hyconnect Communication Technology Co., Ltd.
- Zhejiang, China
- Ms zyta zeng
Product Detail
| brand: | HY connection | MOQ: | 100 |
| Specification: | 48 ports | application: | Network cabling system |
| payment terms: | L/C, Western Union, T/T | Origin: | Zhejiang, China |
| color: | Black | category: | Category 6A |
| product name: | 1U STP Cat6A 48-port patch panel | Material: | SPCC |
| Package preview: | high: | 1U | |
| model: | HPP-K4801F+HKJ-802-C6A | port: | Ningbo |
| Connector port: | 48 RJ45 jacks | Supply capacity: | 20000 pieces per month |
| Packaging Details: | Neutral packaging, OEM packaging can be 1 piece/box, 20 boxes/carton |
| product name | 1U STP 48-Port Cat6A Patch Panel with Keystone Jacks |
| Material | SPCC |
| Specification | 48 ports |
| color | black+silver |
| used | Data center, work area, management room, equipment room, etc. |
1. Technical Features
• Nickel-plated brass shell, gold-plated phosphor bronze to avoid oxidation
• Front panel with port numbers and classes
• Front modules are detachable from the entire frame
• Integrated backplane provides good cable management, reduces cable strain and makes cabling system more stable and clear
• Metal structure guarantees higher mechanical strength and excellent shape of the product
• Standard 1U height 48-port panel supports T568A/B wiring sequence
• Standard 19-inch wide range application makes assembly, maintenance and upgrades quicker
2. Electrical Characteristics
• Nominal voltage: 125 VAC RMS
• Rated current: 1.5AMP
• Contact resistance: 100 MΩ max.
• Insulation resistance: 1000MΩ@ 500 VDC
• Dielectric Strength: 750 VAC RMS 60Hz, 1MIN
3. Environment
• Storage: -40°C to +75°C
• Working: -10°C to +60°C
• TIA/EIA 568B Category 6 compliant
4. Machinery
• Housing material: PBT
• Panel frame: ST12, black powder coat
• IDC Material: PC, Terminal: Phosphor Bronze, Tin Plated
• RJ45 jack life: min. 750 times
• IDC life: more than 200 times
• Wire: AWG23-26
• TIA Cat6 Perm .Link test: worst pair NEXT margin ≥ 3.0dB
• Insertion structure holding force: 50N 60±5s
5. Application
• Structured cabling for transmission of data, voice, video
• Suitable for Cat.6A
