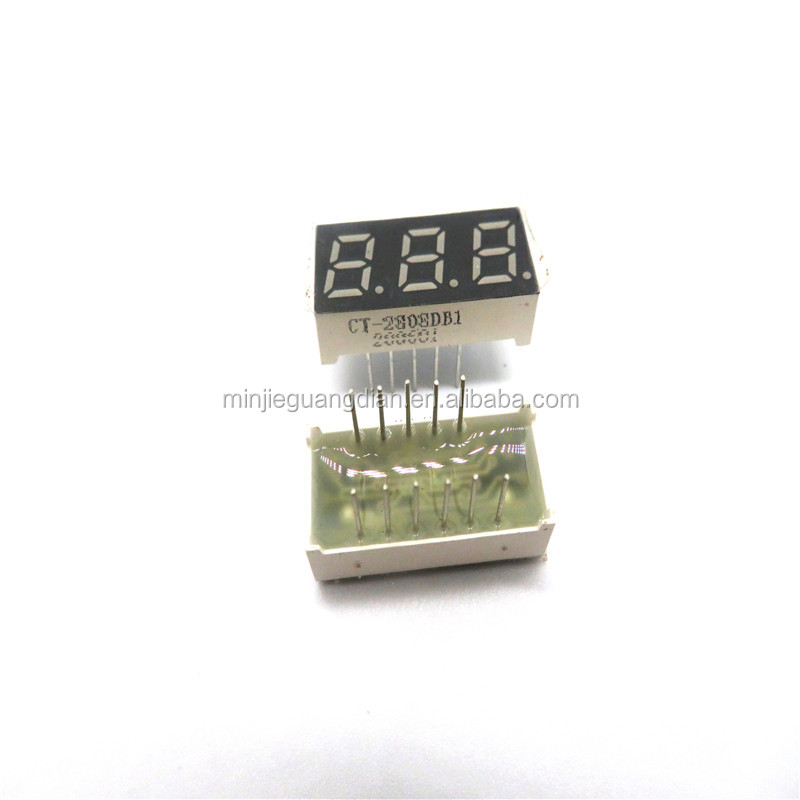

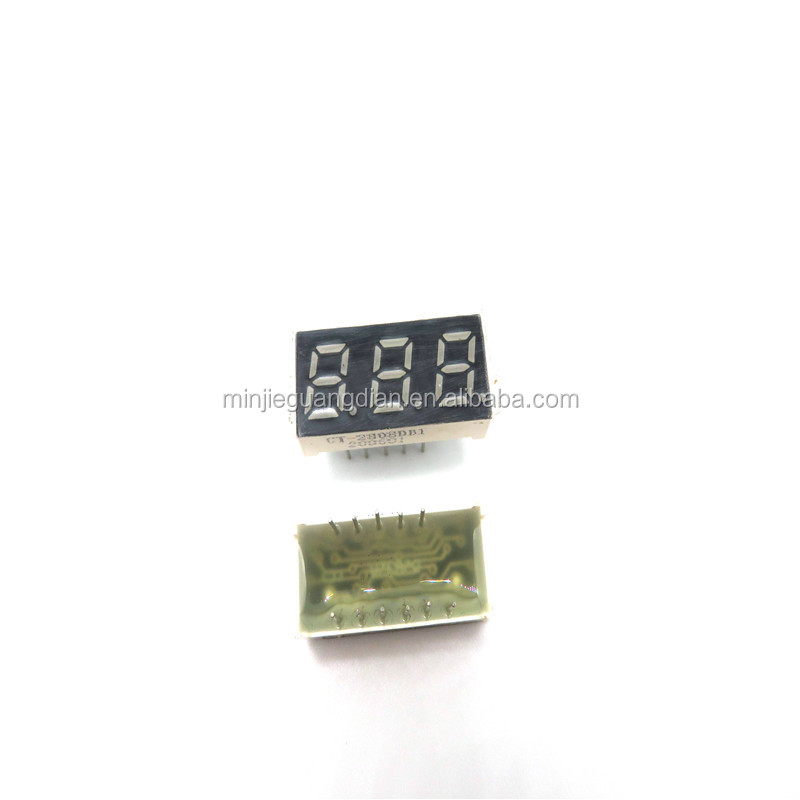

0.25 inch three-digit digital tube blue seven-segment tube
- $0.15 / >=1000 pieces
- 1000 pieces
- Zhongshan Minjie Optoelectronics Technology Co., Ltd.
- Guangdong, China
- Ms Grace Lei
Product Detail
| Light attenuation (%): | 1 | Color rendering index (Ra): | 60 |
| Packaging Details: | EPE foam inside, carton outside. | Working temperature(℃): | -25 - 85 |
| Lifespan (hours): | 6000 | Package preview: | |
| product name: | Nixie tube display 7-segment network | light intensity: | 0.1 |
| Supply capacity: | 100000 pieces per day | LED chips: | Epistar/Epistar |
| Storage temperature(℃): | -30 - 85 | Chip material: | AlGaInP |
| Color temperature: | 1 | pack: | Inner EPE foam outer carton |
| type: | Digital Tube | Input voltage (V): | DC 6V |
| Luminous efficacy (lm/w): | 0.1 | brand: | megajoules |
| Warranty (year): | 3 years | payment terms: | Western Union, D/P, T/T, MoneyGram, Paypal |
| usage: | indoor use | Luminous color: | blue |
| application: | Digital Display | Color temperature (CCT): | 6000K (daylight alarm) |
| Product weight (kg): | 0.02 | Power Consumption: | 1 |
| Supported dimmers: | Do not | Working hours (hours): | 50000 |
| Viewing angle(°): | 1 | place of origin; place of origin: | Guangdong, China |
| polarity: | common cathode | Lighting Solutions Services: | Lighting and Circuit Design |
| Luminous flux (lm): | 1 | strength: | 0.1w |
Product Description
application
Seven-segment digital display and seven-segment color display products are widely used in various terminal equipment, including test and measurement equipment, point-of-sale, telecommunication systems, home appliances, office equipment, consumer electronics and medical equipment, etc.
Product Details:
| model. : | MJA2532B2-10 |
| polarity: | common cathode |
| Emit color: | blue |
| LED chips: | Epistar/Epistar |
| Product Size: | 15.3*8.0*4.0mm |
| type: | Small three-digit 7-segment led display |
| application: | for digital display |
| pack: | Inner EPE foam outer carton |

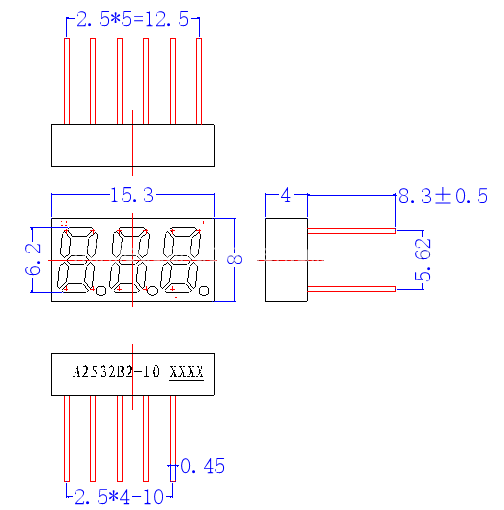

Mechanical summary:
(unspecified tolerance: X±0.25mm)

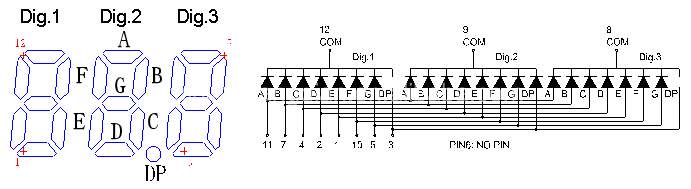

Circuit schematic diagram:
