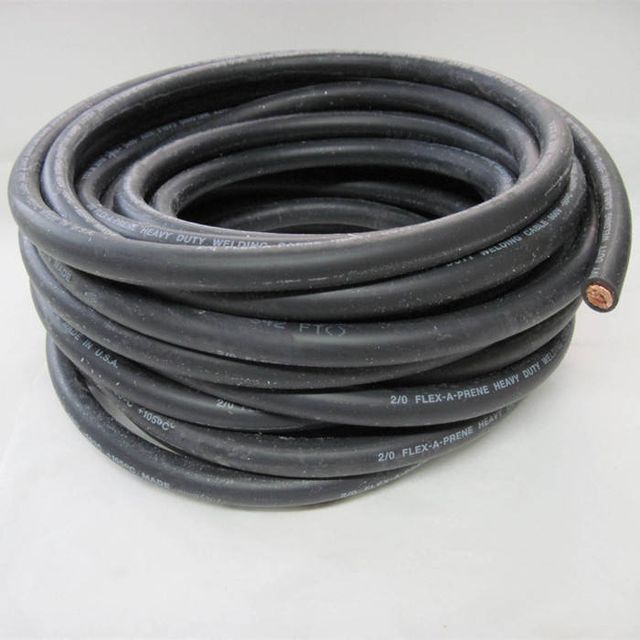

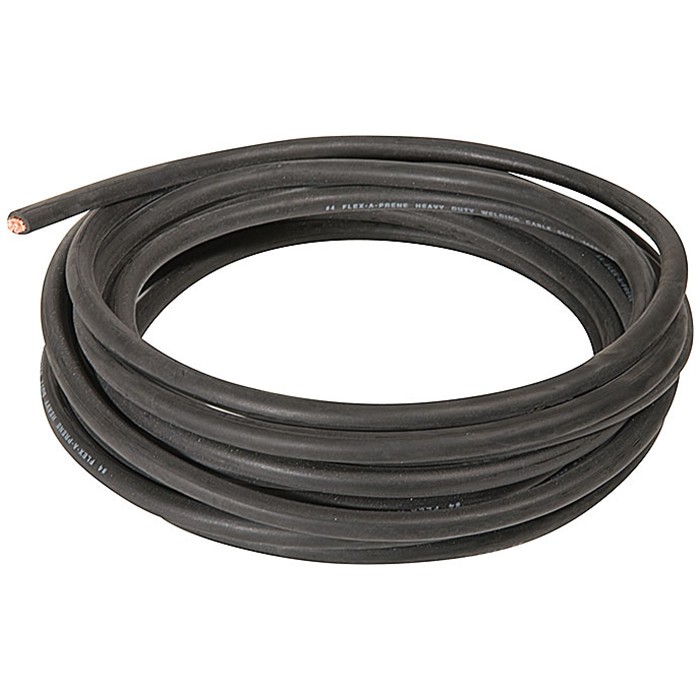

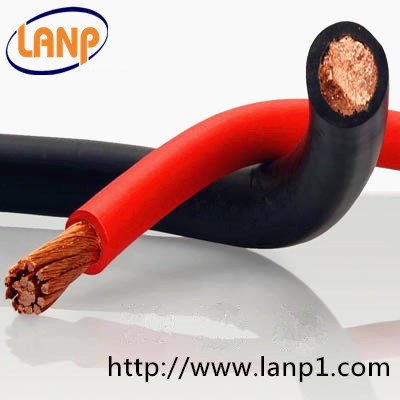

Soft copper core rubber welding cable 16mm2 25mm2 35mm2 50mm2 70mm2

Product Detail

application:Welding machineVoltage:200V-400V
temperature range:-55°C to 105°CConductor material:copper
port:Shenzhen any portpayment terms:L/C, T/T, Western Union
color:black, orange or as requiredSupply capacity:3000000 m/month flexible copper core rubber welding cable 16mm2 25mm2 35mm2
Packaging Details:Wooden barrel/wooden steel barrel/steel barrel/iron barrel. Drum size according to cable diameter or your special requirementstype:low voltage
Origin:Guangdong, Chinabrand:LAN plan
Conductor Type:flexibleConductor size:10 sqm to 240 sqm
jacket:erasermodel:LP-WI-1
pack:wooden scroll or upon requestInsulation Materials:eraser





Product name: soft copper core rubber welding cable 16mm2 25mm2 35mm2 50mm2 70mm2





Product Description



application:

Welding machine cables are suitable for electric welding machines with ground voltage not greater than 200V and pulsating current value: 400V



Specification:

Model

Name

main application

Operating temperature

Core≤0C

YH

Welding cable natural rubber sheath

always used indoors

65

Yonghua

Neoprene sheathed welding cable

been used outdoors

65

Synthetic elastomer sheathed welding cables





feature is:

1. The cable has high flexibility.
2. The sheath shall be natural rubber compound or neoprene compound.
3. The neoprene sheath is heat-resistant, oil-resistant and flame-retardant.

 4. Allow continuous working temperature 65°C



Conductor nominal

Section (mm2)

Conductive core

thickness

part

Sheath (mm)

average outer layer

Diameter (mm)

20oC conductor

resist

≤(Ω/km)

Reference weight (kg/km)

Number of Cores/Diameter(mm)

minimum value

maximum

YH

Yonghua

10

322/0.20

1.8

7.5

9.7

1.91

146

153.51

16

513/0.20

2.0

9.2

11.5

1.16

218.9

230.44

25

798/0.20

2.0

10.5

13.0

0.758

316.6

331.15

35

1121/0.20

2.0

11.5

14.5

0.536

426

439.87

50

1596/0.20

2.2

13.5

17.0

0.379

592.47

610.55

70

2214/0.20

2.4

15.0

19.5

0.268

790

817.52

95

2997/0.20

2.6

17.0

22.0

0.198

1066.17

1102.97

120

1702/0.30

2.8

19.0

24.0

0.161

1348.25

1392.55

150

2135/0.30

3.0

21.0

27.0

0.129

1678.5

1698.72

185

1443/0.40

3.2

22.0

29.0

0.106

1983.8

2020.74



Package:

100m/roll PE film, 300m, 500m, 1000m/roll wooden roll, or as your request.
