PDLC Magic Glass Film 10mm PDLC Smart Glass Self Adhesive Smart Glass Film

PDLC Magic Glass Film Smart Glass 10mm PDLC Self Adhesive Smart Glass Film

PDLC smart film

(1) Structural diagram:

HOMEWELL dimmable transparent glass, referred to as STG, this product uses dry-glued glass, and the dimmable transparent film (STF) is bonded between two pieces of glass. The glass conforms to the national standard of laminated glue.

(2) Appearance structure size:

Glass thickness+0.76mm(EVA)+0.44mm PDLC film+0.76mm(EVA)+glass thickness(Glass thickness:3mm-20mm)

Note: Types of glass: ultra-clear, white light, fireproof, Low-E coated glass, etc.

(1)Opaque Statue by STG

STG consists of two transparent ITO films sandwiched between a layer of plastic and liquid crystal. Plastics and liquid crystals include liquid crystal spheres and polymers. The directors of liquid molecules are approximately parallel to the glass substrate. The polymer is surrounded by liquid crystal droplets. The refractive index of the polymer is n_p, which is similar to the refractive index of glass. About 1.5, it is an isotropic substance, the extraordinary refractive index and ordinary refractive index of liquid crystal are n_electronicand n, respectively. When the vertically incident visible light passes through the glass and the transparent ITO film, it enters the liquid crystal ball and the polymer interface, due to the n_electronicnot equal to n_electronic, so scattering occurs and the STG is atomized.

(2)Transparent STG

When an external electric field is applied, an electric field is formed between two transparent ITO films, and the liquid crystal molecules are arranged along the direction of the electric field. When the vertically incident visible light passes through the glass and the transparent ITO film, it is incident on the interface between the liquid crystal ball and the polymer. because n_oThe direction is perpendicular to the direction of light propagation, no is equal to n_p, the glass is transparent.

(3)STG Haze

The main indicator of the optical performance of STG glass is transparency. It's actually smog. The smaller the energized haze, the better the de-energized haze. When an external electric field is applied, the light is perpendicular to the direction of the transparent conductive film. When incident, although nLC is approximately equal to no, due to the difference in nP and no values, scattering will still occur at the interface between liquid crystal droplets and polymers. This is the main cause of smog.

(4)angle of view

When the ITO thin film is energized, the angle between the incident light and the vertical direction of the electrically controlled film is not zero (called the angle of view "a")The propagation direction of light in STF is not parallel to the pointing vector of liquid crystal molecules, as shown in the figure:At the interface between the liquid crystal droplet and the polymer, the light component vibrating along the NE direction is scattered, and the larger a is, the more the scattering is, so the haze increases with the increase of the viewing angle, which is the photoelectric effect of its characteristic liquid crystal.

Technical Parameters
application:

Large-scale command and dispatch center office, meeting room, negotiation room, and specialized ward. Operating room, villa bathroom. Shower room, windows in rec room. isolation. screen etc.

Police station, courthouse. prison. Jewelry Shop. museum. Bank window. curtain wall. counter. Quarantine etc. Large special screen projection screen, etc.

Function:

a) Environmental protection, energy saving, safety, heat preservation, anti-condensation

b) High anti-ultraviolet function, which can block more than 99% of ultraviolet rays. While not losing visible light into the room, it can block a large amount of ultraviolet rays and prevent the fading and aging of interior decorations and furniture. It also protects people from diseases caused by excessive UV radiation

c) Appropriate visible light transmittance has certain concealment to outdoor strong light

d) Low solar coverage effectively prevents solar heat radiation from entering the room

e) Infrared reflectance is high, limiting outdoor secondary heat radiation from entering the room

f) Highly absorb more solar radiation heat and ultraviolet rays, reduce the transmission of infrared rays and ultraviolet rays, reduce indoor air conditioning energy consumption, heat insulation and energy saving

g) High safety, when it is damaged by external force, it will only produce cracks, will not break, and there is no danger of glass fragments flying.

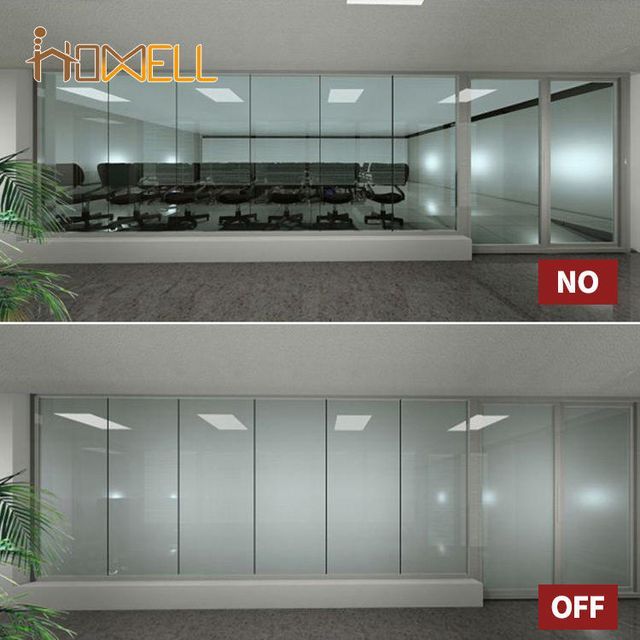

h) Privacy protection: transparent when power is on, opaque when power is off, the light is still sufficient under privacy protection, the reception room in the concealed office area is still bright, not only comfortable, but also saves lighting.

Power transparent, opaque, opaque: fast response, instant privacy within 1/10 second

i) The reflective and heat-absorbing hollow glass with excellent sound insulation properties, the electric control film and the film in the middle have sound insulation effects, and can effectively block various noises up to 38 decibels. With hollow, the sound insulation effect is better

j) Projection characteristics: In the closed state, the visible light scattering reaches more than 43%, and the transmittance reaches more than 50%. It can be used as a projection screen for street shopping malls and has a good advertising effect. If the projection is turned on, there is also a three-dimensional void effect

k) Control diversity: manual control, remote control, light control, voice control, infrared, remote network control

FAQ

1. How does Smart Film work?

In the "off state," when the smart film is not powered, light is either absorbed or scattered, and the film appears dark gray or white. In the "On State" light transmission, the film appears transparent. We can provide installation video!

2. What is the product delivery time?

Delivery time for PDLC film products is 7 days after payment is received.

3. What is your roll size?

White: 1.0m, 1.2m, 1.45m, 1.52m wide * 30m long, the length can be customized

Gray: 1.25m, 1.5m wide * 30m long, the length can be customized

4. What is your terms of shipment?

We ship by air/express.

Customer clearance, release and delivery to final destination.

5. Is there any MOQ (minimum quantity)?

MOQ is flexible but based on 1 roll of special color.

6. What is the life expectancy of your products?

Life expectancy is approximately 10 years or >2,000,000 switches.
