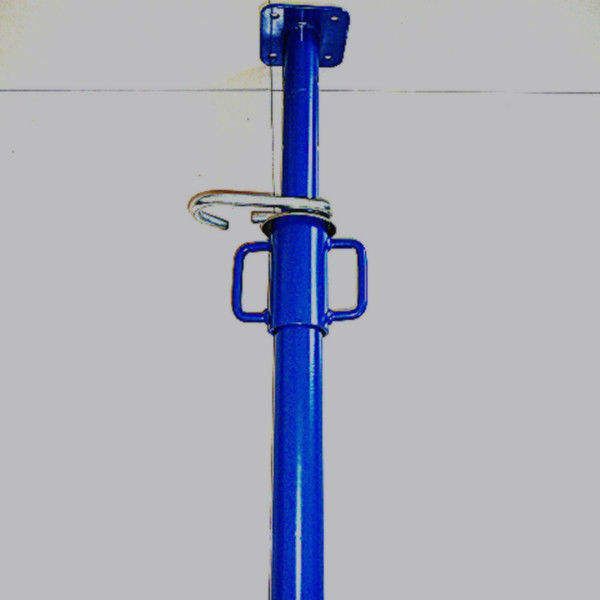

High Quality G Pin Scaffolding Steel Struts For Construction
- $5.00 / >=100 pieces
- 100 pieces
- Tianjin Hengfengjinda Metal Structure Co., Ltd.
- Tianjin, China
- Mr chengri piao
Product Detail
| Supply capacity: | 10000 pieces in stock per month | Pipe Thickness: | 1.5-3.5mm |
| payment terms: | L/C, T/T, Western Union | application: | construction, construction, etc. |
| brand: | High frequency JD | Material: | Q235 |
| port: | Tianjin harbor | color: | blue |
| pin: | G type | Plate size: | 120*120*4/5mm, 140*140*5mm, etc. |
| plate: | Square, flower, U-shaped head | Package preview: | |
| Adjustable height: | 0.8-5.5m | Packaging Details: | tied with steel straps |
| Origin: | Tianjing, China | model: | hf100025 |
| Surface treatment: | painted | Scaffold Part Type: | scaffolding props |

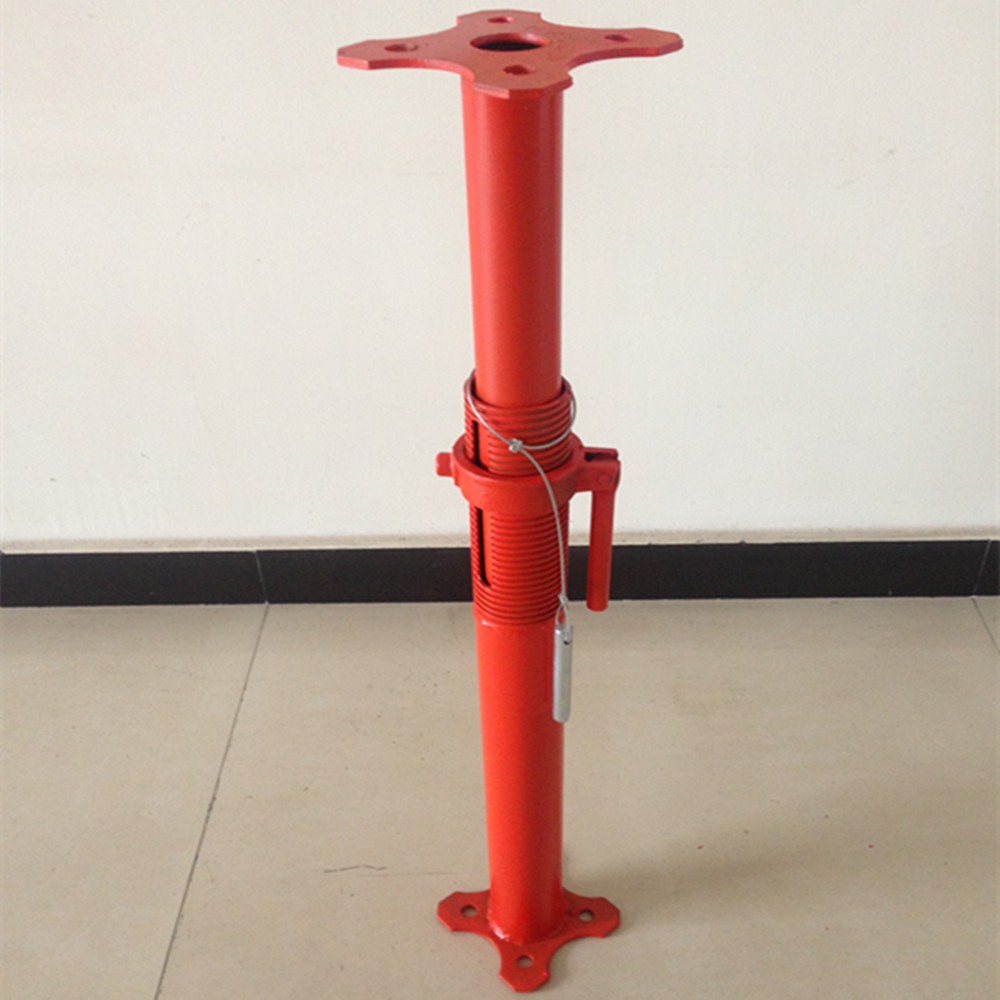

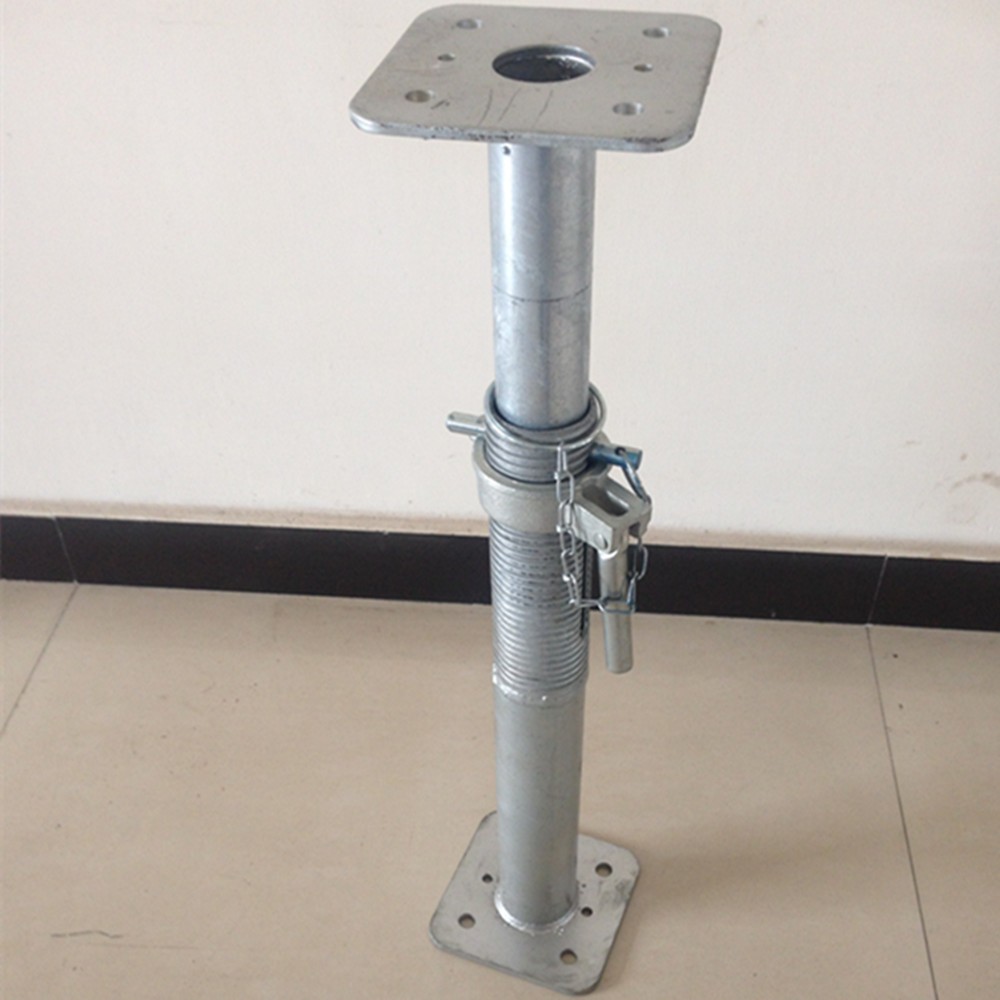

High Quality G Pin Scaffolding Steel Struts For Construction
illustrate:
1. Outer diameter: 60mm/56mm/48mm etc.
2. Inner diameter: 48mm/40mm etc.
3. Surface treatment: galvanized, painted, sprayed plastic.

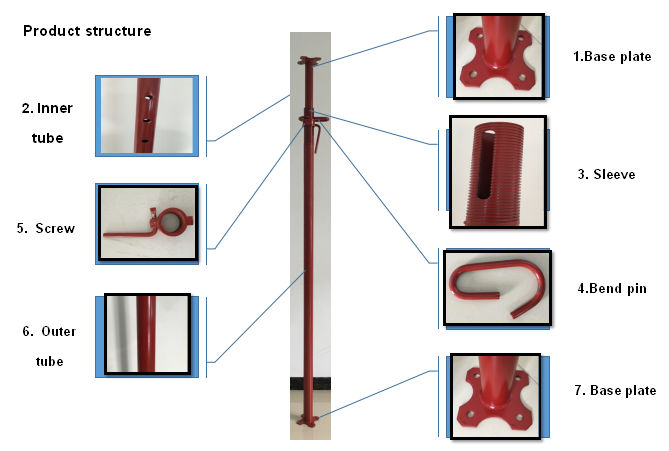

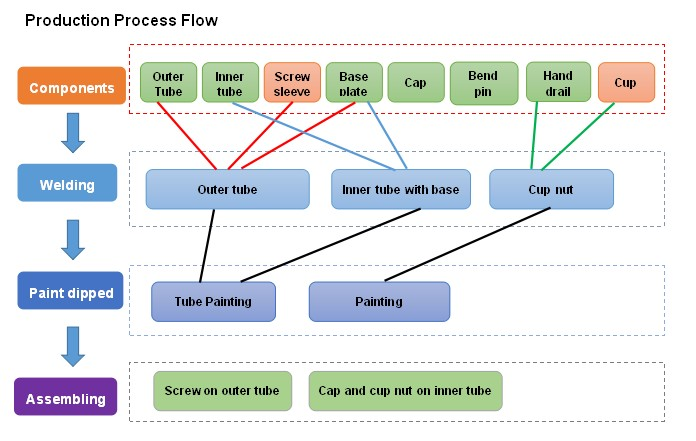

4. Components: threaded pipe, cast nuts and pins, screws.
Specification:
adjustable | Outer tube | inner tube | theoretically | 20 feet container |
Length (m) | Tube (mm) | Tube (mm) | Weight (kg) | Can be loaded (piece/bulk) |
0.8-1.4 | 48×1.6×765 | 40×1.8×835 | 4.74 | 3500 |
1.6-3.0 | 48×1.6×1600 | 40×1.8×1600 | 7.57 | 2200 |
2.0-3.5 | 48×1.6×1710 | 40×1.8×2000 | 8.45 | 2000 |
2.2-4.0 | 48×1.6×2000 | 40×1.8×2200 | 9.32 | 1750 |
|
|
|
|
|
1.6-2.9 | 56×1.6×1510 | 48×1.8×1600 | 8.95 | 2200 |
1.8-3.1 | 56×1.6×1510 | 48×1.8×1800 | 9.36 | 2100 |
2.0-3.6 | 56×1.6×1750 | 48×1.8×2000 | 10.29 | 2000 |
2.2-4.0 | 56×1.6×2010 | 48×1.8×2200 | 11.26 | 1750 |
|
|
|
|
|
1.4-2.7 | 60×2.0×1340 | 48×2.0×1400 | 9.45 | 2300 |
2.0-3.5 | 60×2.0×1540 | 48×2.0×2000 | 11.38 | 2000 |
2.2-4.0 | 60×2.0×1840 | 48×2.0×2200 | 12.7 | 1750 |
3.0-5.5 | 60×2.0×2540 | 48×2.0×3000 | 16.51 | 1500(40ft/bulk) |

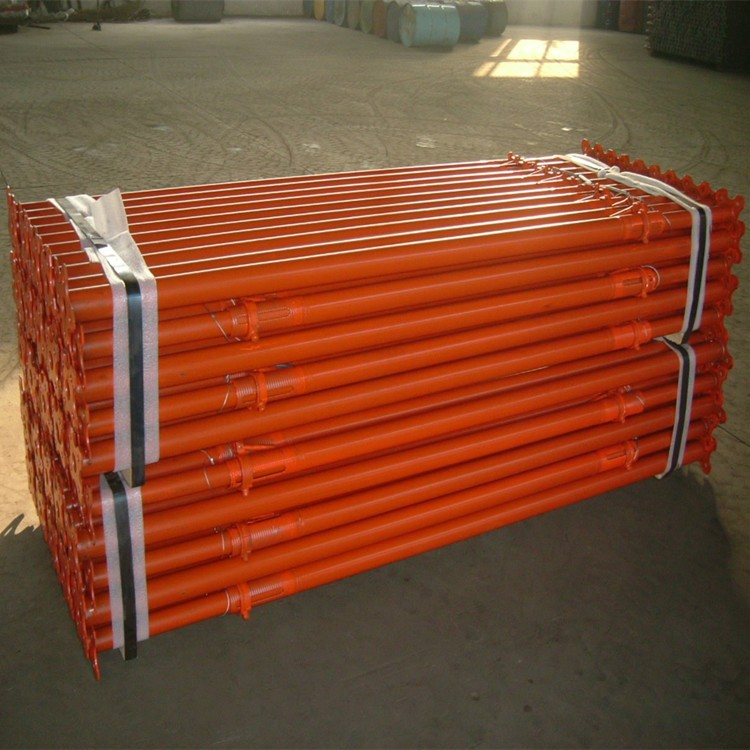

Package

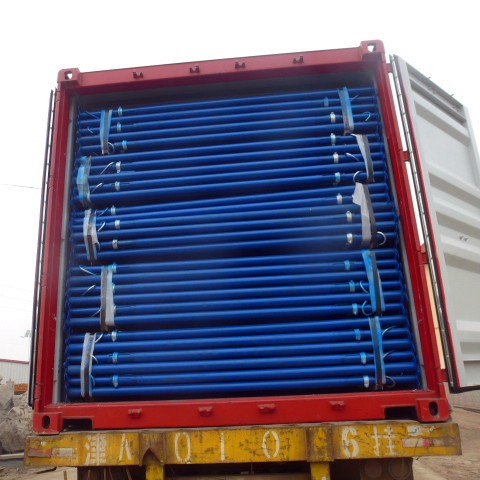

Loading
Certificate
about Us:

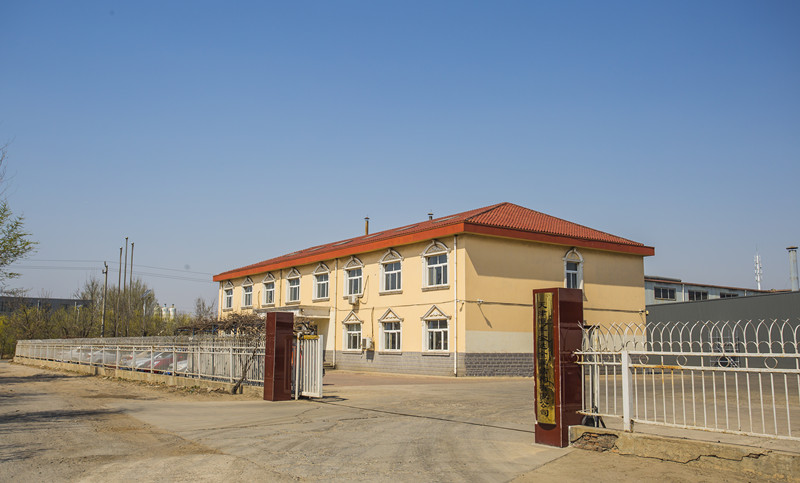

Our company was established in April 2008 and is located in Jinghai Economic Development Zone, Tianjin, China. We have two factories covering an area of 15,000 square meters and a construction area of 5,000 square meters. The number of employees is about 200, including 10 technicians.

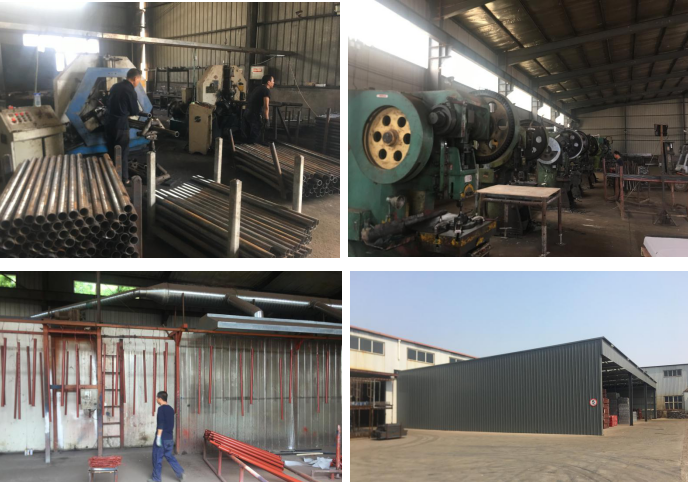

It has punching machines, lathes, drilling machines, sawing machines and other production equipment, and 2 sets of welding production lines. Over the years, we have established the ISO9001 quality management system to provide customers with professional marketing and technical services.
Our main products include adjustable steel prop jacks (telescopic supports), portal and stepped scaffolding systems, jack bases and scaffolding pairs, formwork and scaffolding accessories.
The monthly production capacity is about 200,000 sets of steel props. All products are exported to more than 40 countries including South Korea, Japan, Malaysia, Britain, Italy, Canada, and the United States. In addition, we can also produce non-standard products according to customers' requirements and drawings.
welcome!
Tianjin Hengfeng Jinda Metal Structure Co., Ltd.
