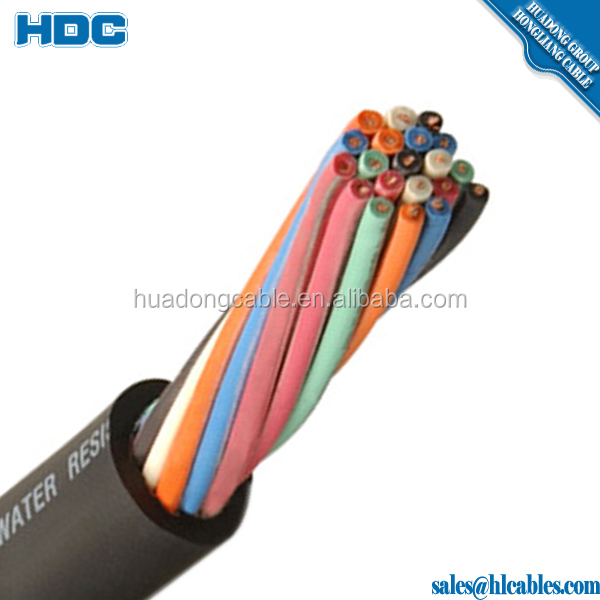

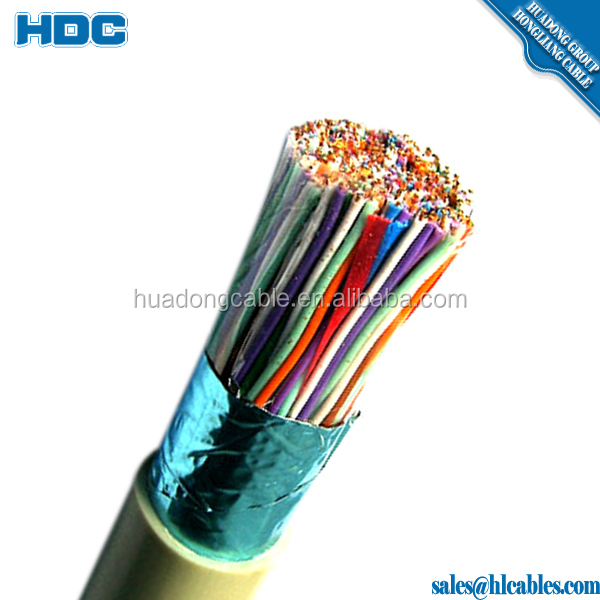

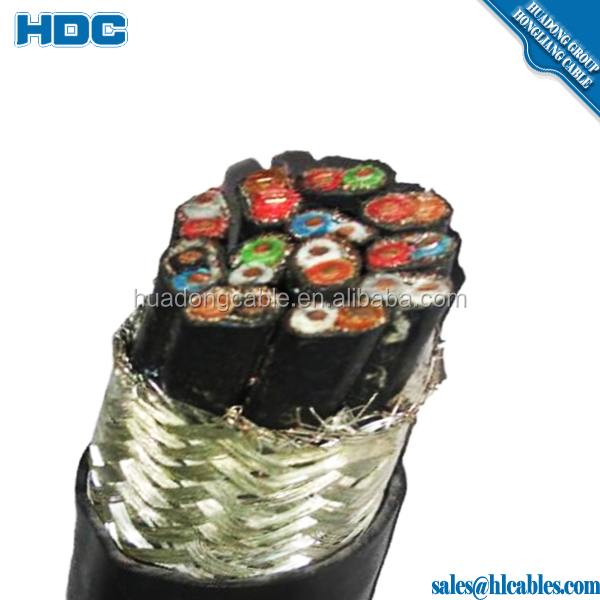

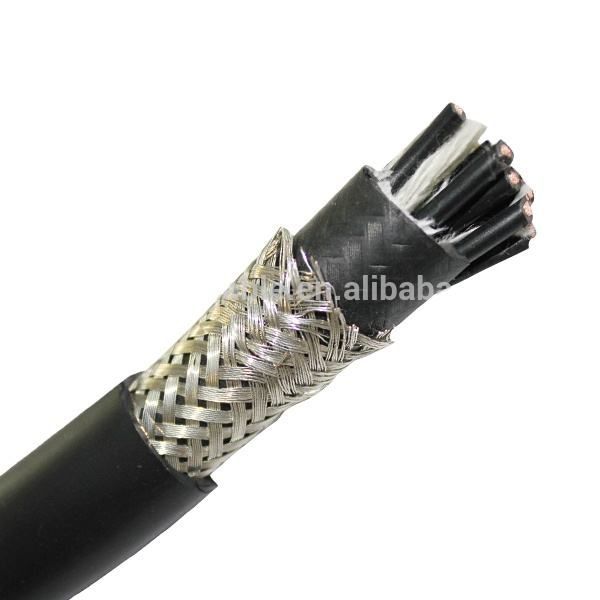

Low voltage instrument cable 0.75mm2 multi-pair braided armored flame retardant instrument cable.

Product name: low-voltage instrument cable 0.75mm2 multi-pair braided armored flame-retardant instrument cable.

1. Conductor: annealed standard copper, class2.
2. Insulation: HEPR (cross-linked ethylene propylene rubber

3.Laying Up : Pair stranding(2 pair cable=quad stranding)
4.Armour: Separation strap, bare copper braid
5. Outer sheath: cross-linked neoprene

electrical characteristics

Rated voltage Uo/U(Um)150/250V
Test voltage 1500V

Features

Maximum conductor operating temperature 85 °C

Maximum conductor temperature 250 °C during short circuit

Minimum installation temperature –10 °C

Minimum operating temperature –35 °C

Minimum inner bending radius 6*cable diameter

Henan Huadong Cable Co., Ltd. Is a collection of cable production, research and development,and domestic&internationalityLifttrading.

Year Established: 1988

Total assets: $32 million

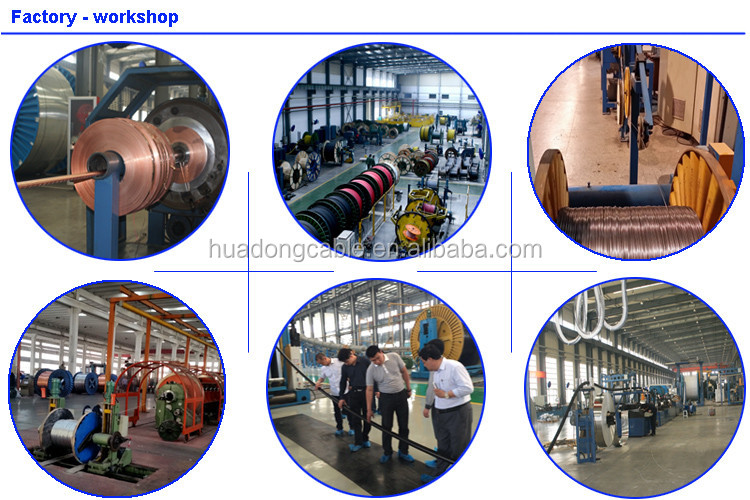

Plant area: 30000 square meters

Number of employees: 380

Engineers: 20

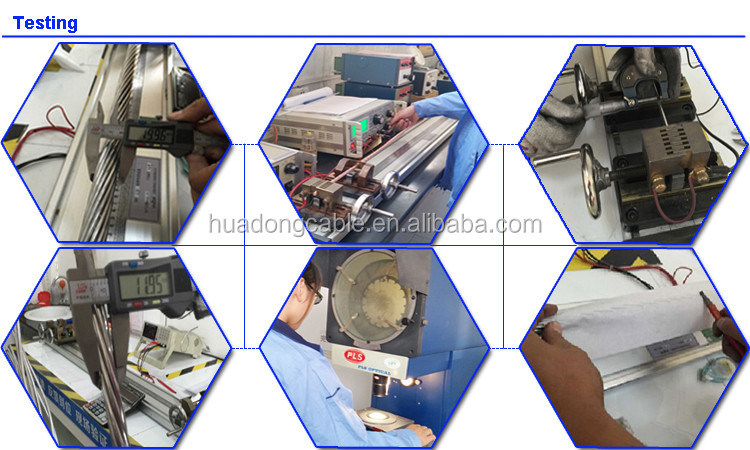

Laboratory Inspectors: 18

Production line: 18

Testing machine: 25

Annual production capacity: 320,000 kilometers

Low-voltage instrument cable 0.75mm2 multi-pair twisted braided armored flame-retardant instrument cablestandard:

Our products are produced according to GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS and other standards. At the same time we can produce according to customers' requirements and specifications.

Low-voltage instrument cable 0.75mm2 multi-pair twisted braided armored flame-retardant instrument cableCertificate:

The company has passed ISO90012008 quality certification, CCC China Compulsory Product Certification, National Electrical Product Safety Certification, and the National Construction Engineering Committee recommends manufacturers for urban and rural power grid construction and transformation.

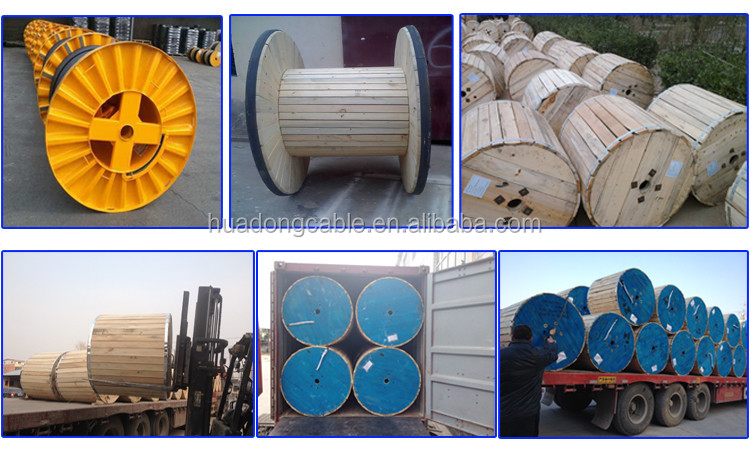

1) 100 to 1,000m carton rolls or according to customer requirements.
2) Outer packing: wooden box, carton.
3) Other packaging requirements according to customer requirements.

2. We send technical personnel to the installation site to provide technical consultation, engineering quantity estimation and guidance, installation, preliminary testing, and help start-up; and answer product defects found during installation and operation testing. If there is a problem with the product, We will give a reply within 12 hours and arrive on site within 36 hours.

3. After the installation is completed, we will send technicians to conduct a preliminary test and answer the questions that arise. Within the scope of our responsibility stipulated in the contract, we bear all the costs necessary for repair, testing or re-inspection.

4. During the validity period of the contract, if the project has to be restarted or the goods cannot be used at all due to problems with our goods, improper documents or mistakes of the instructors, we will immediately replace the goods and bear all the costs of reinstallation free of charge.
