Three-temperature button control switch line for electric heating products

Product Detail

payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypaltype:pulse width modulation
product name:Three-position thermostat silicone switchCertification:other
Function:Three air conditionersOrigin:Guangdong, China
Warranty:otherProduct number:H7-D
brand:JiangxinliangpinVoltage:5~12V
Material:Bare copper/glueRange of use:Heating vests, scarves, socks and other electric heating products
model:H7-DRated voltage and current:2A
Shell Dimensions:Length 33mm*Width 33mm*Height 7.5mmIs it smart:Yes
port:Shenzhencustom made:Yes
Interface type and cable length:Customized as neededPackaging Details:Carton safety and bulk packaging
Supply capacity:10000 pieces per day

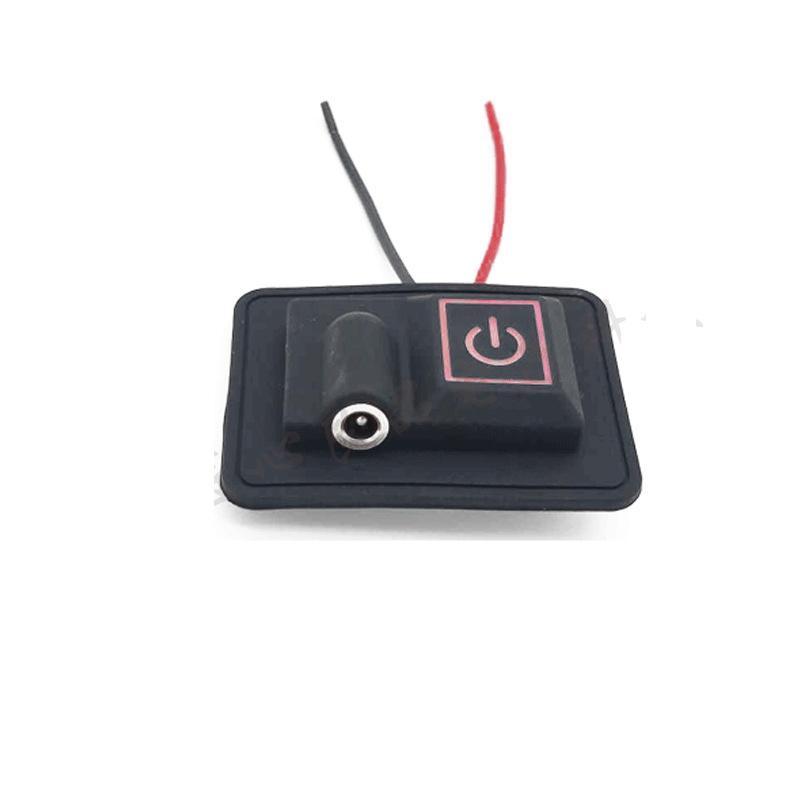

Product Description


①Sewing thread

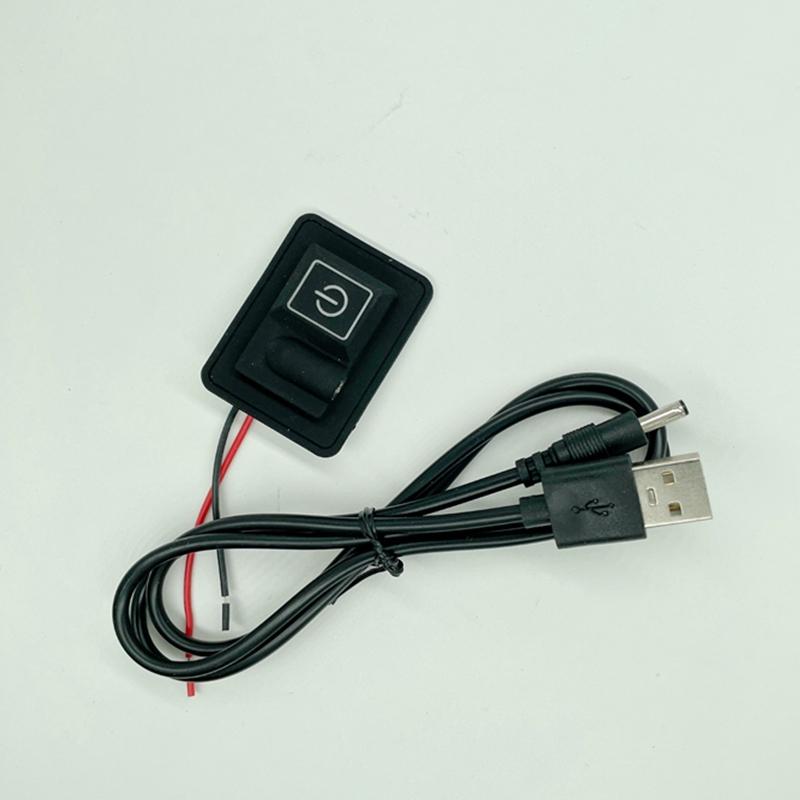

②Input terminal DC3.5*1.35 female

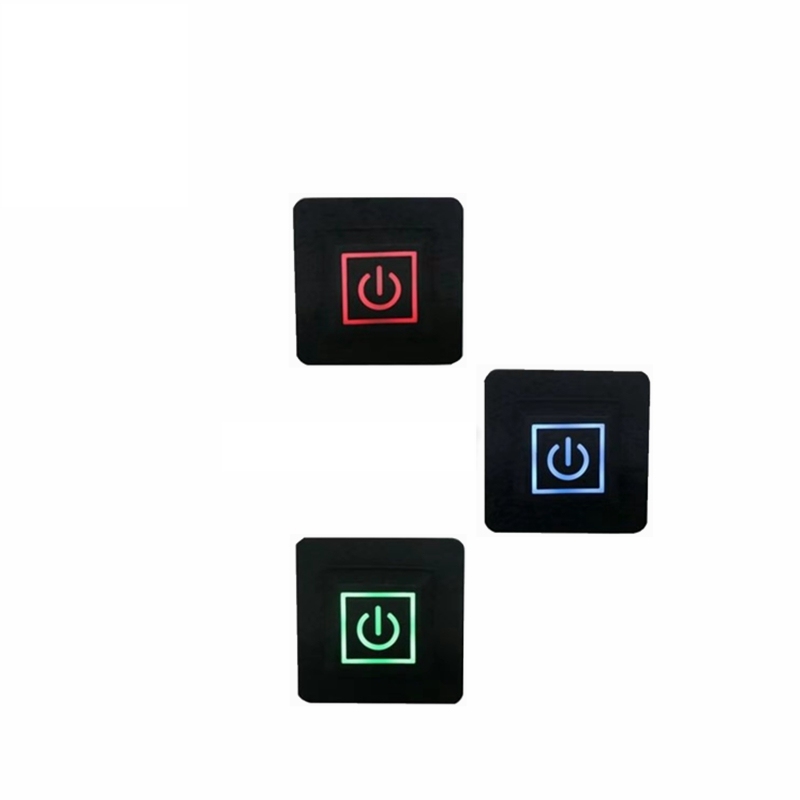

③ On/off and gear switch buttons, short press on/off, red/blue/green will light up once, the power is high-grade red, short press for
Switch to mid-range blue, short press to switch to low-grade green, then off, and so on.

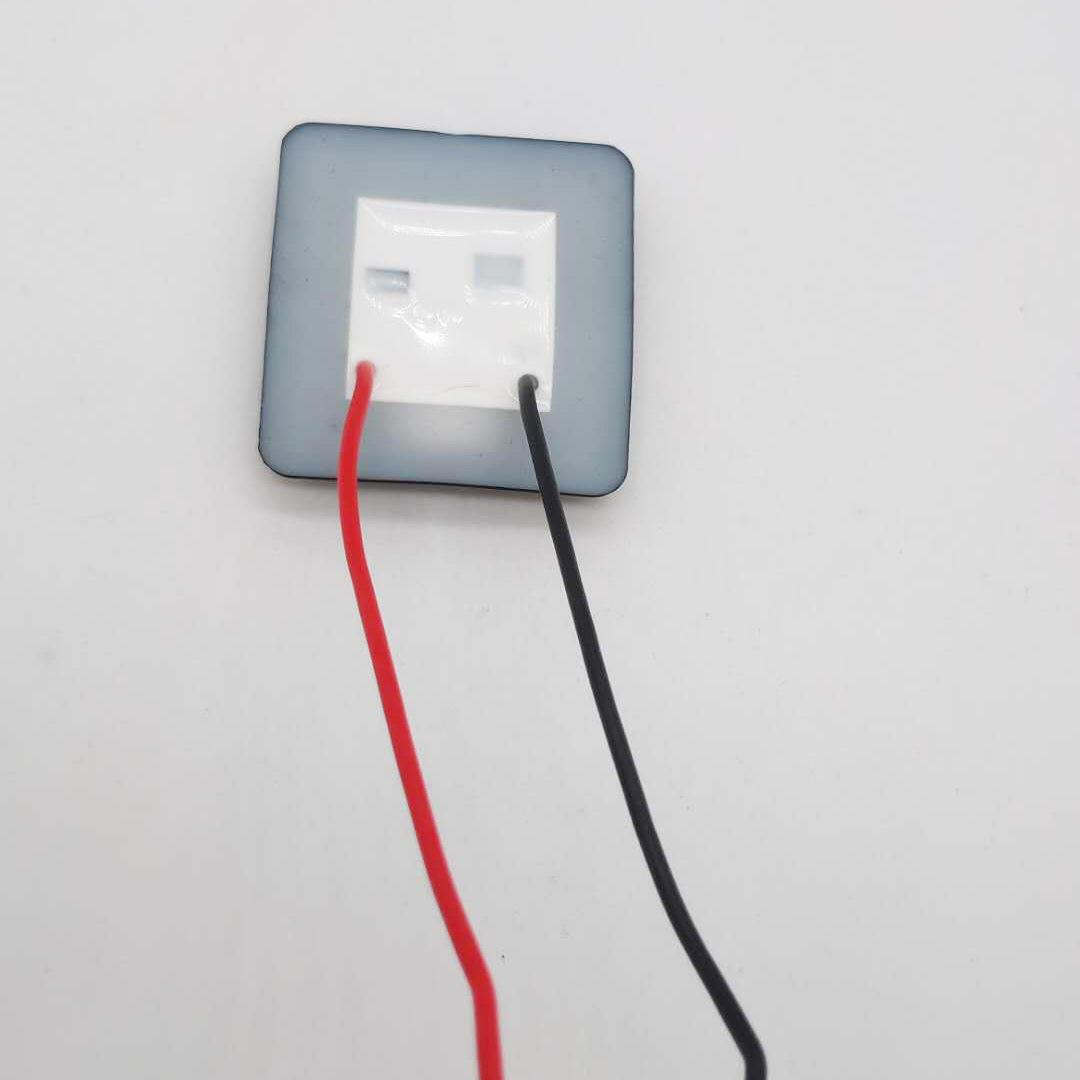

④Red/black silicone wire at the output end, connected to the heating product

product name
Three-position thermostat silicone switch
Product number
H7-D
Material
Bare copper/glue
Rated voltage
5~12V
Rated voltage and current
2A
Function
Three air conditioners
scope of use
Heating vests, scarves, socks and other electric heating products
Case size
Length 33mm*Width 33mm*Height 7.5mm
Interface type and cable length
Customized as needed
