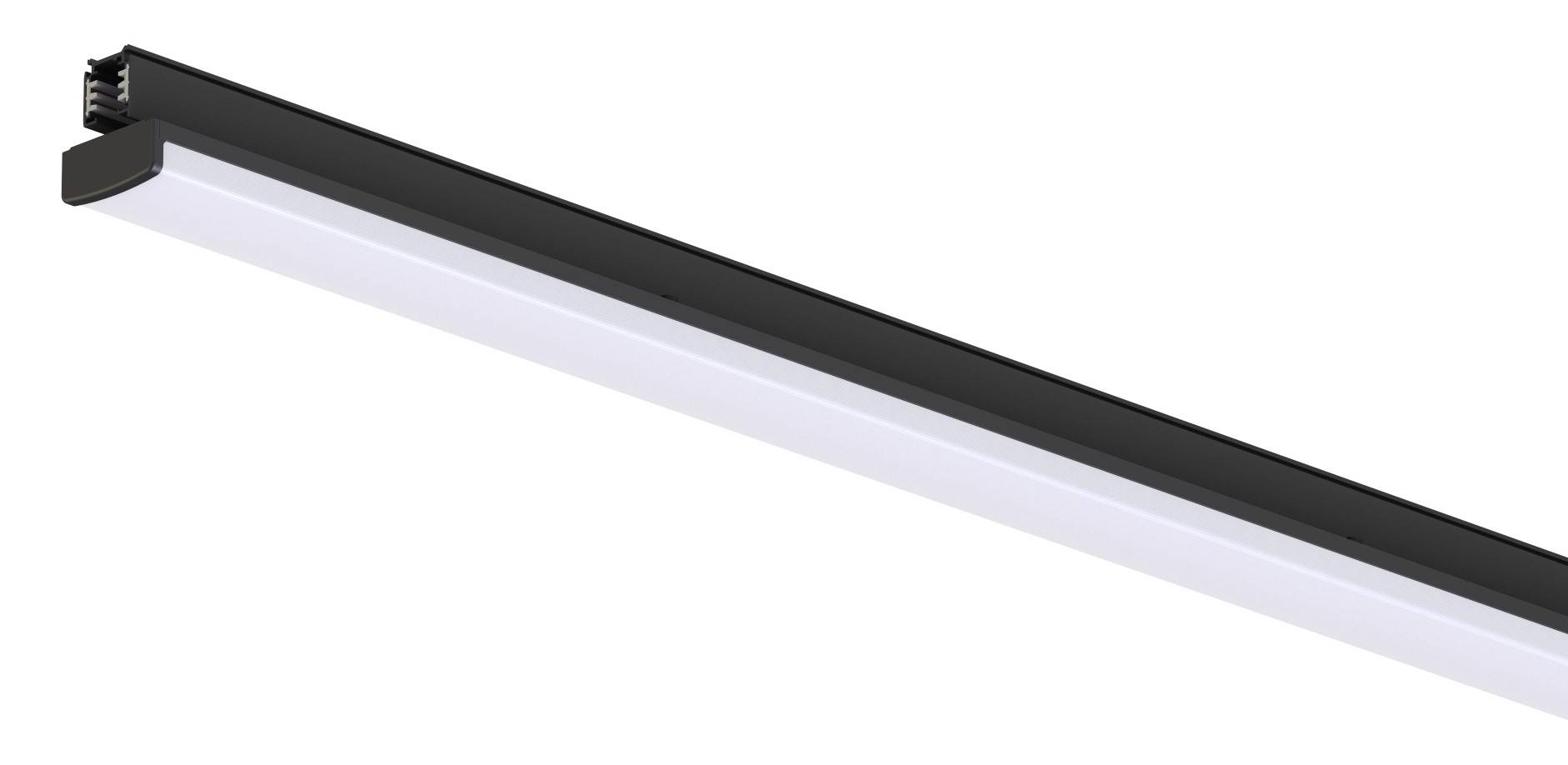

Aluminum shell black and white optional latest ultra-thin LED track light
-
$33.65 / 1 - 99 pieces
$31.87 / 100 - 499 pieces
$30.28 / >=500 pieces - 1 piece
- Trieco(Huizhou) Co., Ltd.
- Guangdong, China
- Mr Alan Zeng
Product Detail
| port: | Shenzhen | Lamp luminous flux (lm): | 8000 |
| Lifespan (hours): | 50000 | Packaging Details: | shipping carton |
| Lighting Solutions Services: | Engineering installation | application: | supermarket |
| model: | T05A06N/D+T05A15N/D | Working life (hours): | 50000 |
| Protection class: | IP20 | Working temperature(℃): | -20℃-45℃ |
| Origin: | Guangdong, China | payment terms: | L/C, T/T |
| Color rendering index (Ra>): | 80 | Supply capacity: | 10000 pieces per month |
| Package preview: | Color rendering index (Ra): | 83 | |
| Color temperature (CCT): | 4100K (neutral white) | Warranty (year): | 5 years |
| brand: | Trico | Working hours (hours): | 50000 |
| Input voltage (V): | AC 220V(±10%) | Lamp Luminous Efficiency (lm/w): | 160 |
| light source: | to lead | power supply: | direct current |
| Certification: | VDE, CE, EMC, CB | Supported dimmers: | Yes |
Product Description

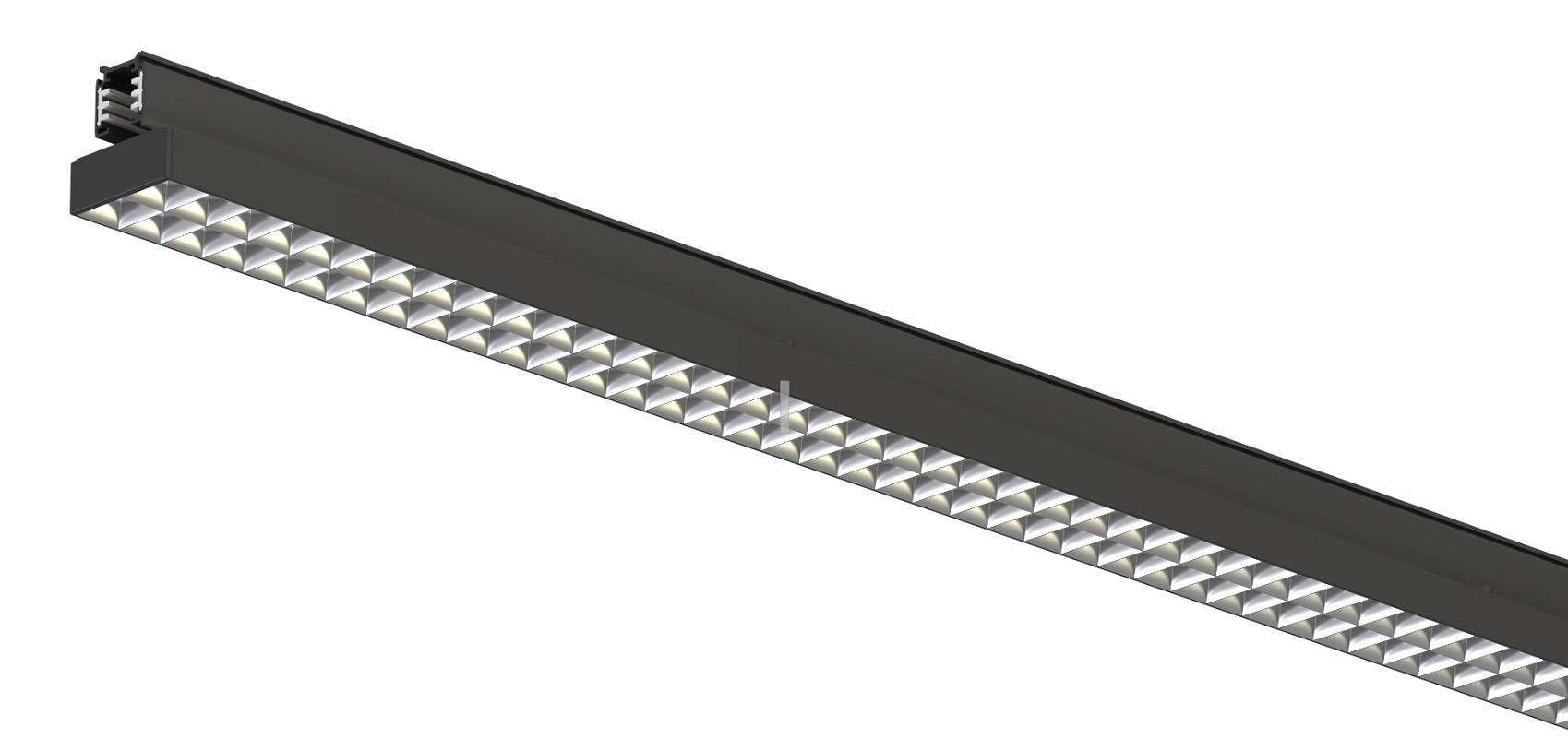

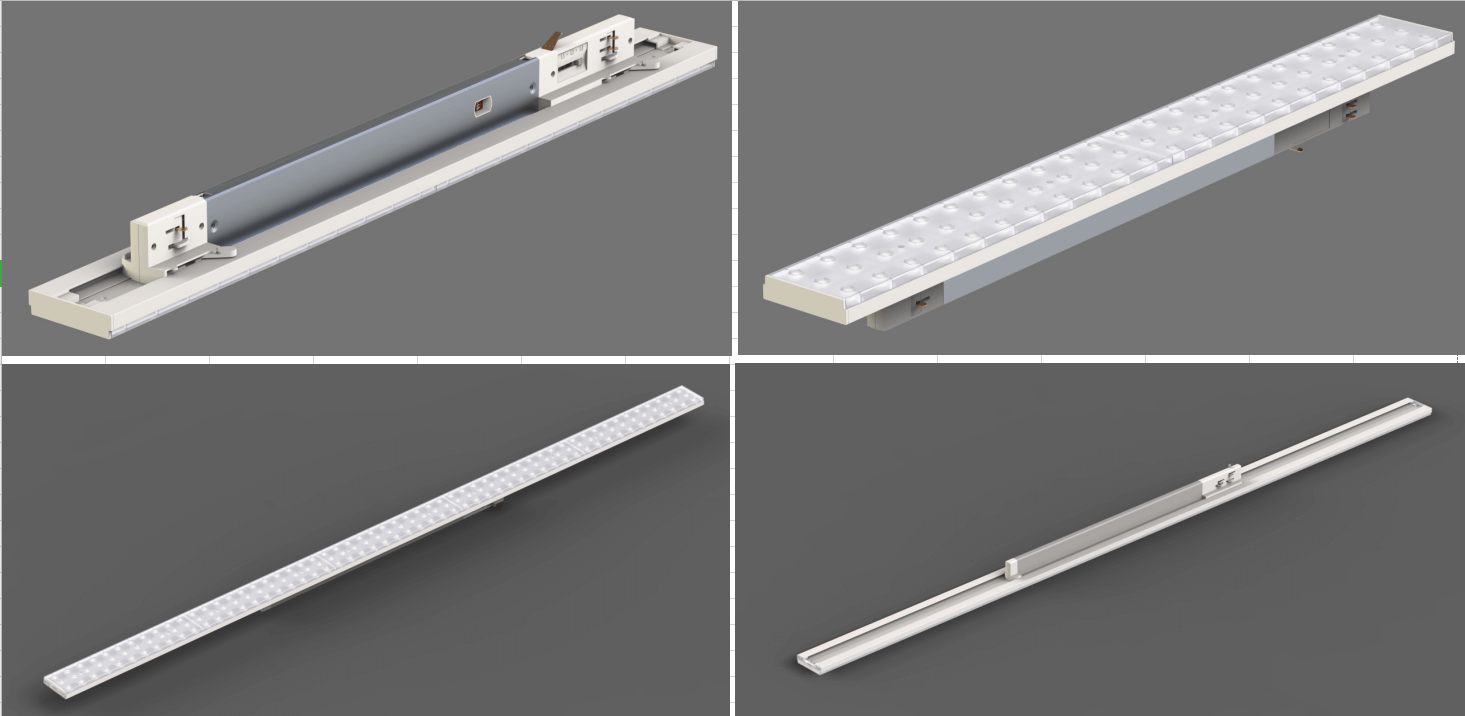

lens optics

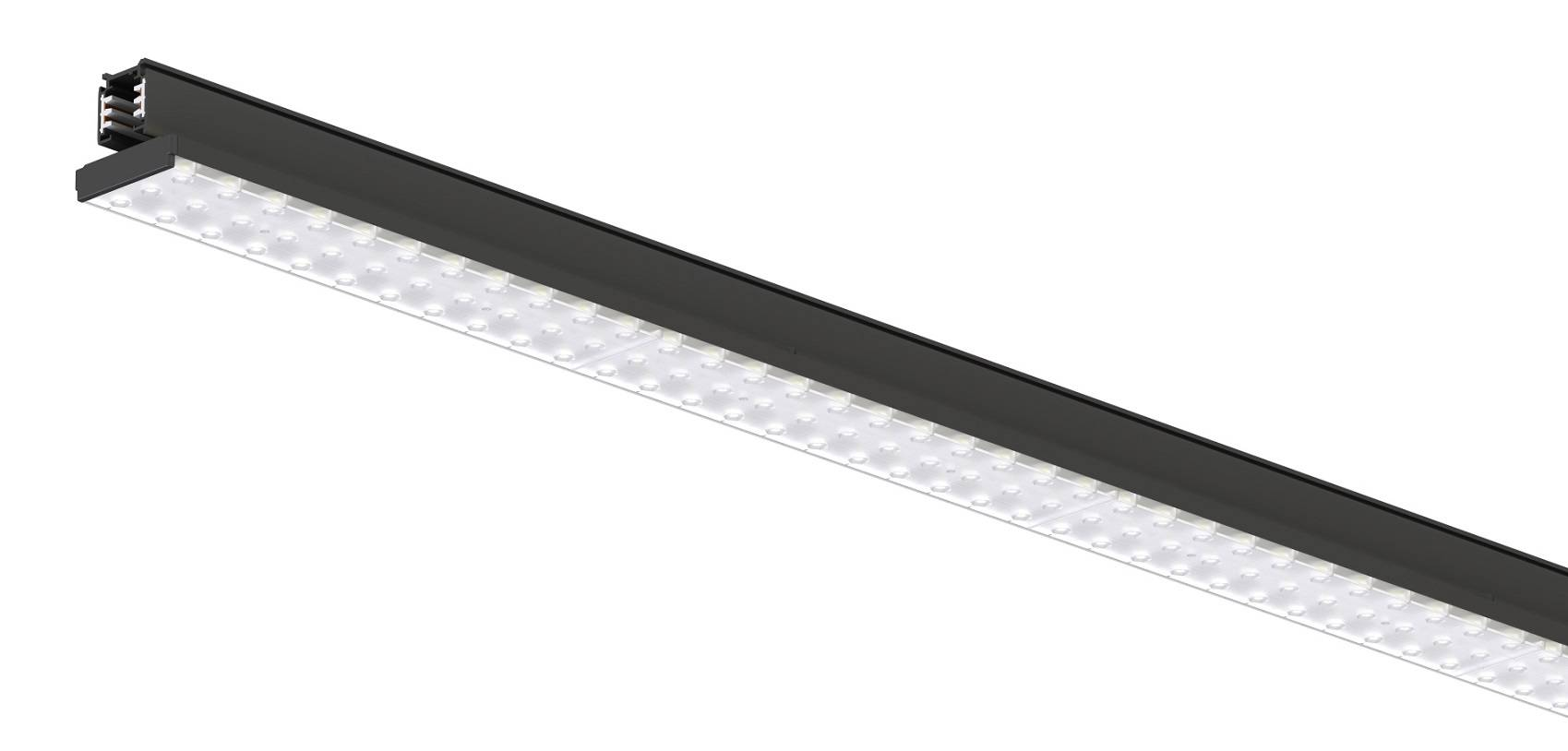

Diffusion Optics
UGR<19 Optical

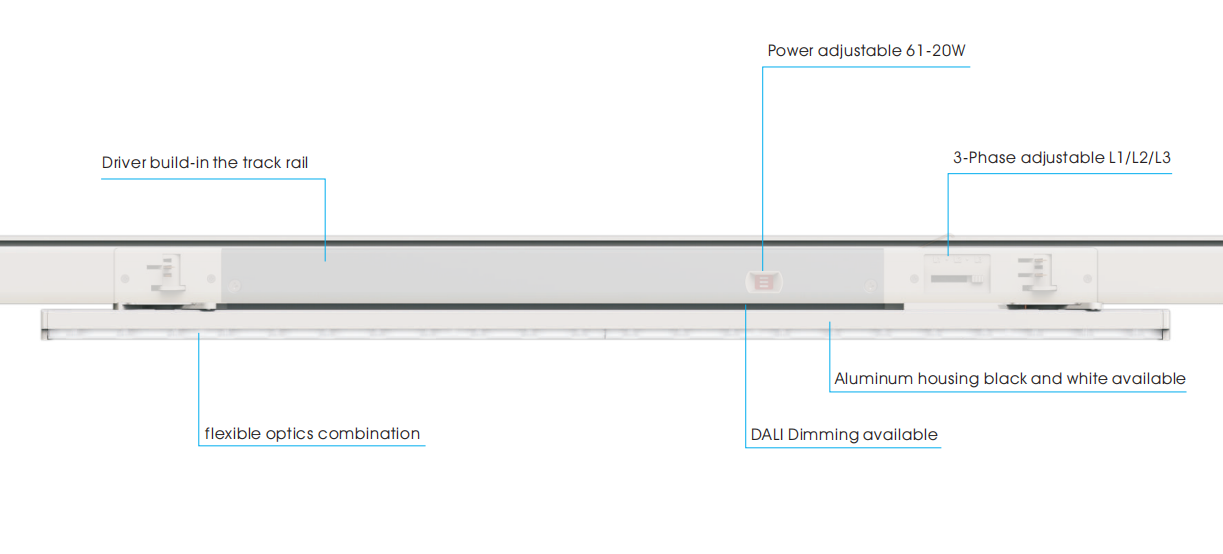

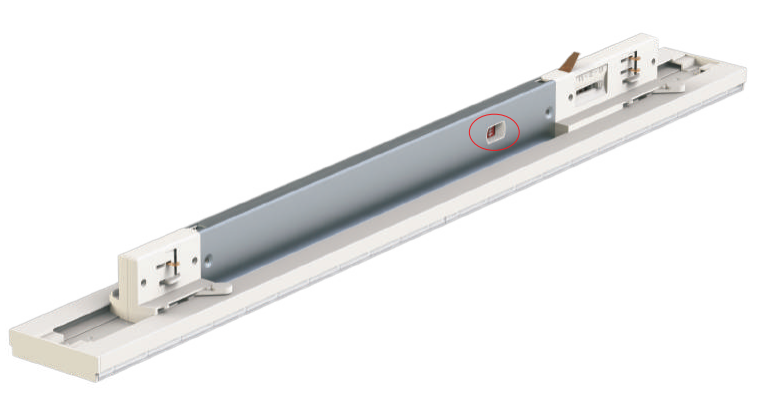

DIP switch design power adjustable

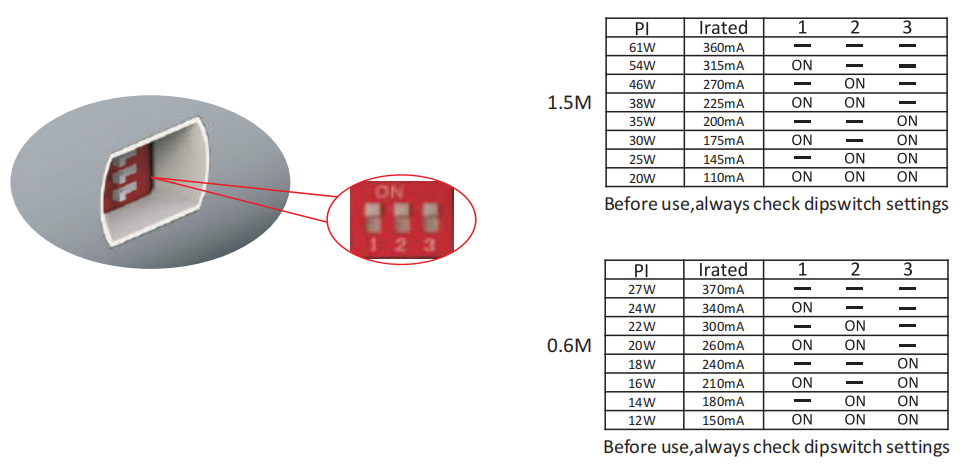

8 power options.
Extremely easy to select the power range by setting the DIP switch
Extremely easy to select the power range by setting the DIP switch

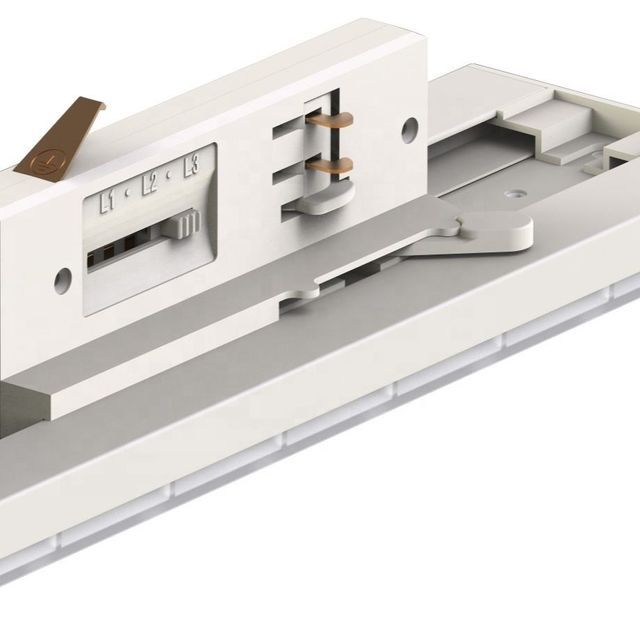

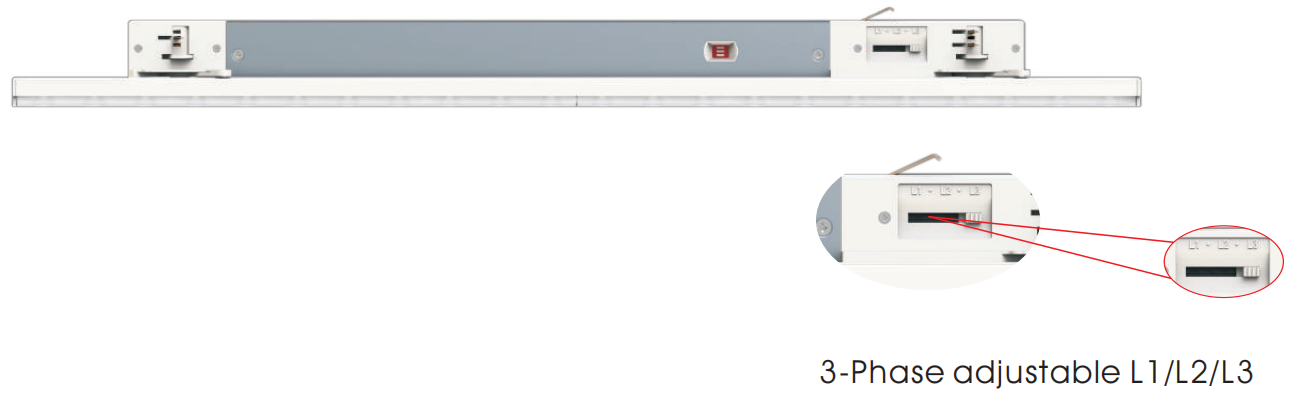

3 phases adjustable by dip switch design
Compatible with the following brands of track guides

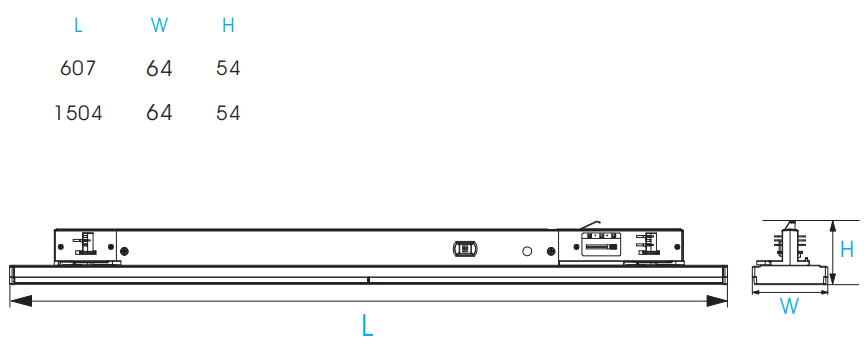

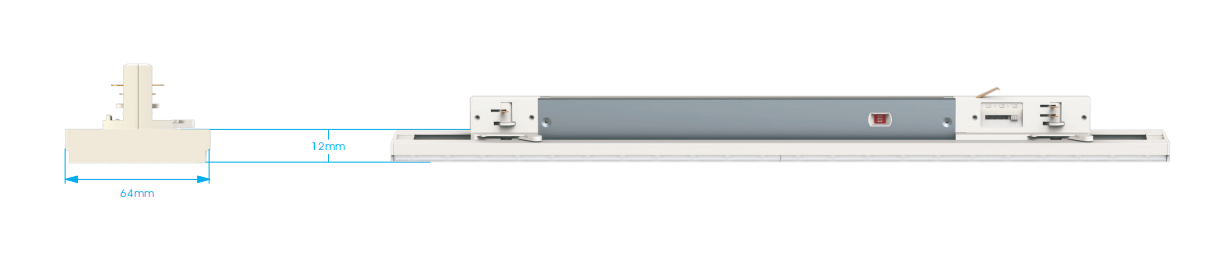

Specification
technical details
Power: 27W (24W/22W/20W/18W/16W/14W/12W)
61W (54W/46W/38W/35W/30W/25W/20W)
LM/W: Max.160lm/w
Beam angle: 30°, 60°, 90°, 120°, DA25°, DA60°
Color temperature: 3000K/4000K/5000K/6000K
Radium: 83
SDCM: <4 steps
Color: RAL 9003 (white) / RAL 9011 (black)
Protection class: IP20
IK level: IK06
Working temperature: -20°C-45°C
Humidity: <90%
Service life: >50,000 hours (L70B10)@25°C Ta.
Warranty: 5 years
61W (54W/46W/38W/35W/30W/25W/20W)
LM/W: Max.160lm/w
Beam angle: 30°, 60°, 90°, 120°, DA25°, DA60°
Color temperature: 3000K/4000K/5000K/6000K
Radium: 83
SDCM: <4 steps
Color: RAL 9003 (white) / RAL 9011 (black)
Protection class: IP20
IK level: IK06
Working temperature: -20°C-45°C
Humidity: <90%
Service life: >50,000 hours (L70B10)@25°C Ta.
Warranty: 5 years
driver information
Input voltage: 220-240VAC
Output voltage: 140-190VDC
Adjustable output current: DIP switch
PF: 0.95
Harmonic distortion: <15%
Protection class: I
Switch circle: >50,000
Startup time: <0.25s
Surge protection: 2kv
Warranty: 5 years
Output voltage: 140-190VDC
Adjustable output current: DIP switch
PF: 0.95
Harmonic distortion: <15%
Protection class: I
Switch circle: >50,000
Startup time: <0.25s
Surge protection: 2kv
Warranty: 5 years
