High Quality Raised Floor Air Conditioner Aluminum Perforated Raised Floors
-
$50.00 / 100 - 299 pieces
$40.00 / 300 - 499 pieces
$30.00 / >=500 pieces - 100 pieces
- Changzhou Titan Decoration Materials Co., Ltd.
- Jiangsu, China
- Mr
Product Detail
| Surface treatment: | conductive epoxy | After-sales service: | Online technical support, free spare parts, others |
| Packaging Details: | 1. Panels are packed in pallets, bases are packed in cartons/pallets 2. A 20ft container can load 350-428 square meters of panels and accessories | application: | tidy up the room |
| size: | 600x600mm | Warranty: | 5 years |
| thickness: | 45-55mm | cover: | Conductive PVC tile, HPL |
| Certificate: | International Organization for Standardization | Origin: | Jiangsu, China |
| Package preview: | Supply capacity: | 10000 square meters per month | |
| Metal Type: | aluminum alloy | design style: | industrial |
| Install: | Stringer system | Customs code: | 7610900000 |
| port: | Shanghai | model: | AL500-AL2500 |
| Project solution ability: | Graphic design, overall project solution, others | brand: | Titan Flor |
| Material: | Metal | payment terms: | L/C, Western Union, T/T |
| Function: | anti-static |
Product Description
The aluminum access floor is made of die-cast aluminum alloy ingots (ADC12). aluminum

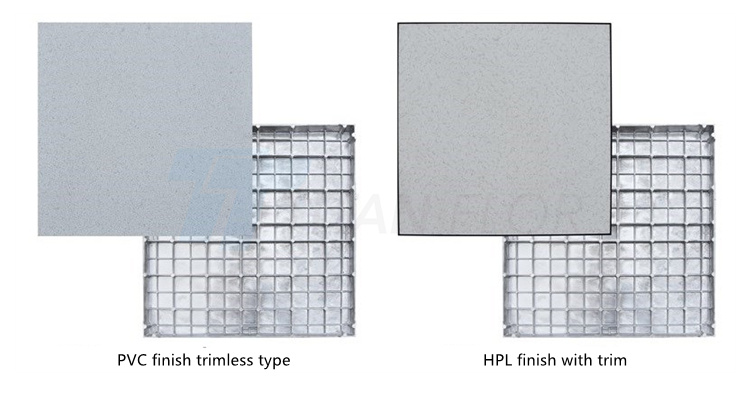

Solid panels are the standard type of aluminum raised floor without holes and can be covered with anti-static HPL, conductive PVC tiles or other coverings. Panels are interchangeable with perforated and grille panels.
Solid panels are the standard type of aluminum raised floor without holes and can be covered with anti-static HPL, conductive PVC tiles or other coverings. Panels are interchangeable with perforated and grille panels.

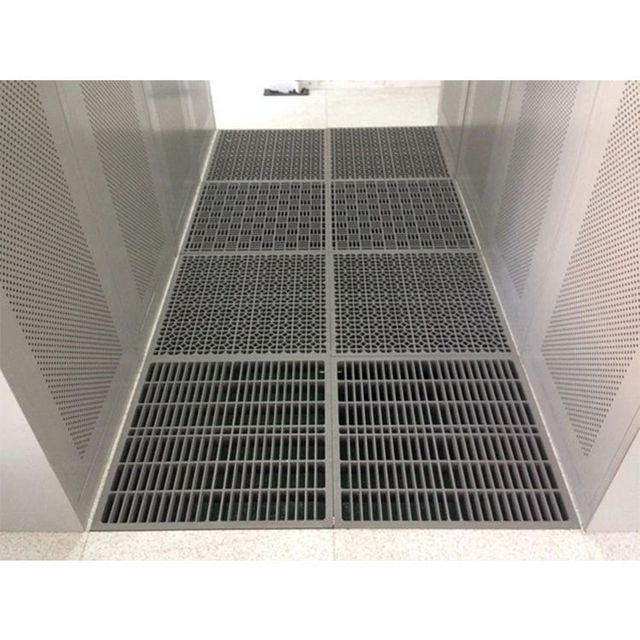

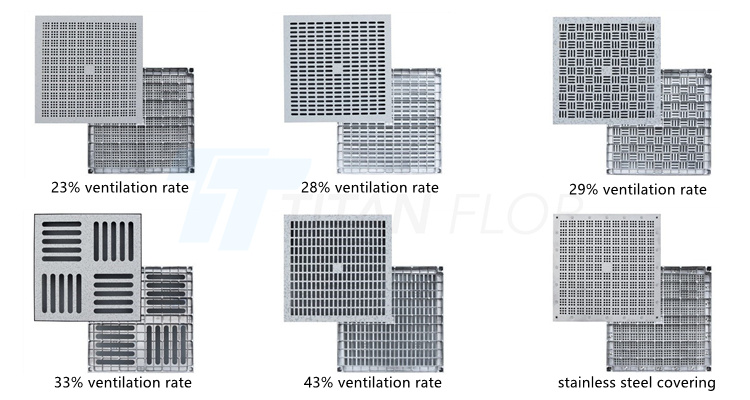

The aluminum perforated plate is reprocessed on the basis of the solid plate, and its ventilation rate ranges from 17% to 43%. Used in conjunction with the damper, the ventilation volume can be adjusted freely. Perforated panels can be installed and interchanged with solid panels.

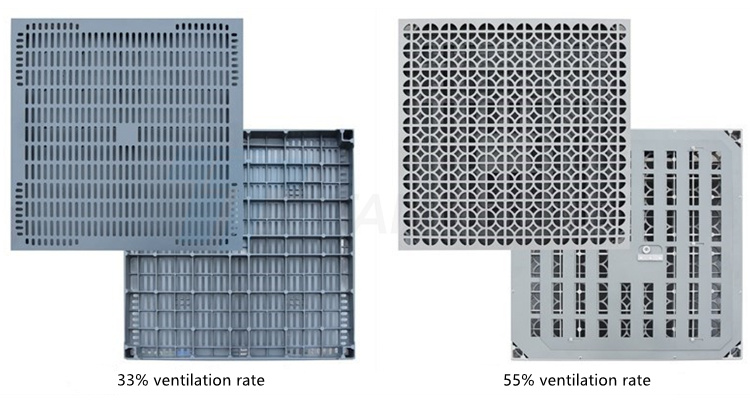

The aluminum grating allows for a large ventilation rate of up to 55%, and the panels are interchangeable with solid and perforated panels. The whole board can be sprayed with conductive epoxy resin or nickel-chromium coating, which has good corrosion resistance and wear resistance.

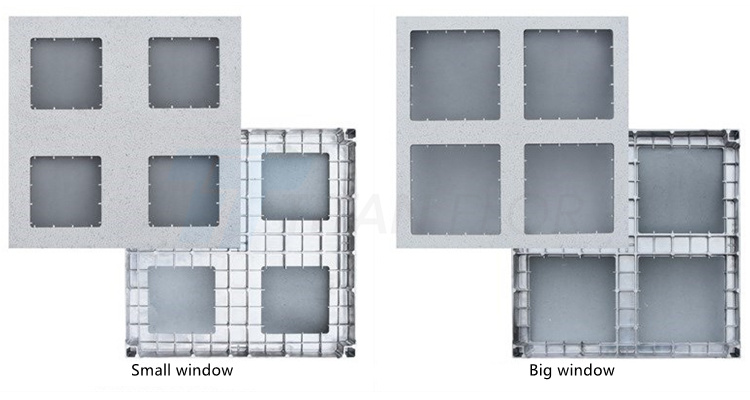

Aluminum window panels are reprocessed on the basis of solid panels, and the panels are interchangeable with the solid panels. This particular panel allows people to inspect and monitor what's going on underneath the raised floor.

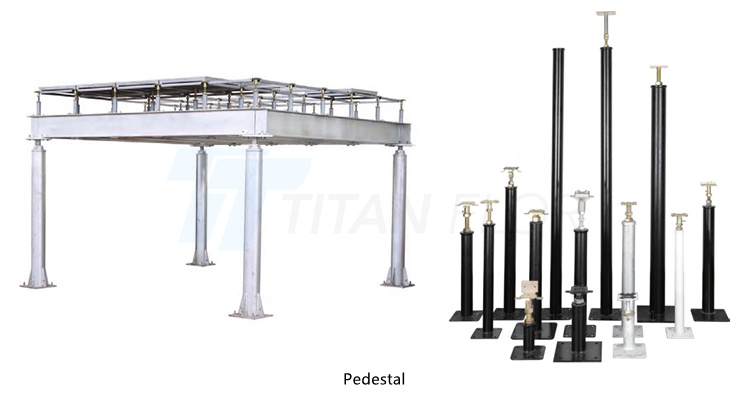

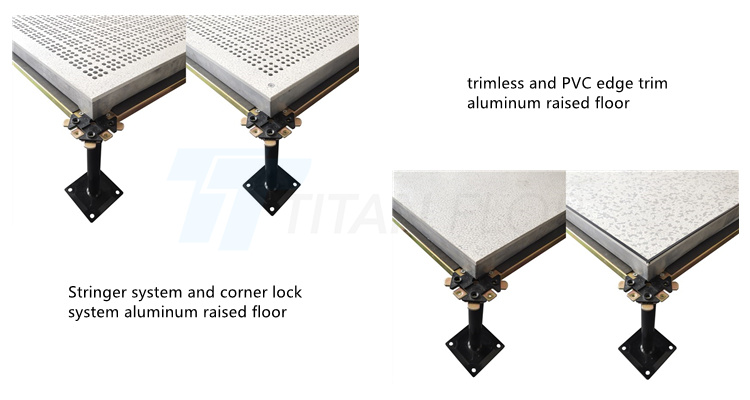

Substructure
Technical Parameters
concentrated load (Deflection≤2.0mm) | ultimate load | uniform load (Deflection≤1.0mm) | rolling load | |
AL300 | 300kgf/6.45cm2 | 600kgf/6.45cm2 | 800 kgf/m2 | 100kgf |
AL500 | 500kgf/6.45cm2 | 1000kgf/6.45cm2 | 1250 kgf/m2 | 150kgf |
AL700 | 700kgf/6.45cm2 | 1400kgf/6.45cm2 | 1700 kgf/m2 | 200kgf |
AL1000 | 1000kgf/6.45cm2 | 2000kgf/6.45cm2 | 2000 kgf/m2 | 300kgf |
AL1200 | 1200kgf/6.45cm2 | 2400kgf/6.45cm2 | 2200 kgf/m2 | 350kgf |
AL1500 | 1500kgf/6.45cm2 | 3000kgf/6.45cm2 | 2500 kgf/m2 | 400kgf |

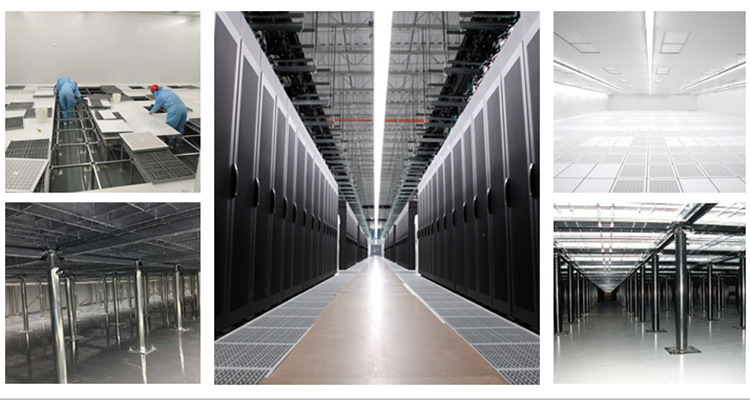

application
Aluminum access floor can be used in the following fields: microelectronics industry (fab, TFT/LCD, packaging and testing, printed circuit board), semiconductor industry, flat panel display industry, optoelectronics, life science industry, precision engineering and ultra-clean environmental protection electronics industry.
Installation Notes

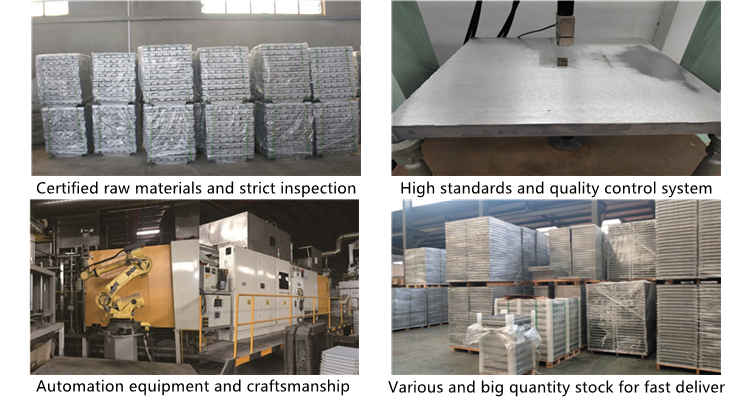

QC
Our advantage

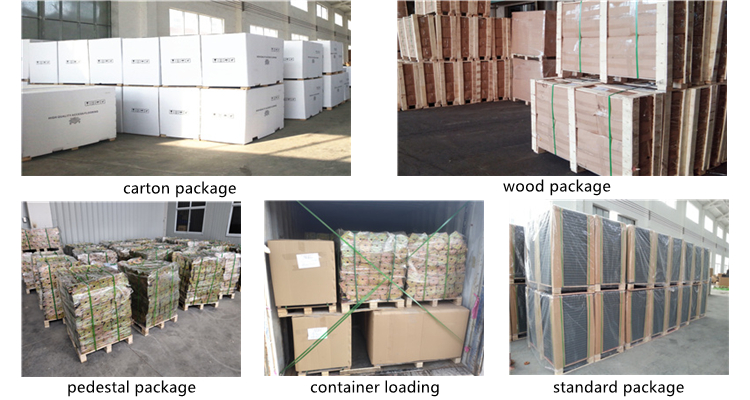

Product packaging
1. Panels are packed in pallets, bases are packed in cartons/pallets
2. A 20ft container can load 389-486 square meters of panels and accessories
2. A 20ft container can load 389-486 square meters of panels and accessories
exhibition
