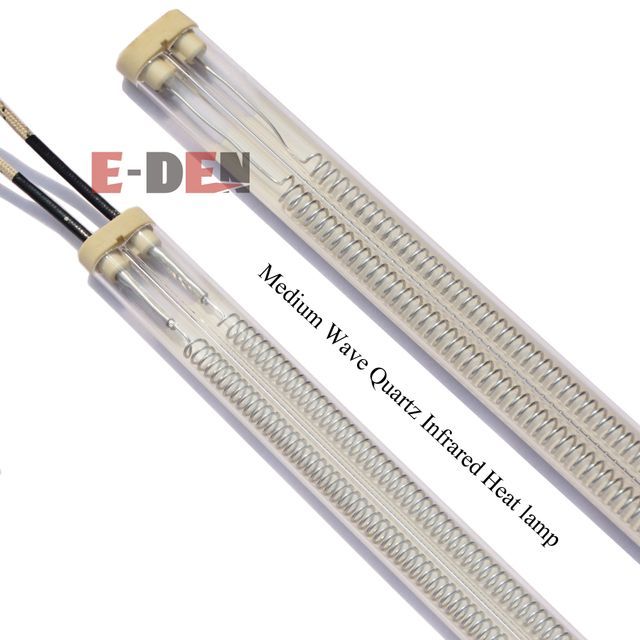

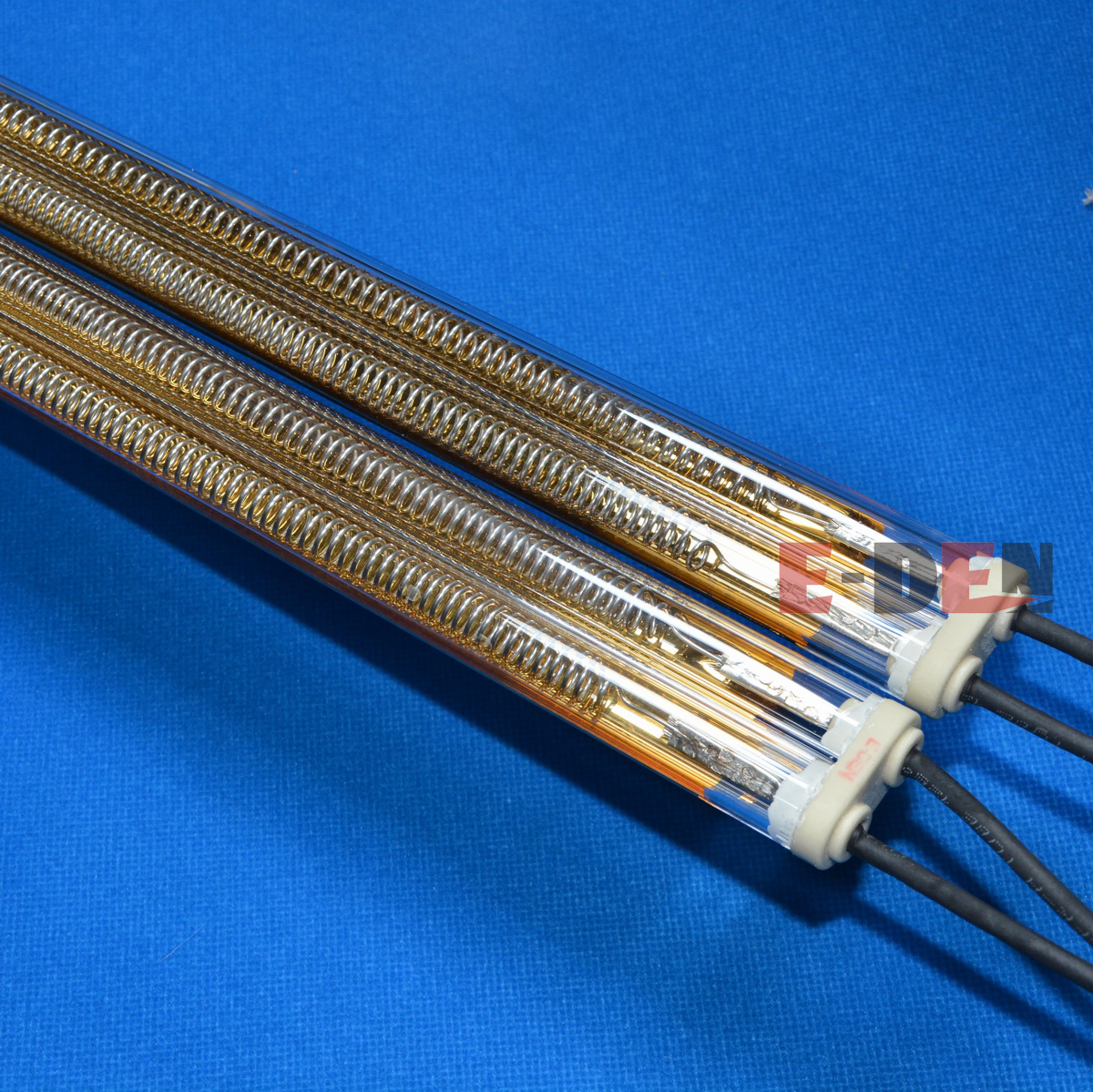

IR Medium Wave Quartz Infrared Radiant Lamp Glass Heated Glass Cut Quartz Infrared Lamp

Product Detail

Burning position:horizontalInfrared wavelength:AM
Supply capacity:1000 pieces per monthLamp luminous flux (lm):60000
Color rendering index (Ra):70Origin:Jiangsu, China
Working life (hours):≥8000 hoursColor temperature (CCT):1400-1700K
color:Infrared lightingDouble pipe section:33*15mm
Overall length:2000mm-3500mmVoltage:100V-600V
Lighting Solutions Services:Infrared Heating SolutionsBeam Angle(°):180

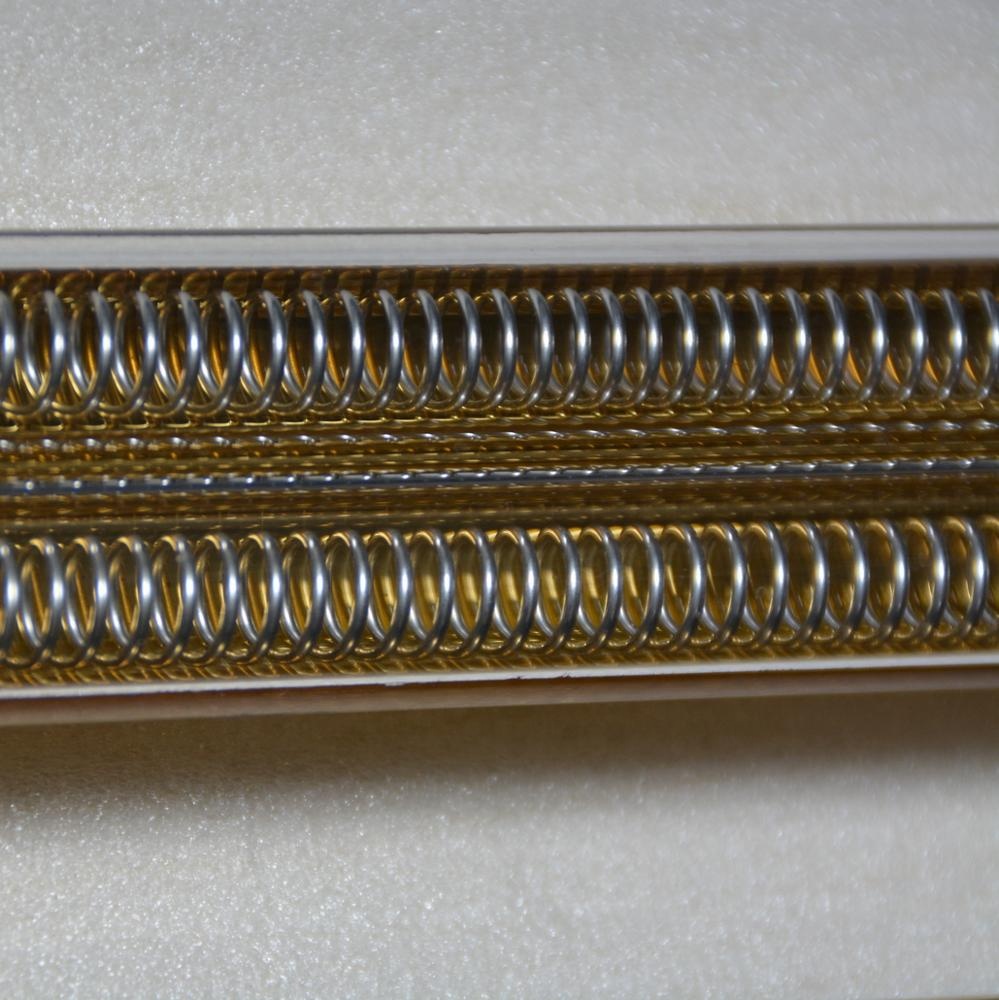

Warranty (year):1 yearReflector:the gold
Emitter structure:Double tubeport:Shanghai/Nanjing
Supported dimmers:YesWorking hours (hours):8000
Lifespan (hours):8000payment terms:L/C, T/T
Input voltage (V):100V-600VPackaging Details:The infrared emitter is encapsulated in a foam case and filled with foam. The outer packing is wooden box.
Package preview:Lamp Luminous Efficiency (lm/w):12
brand:EdenMaterial:High quality quartz tube
Specification:33*15mm double tubeheating length:1900mm-3400mm
Heating wire:1.7mm resistorWatts:4000W-8000W
LCD glass substrate

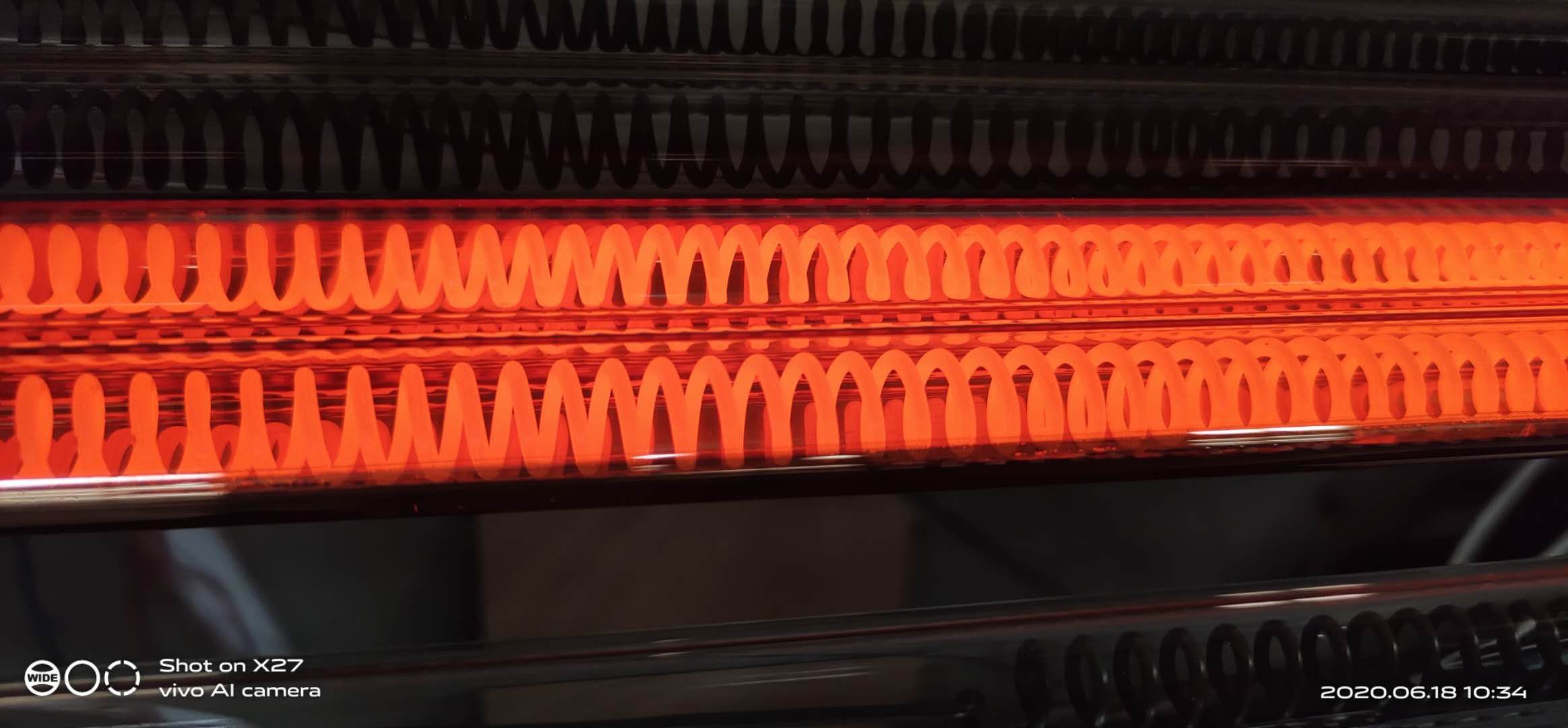

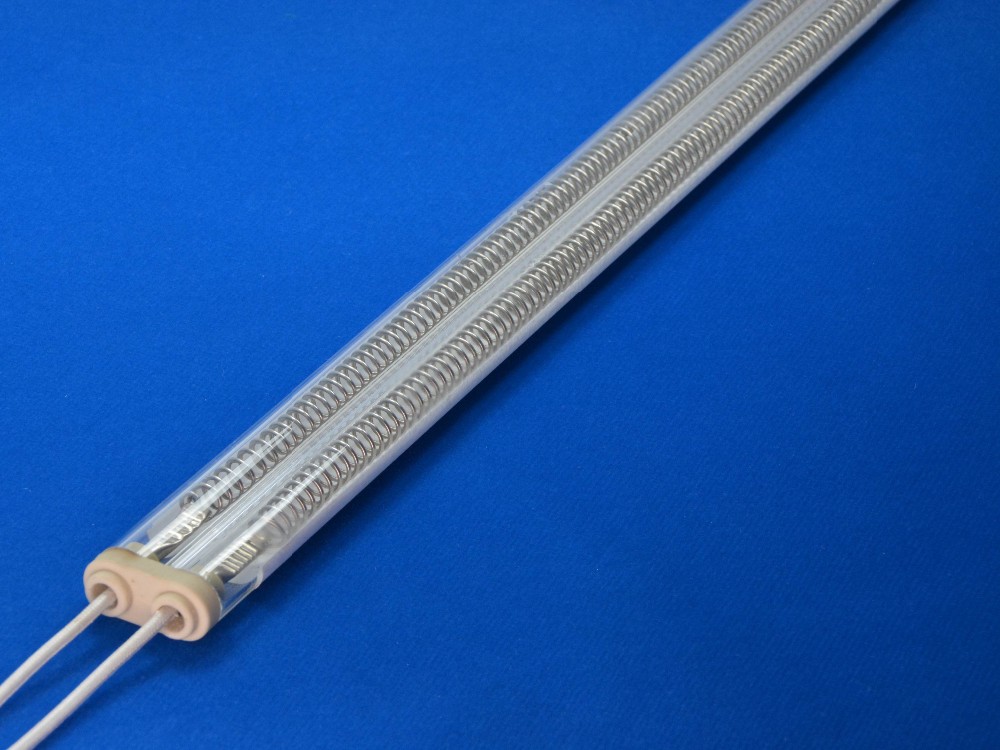

Medium-wave double-tube quartz infrared heating
MWIR Quartz Emitters
Mid-wave infrared quartz emitters are especially suitable for rapid heating of surfaces or thin materials, with infrared radiation in the wave range of 2.2-3.2 μm. Plastic, water, and other solvents absorb this medium-wave radiation well. Due to their long life and cost-effectiveness, medium wave quartz emitters are widely used in continuous heating processes, such as making natural herbal remedies or drying tea leaves in continuously operating ovens. The double tube shape is a more stable design for high radiant density and high power intensity MWIR emitters.
MW dual-tube infrared lamp transmitter
peak wavelength
2.2-3.2μm
Response time
>60 seconds
maximum. surface power density
60 kW/m2
Section (mm)
23×11
33×15
Total length (mm)
200-3200
200-6000
Heating length(mm)
140-3100
140-5900
Voltage (V)
220/230/240/380/400/415/480
220/230/240/380/400/415/480
Power (W)
200-6000
200-16000
Reflector
white or gold
white or gold
burning position
horizontal
horizontal

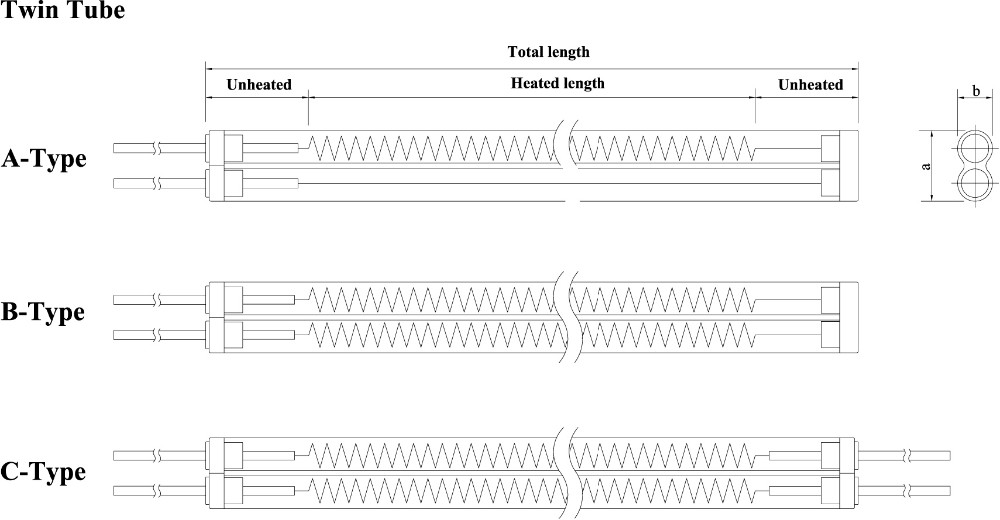

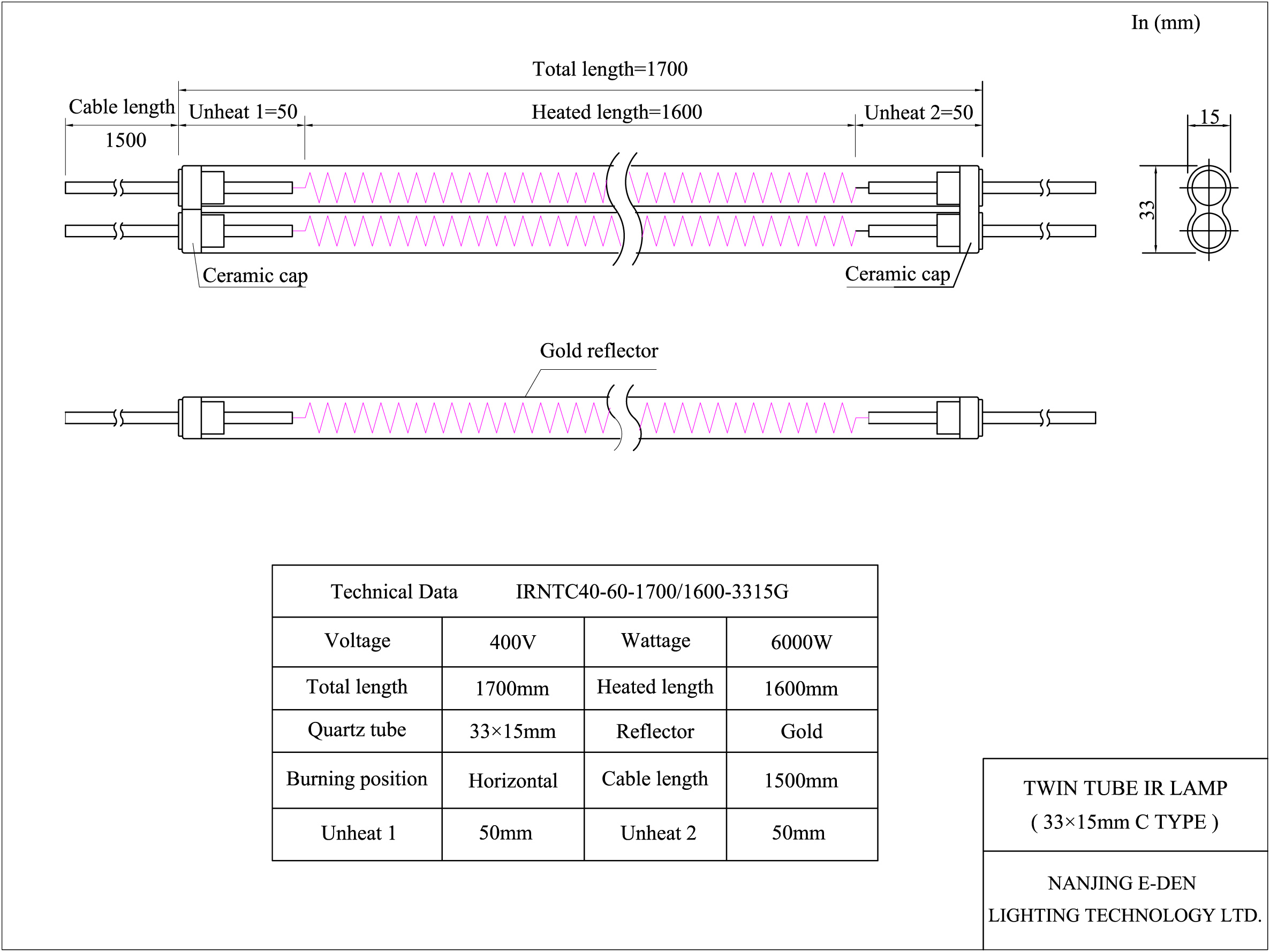

Infrared Emitter Design
standard product
Overall length (mm)
Heating length (mm)
Voltage (V)
Watts
(Width)
Section (mm)

Reflector

burning position

connection end

type
400
300
230
600
18×8
the gold
horizontal
side
Second
550
500
400
1000
23×11
the gold
horizontal
side
Second
650
600
230
1200
23×11
the gold
horizontal
side
Second
780
730
240
2000
33×15
white
horizontal
side
Second
800
750
220
2000
33×15
the gold
horizontal
side
Second
900
840
230
2000
33×15
the gold
horizontal
side
Second
1000
900
230
2250
33×15
the gold
horizontal
side
Second
1100
1000
230
2500
33×15
white
horizontal
both sides
C
1300
1200
400
3000
33×15
the gold
horizontal
side
Second
1800
1700
380
3500
33×15
white
horizontal
both sides
C
2400
2300
400
5500
33×15
the gold
horizontal
both sides
C
2600
2500
400
6000
33×15
white
horizontal
both sides
C
application
