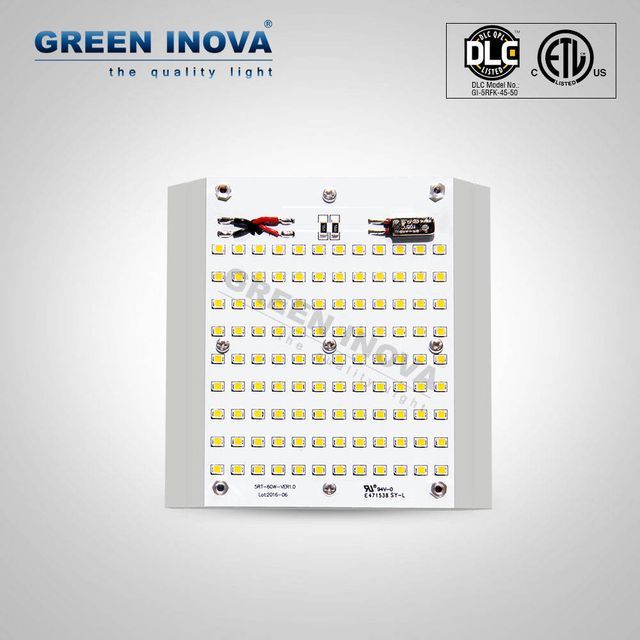

DLC Premium ETL cETL 10 year warranty LED Kit Retrofit Light 100w

LED retrofit kit

Features of DLC ETL cETL LED Light Retrofit Kit 100w:

1).Utility model and product appearance patents.
2). This is the lowest total cost solution, they can replace existing metal halide or high pressure sodium bulbs, the old housings will be reused. The overall cost is significantly lower than using a new complete LED fixture.
3). Utilizes patented technology for industry-leading thermal management
4). Working temperature range: 35 degrees Celsius to 70 degrees Celsius.
5). The LED retrofit kit does not contain any mercury or lead.
6). Does not produce ultraviolet rays that harm human eyes.
7). Directional light means no light pollution, in line with dark sky
8).Fast and safe installation method.

How to install DLC ETL cETL LED Light Retrofit kit 100w into a conventional luminaire?

All models install in as little as 4 minutes. (Note: Ask a licensed electrician for installation.)
1). Remove the plastic cover from the LED head.

2). Remove existing component reflectors and ballasts inside the fixture.
3). Put the driver where the ballast was before.
4). Install the pre-assembled bracket to the fixture.
5). Fix the conversion kit to the pre-installed bracket.
6). Connect the wires.

Wiring for DLC ETL cETL LED Light Retrofit Kit 100w.

1). Install the LED driver instead of the ballast.
2). Connect the input source to the LED driver. The correct AC input connection on the drive is marked on the drive. There is ground, ACN (neutral) and ACL (line). VERY IMPORTANT: Make sure the wiring is properly grounded.
3). Connect the output wire of the driver to the input wire of the LED head: Make sure to connect the red wire of the driver output to the red wire of the LED head, and connect the black wire of the driver output to the black wire of the LED head.
4). Reassemble the rest of the fixture and restore power.
5). Never dim a non-dimmable LED driver. Not suitable for emergency exits.

Green Inova is an innovative, dynamic and dynamic company, established in 2007, has been a leader in LED lighting manufacturing and marketing. Our specialty is in manufacturing LED lighting products including LED retrofit kits, LED wall sconces, LED ceiling lights, LED shoe boxes, LED IP65 high bay lights, LED flood lights, new LED PL G24 lamps and bulbs, LED post top retrofit kits and LED Signage Retrofit Kit, LED Low Priofile LED Canopy, LED Barn Light etc.

We are the first company in China to start manufacturing LED wall lights, LED canopies and LED retrofit kits, and have obtained about 40 utility model patents. Our LED G24 lights are also upgraded to a whole new level, and have obtained utility model patents and product appearance patents. The new heat dissipation technology makes the actual life of the lamp more than 50,000 hours. We have been making the most reliable products in these fields.
