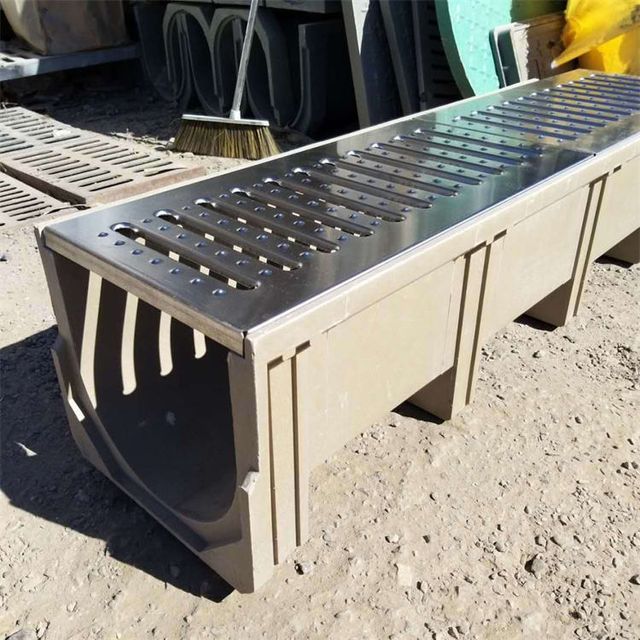

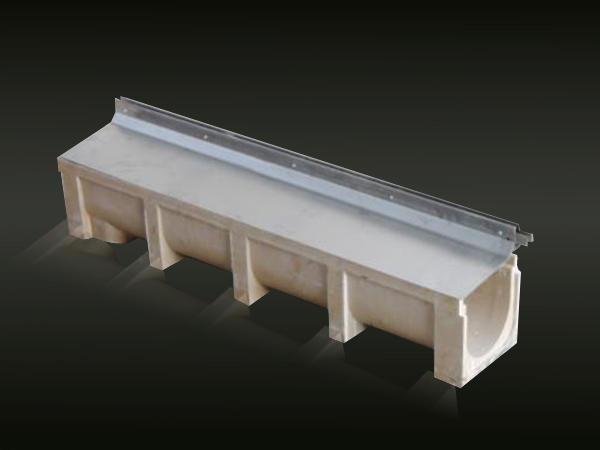

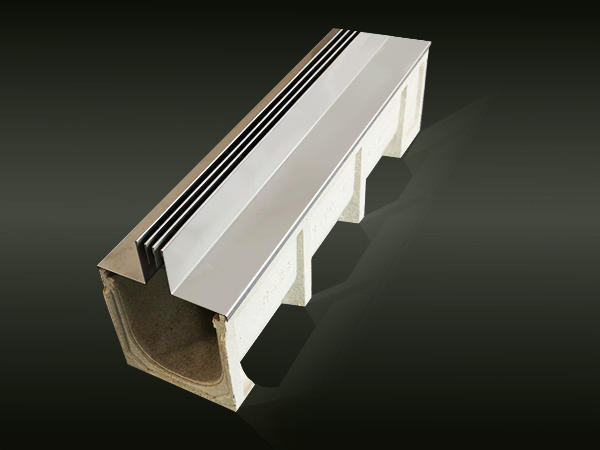

Outdoor gutter PVC gutter drainage U-shaped gutter with stainless steel cover
-
$18.90 / 2 - 99 meters
$13.90 / 100 - 999 meters
$9.99 / 1000 - 4999 meters
$7.44 / >=5000 meters - 2 meters
- Hebei Qiqian Metal Wire Mesh Manufacture Co., Ltd.
- Hebei, China
- Mr Dolf Guan
Product Detail
| Origin: | Hebei china | Packaging Details: | Film, PP cable tie, tray, customized |
| Internal dimensions: | 1000*100*120mm | Outer diameter: | 80mm |
| R&D: | usable | style: | filter |
| quality: | Grade EN1433 | Model type: | U100 |
| product name: | polymer concrete gutter | Project solution ability: | overall project solution |
| color: | customer made | payment terms: | Western Union, L/C, D/P, D/A, T/T, MoneyGram |
| Key words: | polymer concrete gutter pc | External dimensions: | 100-130-140mm |
| Warranty: | 1 year | Material: | polymer concrete |
| Supply capacity: | 500000 pieces per month | size: | 4 inches |
| model: | Resin concrete floor drain | Package preview: | |
| brand: | resin concrete driveway drain | port: | Tianjin Xingang |
| application: | outdoor bathroom | design style: | Invalid |
| After-sales service: | online technical support | Surface treatment: | polishing |
Gutter drainage ditch plastic ditch hidden field deep grid flat grate drainage ditch
Product Description
Specification

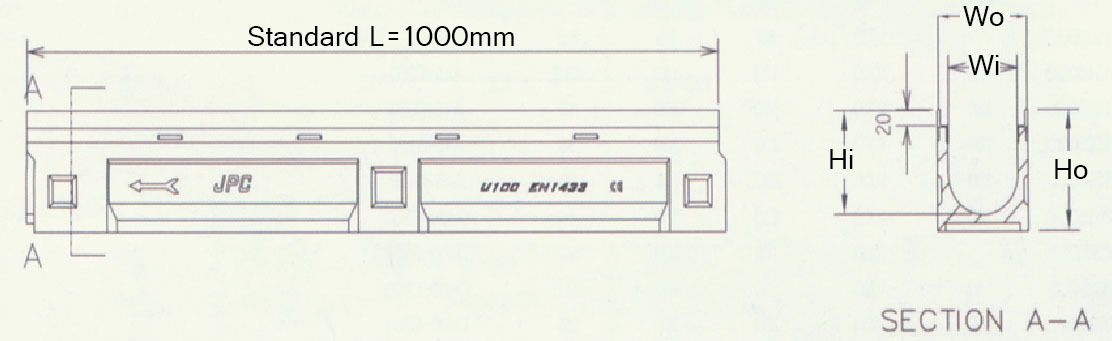

Product Data Sheet and DWG
Type model | Internal Dimensions(mm) | Dimensions (mm) | load level | cover type |

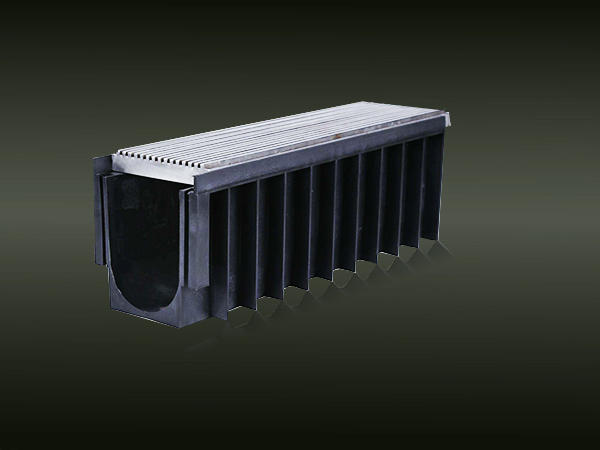

FTUPR-100 | Length*width*height=1000*100*(120~180) | L*Wo*Ho=1000*130*(140~200) | A15 | Stainless steel straight line/steel grating/cast iron/*PC |
FTUPR-150 | Length*width*height=1000*150*(140~280) | L*Wo*Ho=1000*190*(160~300) | B125 | *Stainless Steel Line/*Steel Grating/Cast Iron/PC |
FTUPR-200 | Length*width*height=1000*200*(160~380) | L*Wo*Ho=1000*240*(180~400) | C250 | Stainless steel straight line/*steel grating/*cast iron/PC |
FTUPR-250 | Length*width*height=1000*250*(210~390) | L*Wo*Ho=1000*290*(230~410) | D400 | Stainless steel straight line/*steel grating/*cast iron/PC |
FTUPR-300 | Length*width*height=1000*300*(280~460) | L*Wo*Ho=1000*340*(300~480) | E600 | Stainless steel straight line/*steel grating/*cast iron/PC |
FTUPR-400 | Length*width*height=1000*400*480 | Long*grain*grain=1000*440*500 | A15-F900 | *Stainless Steel Line/*Steel Grating/*Cast Iron/*PC |

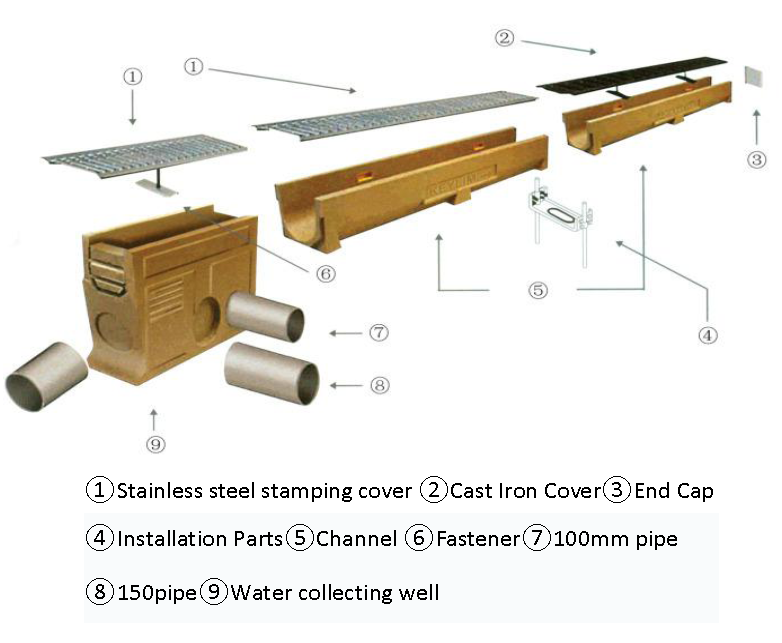

Fully integrated drainage system
About Concrete Gutters
1) Polymeric concrete is a durable channel with high strength and chemical resistance. Durable and harmless to the environment, it can be widely used in drainage systems.2) All our channels are made of polymer concrete, 1000mm long, CO (internal width) from 100mm to 400mm, and various external heights, complying with EN1433, grades from A15 to F900. About the cover materials we usually use Nrectangularcast iron, stainless steel,polymer concreteand galvanized steel.
Aggregate Concrete Properties:Pressure resistance: >1423kg/cm2Breaking resistance: >348kg/cm2Water absorption: <0.05% Density: 2.1-2.44kg/dm3Permeability: 0mm
Application field√ Car Park √ Money Center √ Path √ Driving Route √ Petrol Prediction √ Footsteps √ Path √ Retpaths √ Road Park √ Fice √ FiceBarts √ Cutoff Center √ Between Stadiums √ Stadium Spacing √ Sports √ Sports √ Leisure Center √ Colleges √ Colleges √ Warehouses √ warehouses√garaves√garagesstertracioutarefient√pplazascoutiacile d except for √5 √docks√airport runways, etc.
feature:
1) Light weight and strong carrying capacity.
2) Smooth surface, low water absorption and permeability.
3) The U-shaped section can increase the drainage capacity and enhance the self-cleaning function.
4) High strength, wear-resistant, solid and reliable, and strong practicability.
5) Good drainage performance and rapid sand discharge.
6) Anti-aging, good stability.
7) Chemical resistance, protect water source.
7) Chemical resistance, protect water source.
8) Easy to install and shorten the construction period.
9) Zero penetration, no risk of cracking
load class
load class
