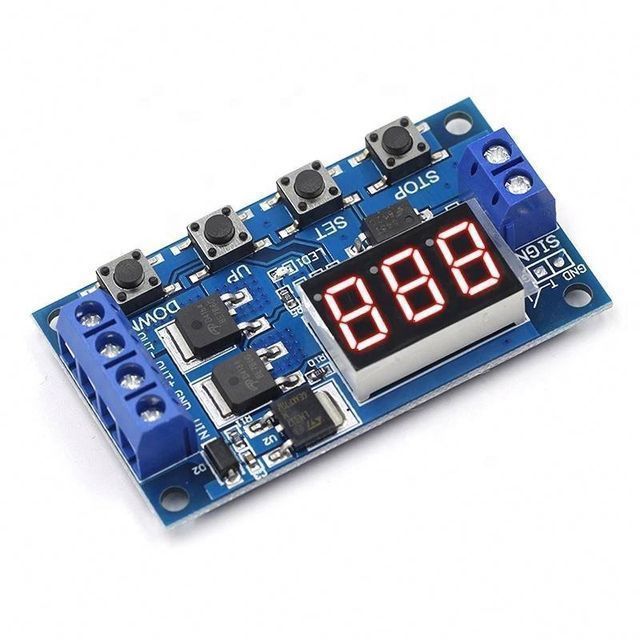

DC 12V 24V Dual MOS LED Digital Delay Relay Trigger Cycle Timer Delay Switch Circuit Board Timing Control Module DIY

DC 12V 24V Dual MOS LED Digital Delay Relay Trigger Cycle Timer Delay Switch Circuit Board Timing Control Module DIY

Module features and uses:

1. Realize rapid on-off of the circuit, unlimited switching;
2. No noise, no spark, no electromagnetic interference during conduction and cutting;
3. Compared with electromagnetic relay products, the service life is longer;
4. Dual MOS parallel drive, lower internal resistance, larger current, and strong power; at room temperature, the working current can reach 15A, and the power can reach 400W, which can meet the needs of most equipment;
5. A convenient way to control motors, lights, LEDs, DC motors, micro pumps, solenoid valves, etc.

emphasize:

1. Wide voltage input (5~36V), most equipment can be used, very convenient;
2. The interface is clear and concise, powerful and easy to understand, meeting almost all your needs;
3. Emergency stop function ("STOP" key); with reverse connection protection, reverse connection will not burn the product.
4. Increase the sleep mode, if this mode is enabled, if there is no operation within 5 minutes, the display will be automatically turned off, and any key will wake up;
5. Different OP, CL, LOP parameters can be set, they are independent of each other and saved automatically;
6. After the module is powered off, all parameter settings will not be lost.

Operating mode:

P1:Trigger signal, the relay conducts "OP" time, and then disconnects; at "OP" time, as follows:

P1.1:Signal triggers again, invalid

P1.2:Signal triggers again, clock resets

P1.3:The signal is triggered again, the relay is disconnected, and the timing stops;

P-2:Trigger signal, the relay is off for "CL" time, the relay is on for "OP" time, and then the relay is off;

P3.1:Trigger the signal, the relay is turned on after the "OP" time, the relay is turned off for the "CL" time, and then the action cycle, if the trigger signal cycle, the relay is turned off, stop timing; the number of cycles ("LOP") can be set.

P3.2:No trigger signal, the relay is on for the "OP" time, and the relay is off for the "CL" time, and the cycle continues; the frequency ("LOP") period can be set;

P-4:Signal hold function. If there is a trigger signal sequence is cleared, the relay remains on; when the signal disappears, the relay will pick up after timing the "OP" time; if there is another signal during the timing process, the timing will be reset;

Product parameters:

1: Working voltage: 5--36V.

2: Trigger source: Active high level (3.0V-24V), with optocoupler isolation, which can improve the anti-interference ability of the system (customers can also short-circuit the common ground).

3: Output capacity: DC 5V-36V, at room temperature, continuous current 15A, power 400W! Strengthen heat dissipation conditions, the maximum current can reach 30A.

4: Static current: 20mA; Working current: 50mA

5: Life: any number of switches; Working temperature: -40-85°; Size: 6.0*3.4*1.2cm.

6: With optocoupler isolation, enhanced anti-interference ability, industrial-grade board.

Notice:

1. The module is an active output, the output voltage is equal to the input voltage.

2. 'DC+' and 'Load+' are short-circuited internally, but 'DC-' and 'Load-' cannot be short-circuited during use, otherwise the load cannot be controlled, that is, the equivalent load is always charged .

timing range

0.1 second (minimum) to 999 minutes (maximum) continuously adjustable

How to choose a time frame?

After setting the parameter value of the mode selection screen, short press the "STOP" button to select the time range;

XXX. Ones decimal point, time range: 1 second to 999 seconds.

1. X decimal point, timing range: 0.1 seconds to 99.9 seconds
2. XX decimal full brightness, timing range: 1 minute to 999 minutes.

For example, if you want to set "OP" as 3.2 seconds, move the decimal point to the decimal place, and the digital tube will display 03.2

Parameter description: "OP" - on time, "CL" - off time, "LOP" - cycle times (1-999 times, "---" means infinite loop).

These parameters are independent of each other, but are shared by each mode. For example, in P1.1 mode, set the power-on time "OP" to 5 seconds, and if you switch to P1.2 mode, "OP" is also 5 seconds.

On the main interface (display 000), short press the "SET" button will display "OP" ("CL", "LOP") and the corresponding time XXX;

Some parameters only display "OP" mode (such as mode P1.1, P1.2, P1.3), short press the "SET" button to display only "OP" and the corresponding time;

Some models have parameters "OP", "CL" and "LOP" (such as mode P3.1, P3.2), short press "SET" button will display "OP" and the corresponding time, "CL" and the corresponding time, "LOP" and corresponding times;

Short press the "SET" button on the main interface to see the parameter information of the current mode, which is very convenient!

How to set parameters?

1. First, read the instructions to determine the desired mode of operation.
2. Power on the module, display the current working mode (P1.1 default mode), and enter the main interface; release and press the "SET" key for 2 seconds to enter the mode selection interface; short press the "UP" and "DOWN" keys to select the mode (P1.1 .1～P-4).
3. Select the mode (such as P3.2), short press the "SET" button, the parameters to be set will flash ("OP" open time, "CL" close time, "LOP" loop ("---" means infinite loop)) , adjust the parameter value through the "UP" and "DOWN" keys, support long press (increase or decrease quickly) and short press (increase or decrease a unit); then short press the "STOP" key to select the decimal point position, select the time range (0.1 seconds to 999 minutes); Short press the "sET" button to set the next parameter of the current mode as above.
4. After the parameter setting is completed, press and hold the "SET" button for 2 seconds and release it, the current mode name will flash once, and then return to the main interface, the parameter setting is successful!

Main interface: In When the relay is not working, it will display "000" (no decimal point), and when the relay is in the state, it will have a decimal point.

Mode selection screen:Long press the "SET" button to enter, after the setting is completed, long press the "SET" button to exit and return to the main interface.

"Stop" button extension:

Relay Enable Mode:

1. ON: The relay is allowed to conduct when the "OP" is on;
2. OFF: The relay is prohibited from conducting, normally closed;

On the main interface, short press the "STOP" button to switch between ON and OFF, the current state will flash, and then return to the main interface. (This function is an emergency stop function, click to close the relay)

sleep mode:

1. "CP" sleep mode: without any operation for five minutes, the digital display is automatically turned off, and the program runs as usual;
2. "od" normal mode: digital display normally open;

Press and hold the "STOP" button for two seconds and then release it to switch between the "CP" and "Od" states. At this time, the current state will flash, and then return to the main interface.
