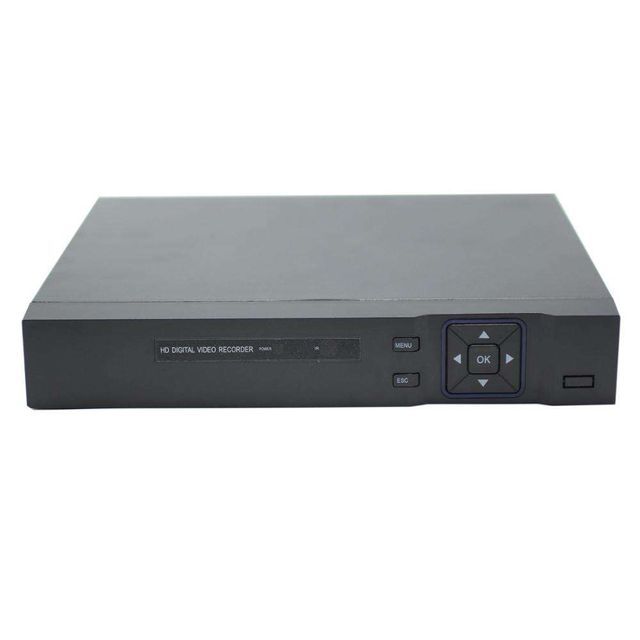

5 in 1 XVR DVR recording 4 channels with h 264 network dvr password reset
- $10.00 /piece
- 1 piece
- Shenzhen Alarmvip High Tech Limited
- Guangdong, China
- Mr Boren Wu
Product Detail
| power supply: | DC12V/2A | hard disk: | 1*6T |
| channel: | 4 channels | Audio input: | support |
| Packaging Details: | Color gift box | SATA: | 1PCS SATA interface |
| interface: | RS485 USB | payment terms: | L/C, Western Union, T/T, Paypal |
| operating system: | Linux | model: | AVR7804LN |
| Supply capacity: | 100000 pieces per month | Video Compression: | H.264 |
| port: | Shenzhen | Video compression format: | H.264 |
| language: | 23 languages | solve: | 1920x1080 |
| Origin: | Guangdong, China | brand: | alarm clock vip |
5 in 1 XVR DVR recording 4 channels with h 264 network dvr password reset
Features
1. Automatically identify input signal, CVBS, AHD, CVI, TVI
2. Digital video recorder, compatible with Hikvision, Dahua, any analog and network cameras
3. Support up to 4 channels of 1080p network cameras, compatible with ONVIF 2.0 protocol
4. P2P service, fast and easy network, support multi-platform viewing (smart phone, PC, IE)
5. Dual-stream design, respectively configured in DVR or Web access. Substream for fluent remote control
6. High-definition video output with VGA interface, the maximum supported resolution is 1920*1080
7. Motion detection, support message push to mobile phone, PC client and mail
8. Support mixed connection of analog camera and network camera, maximum support simultaneous connection of 2 channels of 1080N and 2 channels of 1080p
9. 4 channels of audio input, 1 channel of audio output, convenient for recording and recording
10. Support local hard disk video playback, maximum support 6TB hard disk
11. RS485 PTZ interface, support multiple PTZ protocols
12. Support coincidence alarms such as video loss and no hard disk.
Specification
| Model | AVR7804LN |
| CPU | HI3520D |
| operating system | Embedded Linux operating system |
| system source | Multi-channel real-time recording, playback and network operation |
| Operation interface | 16-bit true color GUI, mouse and remote operation |
| screen display | one scene/four scenes |
| video format | PAL(625TVL, 50fps) NTSC(525TVL, 60fps) |
| image coding | H.264 encoding compression technology |
| solve | 1920*1080, VGA HD video output |
| play back | 1080N, 1080P |
| recording ability | Full HD: 1080N IPC: 1080P |
| audio compression | Support G.711A audio compression, reply connection camera support |
| Voice intercom | support |
| motion detection | Support motion detection recording, message push and email push |
| simulation | 4×1080N |
| hybrid connection | 2 x 1080N + 2 x 1080P |
| industrial computer | 4×1080P |
| recording mode | Manual recording, alarm recording, motion detection, time recording, |
| play locally | Depending on the channel type, play 4 channels at a time |
| recording storage | Hard Disk/Cloud Storage |
| backup mode | U disk, network backup, USB mobile hard disk, USB burning, SATA burning |
| recording search | Time point retrieval, calendar retrieval, fact retrieval, channel retrieval |
| space occupation | Video: CIF 4-5G per day, D1 8-12G per day, 960H 12-20G per day, 720P 20-30G per day, 960P 30-40G per day, 1080P 40-70G per day Audio: 691.2M per day The space occupied by video or audio files is for reference only, please refer to the actual situation |
| Alarm input | not any |
| Alarm Output | not any |
| video input | 4 BNC ports |
| video output | 1 VGA interface, 1 video output interface, 1 BNC interface |
| audio input | 4 RCA ports |
| Audio output | 1 RCA port |
| Network Interface | RJ45 10/100m adaptive Ethernet port |
| PTZ | 1 RS485 supports multiple PTZ protocols |
| USB interface | 2 USB ports |
| Hard disk interface | 2 SATA ports, 1x3.5 inches, 500GB-6TB |
| WiFi interface | not any |
| power supply | 12V 2A |
| energy consumption | <15W (without hard disk) |
| remote control | support |
| panel button | support |
| mouse | support |
| temperature | 0℃—+55℃ |
| humidity | 10%—90% |
| pressure | 86kpa—106kpa |
| size | 26cm*25cm*5cm |
| weight | 0.86kg (excluding hard disk) |
| gang control | Support joint control, the video cable can transmit video signal and PTZ control at the same time, the dome camera does not need to connect the S485 control cable and wiring. |
| compatibility | Compatible with analog mode, AHD concentric high-definition access, analog high-definition access, Hikvision concentric HDTVI, Dahua concentric high-definition access, network mode, Alarmvip network camera, Hikvision, Dahua, onvif protocol network camera. |
