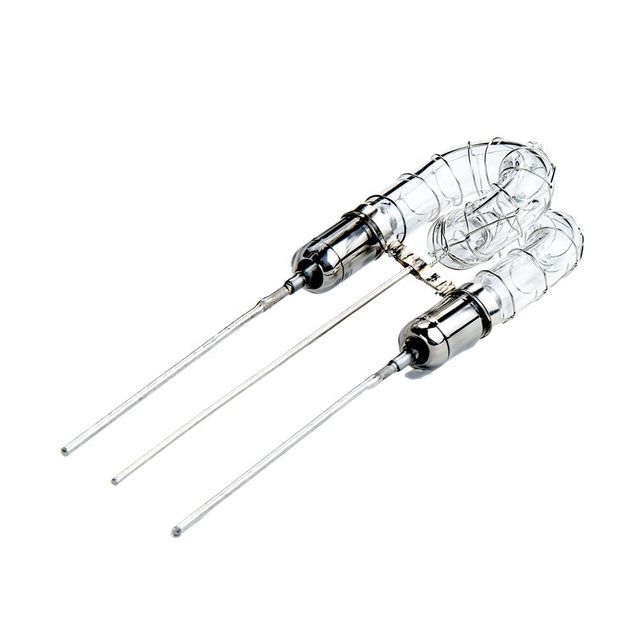

Xenon flasher tube for traffic warning lights with lead-free solder for OEM factory
- $3.99 / >=3 pieces
- 3 pieces
- Shenzhen Hongtai Auspicious Technology Co., Ltd.
- Guangdong, China
- Ms Tina Cheung
Product Detail
| Maximum anode voltage, Ua max (V): | 500 | Lighting Solutions Services: | Lighting and Circuit Design |
| color: | white | Nom Flash Energy, Enom: | 60 watts |
| Packaging Details: | Blister tray + export carton | Warranty (year): | 1 year |
| Minimum anode voltage, Ua min (V): | 300 | Specification: | QFM series |
| Origin: | Guangdong | Nominal Anode Voltage, Ua Nominal (V): | 400 |
| Supported dimmers: | No | Management Type: | Pulse Xenon Flash Tube |
| Key words: | Spiral Xenon Lamp | Lamp Luminous Efficiency (lm/w): | 55 |
| Inflatable: | 99.999% Xenon | port: | salt fields. Shenzhen |
| product name: | Xenon flash tube | Working hours (hours): | 40000 |
| Product weight (kg): | 0.05 | brand: | OEM production |
| Color temperature (CCT): | other | Input voltage (V): | DC 48V |
| Color rendering index (Ra): | 60 | Lifespan (hours): | 12000 |
| Light shape: | spiral | payment terms: | D/A, T/T, Money Gram |
| Package preview: | Maximum flash energy: | 80 watts |
Product Description
Xenon flasher tube for traffic warning lights with lead-free solder for OEM factory

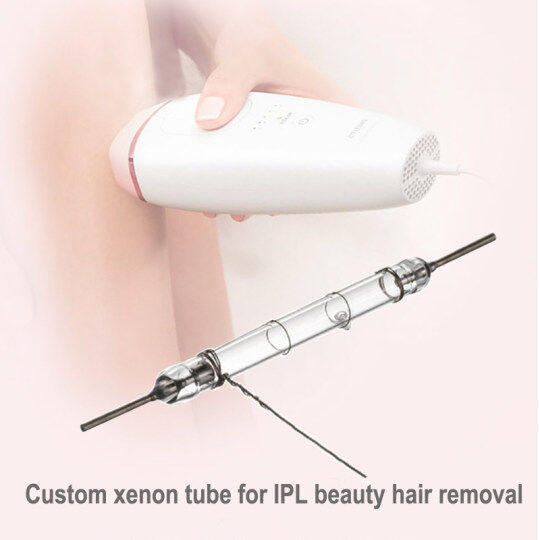

High-intensity pulsed light for hair removal and cosmetic skin treatments is now the solution of choice for aestheticians and medical users worldwide. As one of the most important components, the IPL flash plays a key role in safety and therapeutic effect.
The IPL SHR Lamps we offer have the following features: * Excellent Flash Reliability * High Quality Manufacturing Standards * Consistent Spectral Output * High Quality Raw Materials * Wide Variety of Lamp Connectors Available * All Lamps are Tested After Production for Long Lifespan and unanimous

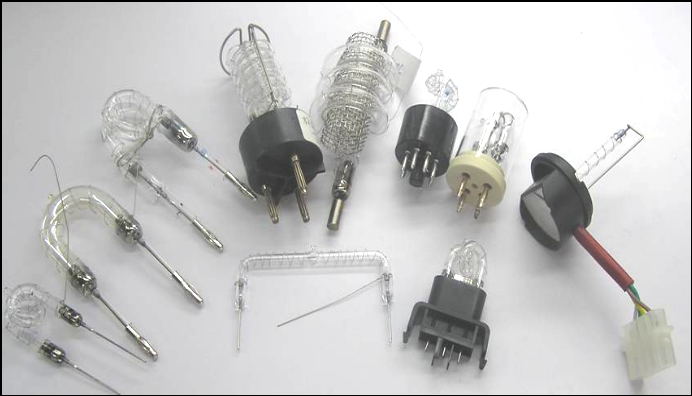

Xenon flash tubes emit high intensity light and are suitable for a wide range of applications:

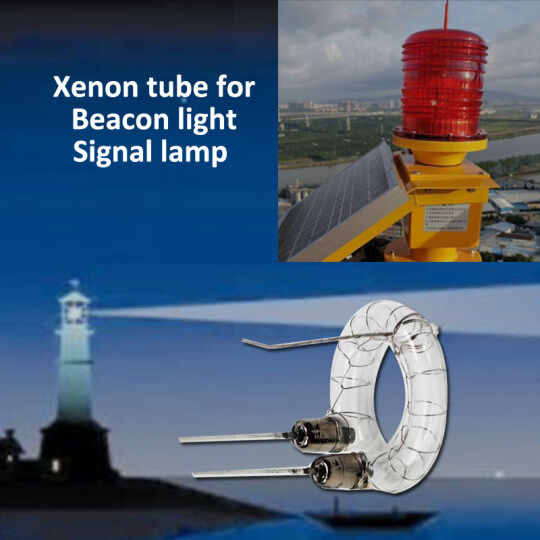

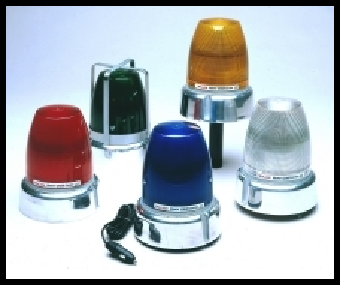

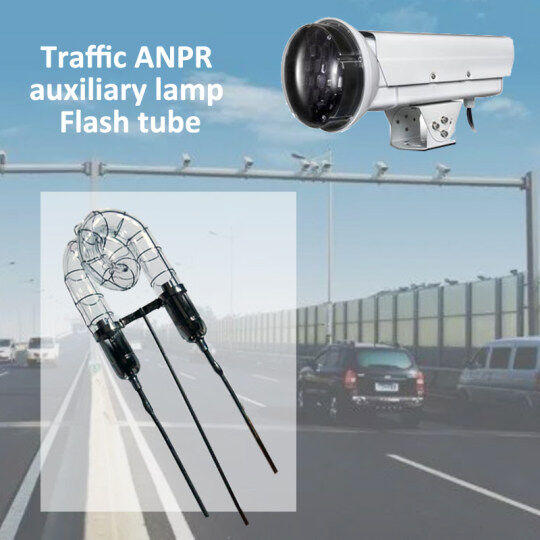

Photography: amateur and professional equipment. Traffic: warning beacons for traffic control, aircraft, ships, emergency vehicles, airport runways and railways. Industry: strobe applications such as automotive timing lights, dynamic balancing machines, high-speed copiers, and typesetting. Publicity: Flashing lights for window displays, psychedelic lighting. Science: stroboscopic applications, laser pumping, colorimetry. Medicine: Endoscopic applications.

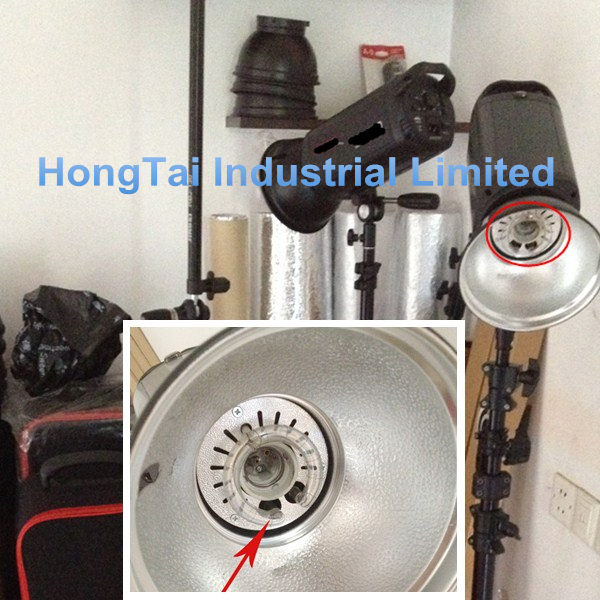

detailed image
What's inside a xenon bulb?
Xenon lamps consist of two electrodes enclosed in a glass bulb filled with xenon gas. High voltage is applied to the electrodes, which instantly releases sparks to create a flash of light. The xenon arc has the advantage that the spectrum is closer to daylight than incandescent sources.
Remarks for xenon flash tubes
1. Lead-free solder; anodic red dot; no color correcting coating. 2. Our products use lead-free soldering (RoHS compliant) on both leads. Please operate the soldering iron at 300-450°C, do not use the soldering iron for more than 10 seconds. 3. The flash tube should work under the nominal anode voltage according to regulations, please avoid working at the minimum or maximum anode voltage all the time. 4. Ambient temperature requirements: -40°C---85°C. 5. Working humidity requirement: 0%---95%
product description

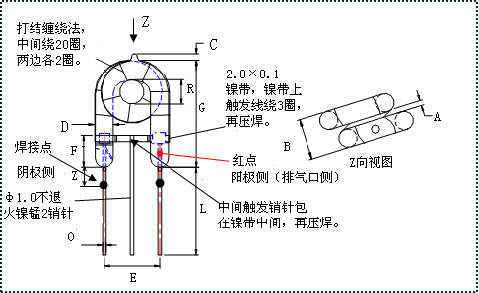

Specifications for xenon flash tubes for traffic flashing lights
type | Material | Dimensions (mm) | anode voltage | flash energy | flash frequency | life |
QFM0842 | Quartz tube | 8.0(D)*20(E)*42(G)*45(L) | 400~620 | 70W | 1 Hz | 9 million |
QFM0740 |
Quartz tube
| 7.0(D)*18.5(E)*40(G)*45(L) | 450~650 | 60W | 1 Hz | 9 million |
QFM0845 |
Quartz tube
| 8.0(D)*22(E)*45(G)*45(L) | 400~620 | 70W | 1 Hz | 9 million |
QFM0742 |
Quartz tube
| 7.0(D)*20(E)*42(G)*45(L) | 450~650 | 60W | 1 Hz | 9 million |
custom made |
Quartz tube
| 6~10(D)*18~22(E)*35~45(G)*customized(L) | custom made | custom made | 1 Hz | custom made |
