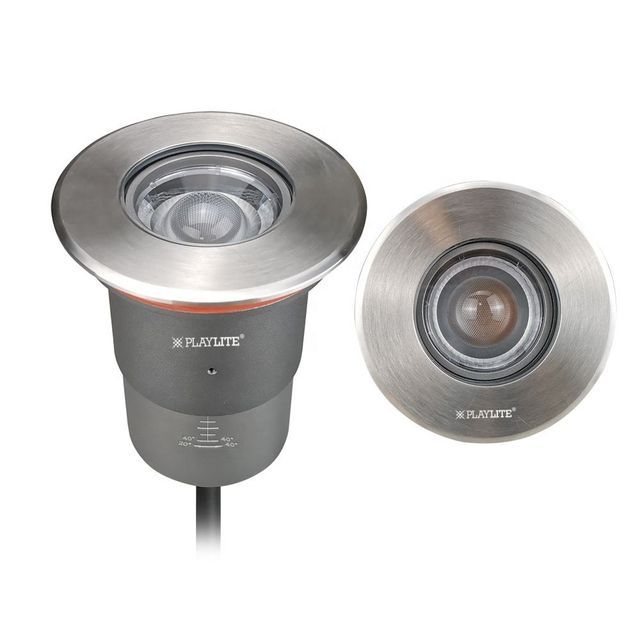

IP67 SS316 Underground Light 15w Underground Lighting Outdoor Beam Angle Adjustable Underground LED Underground Light AC100-265V 3 Years
- $1.00 / >=50 sets
- 50 sets
- Puyuan Electronic Illumination Co., Ltd.
- Guangdong, China
- Mr Eason Wen
Product Detail
| Input voltage (V): | AC100-265V | model: | UL-15W-COB--1500-JH |
| Packaging Details: | Export standard carton packaging, carton size: 50*47.5*17.5cm (10 pieces/box) | cut out: | 93mm |
| strength: | 15 watts | brand: | have fun |
| Supply capacity: | 20000 sets per month | Warranty (year): | 3 |
| Supported dimmers: | No | Luminous flux: | 20°:300lm+-10% / 40°:1000lm+-10% |
| Lamp luminous flux (lm): | 20°:300lm+-10% / 40°:1000lm+-10% | Lighting Solutions Services: | Lighting and Circuit Design |
| Light body material: | Stainless steel | application: | landscape |
| Color rendering index (Ra): | 80 | Origin: | Guangdong, China |
| Beam angle: | Scalable 20°-40° | Protection class: | IP67 |
| Color rendering index: | 80+ | Product weight (kg): | 1 |
| Working temperature(℃): | -20 - 50 | Lifespan (hours): | 50000 |
| Color rendering index (Ra>): | 80 | Color temperature: | 2700K, 3000K, 4000K, 6000K |
| Insulation class: | Class I or Class III | Working life (hours): | 50000 |
| Warranty: | 3 years | light source: | to lead |
| Working hours (hours): | 50000 | aspect: | 100x117 (mm) diameter x length |
| port: | Jiangmen | Certification: | Conforms to EU Directives |
| payment terms: | L/C, Western Union, T/T, Paypal | Lamp Luminous Efficiency (lm/w): | 70 |
| Color temperature (CCT): | 2700K, 3000K, 4000K, 6000K |
. 1 x 15W CREE CXA1507 LED, LM80 certified.

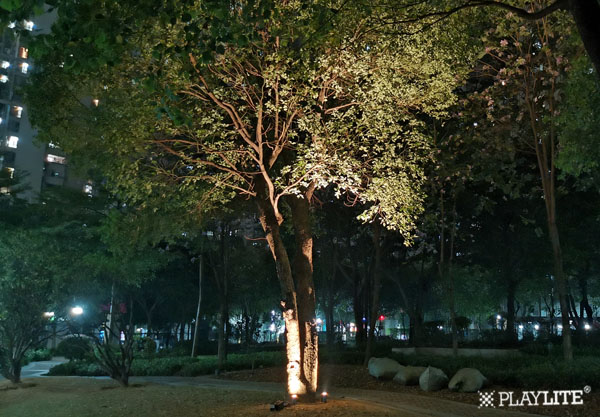

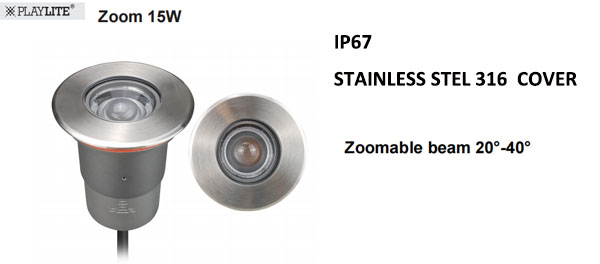

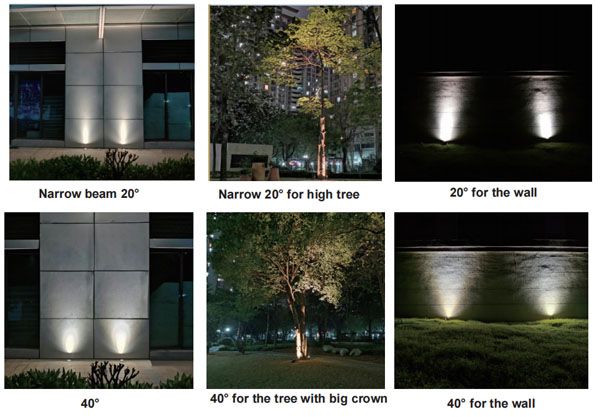

. Scalable beam angle 20°-40°, used to project columns, walls, tall trees or large tree crowns of different widths, etc.
. Excellent heat conduction shell design ensures long life of LED
· CNC processing of aluminum shell
· 20~25um thick anti-corrosion protective passivation film on the shell.
·Waterproof IP67.
· 3 years warranty.
· IP67 structure silicone seal + glue seal
.8~10 years of professional sales and technical personnel to serve you
|
general data |
|
|
serial number. |
UL-15W-COB-1500-JH |
|
strength |
15W +-10% |
|
LED type |
1 x 15W Cree CXA1507 LED |
|
Luminous flux |
20°:300lm+-10% / 40°:1000lm+-10% |
|
CCT |
2700K, 3000K, 4000K, 6000K |
|
Color rendering index |
80+ |
|
Beam angle |
Scalable 20°-40° |
|

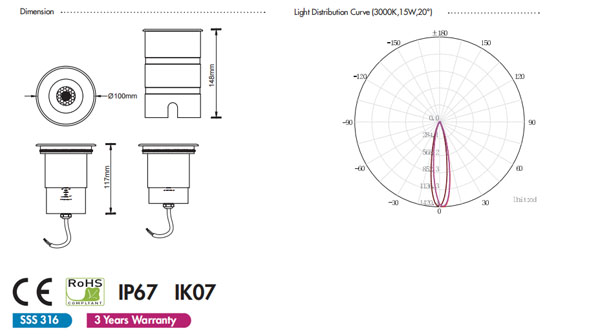

aspect |
Φ100x117 (mm) diameter x length |
|
cut out |
Φ93mm |
|
net weight |
1 kg |
|
Warranty |
3 years |
|
certified |
Conforms to EU Directives |
|
electrical data |
|
|
Input voltage |
AC100-265V or DC24V optional |
|
insulation level |
Class I or Class III |
|
cable |
1PC rubber cable 1M H05RN-F 2x1mm square |
|
driver |
Low voltage constant current driver without transformer or built-in high voltage constant current driver |
|
construction data |
|
|
degree of protection |
IP67 waterproof |
|
IK level |
IK07 |
|
housing |
Passivated (anodized) aluminum |
|
protection finishing |
The outer casing is anodized with a thickness of 20~25μm. dark gray |
|
prune |
stainless steel 316 |
|
Glass |
Stepped tempered glass. T=8mm. |
|
loading capacity |
500 kg |
|
Cable Connector |
PG gland |
|
Gasket |
PMQ Yuanchuangfang Silicone Sealing Ring |
|
Accessories |
|
|
installation sleeve |
Passivated (anodized) aluminum. dark gray |
|
|
|
