Active infrared intrusion detectors Infrared detector Infrared intrusion detection system
- $12.00 / >=10 pairs
- 10 pairs
- Dongguan Tuotian Intelligent Technology Co., Ltd.
- Guangdong, China
- Ms ly Li
Product Detail
| payment terms: | L/C, Western Union, D/A, T/T | network: | TCP |
| Origin: | Guangdong, China | Certification: | is9001 |
| port: | Shekou | model: | TT-A100 |
| brand: | Takuta |
Product Description
Model | ABT-50-250 | ABE-50-250 | ABH-50-300 |
Number of beams | double beam | three bundles | Four beams |
Warning distance | 50-100 meters | 100-200 meters | 50-250m |
Detection method | Simultaneous two beam interruption alarm | Simultaneous three beam interruption alarm | Simultaneous four beam interruption alarm |
light source | Infrared digital pulse | Infrared digital pulse | Infrared digital pulse |
Induction speed | 50-700 milliseconds | 50-700 milliseconds | 35-700 milliseconds adjustable |
Alarm Output | Relay contact output 1C (COM, NC, none), contact capacity AC/dc30v 0.5amax | Relay contact output 1C (COM, NC, none), contact capacity AC/dc30v 0.5amax | Relay contact output ON or NC, contact capacity AC/DC30V 0.5Amax |
voltage | Ac12-18v/dc12-24v, minimum power 3W | Ac12-18v/dc12-24v, minimum power 4W | DC12-24V/AC11-18V P |
current consumption | Transmitter+Receiver≤85mA | Transmitter+receiver≤100mA | 95mA/100mA/100mA/100mA/105mA/105mA |
range of working temperature | -25℃~55℃ | -25℃~55℃ | -25℃～50℃ |
Dimensions | 170mm*78mm*73mm | 265mm*85mm*85mm | 370mm*96mm*101mm |
Anti-disassembly output | Contact output: 1B (COM, none), contact capacity AC/DC 30V 0.5A Max | Contact output: 1B (COM, none), contact capacity AC/DC 30V 0.5A Max | Contact output, contact capacity AC/DC 24v 0.5AMax |
Optical axis adjustment angle (horizontal) | 180°(±90°) | 180°(±90°) | 180°(±90°) |
Optical axis adjustment angle (vertical) | 20°(±10°) | 20°(±10°) | 20°(±10°) |
Measures against condensation and frost | Heated housing (optional) | Heated housing (optional) | |
Other additional functions | Light receiving instruction, OK instruction, test manuscript | Light receiving instruction, OK instruction, test manuscript | |
Material texture: | PC (shell) + ABS (body) | PC (shell) + ABS (body) |
This is the infrared alarm on the wall when someone tries to climb the wall. When the infrared is blocked, the infrared radiation
The alarm signal will be output, and the alarm host will receive the alarm signal
The alarm signal will be output, and the alarm host will receive the alarm signal

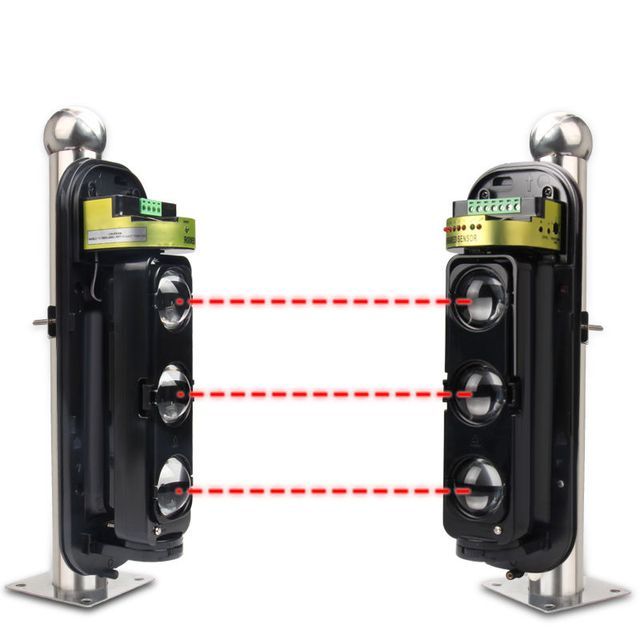

Beam Active Infrared Intrusion Beam Detector
Outdoor waterproof and anti-interference strong
Precautionary place
With sealed design, it is waterproof, moisture-proof, windproof and snowproof. It can effectively resist the influence of harsh outdoor environment and make the use of radiation more stable
Anti-theft wall
Installed on the fence for anti-theft
Anti-theft balcony
Anti-theft installed on the balcony
Anti-theft door
it is installed on the gate to prevent theft
Product Usage
The set time is less than the time required for the intruder to pass through the torus. The power-off time can be set according to individual needs
Equipped with left and right 90° rotation, up and down 10° vertical, easy installation, full focus projection
Orientation makes installation more comfortable
Orientation makes installation more comfortable
