3/8'' 1/2'' 10mm 12mm thick colorless transparent transparent tempered tempered esg glass door balcony railing partition wall
-
$39.90 / 100 - 999 square meters
$16.90 / 1000 - 4999 square meters
$12.90 / 5000 - 9999 square meters
$9.90 / >=10000 square meters - 100 square meters
- Shenzhen Sun Global Glass Co., Ltd.
- Guangdong, China
- Ms kiky Zhu
Product Detail
| payment terms: | L/C, Western Union, T/T | Certificate: | European CE and American SGCC |
| advantage: | No bubbles, no defects, strong and safe | brand: | Shenzhen |
| Supply capacity: | 300 million tons of 10mm 12mm transparent tempered glass per day | Origin: | Guangdong, China |
| application: | Doors Balconies Railings Partition Walls Deck Panels Courts, Yards, Leisure Facilities, Supermarkets, Farmhouses, Laundry Rooms, Workshops, Kitchens, Schools, Bathrooms, Babies and Children, Bedrooms, Exteriors, Dining Rooms, Warehouses, Home Offices, Staircases, Outdoors, Living Rooms, Parks, wine cellars, office buildings, lockers, gyms, shopping malls, entrances, apartments, sports venues, basements, hospitals, villas, hotels, home bars, garages and sheds | size: | Customized cutting size, up to 3300x6000mm |
| Packaging Details: | Sturdy export plywood crate to avoid any breakage during long distance transportation. | Warranty: | over 5 years |
| Processing: | Drilling, grooving, safety corners, sandblasting, etching, etc. | Production time: | 7-15 working days after order confirmed |
| Package preview: | usage: | Industrial, Curtain Walls, Railings and Handrails | |
| Project solution ability: | Project overall solution, 3D model design, cross-category integration, graphic design | model: | 10mm 12mm clear tempered glass |
| port: | Shenzhen | structure: | hard |
| shape: | flat and curved | thickness: | 3/8'' 1/2'' 10mm 12mm, 10mm 12mm |
| Package: | Sturdy export plywood crate for safe delivery | After-sales service: | online technical support |
Product Description

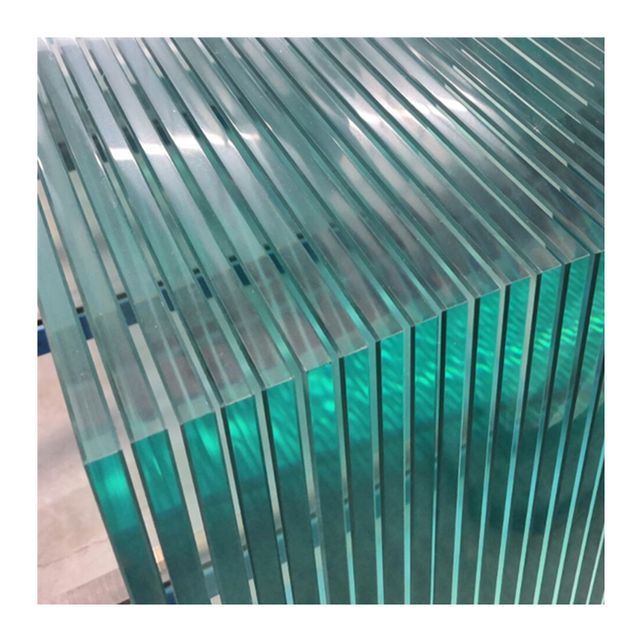

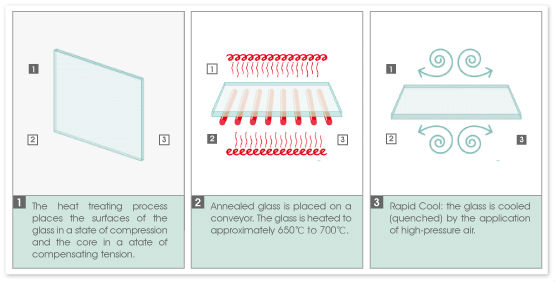

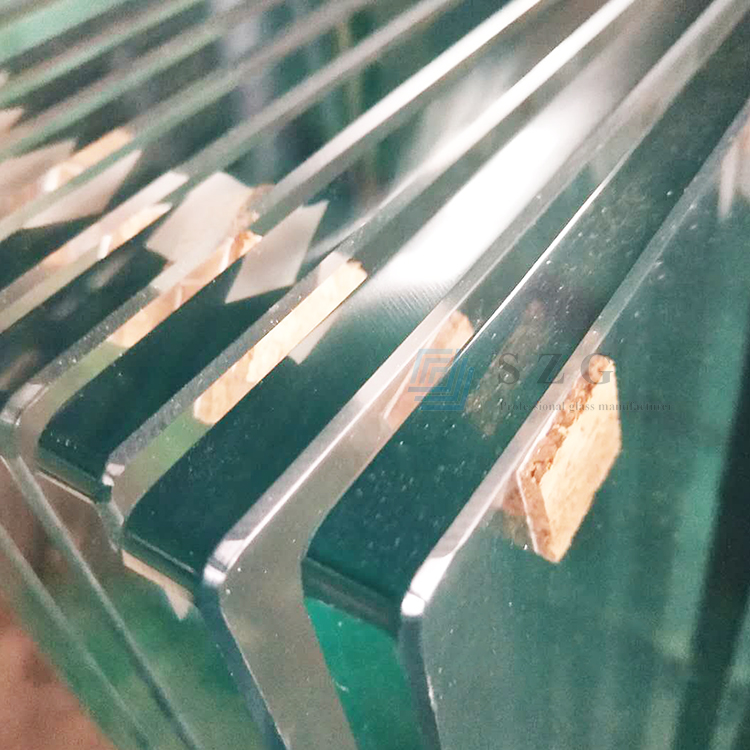

Tempered glass is a kind of safety glass, one of the most widely used glass, 10mm 12mm transparent tempered glass is glass door, glass balcony railing, glass office partition wall, glass cricket pitch, glass canopy, glass bathroom enclosure, etc. To produce tempered glass, it must be cut to the appropriate size and shape before the tempering process, if the glass is cut or processed afterwards, it will crack and shatter. After the glass has been cut, polished, drilled and other processes, the prepared float glass panel is put into a tempering furnace, the glass panel is heated to above 600 degrees, and then the surface is quickly cooled by cold air. This creates tensile stress on the glass surface and the glass particles inside are hotter. When the top thickness of the glass cools, it contracts and forces the corresponding glass elements to shrink, which introduces stress into the glass panel and increases its strength, so when the glass comes out, it is 3-5 times stronger than ordinary annealed float glass.
Specification | ||
product | Tempered Glass / Tempered Glass | |
application | Glass doors, balcony railings, partition walls, shower doors, awnings, cricket pitches, etc. | |
thickness | 10 mm 3/8 in, 12 mm 1/2 in | |
size | Customized cutting size, up to 3300x8000mm | |

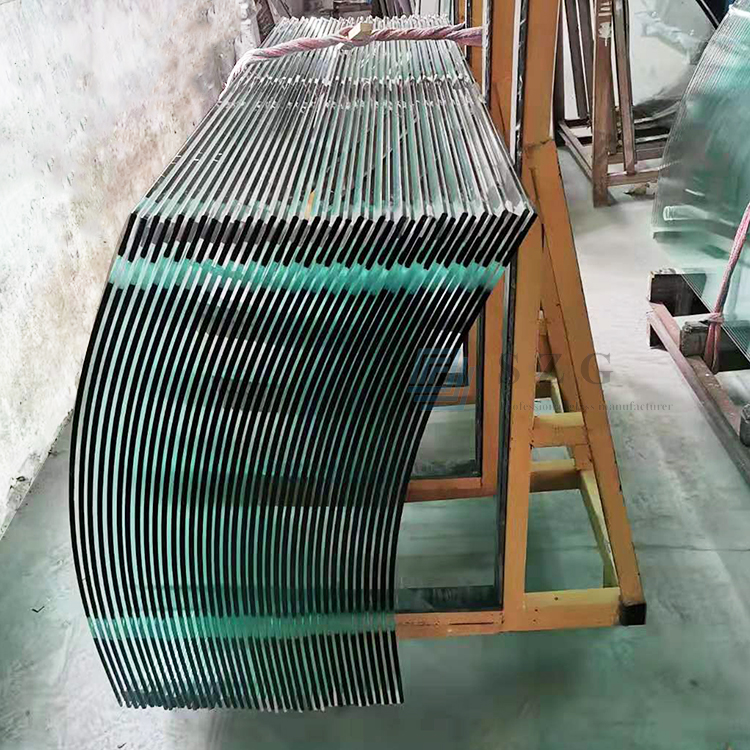

shape | flat/curved | |
processing | Tempering, polishing, drilling, etching, cutting, etc. | |
feature | 3-5 times stronger than ordinary annealed glass, not easy to break A kind of safety glass, even if it is broken, it will not become sharp particles and will not hurt people No more processes can be done after tempering | |
quality | Comply with European CE EN12150 and American SGCC ANSI Z97.1 standards | |

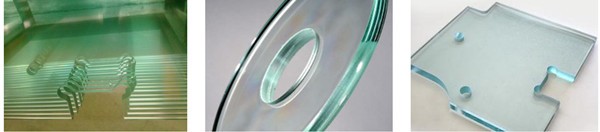

SZG tempered glass hole processing

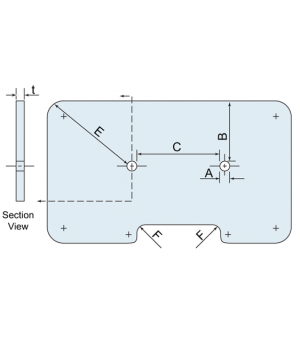

The holes and notches in the tempered glass should be within the designated area of this image.
Glass Edge to Hole Edge: Minimum distance from hole edge to nearest glass edge must be ¼” or 2 x glass thickness, whichever is greater. Hole position tolerance for specified edge is ±1/16”.
Minimum distance between holes: The minimum distance between edges of adjacent holes must be 3/8” or 2 x glass thickness, whichever is greater. Dimensional tolerance between hole centers is ± 1/16”.
Glass corner to nearest hole edge:Holes near corners must be positioned such that the nearest edge of the hole is a minimum distance of 6.5 x glass thickness from the corner.Hole size:The minimum size of the hole should be at least 1/16 inch greater than the thickness of the glass. The maximum dimension of the hole should not exceed 1/3 of the narrowest dimension of the workpiece.Notches and cutouts:All of these must have a fillet with a radius equal to or greater than the thickness of the glass.
glass thickness | 1⁄4″ | 3⁄8″ | 1⁄2″ | 3⁄4″ |
minimum aperture | 5⁄16″ | 7⁄16″ | 9⁄16″ | 1-3⁄16″ |
Distance from hole edge to glass edge | 1⁄2″ | 3⁄4″ | 1" | 1-1⁄2″ |
distance between hole edges | 1⁄2″ | 3⁄4″ | 1" | 1-1⁄2″ |
Distance from corner to hole edge | 1-5⁄8″ | 2-7⁄16″ | 3-1⁄4″ | 4-7⁄8″ |
Minimum Corner Radius | 1⁄4″ | 3⁄8″ | 1⁄2″ | 3⁄4″ |
All fabrication (i.e. holes, notches, cuts) through the glass surface must be done prior to tempering or heat strengthening. Attempting to manufacture on tempered glass will cause it to shatter.

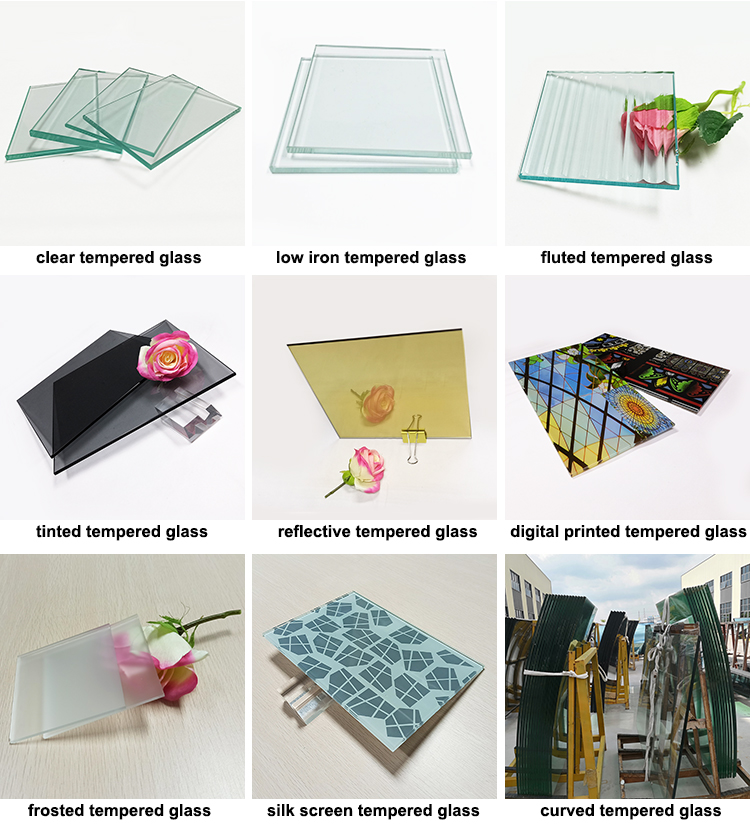

Besides 10mm 12mm clear tempered glass, as a professional glass processing manufacturer in China since 1993, we also produce many other kinds of tempered glass, such as 4mm 5mm 6mm 8mm 15mm 19mm grooved tempered glass, 19mm ultra clear low iron tempered glass, Color decorative tempered glass, digital printing tempered glass, frosted tempered glass, gradient tempered glass, any other custom designed glass.

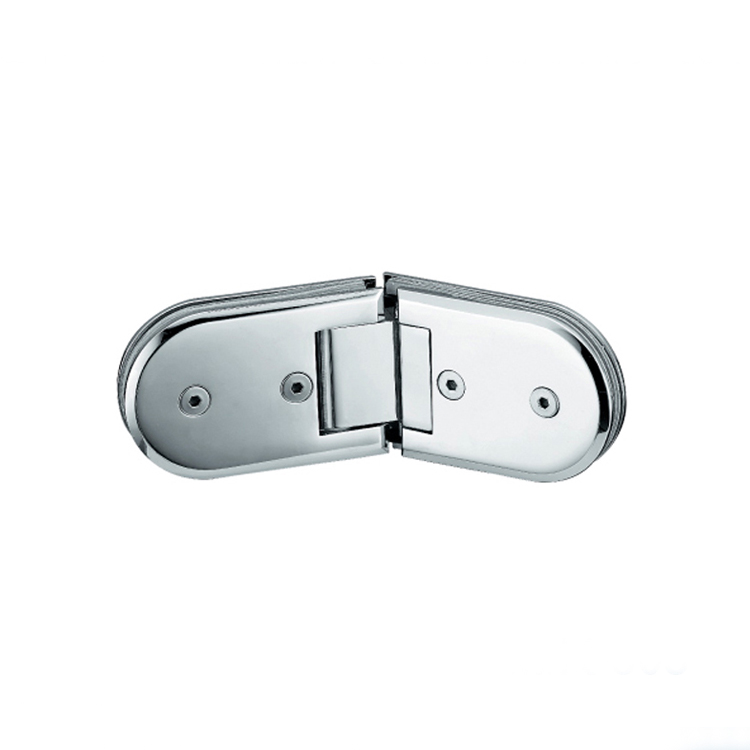

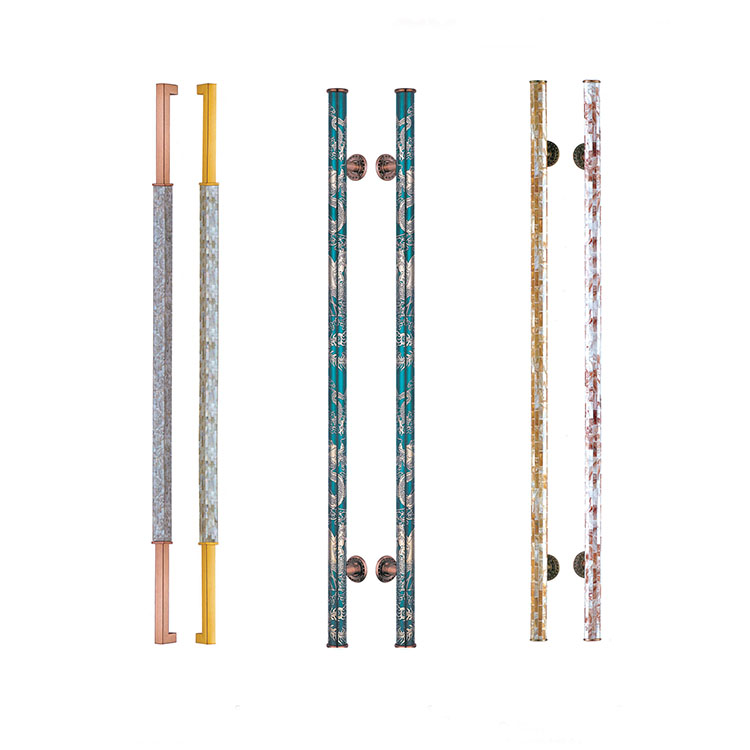

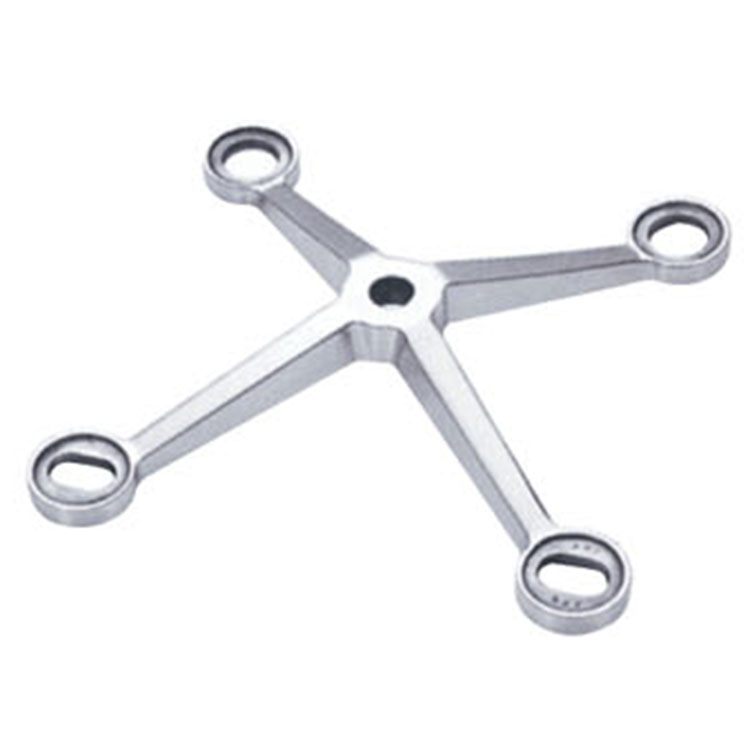

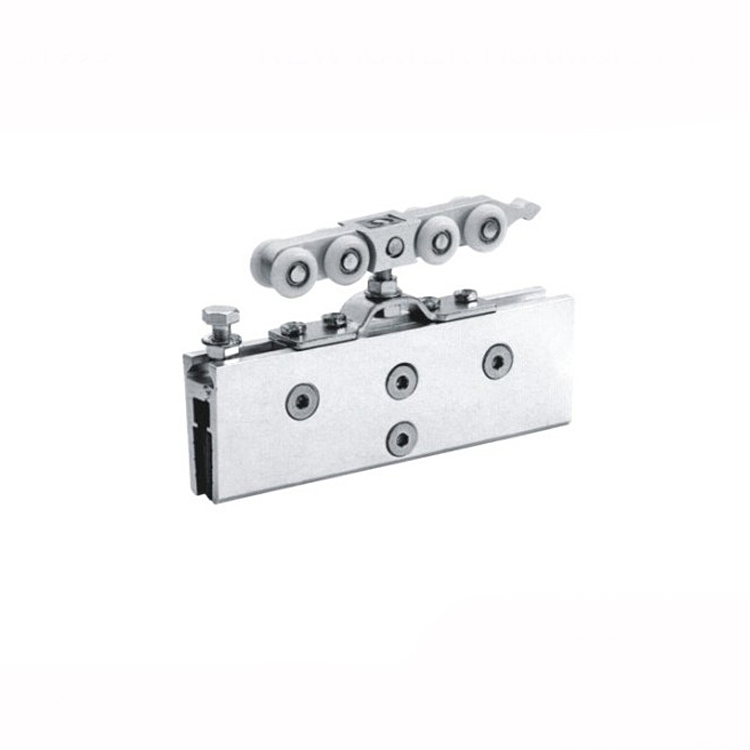

In addition to glass, we also provide stainless steel or aluminum accessories such as glass railings, glass doors, and glass partitions to make your purchase easier.
