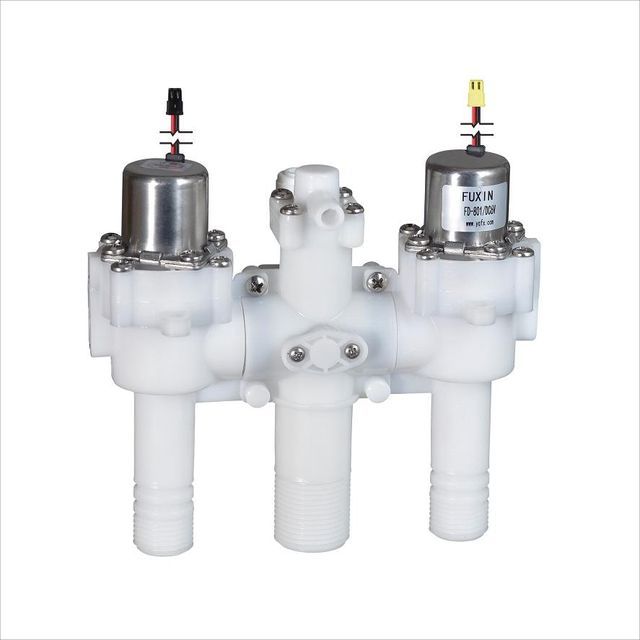

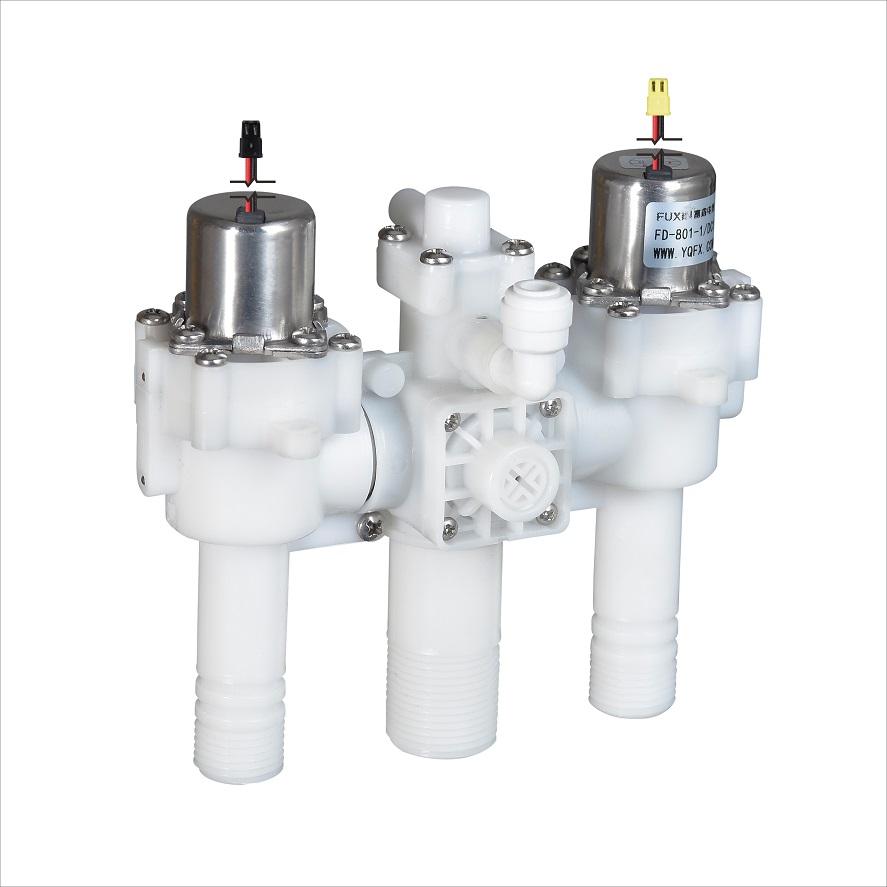

Toilet flush DC battery 6V 9V 12V Electromagnetic smart toilet flush valve for smart home system

Product Detail

Medium temperature:1--75Origin:Zhejiang, China
Coil resistance:16Ω/36Ω/130ΩElectronic sensor:DC & AC
Operating pressure:0.02Mpa-0.8MpaResponse time:Open≤0.15s Close≤0.5s
Warranty:1 yearpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Service life:≥1000000 cycles (CJ/T 194-2004)application:apartment
Pulse Width:≥30msdesign style:modern
Package preview:Switch mode:DC pulsed/AC and DC continuous
Flush Valve Type:FeelProject solution ability:Graphic design, 3D model design, overall project solution, cross-category integration
brand:FuxinCertificate:NSF61/ACS/KTW
After-sales service:online technical supportPackaging Details:standard packaging
Rated voltage:DC6V/DC12V/DC24VMinimum current:250mA/300mA/166mA
model:FD-801-1Supply capacity:10000 pieces per month
port:Ningbo Shanghai
Product Description
The valve is applied to the intelligent toilet automatic water control system. There are three cavities in the valve body, which are used to adjust the pressure, reduce the resistance of the valve core when it moves in the cavity, and also absorb the impact of the medium on the valve body when switching. Improves valve stability, prolongs service life, and reduces pulse width at maximum or minimum pressure. The special self-cleaning function makes it easy to prevent clogging.
Specification
Rated voltage
DC 12V
DC 24V
AC 220V
coil resistance
36Ω ±0.5Ω(20ºC)
130Ω±5Ω(20℃)
4.75KΩ ±0.25KΩ(20ºC)
minimum current
300mA
166mA
18mA
switch mode
AC and DC continuous (normally closed)
AC and DC continuous (normally closed)
flow rate
body based
operating pressure
0.02Mpa-0.8Mpa
Medium temperature
1ºC--75ºC
Response time
Open≤0.15s Close≤0.5s
