ALUMOTECH M40 HMI Light Par Head+4000W&2500W E-Ballast +7m ARRIS Photo Video Studio Transmission Cable Kit
- $1500.00 /piece
- 1 piece
- Shenzhen Ailimu Technology Co., Ltd.
- Guangdong, China
- Ms Sum Frances
Product Detail
| strength: | 4000W | Supported dimmers: | Yes |
| Ballast weight: | 20KG | brand: | Aluminum Technology |
| Packaging Details: | carton | Lamp luminous flux (lm): | 50000 |
| Color rendering index (Ra): | 95 | Light body material: | aluminum |
| Lighting Solutions Services: | Customer Support | Light head weight: | 30KG |
| model: | M40 | Light modulator: | ballast dimming |
| color: | gray blue | light source: | halogen bulb |
| Item Type: | video light | Warranty (year): | 1 year |
| port: | Hong Kong/Shenzhen | Origin: | Guangdong, China |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PAYPAL | Supply capacity: | 50 pieces per day |
| Package preview: | Protection class: | IP23 | |
| Operating Voltage: | 110V /200V | Working hours (hours): | 10000 |
| Bulb: | G38 | Working life (hours): | 10000 |
| Color temperature (CCT): | 6000K, 6000K | type: | continuous light |
| Lifespan (hours): | 50000 | Model: | M40 |
| Input voltage (V): | 90V / 240V | Color rendering index (Ra>): | 94 |
| Luminous color: | Cold white | Base type: | G38 |
Product Description
describe
Bald:

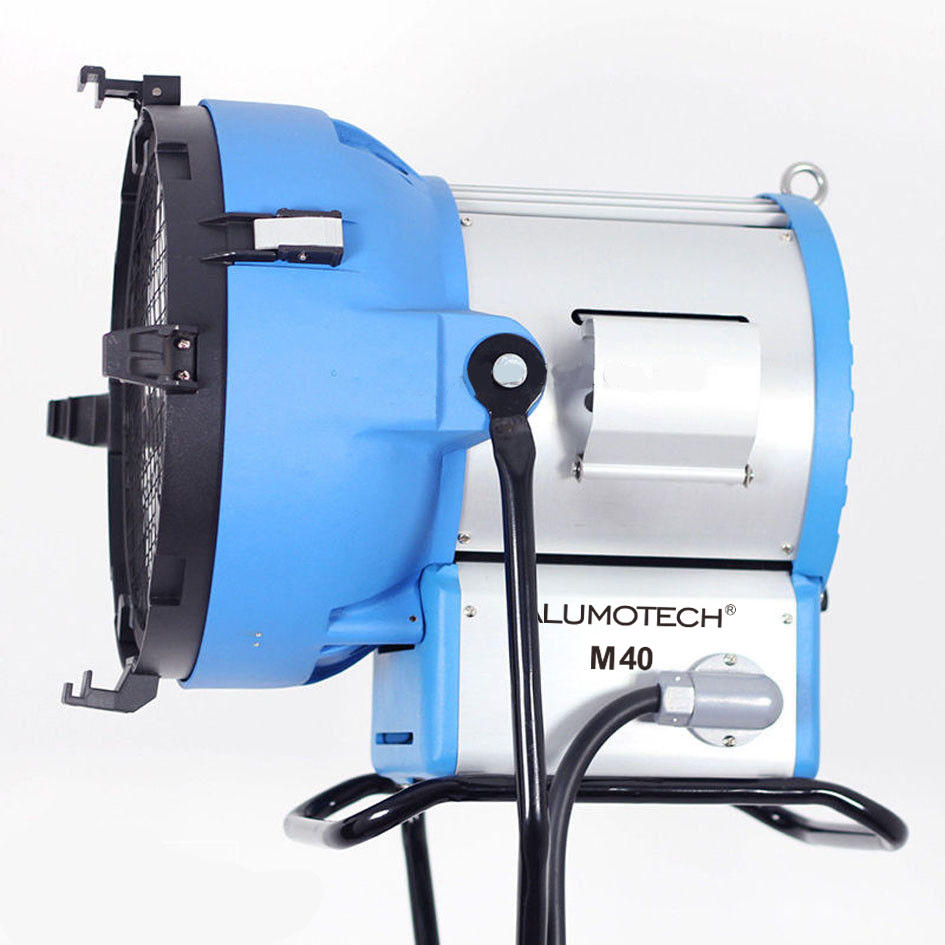

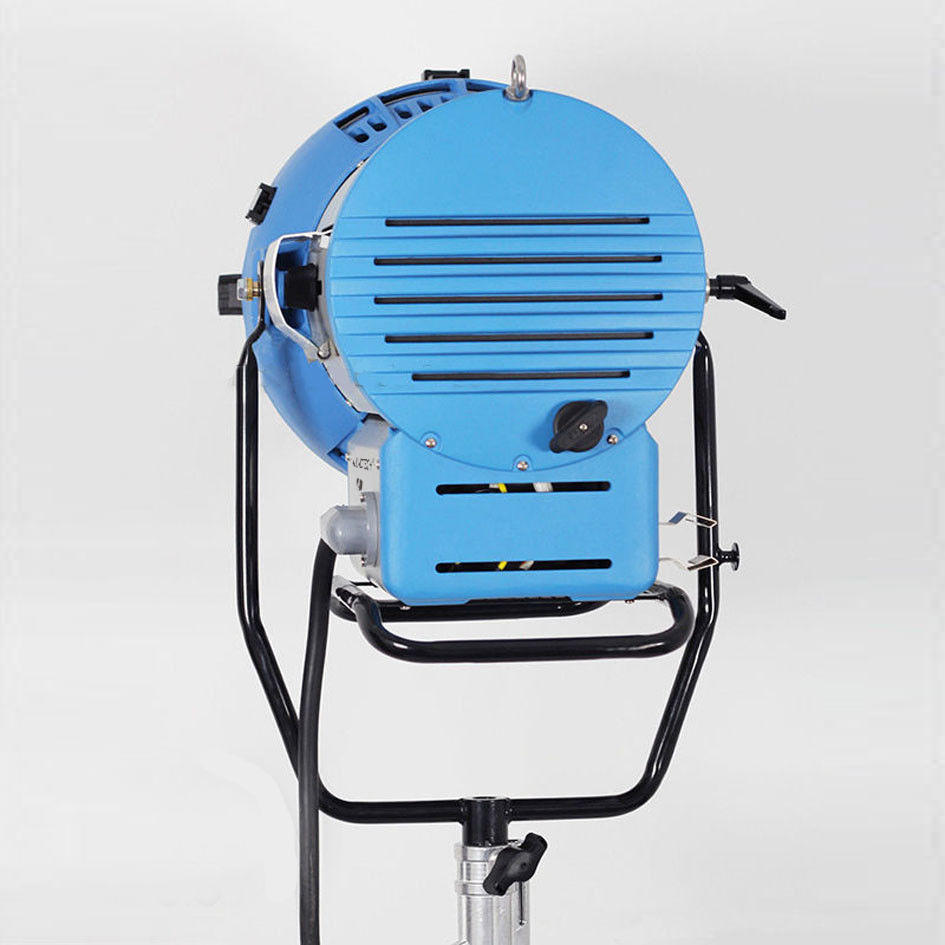

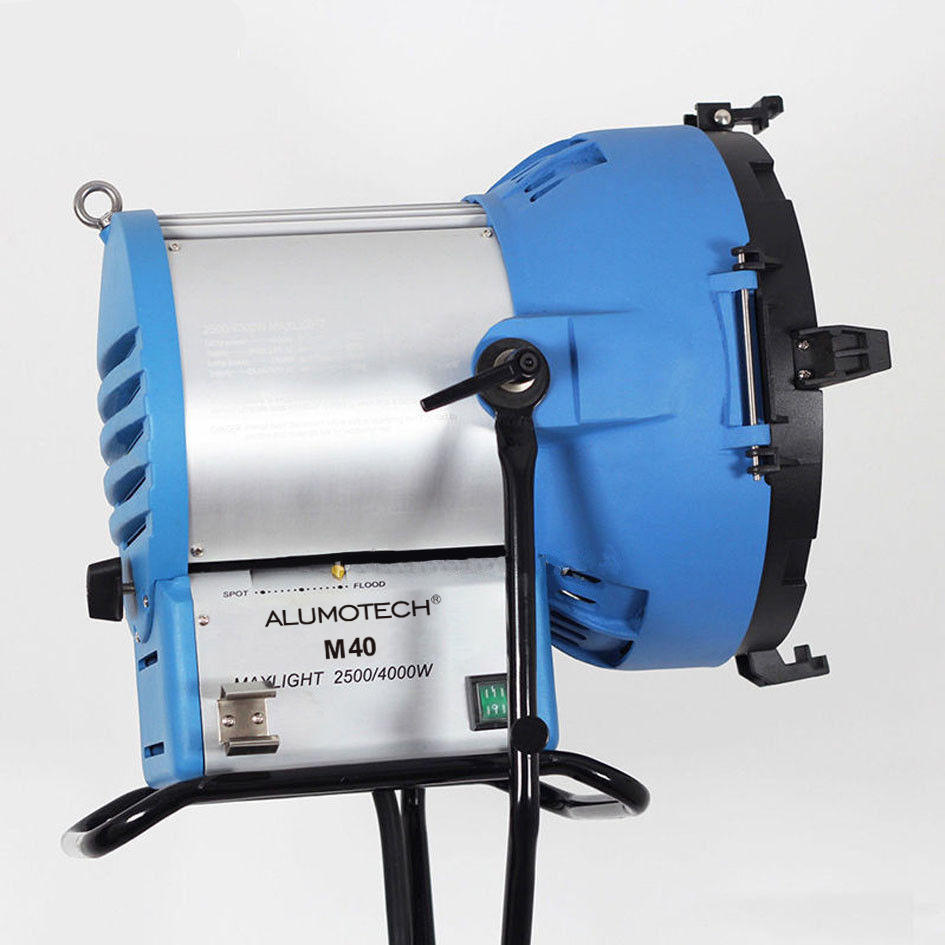

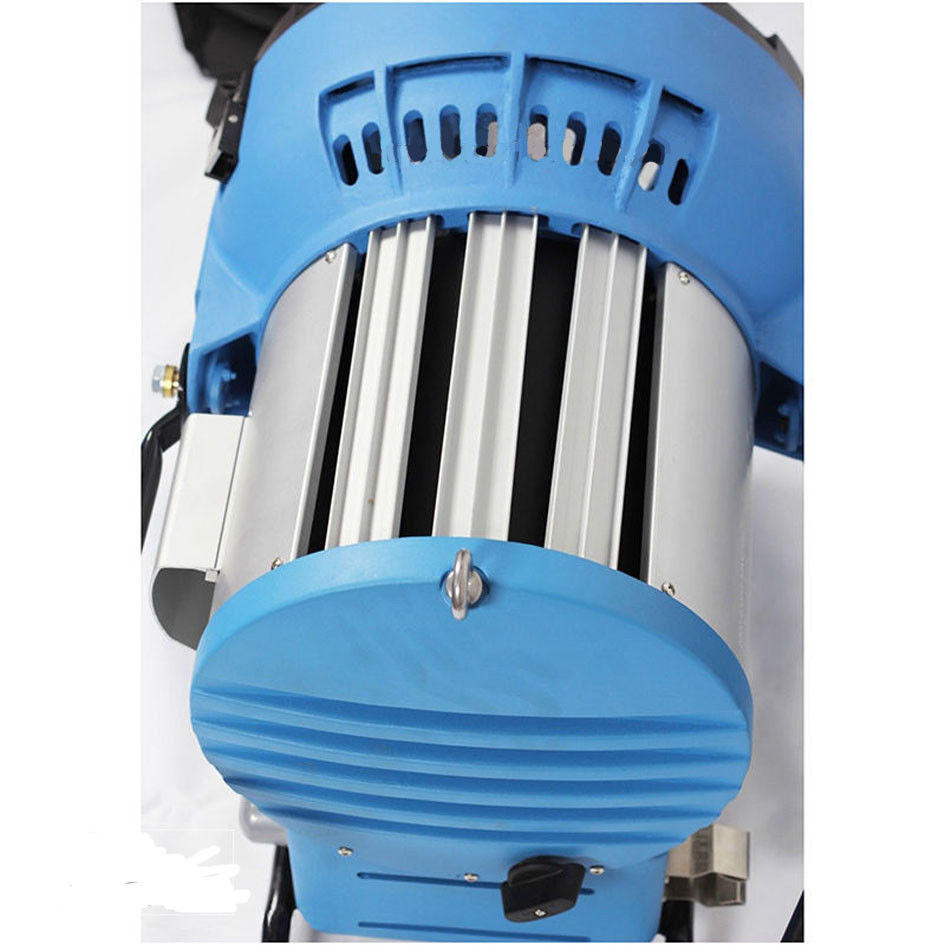

It is a perfect clone of the M40 HMI light head (110/220VAC), a newly designed more efficient light head that works with the optional power bulb 2500W/4000W SE HMI (not included).

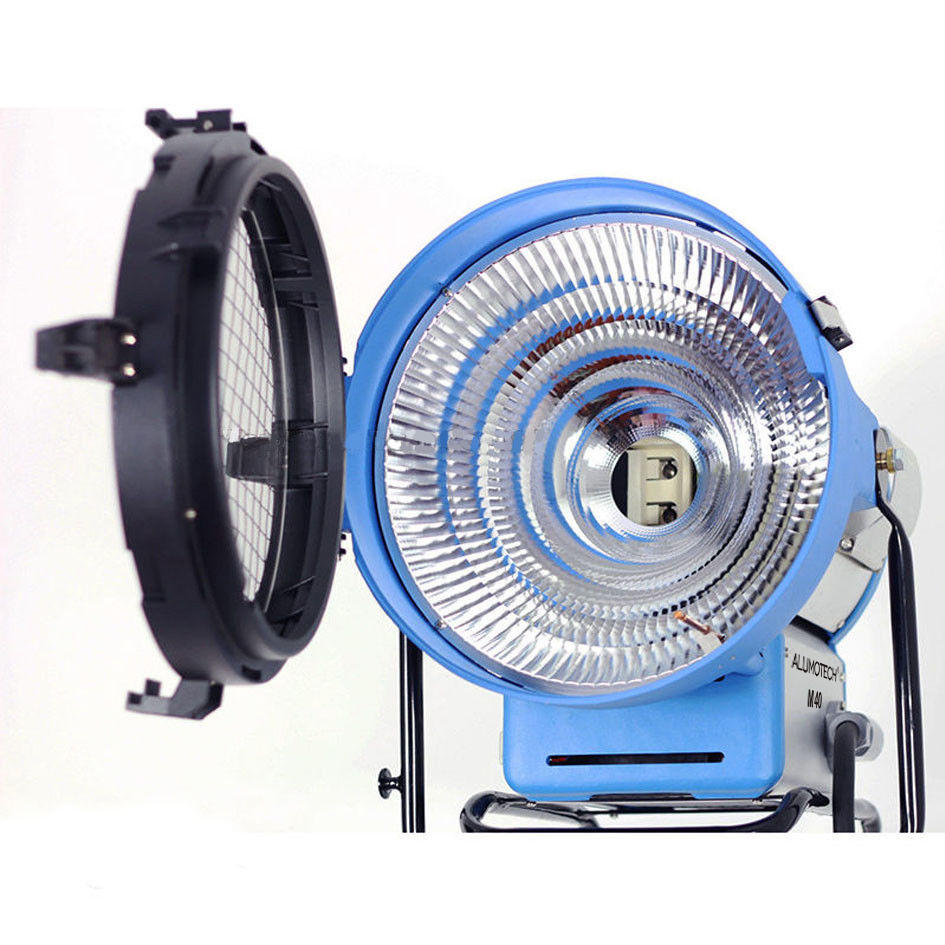

As an open lensless luminaire, this head combines the characteristics of PAR and Fresnel, producing diverging light for very sharp shadows, offering a wide usable area with a beam angle of 18 to 52°.
Lamp parameters
Lamp Type: Max
Power: 4000W
Color temperature: 6000K
Bulb Socket/Lampholder: Metal Halide 2500W/SE, 4000W/SE, G38
UV Glass Lens Diameter: 300mm/11.81"
Barn Door Diameter: 413mm/16.26in
Filter Insertion Diameter: 400mm/15.75in
Installation: socket 28mm
Power cord length: 1.5m
Extension cord length: 7m
Product Dimensions: 670 x 402 x 511mm
Product weight: 19 kg
Protection class: IP 23
Lamp Type: Max
Power: 4000W
Color temperature: 6000K
Bulb Socket/Lampholder: Metal Halide 2500W/SE, 4000W/SE, G38
UV Glass Lens Diameter: 300mm/11.81"
Barn Door Diameter: 413mm/16.26in
Filter Insertion Diameter: 400mm/15.75in
Installation: socket 28mm
Power cord length: 1.5m
Extension cord length: 7m
Product Dimensions: 670 x 402 x 511mm
Product weight: 19 kg
Protection class: IP 23

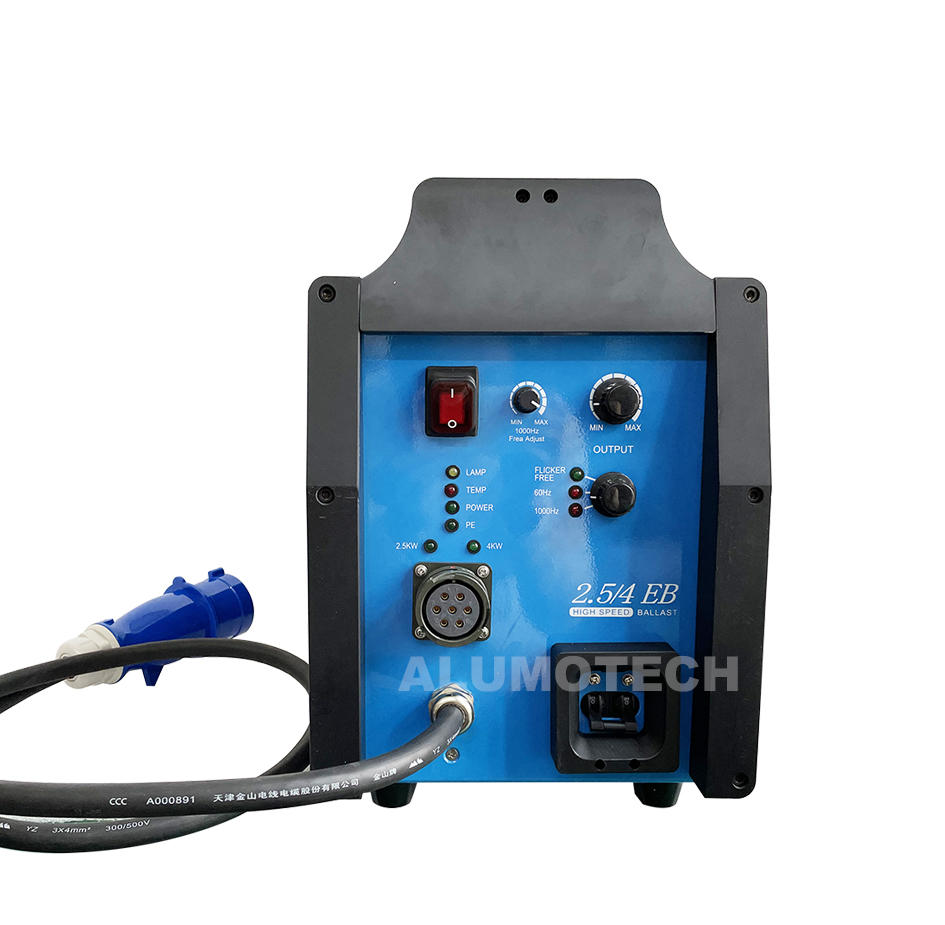

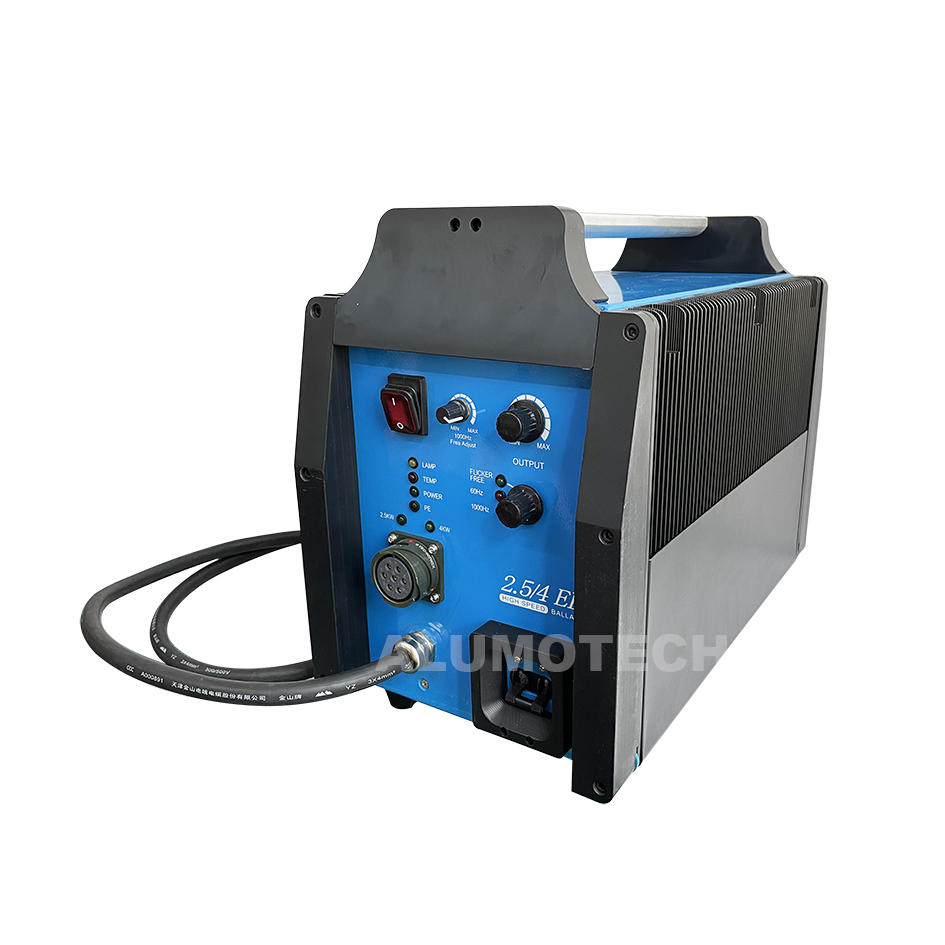

Lamp ballast:
Our HMI ballasts offer the latest standards in ballast technology. Flicker-free, low noise, high output, this ballast is ideal
For the most demanding. Rugged and compact design for easy field operation.
Safety circuits such as overvoltage, overheating and short circuit protection allow safe and reliable dimming up to 50% of full power. Active Line Filter (ALF) and PFC ensure consistent color output despite dimming or mains voltage fluctuations. Universal voltage and flicker-free modes for push button switches. Compatible with 2500W or 4000W PAR units.
Ballast parameters
Ballast Type: Electronic (No DMX)
Ballast power: 2500/4000 watts
Line power: 4650VA (maximum)
Power supply voltage: 110V/220V AC 50/60Hz L, N, PE
Frequency mode: 60Hz/1000Hz/no flicker
Power factor: c > 0.98
Bulb power: 2500W-4000W (constant temperature control)
Current characteristics: square wave, 60Hz
Dimming range: 100% - 50%
Nominal lamp power start: cold start and hot restart
Typical light ripple: typical values. <3%
Power cord: 1.5m
Protection class: IP32
Material: metal case
Product weight: 20 kg
Dimensions (HxWxL): 243x370x450mm

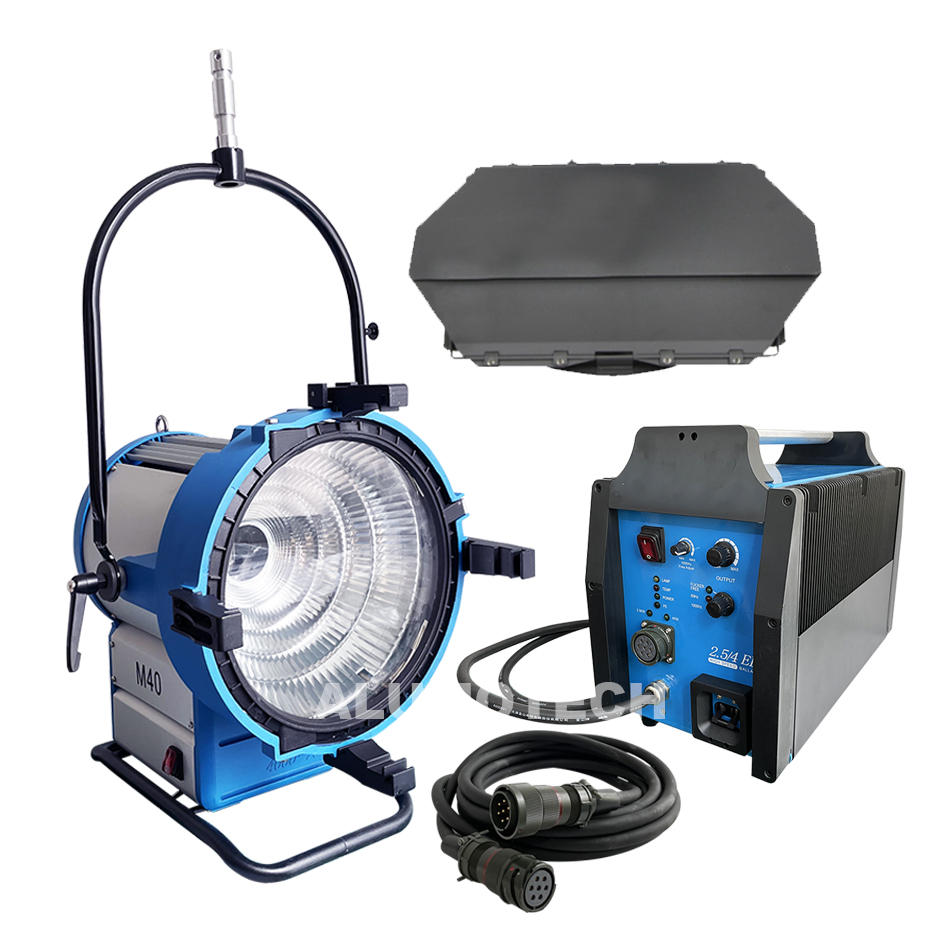

Package Included:
1PC: M40-clone HMI PAR lamp head 2500w/4000w with 1.5m power cord
1PC: 110V/220V 2500W & 4000W electronic ballast (frequency 50/ 60Hz / no flicker, no DMX function.)
1PC: A set of 4 leaf light baffles
1 piece: Yoke bar with 28mm socket
1PC: 7m extension cord (ballast to lamp head)
Ballast power: 2500/4000 watts
Line power: 4650VA (maximum)
Power supply voltage: 110V/220V AC 50/60Hz L, N, PE
Frequency mode: 60Hz/1000Hz/no flicker
Power factor: c > 0.98
Bulb power: 2500W-4000W (constant temperature control)
Current characteristics: square wave, 60Hz
Dimming range: 100% - 50%
Nominal lamp power start: cold start and hot restart
Typical light ripple: typical values. <3%
Power cord: 1.5m
Protection class: IP32
Material: metal case
Product weight: 20 kg
Dimensions (HxWxL): 243x370x450mm
Package Included:
1PC: M40-clone HMI PAR lamp head 2500w/4000w with 1.5m power cord
1PC: 110V/220V 2500W & 4000W electronic ballast (frequency 50/ 60Hz / no flicker, no DMX function.)
1PC: A set of 4 leaf light baffles
1 piece: Yoke bar with 28mm socket
1PC: 7m extension cord (ballast to lamp head)
