Erosion Smooth Plastic Hdpe Geocell/ geoceldas Geocell Honeycomb Stabilizer Gravel Grid Geo cell
-
$0.42 / 1000 - 4999 square meters
$0.35 / 5000 - 9999 square meters
$0.28 / 10000 - 19999 square meters
$0.18 / >=20000 square meters - 1000 square meters
- Shandong Lianxiang Engineering Materials Co., Ltd.
- Shandong, China
- Mr Charles Yang
Product Detail
| application: | Load Support/Slope Stabilization, Other | brand: | lotus |
| color: | Black | model: | LX-tggs |
| Thickness (smooth): | 1.1 or 1.2 mm | type: | Geocell |
| Key words: | Geocell | Supply capacity: | 20000 sqm/day HDPE geocell |
| After-sales service: | Online technical support, free spare parts | Thickness (texture): | 1.5 or 1.52 or 1.6 |
| high: | 50-75-100-150-200mm | design style: | industrial |
| Packaging Details: | Packaging details of high-density polyethylene geocell: Standard export packaging: bundled or palletized. | Package preview: | |
| Project solution ability: | Graphic design, overall project solution, cross-category integration | Material: | Plastic PP, PE |
| brand: | lotus | Origin: | Shandong China |
| Warranty: | over 5 years | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal |
| port: | Qingdao | Free samples: | usable |
| feature: | light |
Erosion Smooth Plastic Hdpe Geocells/ geoceldas Geocell honeycomb Gravel Stabilizer Grid Geo cell
Product Description
High-density polyethylene geocell product introduction;

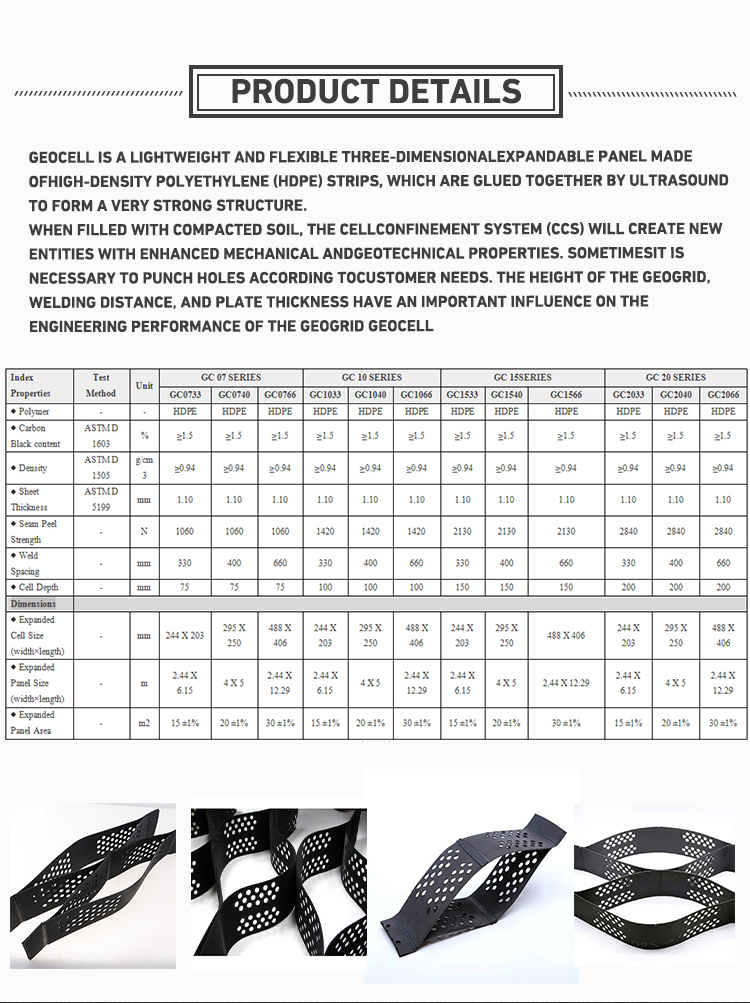

Geocell is a three-dimensional network structure formed by ultrasonic welding with long plastic materials, and it becomes a three-dimensional network after unfolding. Sometimes it is necessary to punch holes according to customer needs. The height, weld distance, and plate thickness of geocells have a significant impact on the engineering performance of geocells; in engineering, different types of geocells can form cushions with different cohesion, reinforcement strength and thickness. These cushions can be placed in the required positions according to the engineering requirements to reinforce road and railway roadbeds, slopes, protection, construction of retaining walls, etc. The width of the strip is the height of the geocell. When the geocell is not unfolded, the distance between the two welding lines on the same side of the plate is the welding distance.
HDPE geocellis a lightweight and flexible three-dimensional expandable panel made of high-density polyethylene (HDPE) strips that are ultrasonically bonded together to form an extremely strong structure.
Specification
application
HDPE geocellapplication:
1. Before the grass grows, it can protect the land from being eroded by wind and rain;2. It can make the grass seeds firmly distributed in the slope to avoid being scoured;
3. The black mat can absorb a large amount of heat energy, increase ground humidity, promote seed germination, and prolong the growth period of plants;
4. The surface is tough, wind and water flow can form a large number of eddies on the surface
Mats, which can produce energy dissipation;
Mats, which can produce energy dissipation;
5. Plants can form a composite protective layer, which is resistant to heavy water and can be washed quickly; 6. It can replace long-term slope protection materials such as concrete, asphalt, and blocks, and can be used for slope protection of roads, railways, rivers, dams, and hillsides; 7. Can greatly reduce construction costs;
8. After paving the sand surface, it can prevent the sand dunes from moving, improve the roughness of the road surface, increase the sediment on the road surface, change the physical properties, and improve the local ecological environment;

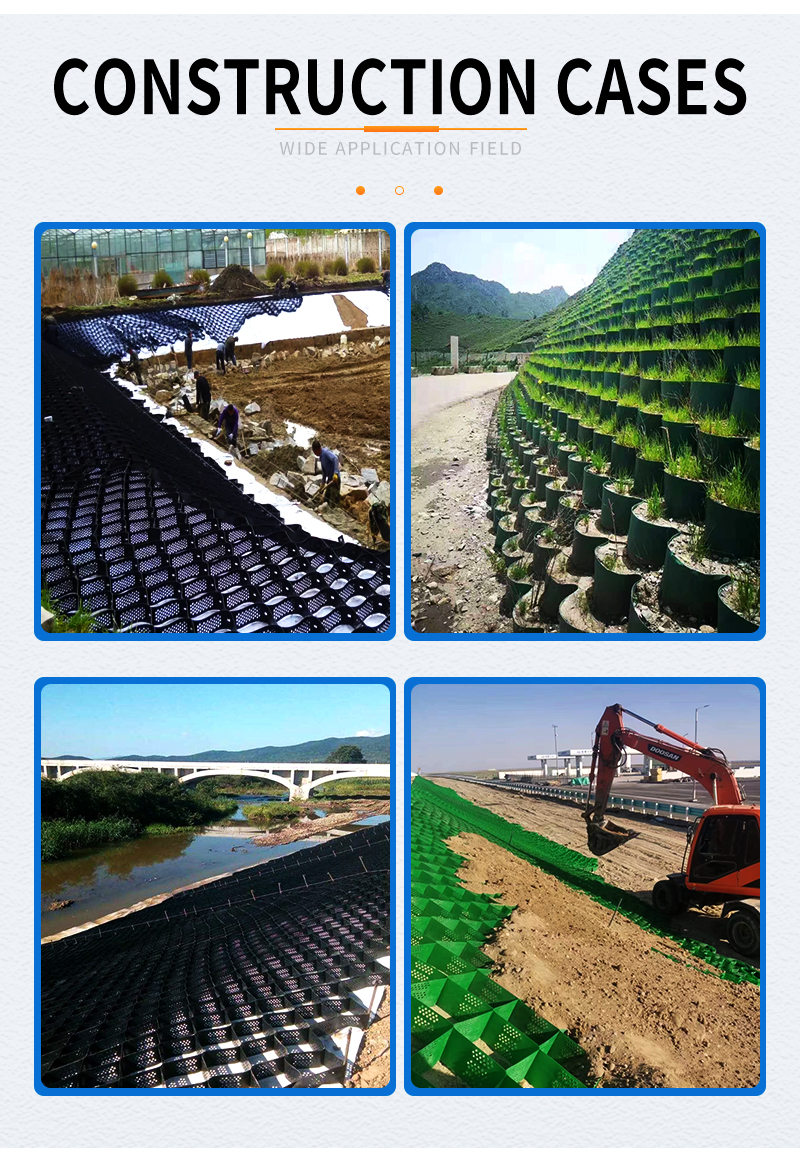

9. Used in slope protection of roads, railways, mines, and municipal construction to prevent soil erosion; 10. The first choice for gardening and greening.
How to apply:
When filled with compacted soil, the Cellular Confinement System (CCS) creates a new entity with enhanced mechanical and geotechnical properties. When pressure is applied to the soil in a CCS, it creates lateral stresses at the perimeter of the cell walls. The three-dimensional confinement zone reduces the lateral movement of soil particles. Vertical loads applied to the containing fill result in high stress and resistance to the lateral interface between cells and soil.Constrained adjacent cells provide additional resistance, populated by passive resistive load cells, while horizontal extensions pass through high-strength confinement rings. Keep compacted for long-term reinforcement.

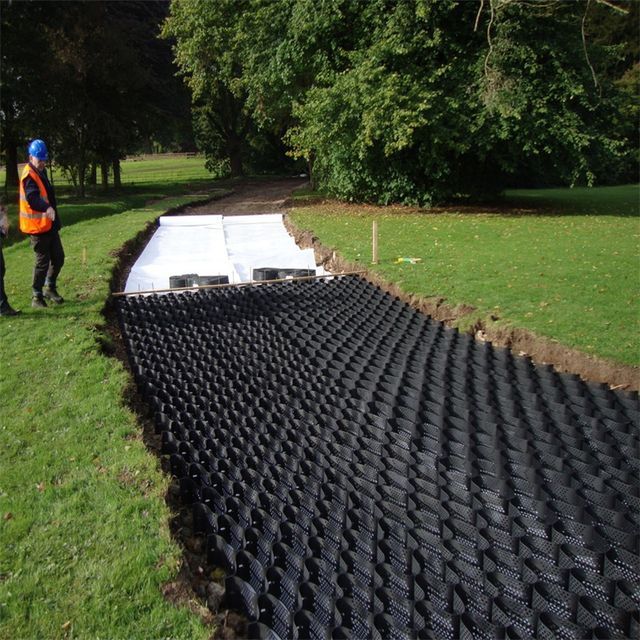

At the construction site, all parts of the geocell are fastened together and placed either directly on the surface of the subsoil or on a geotextile that covers the surface of the roadbed. The sections are stretched and expanded with stretchers. Geocells that extend to cover tens of meters may consist of hundreds of individual cells, depending on the size of the section and the entire area. They are then filled with various fill materials, such as soil, sand, aggregate or recycled material, and compacted using vibratory compaction.
Overall, CCS can form a hard cushion that distributes loads over a wider area, reduces settlement in soft soils, improves shear and load-bearing capacity, and reduces deformation.
Overall, CCS can form a hard cushion that distributes loads over a wider area, reduces settlement in soft soils, improves shear and load-bearing capacity, and reduces deformation.
