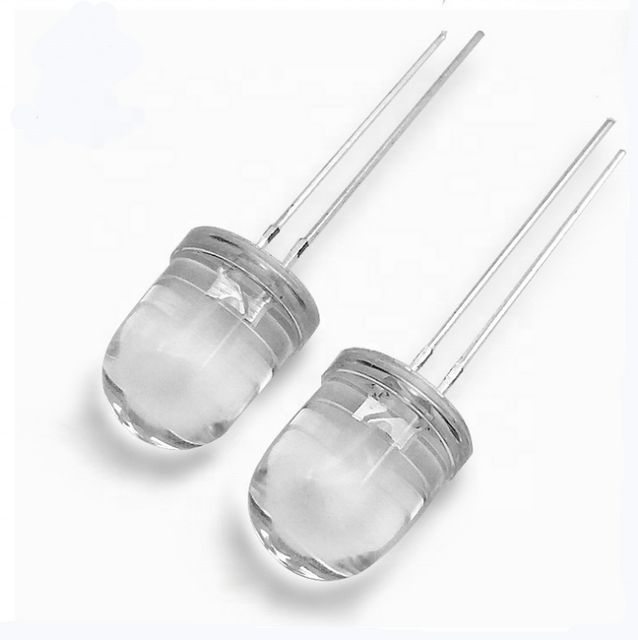

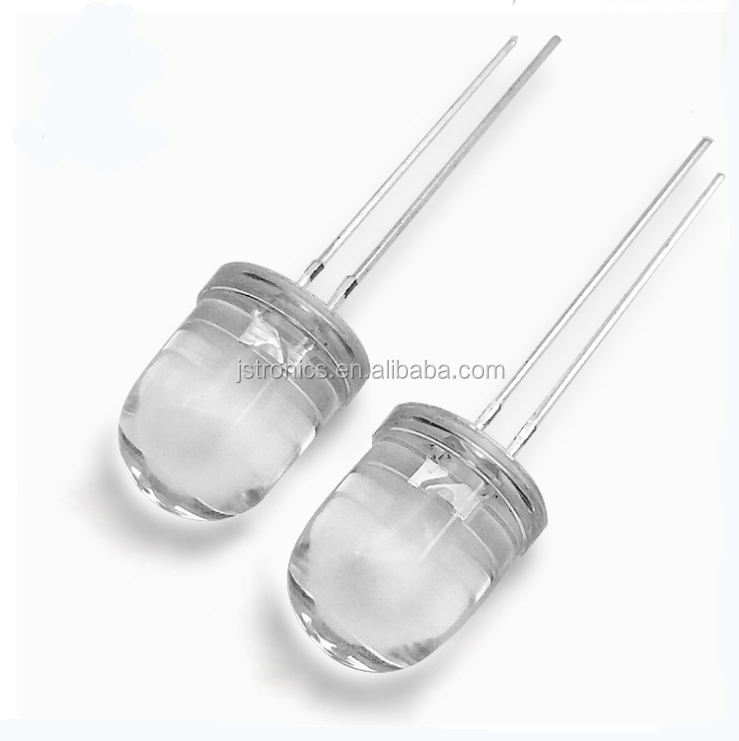

10mm LED Diode Dome Super Bright UV LED 365nm
- $0.01 / >=3 pieces
- 3 pieces
- Ningbo Junsheng Electronics Co., Ltd.
- Zhejiang, China
- Ms Becky Sun
Product Detail
| light intensity: | 10000 | Supply capacity: | 5,000,000 pieces per month |
| Luminous efficacy (lm/w): | 2 | Warranty (year): | 2 years |
| Packaging Details: | 10mm LED Diode Dome Super Bright UV LED 365nm: 1000pcs per bag | Color temperature (CCT): | 365 nm |
| Product weight (kg): | 0.006 | type: | Super Flux LED |
| Input voltage (V): | 3.2 | Luminous flux (lm): | 5-8 |
| Storage temperature(℃): | -40 - 85 | Origin: | Zhejiang, China |
| Viewing angle(°): | 35 | Package preview: | |
| Chip material: | AlGaInP | Working temperature(℃): | -40 - 80 |
| wavelength: | 365 nm | payment terms: | L/C, Western Union, D/P, D/A, T/T |
| Color temperature: | 365 nautical miles | Viewing angle: | 35 degrees |
| Luminous color: | ultraviolet light | type: | 10mm round LED diode |
| Lifespan (hours): | 50000 | Light attenuation (%): | 2 |
| Color rendering index (Ra): | 80 | Supported dimmers: | No |
| strength: | 2000-4000mcd | strength: | 0.06W |
| Working hours (hours): | 50000 | the color of car: | clear water |
| application: | index | light color: | ultraviolet light |
| Lighting Solutions Services: | Lighting and Circuit Design | product name: | 10mm LED Diode Dome Super Bright UV LED 365nm |
| port: | Ningbo or Shanghai | Power Consumption: | 10 |
10mm LED Diode Dome Super Bright UV LED 365nm
Product Description
10mm Round UV Super Bright LED Diode
super bright indicator
clear lens color
Long Life Solid State Reliability
RoHs Compliant
10mm Dome UV 365nm LED Diode
Electrical and Optical Properties
Part Number |
Dice Material and color |
lens color |
peakwavelength |
Vf(V) typical value |
Luminous flux (lm) |
Check angle 2θ1/2 |
||
|
minimum value |
typical value |
maximum |
||||||
|
JSL-1001URC-1W |
AlGaInP/Ultra red |
clear water |
625nm |
2.0 |
20 |
30 |
40 |
35° |
|
JSL-1001UYC-1W |
AlGaInP/Super Yellow |
clear water |
590nm |
2.0 |
20 |
30 |
40 |
35° |
|
JSL-1001UAC-1W |
AlGaInP/Super Amber |
clear water |
605nm |
2.0 |
20 |
30 |
40 |
35° |
|
JSL-1001UBC-1W |
InGaN/Ultra Blue |
clear water |
470nm |
3.2 |
10 |
15 |
20 |
35° |
|
JSL-1001PGC-1W |
InGaN/pure green |
clear water |
525nm |
3.2 |
40 |
60 |
80 |
35° |
|
JSL-1001UWC-1W |
InGan/Super White |
clear water |
6000k |
3.2 |
50 |
80 |
100 |
35° |
|
JSL-1001WWC-1W |
InGan/warm white |
clear water |
3000k |
3.2 |
50 |
80 |
100 |
35° |
|
JSL-1001UV-1W385 |
InGan/UV |
clear water |
385nm |
3.2 |
5 |
7 |
8 |
35° |
|
JSL-1001UV-1W410 |
InGan/UV |
clear water |
410nm |
3.2 |
9 |
12 |
15 |
35° |

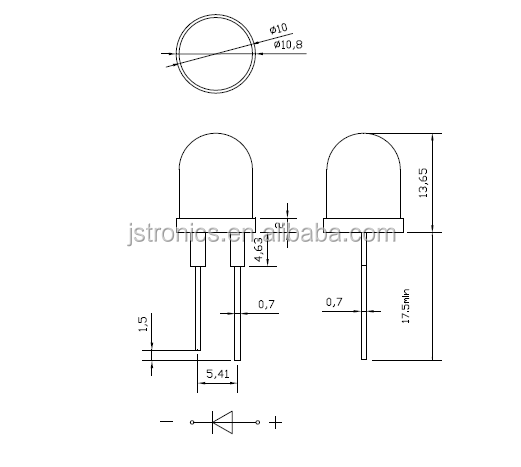

10mm Dome UV 365nm LED Diode Size
