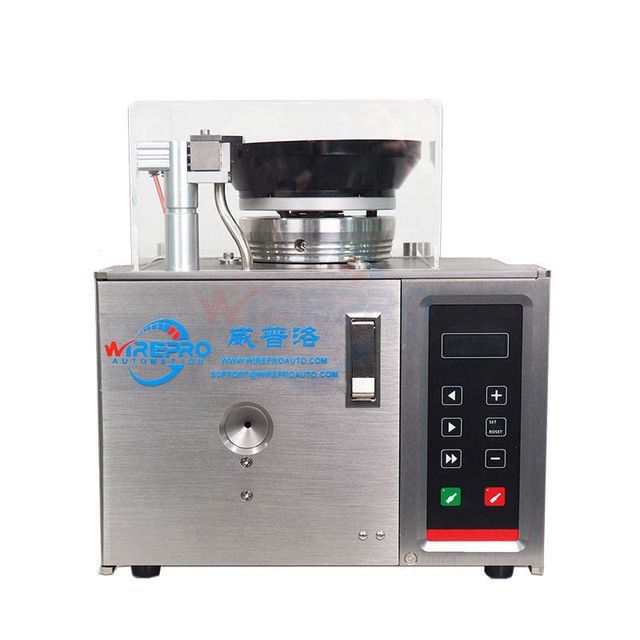

TS-R01 Semi-automatic single-ring terminal pre-insulated terminal stripping and crimping machine
- $600.00 /set
- 1 set
- Wirepro Automation Technology Co., Ltd.
- Jiangsu, China
- Mr Felix Gao
Product Detail
| usage: | peel off | power supply: | 0.6-0.8Mpa |
| Cut length tolerance: | ≤(0.002*L)mm | brand: | WIREPRO automation |
| Available wires: | transhorizon | weight: | 40KG |
| Origin: | Jiangsu, China | port: | Shanghai |
| Stripping length: | up to 17mm | Conductor cross section: | 0.5,0.75,1.0,1.5,2.5mm2 |
| productivity: | 2.5 seconds/line | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Packaging Details: | Wooden packing | model: | TS-R01 |
| Supply capacity: | 100 sets per month | Available terminals: | Insulator length ≤ 7.5mm, conductor length ≤ 10mm |
|
WIREPRO Automation specializes in machines and solutions for wire harness processing and wire harness assembly, you are welcome to visit our website to see more equipment. If you need any support, please feel free to contact us^_^ |
Product Description
|
Model
|
TS-R01
|
|
Function
|
Stripping and ring terminal crimping
|
| Available wire |
BVR wire 0.5,0.75,1.0,1.5,2.5mm2
|
|
available terminals
|
Insulator length ≤ 7.5mm, conductor length ≤ 10mm
|
|
Stripping length
|
up to 17mm
|
| productivity |
2.5 seconds/line
|
|
Gas source
|
0.6-0.8Mpa
|
| strength |
AC220V/110V
|
| aspect |
40KG
|
| weight |
35*45*40cm
|
1. Simplify the complex process and complete stripping and crimping at one time. The efficiency is 3-4 times, and it has a great cost advantage.
2. There is no need to replace the vibration plate within the terminal range, and the specifications of different terminals can be changed instantly.
3. The diameter of strip steel is automatically adjusted, and the pressure height is automatically adjusted.
4. Adopt sensitive pneumatic induction control, fast pressurization.

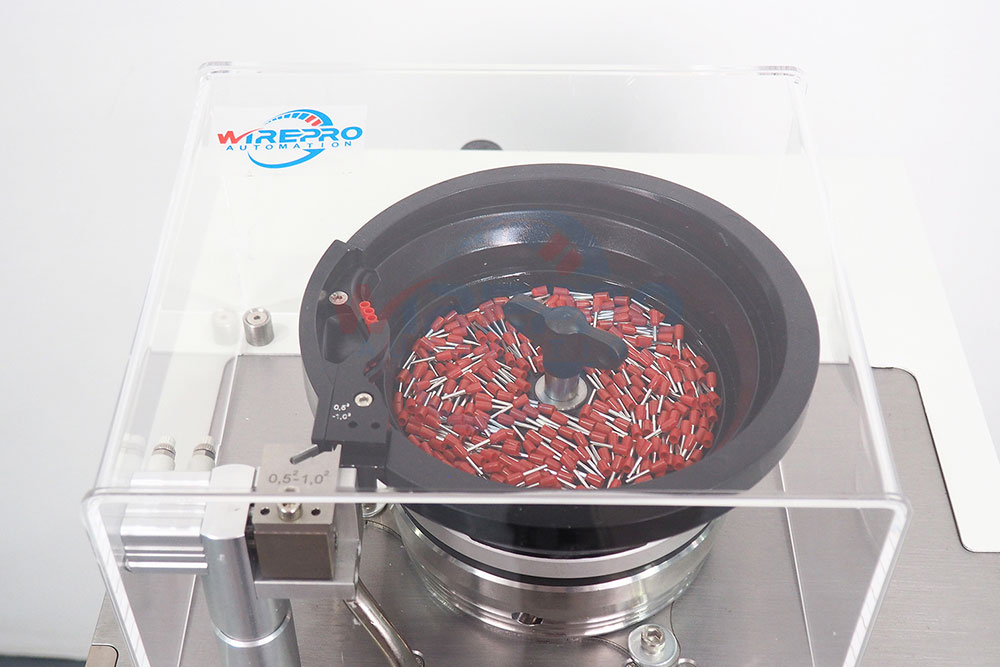

6. Vibrating plate feeding method is adopted, and the replacement of terminals is convenient and quick.
7. The machine stops working and gives an alarm when the terminal is missing.

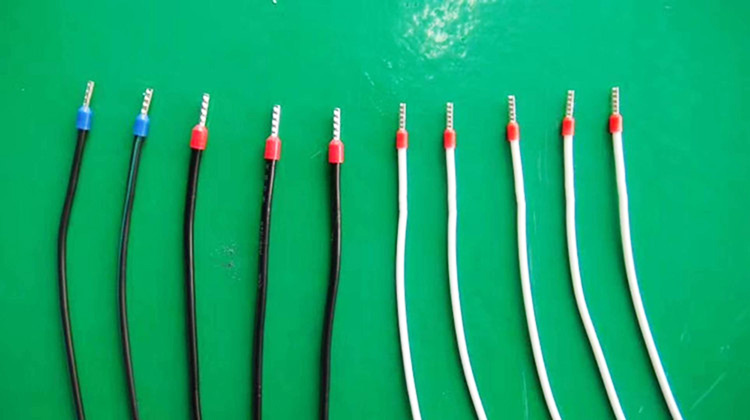

Crimp samples:

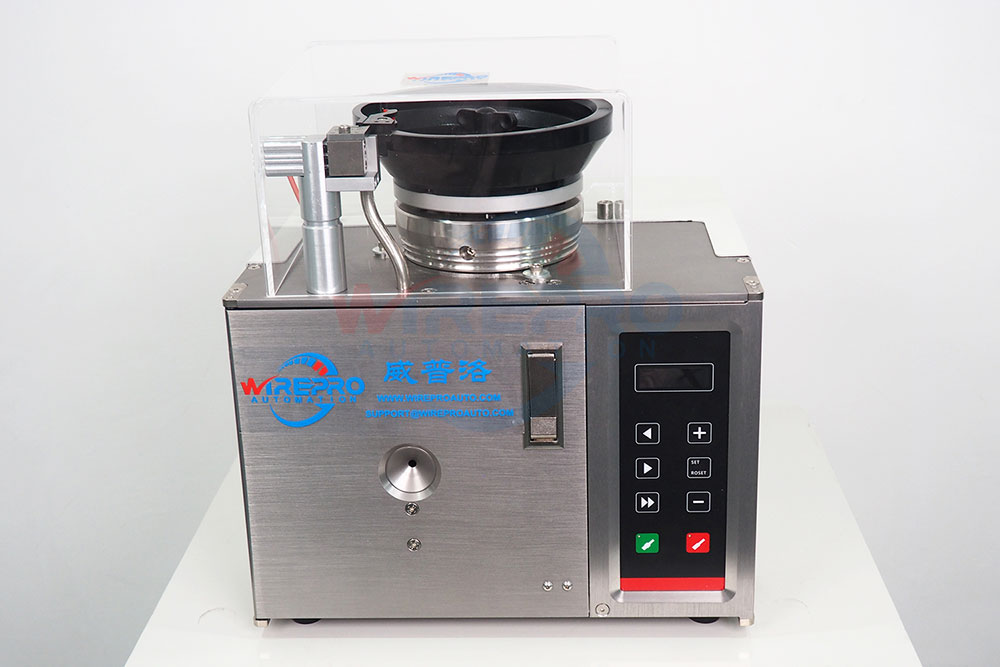

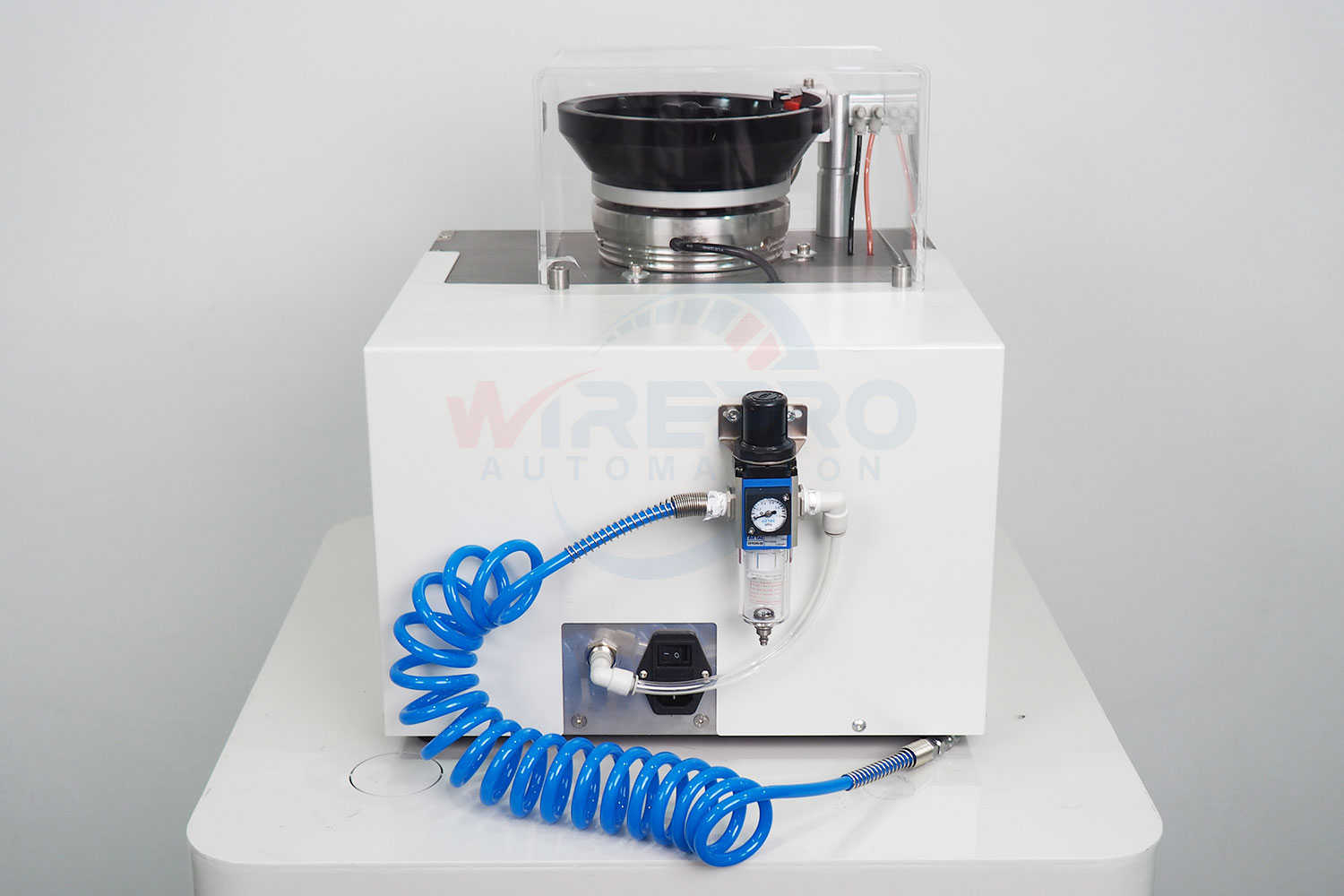

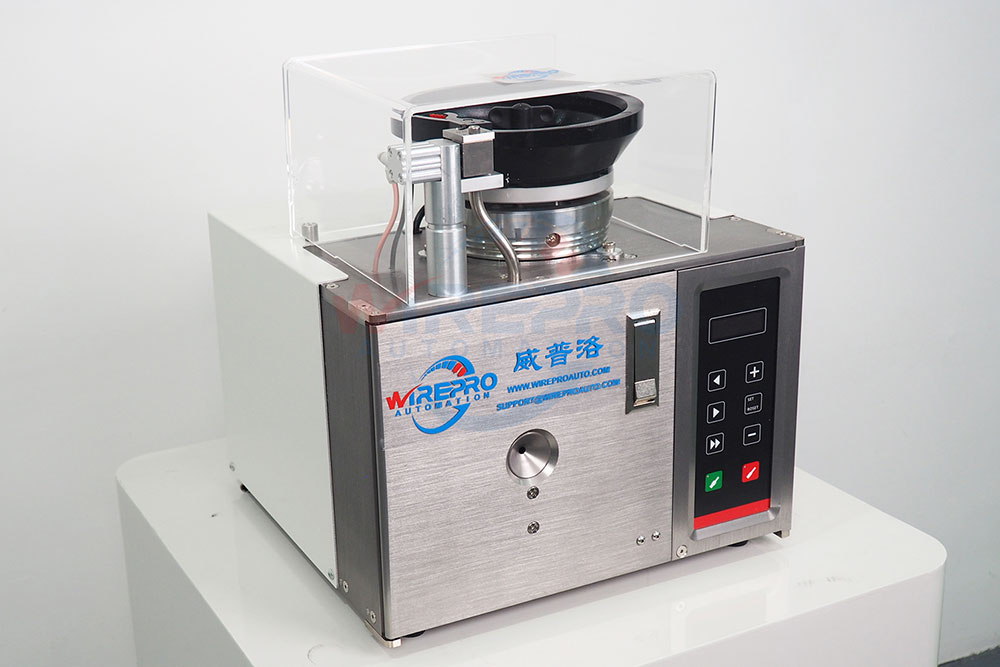

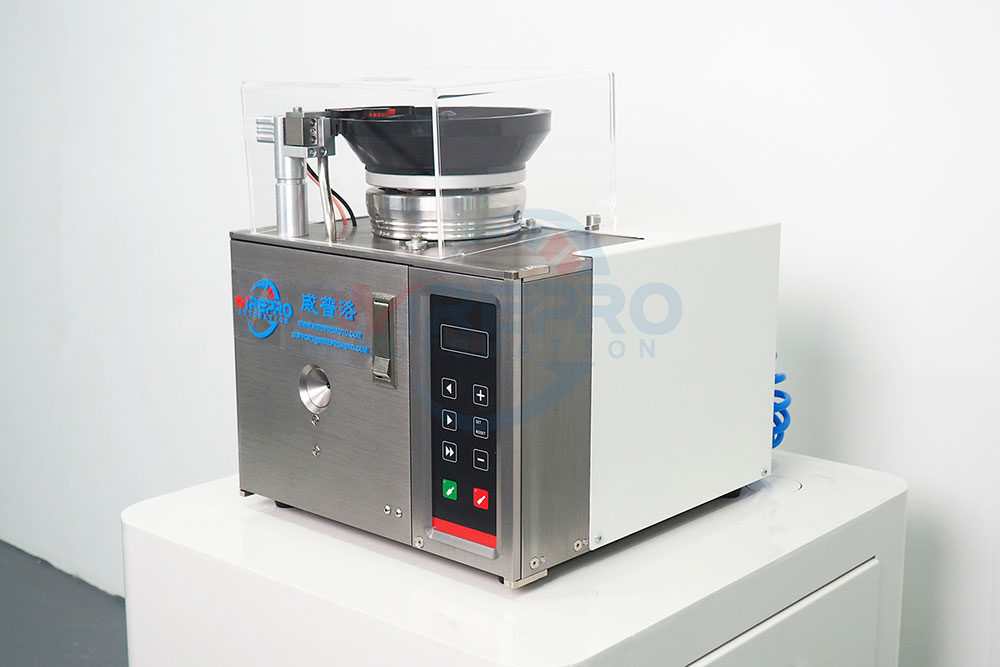

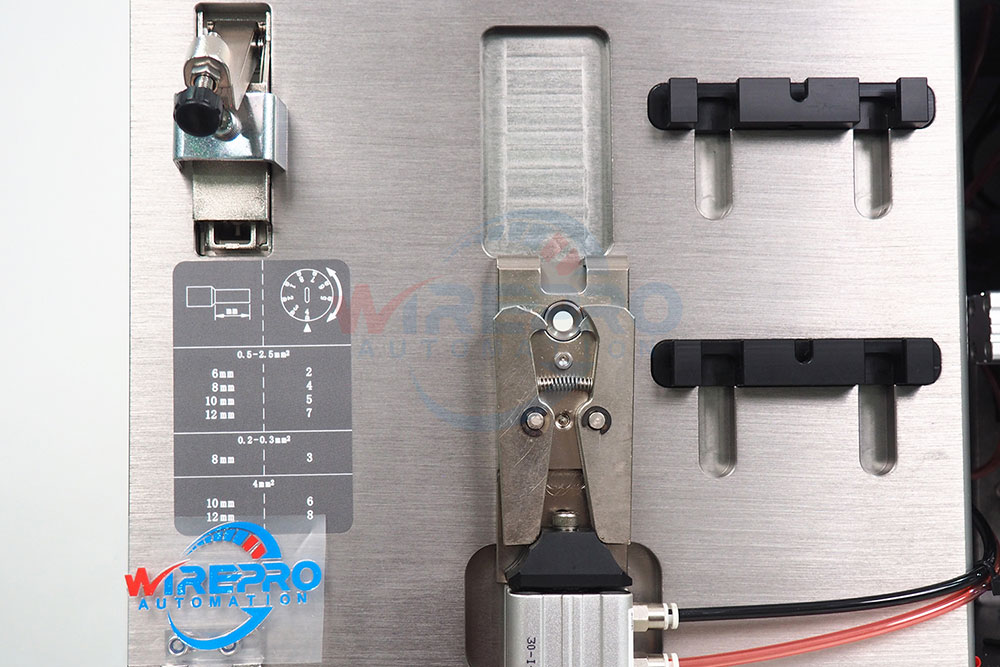

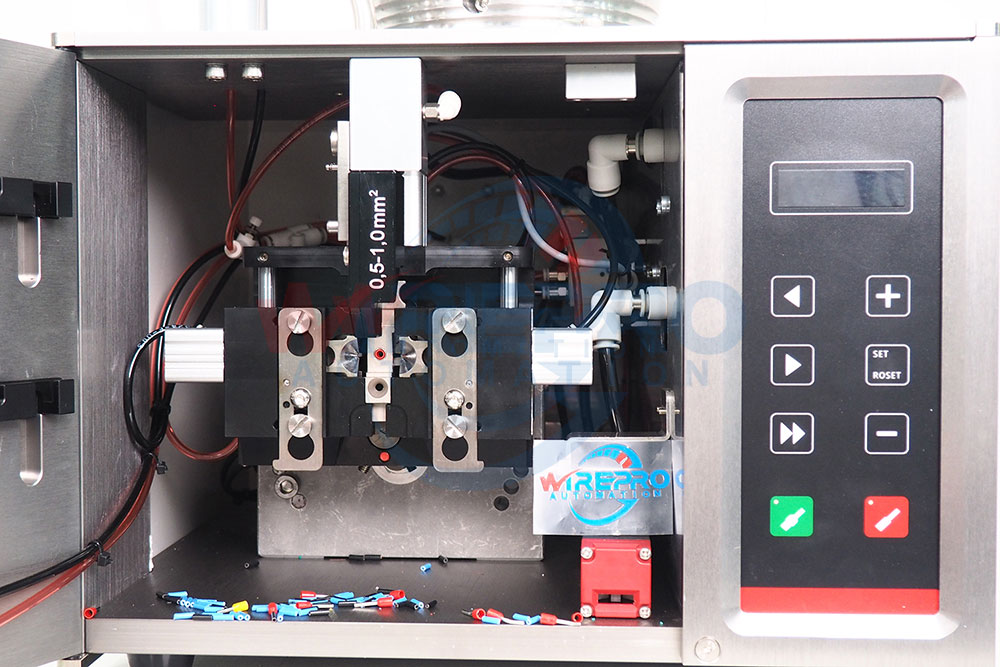

More machine pictures:
