Synolite neon glass tube
-
$10.00 / 1 - 99 units
$5.00 / >=100 units - 1 unit
- Shanghai Sinolift Mechanical and Electrical Equipment Co.,Ltd.
- Shanghai, China
- Mr David Deng
Product Detail
| Gas type: | neon | Supply capacity: | 1000 pieces per week |
| length: | 1200-1600mm | Operation Manual: | Yes |
| Packaging Details: | Standard export packaging | brand: | Hua Nuo |
| Ellipticity: | 0.3 | coating: | single/double |
| Diameter: | 6-25mm | color: | type |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Material properties: | lead glass/sodium glass |
| Unit/package (piece/box): | 40-500 | shape: | Man |
| port: | Shanghai | Origin: | China Shanghai |
| OEM/Design Manufacturer: | Yes | Product Category: | neon tube |
| Material: | Glass | Tube Thickness: | 0.8-1.4mm |
| bending: | 4/1000, 5/1000 | Input voltage: | 220V |

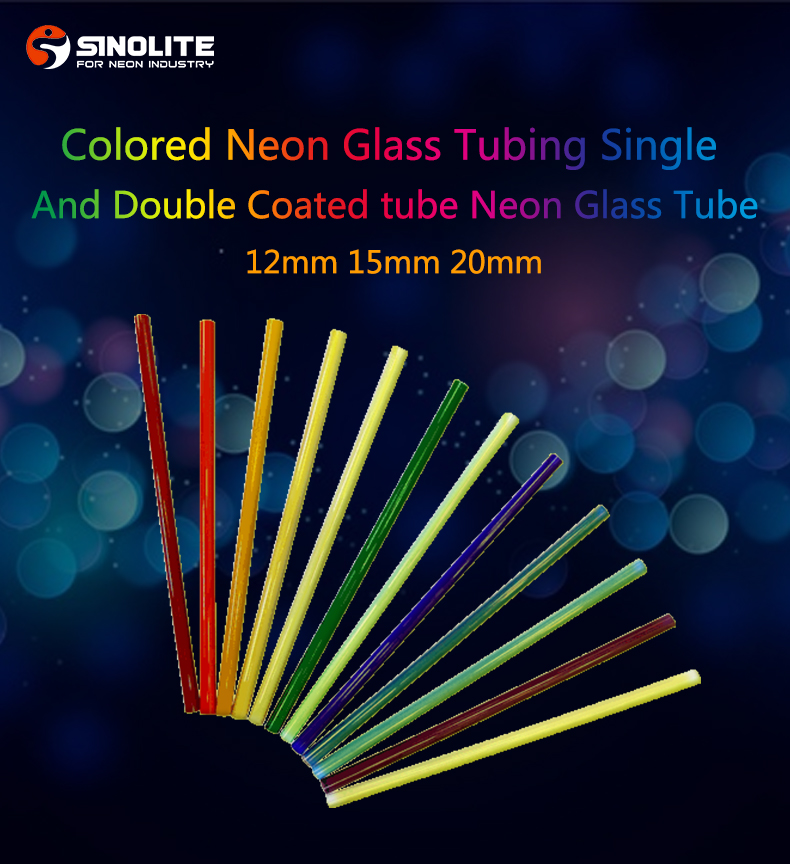

Sinolite Neon Glass Tube
1) Features
Our neon tubes are primarily made of tricolor lanthanum phosphor and high-quality heat-treated glass tubing, treated in a process known as cotton-coating.
Advantage. :
- high quality
- Do not fade
- single coated tube
- Double coated tube

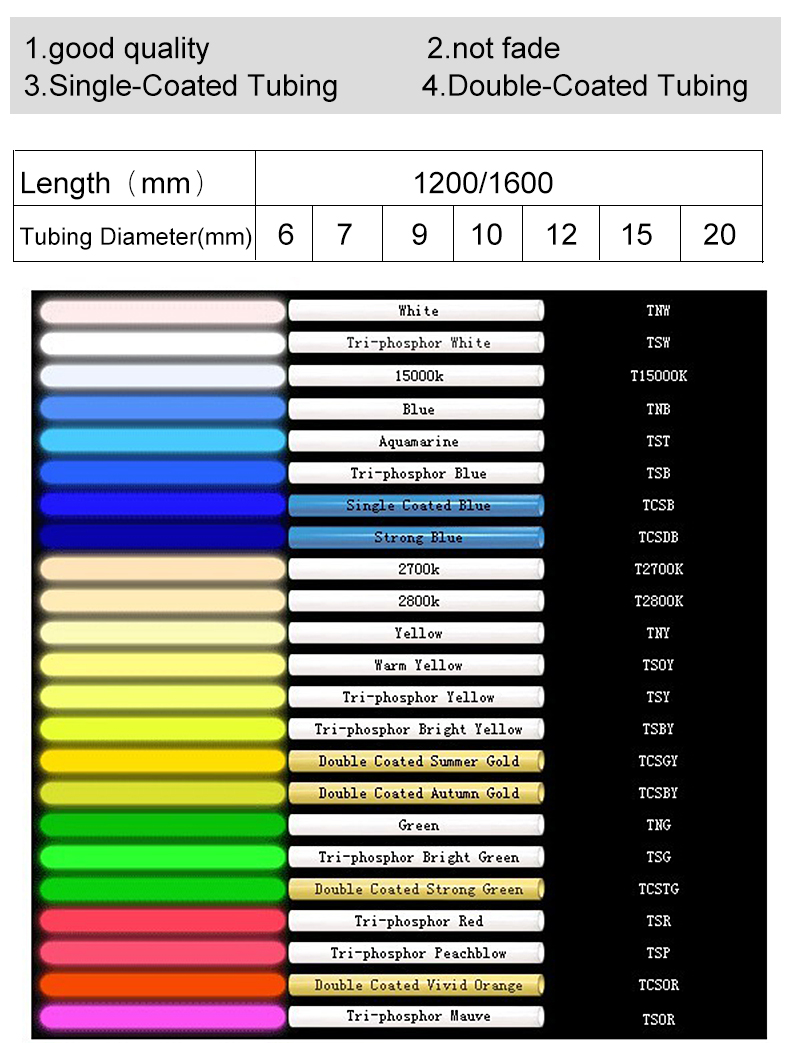

Diameter: 6mm 7mm 9mm 10mm 12mm 15mm 20mm Length: 1200mm or 1600mm
YIYA tubes are painted in bright colors, even and tight. We use a lead oxide content of 21.5%. The best quality is suitable for neon lights with good transparency. Good thermal stability, stable thermal process. Phosphor powder is three primary colors of rare earth, with high brightness, low light decay and bright colors.
2) Specification data
| Material | tube | tube | Length (mm) | bend (∠) | Ellipticity (∠) |
| features | diameter (mm) | Thickness (mm) | |||
| lead glass | 6 | 1.1-1.2 | 1200 | 4/1000 | 0.3 |
| 7 | 1.1-1.2 | 1200 | 4/1000 | 0.3 | |
| 8 | 1.15-1.25 | 1200 | 4/1000 | 0.3 | |
| 9 | 1.25-1.35 | 1200 | 4/1000 | 0.3 | |
| 10 | 1.25-1.35 | 1200 | 4/1000 | 0.3 | |
| 12 | 1.25-1.35 | 1200 | 4/1000 | 0.3 | |
| 15 | 1.25-1.35 | 1200 | 4/1000 | 0.3 | |
| 20 | 1.3-1.4 | 1200 | 4/1000 | 0.3 | |
| 20 | 1.3-1.4 | 1600 | 4/1000 | 0.3 | |
| 25 | 1.3-1.4 | 1200 | 4/1000 | 0.3 | |
| 25 | 1.3-1.4 | 1600 | 4/1000 | 0.3 | |
| Soda glass | 7-8 | 0.8-0.9 | 1200 | 5/1000 | 0.3 |
| 9-10 | 1.0-1.2 | 1200 | 5/1000 | 0.3 | |
| 11-12 | 1.0-1.2 | 1200 | 5/1000 | 0.3 |
| Neon tube size chart | ||||||||
| diameter | ø6mm | ø7mm | ø8mm | ø9mm | ø10mm | ø12mm | ø15mm | ø20mm |
| Unit/package (pcs/ctn) | 500 | 300 | 200 | 200 | 150 | 100 | 80 | 40 |
| Net weight(kgs/ctn) | 31 | 25.5 | 18.6 | 22.8 | 18.4 | 14.1 | 15.5 | 10.3 |
| Gross weight(kgs/ctn) | 32 | 26.5 | 19.6 | 23.8 | 19.4 | 15.1 | 16.5 | 11.3 |
| Measurement (cubic meter/box) | 165*165*1290mm=0.0351m³ | |||||||
| tubing length | 1200mm/4ft | |||||||
| notes: | ||||||||
| The above color swatches are for reference only, actual colors may vary. | ||||||||

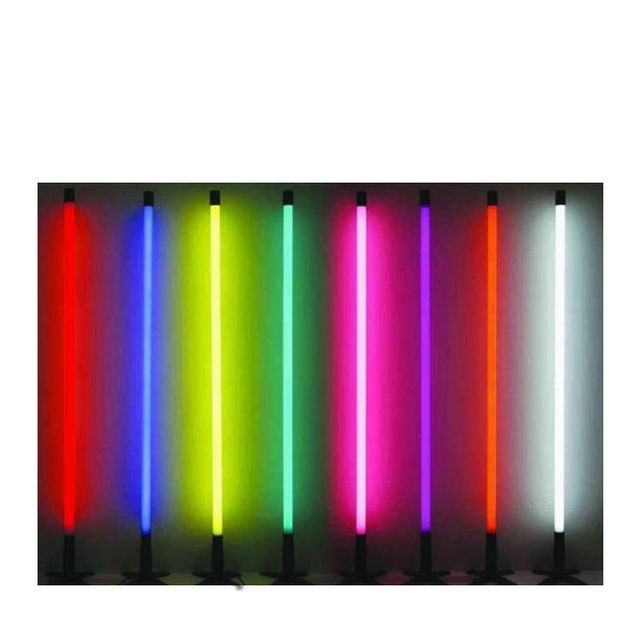

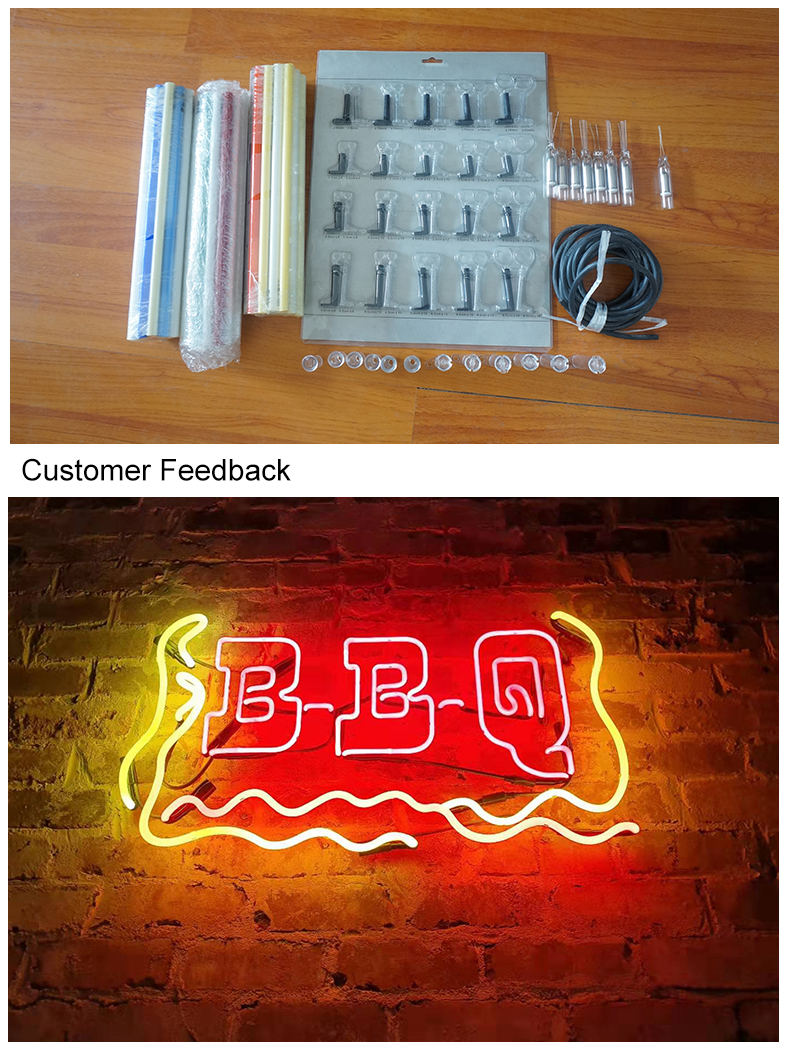

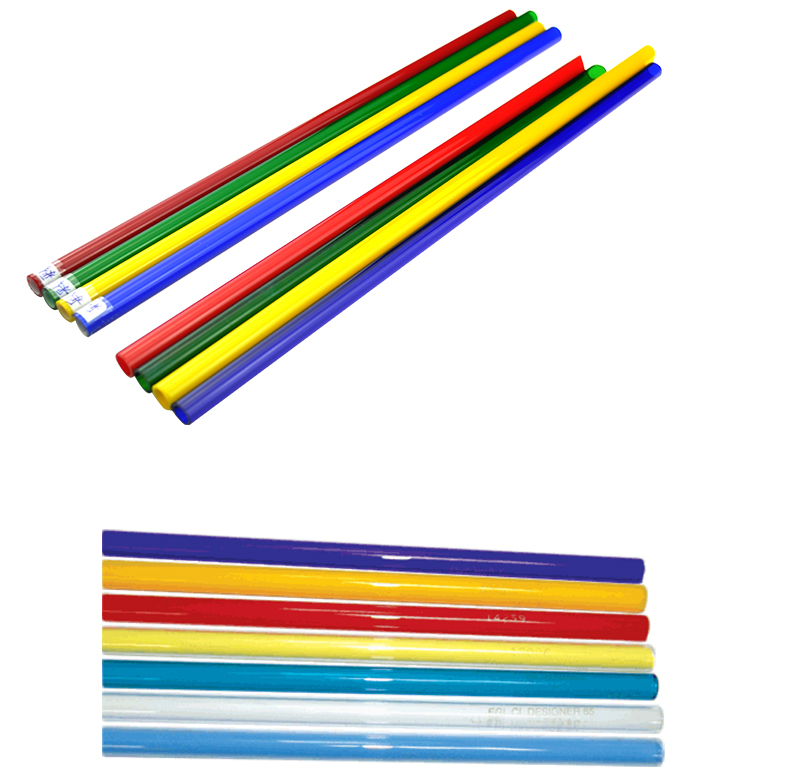

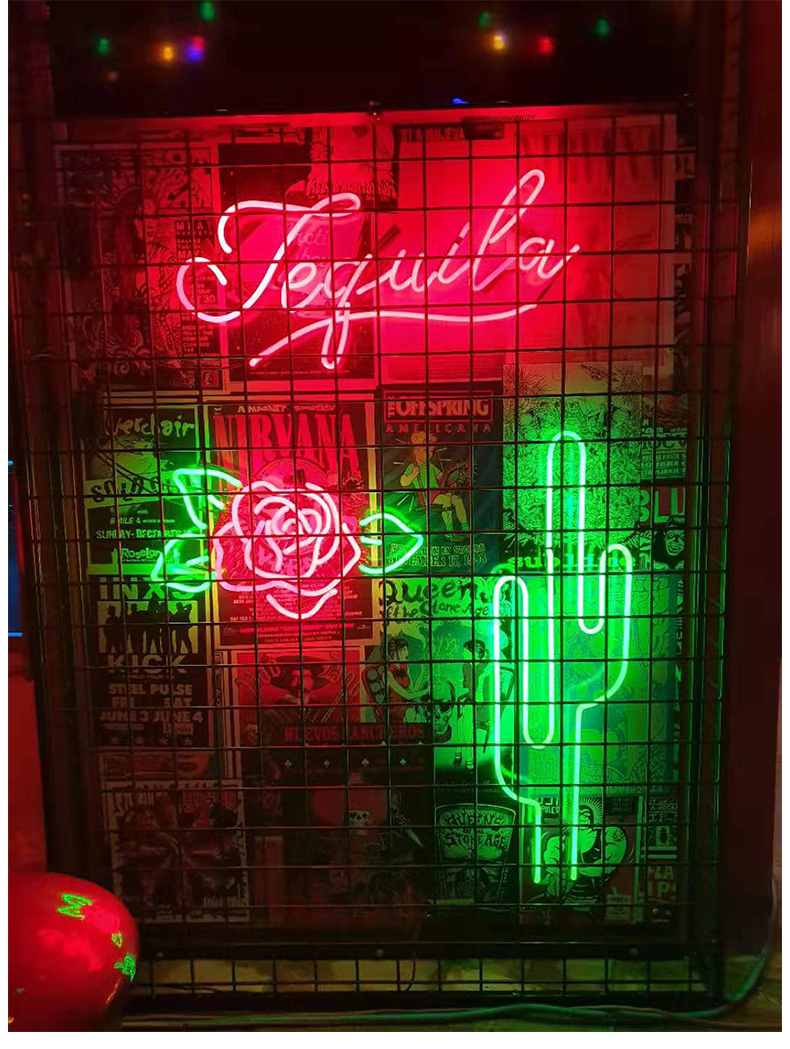

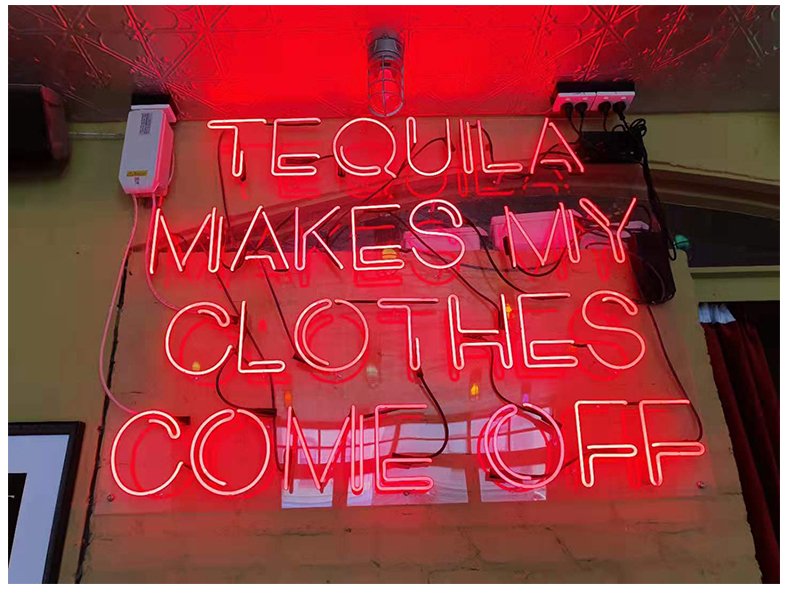

3) photos

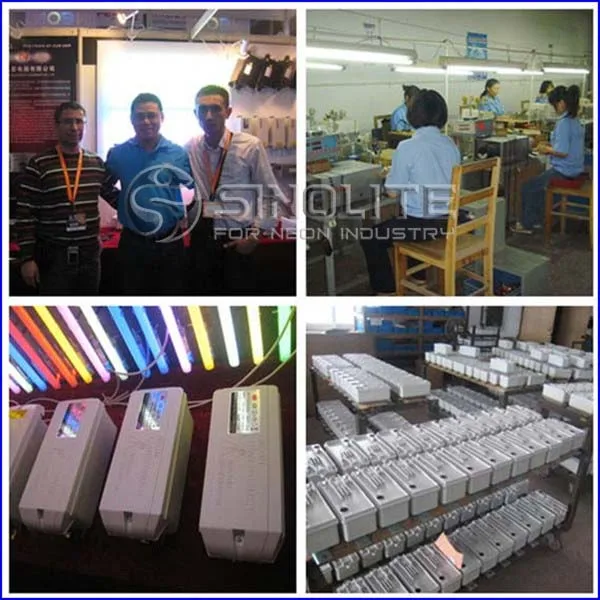

4) Workshop
5) Certificate
