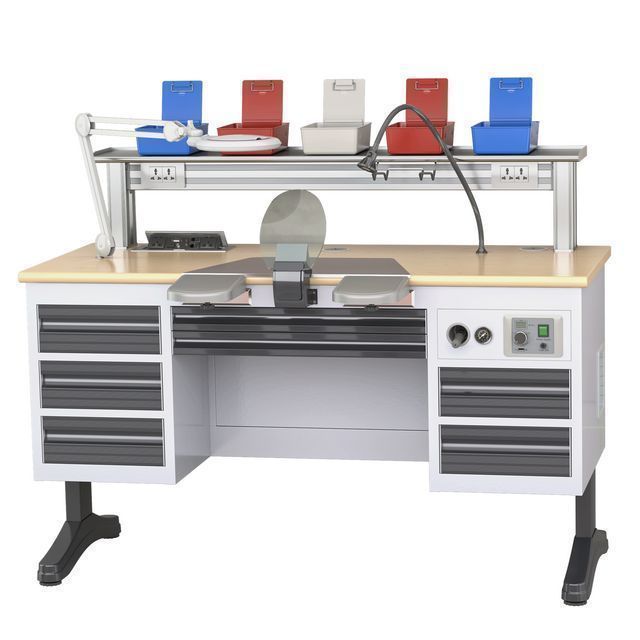

European popular CE certified dental laboratory bench dental laboratory design

This dental laboratory table has widely adopted the suggestions of some famous dental technicians at home and abroad.
1. The main materials are cold-rolled stamping, die-casting aluminum alloy and profiles.
2. The surface material can be made of high-density fireproof board, or stainless steel and artificial marble.
3. The shelves on the dental laboratory workbench are all made of aluminum alloy, which makes itself beautiful and durable.
4. The working light is composed of a sun light source and a 5-inch 300-degree magnifying glass.
5. The elbow pads are covered with elastic material to make the elbows more comfortable. The elbow working space can be adjusted in two levels, standard (40cm) and widened (48cm).
6. The self-resetting air gun is well designed and has a good texture.
7. The independent suction device also supports the central vacuum system, with strong power and low noise.
8. The height of this table can be adjusted from 80cm to 85cm. Nice looking airsoft gun with automatic reset.
9. The workstation is equipped with a low-noise, high-power suction device, which supports centralized dust collection by the central dust collection system.
10. Embedded integrated electric control box, easy to install and replace.
11. This control box can control all circuits, at the same time, based on this control box and from digital
windows; a vacuum system where staff can check motor run times.
12. The standard USB interface can support 2A12V weak current.
13. There are two kinds of accessories for the suction nozzle assembly. One is the tempered glass dust shield for the fan, and the other is the LED light ring (built-in 5-inch magnifying glass/5-inch flat mirror)
14. The four corners can be fine-tuned according to the ground. Desks can be cross-connected when multiple desks are in use at the same time.
15. The span structure of the invisible crane, the height between the two tables is 20cm, and the width is 20cm.
16. All suction and exhaust pipes, air pipes, compressed air pipes and strong and weak electric lamps can be concentrated and hidden in the bridge span structure. It can then be extended through the pre-set holes to any invisible line on the table, table or floor. There are randomly assigned auxiliary dust collection components. Simply snap the auxiliary vacuum cleaner onto the nozzle to clean the operating table.

A cost-effective revolution in dental laboratory equipment benches is just around the corner.

Technical data:
Power supply: 220V/110V 50/60Hz
Power Consumption: 500W
Air volume: 175m³/h
maximum. Pressure: -16kPa
Noise level: <65dB
Dimensions: 140cm x 60cm x 85cm
Package size: 150cm x 70cm x100cm (HWD)
Weight: 100-130kgs

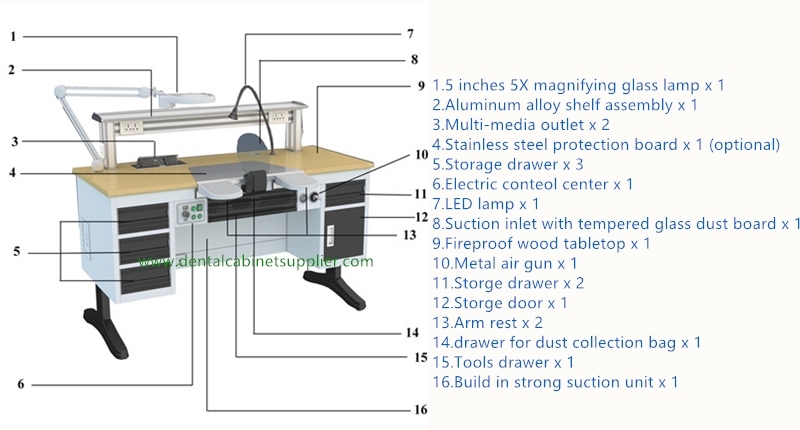

Parts include:
Desk standard: Fireproof wood/artificial marble/stainless steel plate, black granite, oak, 5 desktops are optional
2-layer aluminum alloy storage rack with LED light × 1
Rubber air gun × 1
Soft Elbow×2
Vacuum dust collection system × 1
Suction nozzle assembly × 1 Built-in strong suction machine × 1
Reusable box x 3 (optional)
Auxiliary vacuum assembly × 1 (optional)
