motion sensor led staircase lighting system smart staircase with 20 steps phone control stairs automatic led staircase light
- $1.50 / >=30 pieces
- 30 pieces
- Wuyishan Yhint Photoelectric Technology Co., Ltd.
- Fujian, China
- Ms Joy Yang
Product Detail
| strength: | Maximum 350W | Connection method: | direct current |
| Supply capacity: | 10000 sets per month | LED strips are acceptable: | up to 30 |
| Key words: | Automatic Stair Light Controller Motion Sensor, Stair LED Controller | type: | Manual switch |
| enter: | DC12V-DC24V | feature: | Jockey lights are acceptable |
| Lighting Solutions Services: | Lighting and Circuit Design | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Product weight (kg): | 1 | port: | Xiamen, Shenzhen, Guangzhou, Shanghai, Yiwu |
| Advantage: | different lighting modes | Origin: | Fujian China |
| product name: | lighting control system | maximum. Load power: | 350 |
| Function: | automatic stair light | Luminous efficacy (lm/w): | 80 |
| Packaging Details: | Standard carton packaging | Warranty (year): | 1 year |
| Number of sensors: | 2 sensors | Function: | Stair lighting control |
Product Categories
Please click to view more products
notes:
1. Stair light kit includes transformer*1 + controller*1 + light strip*20pcs.
2. The standard light strip in the product link is the light strip with profiles. If you need other kinds of LED strip lights, please let us know.
3. If the stairs are not straight, we can prepare flexible light strips, please let us know.
Product Description
notes:
1>> When connecting the led light to the controller, please install it in the correct order.
1>> When connecting the led light to the controller, please install it in the correct order.
2>>The controller can be installed in an invisible place. But to ensure better lighting, place the sensor where it can easily sense people. A visit to Stairs Star is recommended.
3>> Please make sure the polarity of the LED light is connected correctly, the red cable is positive and the blue cable is negative.
4>>It cannot be directly connected to high voltage, please use DC12-DC24v adapter for auxiliary connection,
5>>It is recommended to install wires inside before decoration, and only need to add LED lights in the future.
6>> Please place one sensor at each end of the stairs, one at the top and one at the bottom.

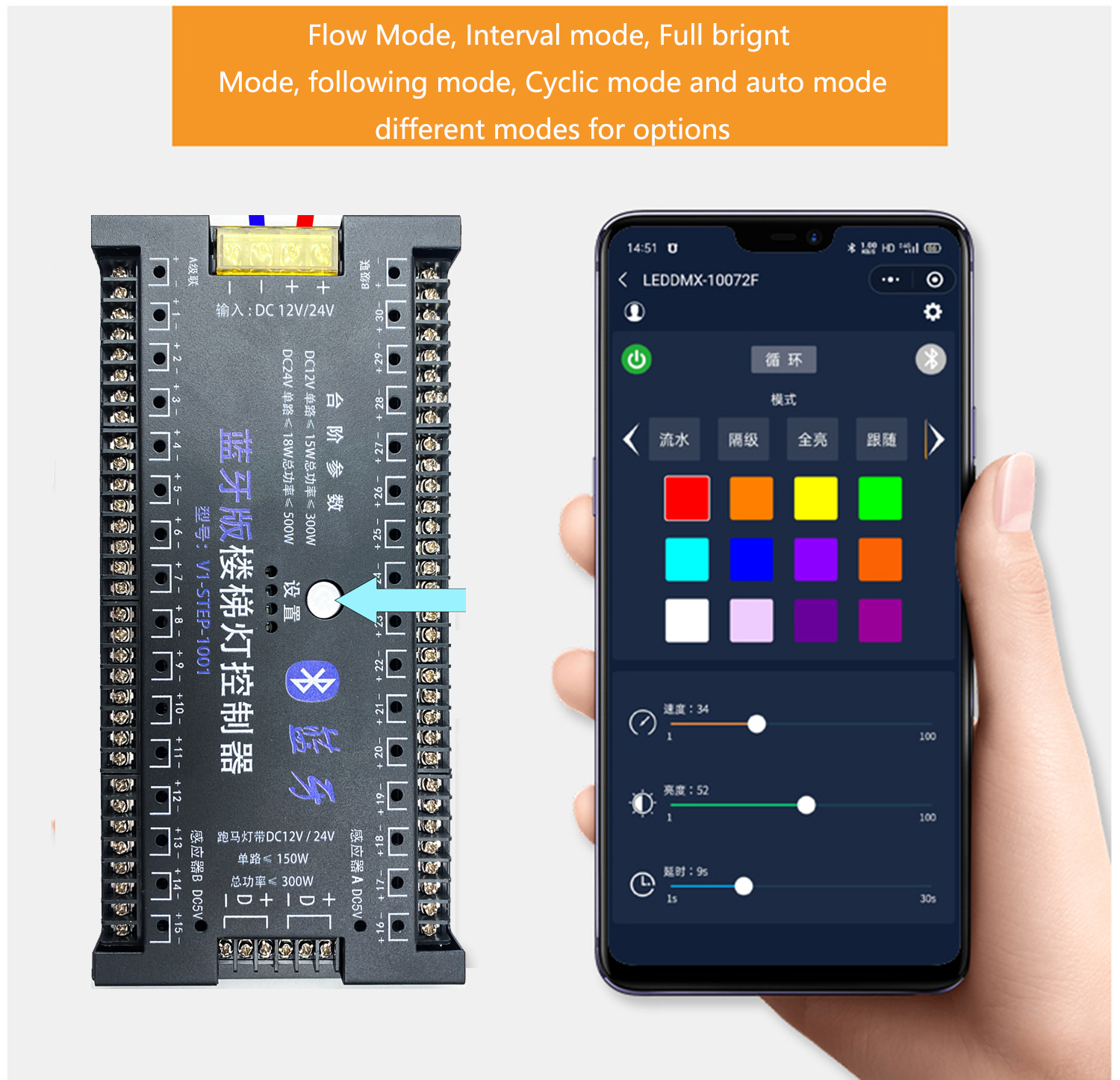

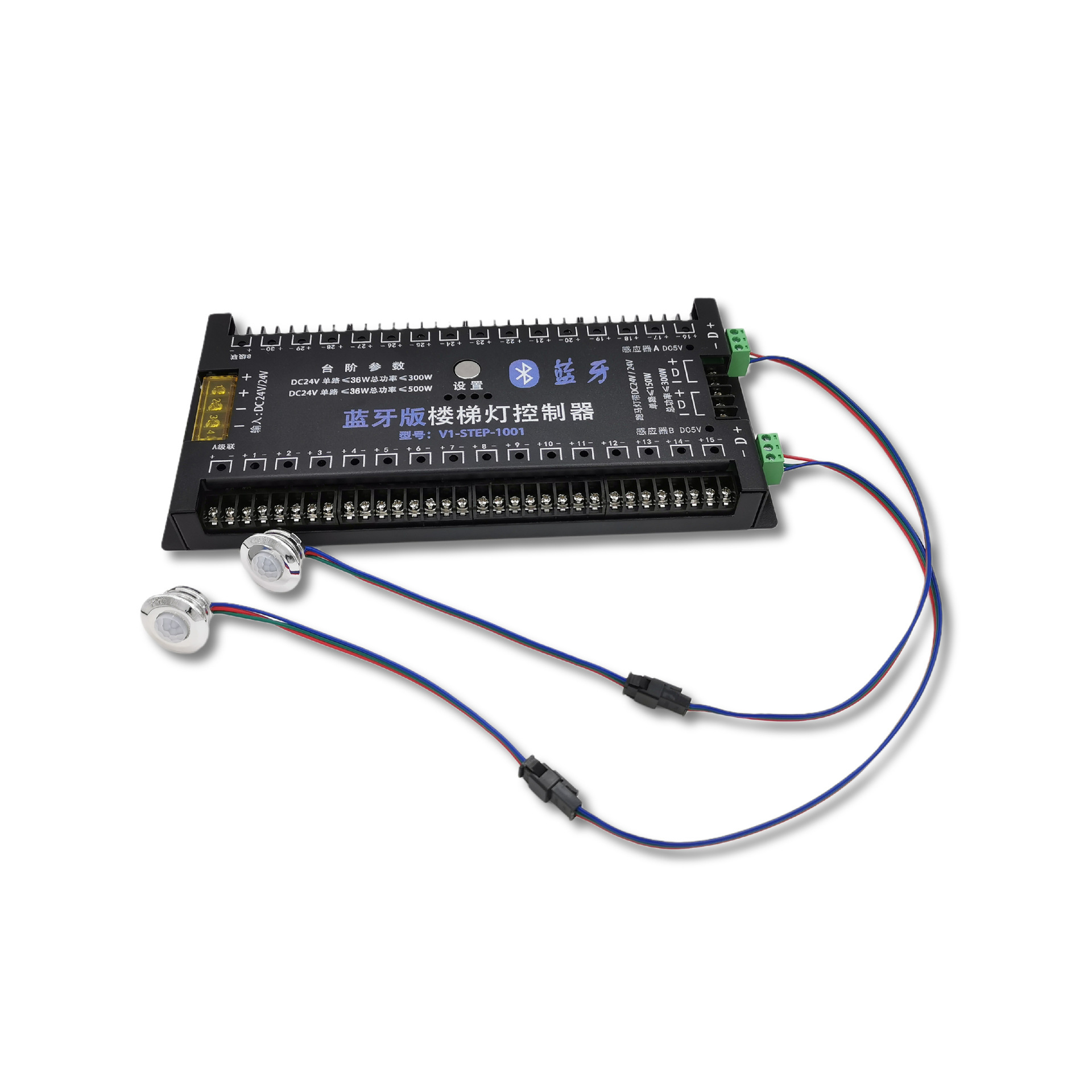

Name: mobile phone control led stair light controller

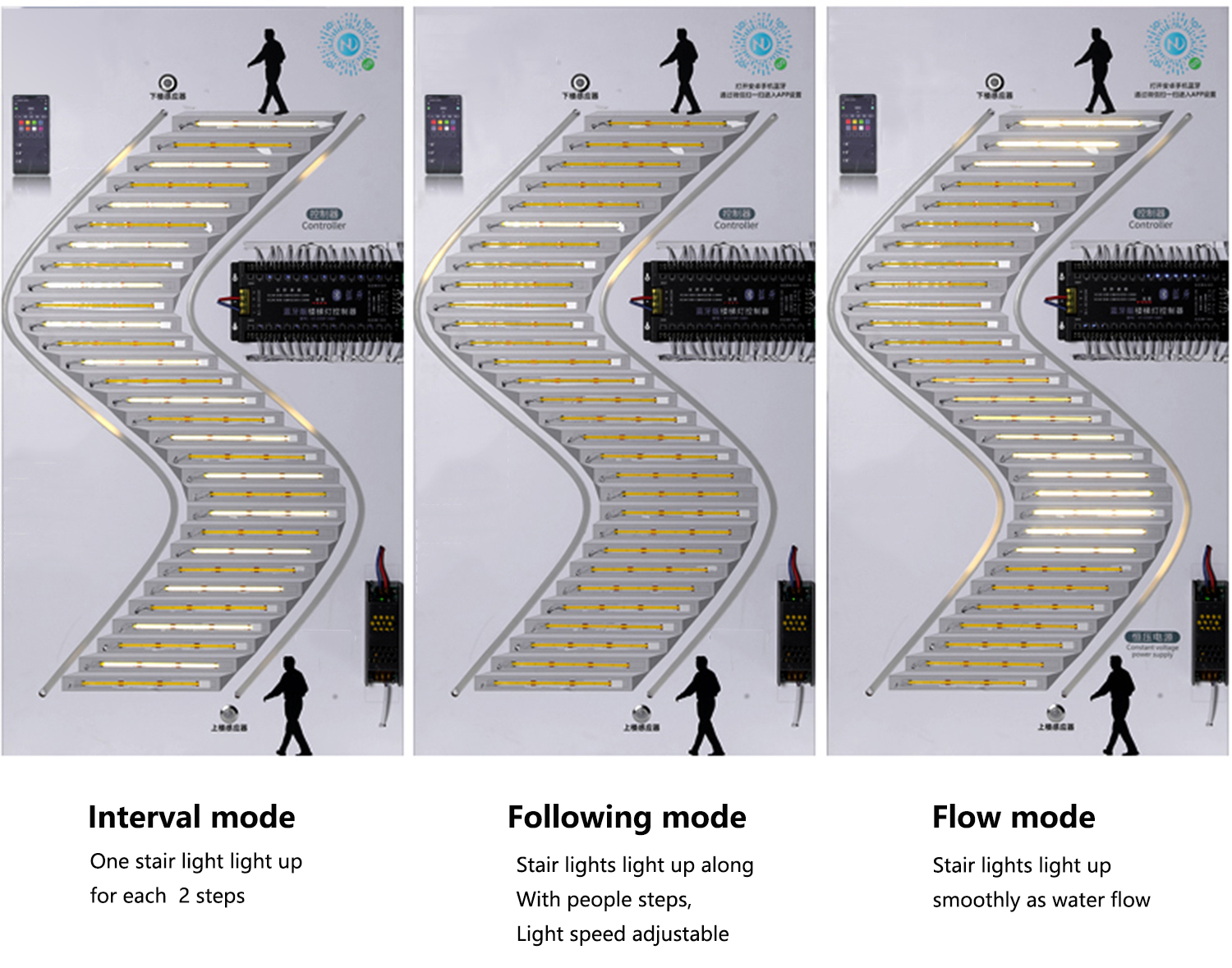

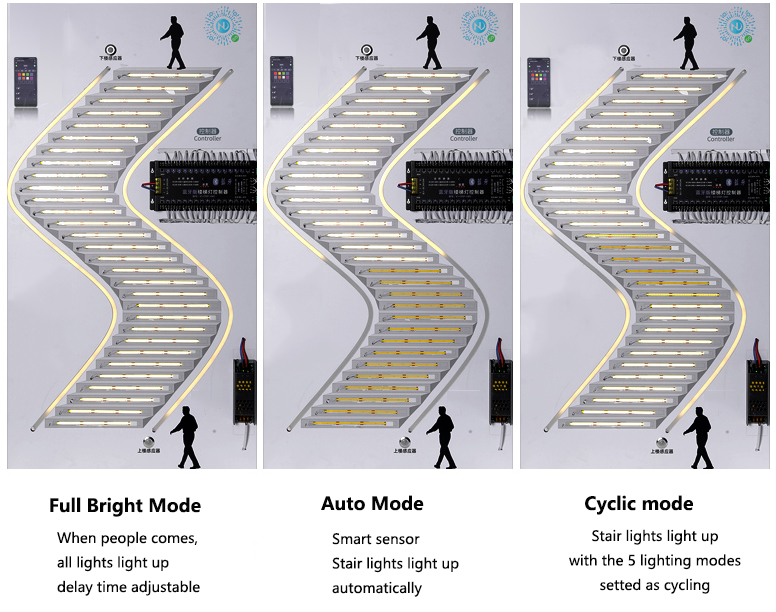

Light Mode: 5 different light modes (flow, follow, bright, auto light, interval, cycle)
Power: Max 350W
Input: DC12V-DC24V
Output: DC12-DC24V
Step control: up to 30 steps
Other features: Jockey lights next to the steps
different lighting modes
Which do you like better?

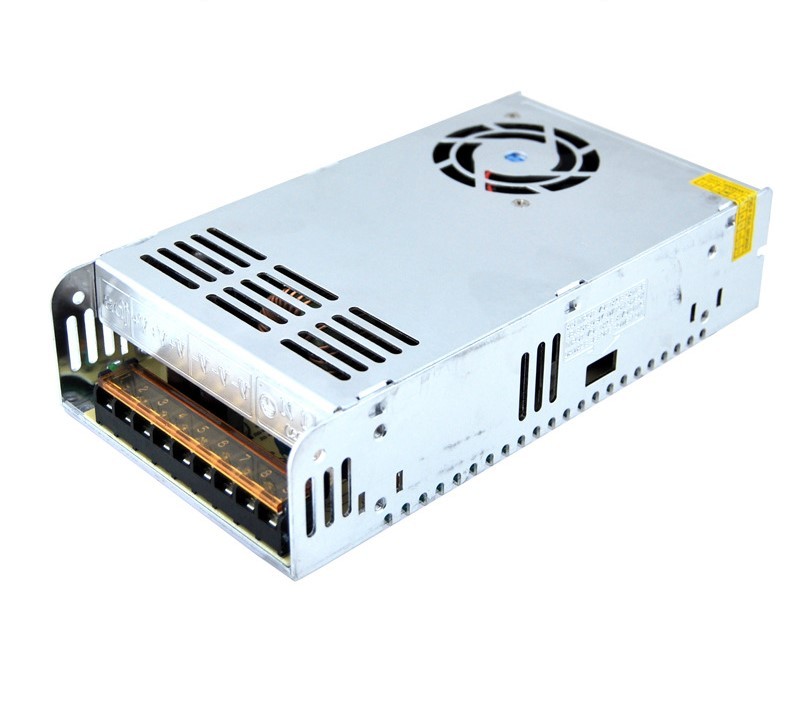

transformer
Input: 110V/220V AC
Power: 400W
Output: DC12V
Features: built-in fan to help heat dissipation

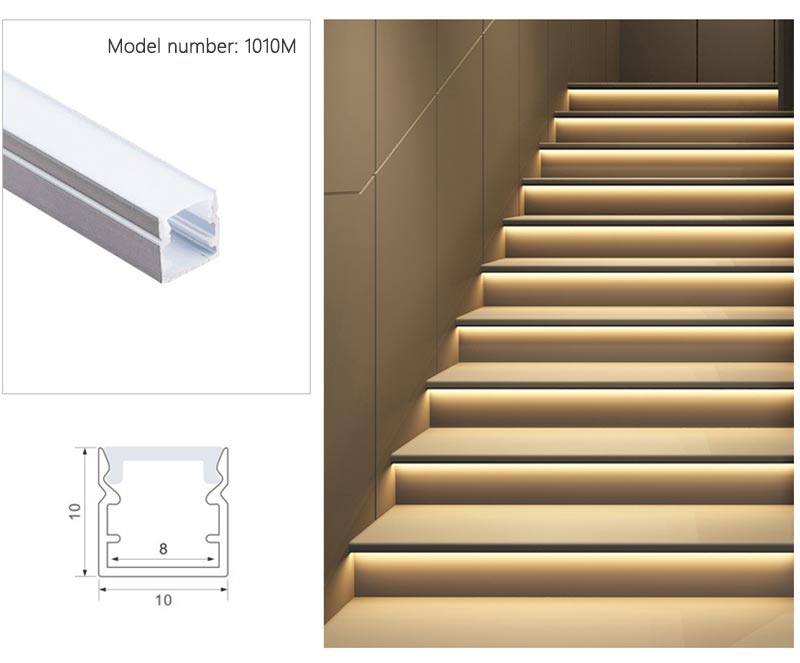

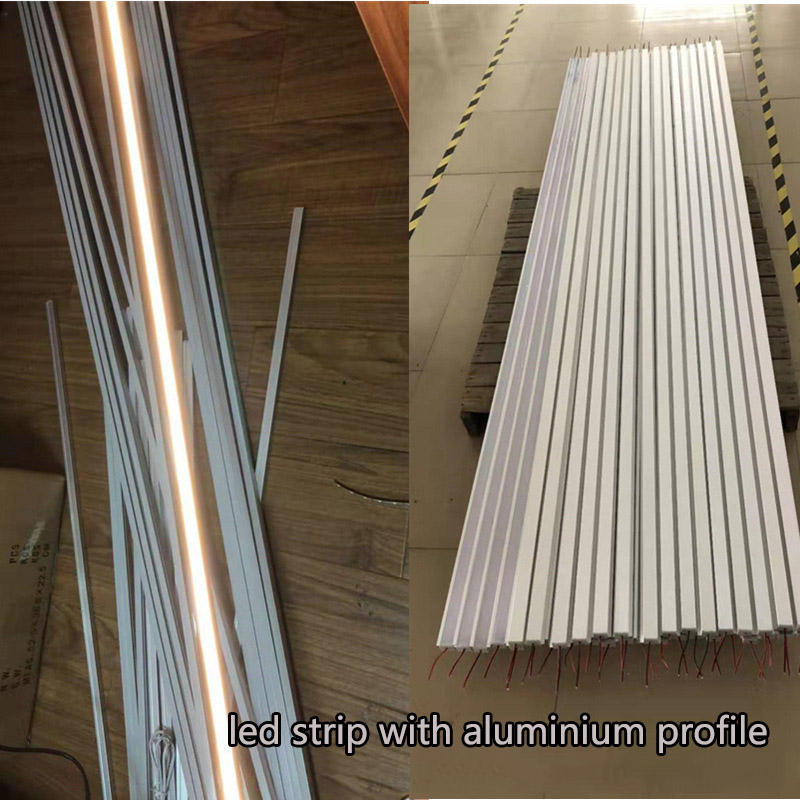

LED Strips and Profiles
Input: DC12V

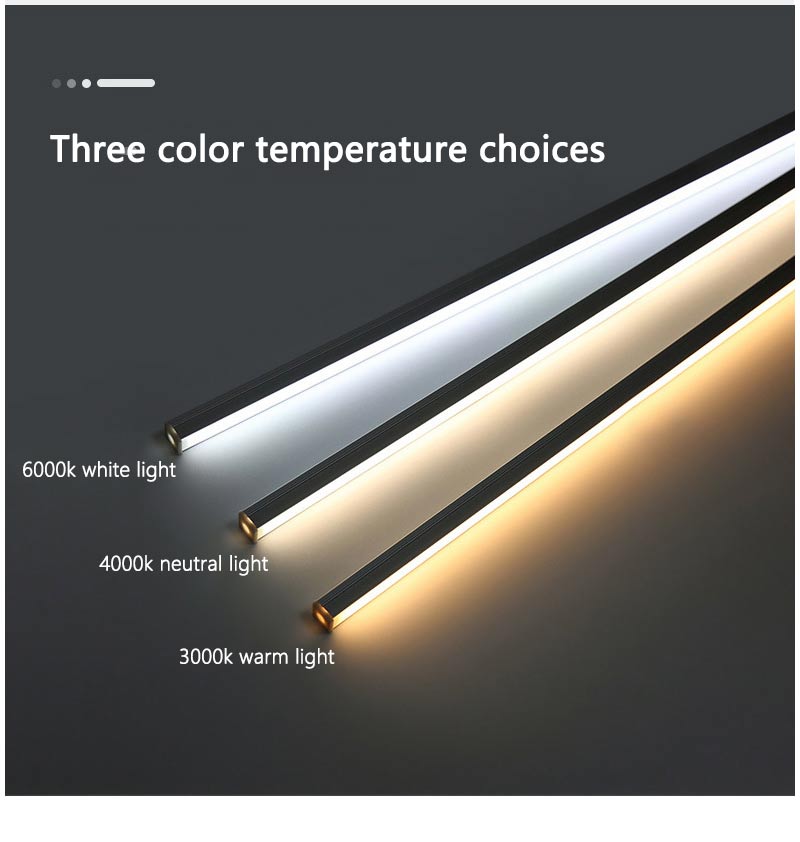

Light color: white/warm white
Size: 1m long/piece
Features: high-end aluminum profile

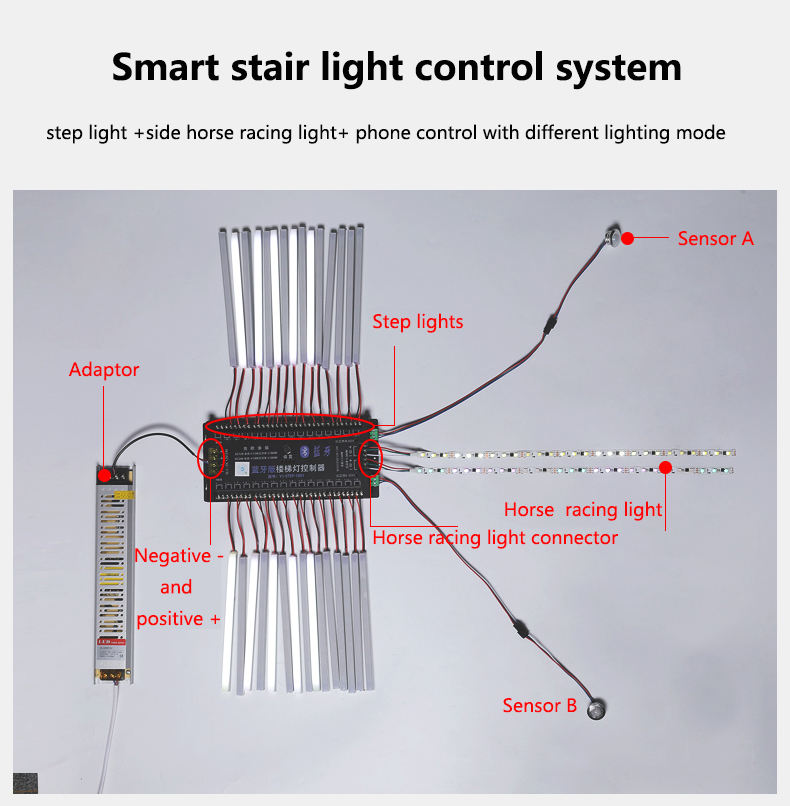

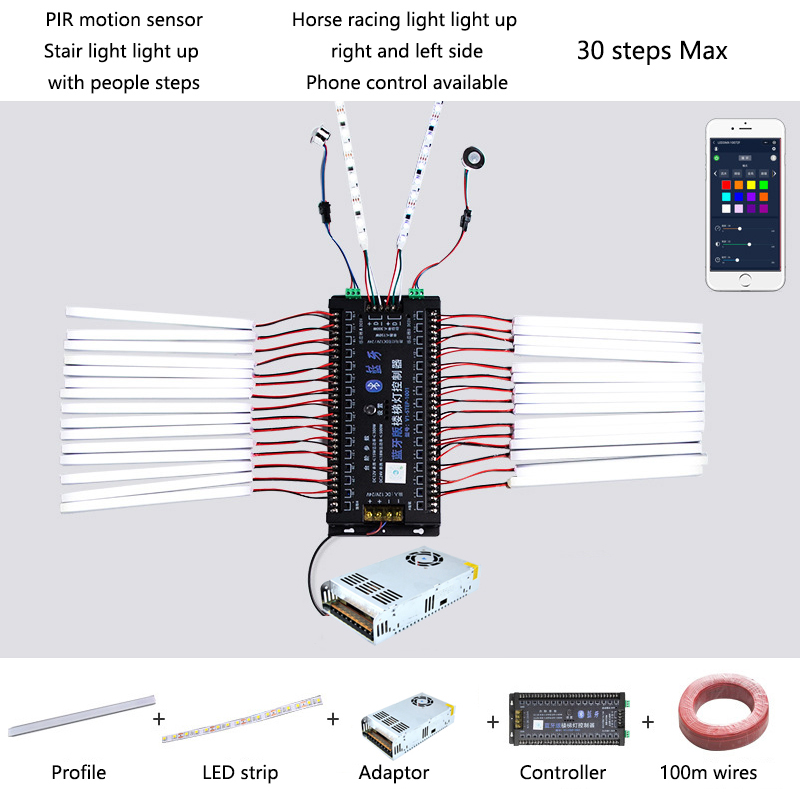

Entire stair light kit reference
Install

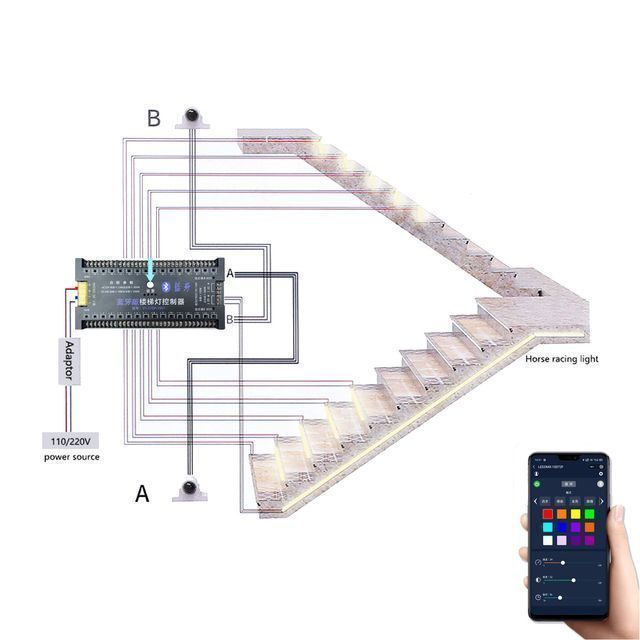

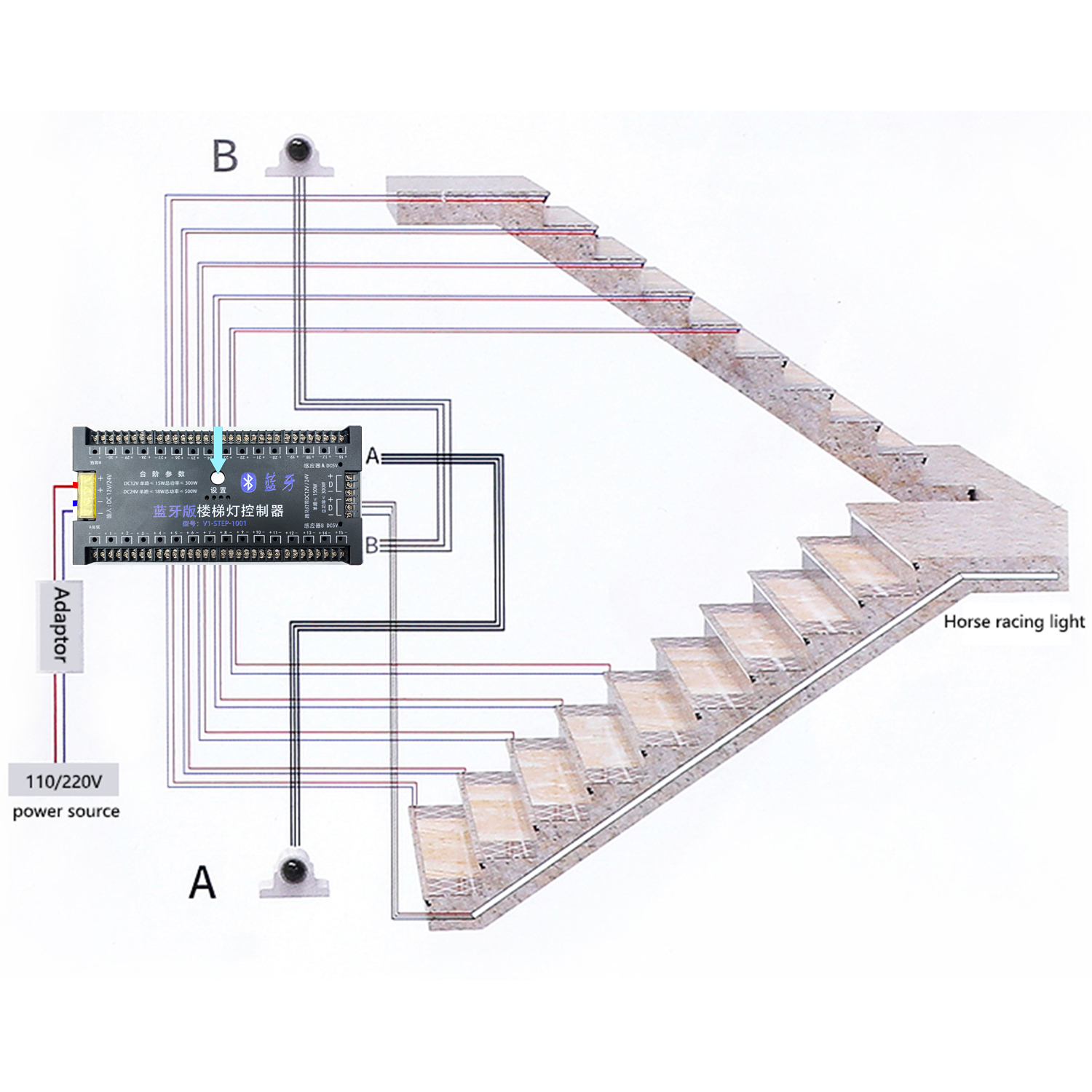

The adapter powers the sensor, controller, and each LED light. Follow the order of the steps to install the led lights. For example, the first step light is connected to the number "1", the second step light is connected to the number "2" and so on. Finally, place the sensor where a human can easily feel it. There is one sensor at the bottom of the stairs and another at the top of the stairs.
Install stair lights as required

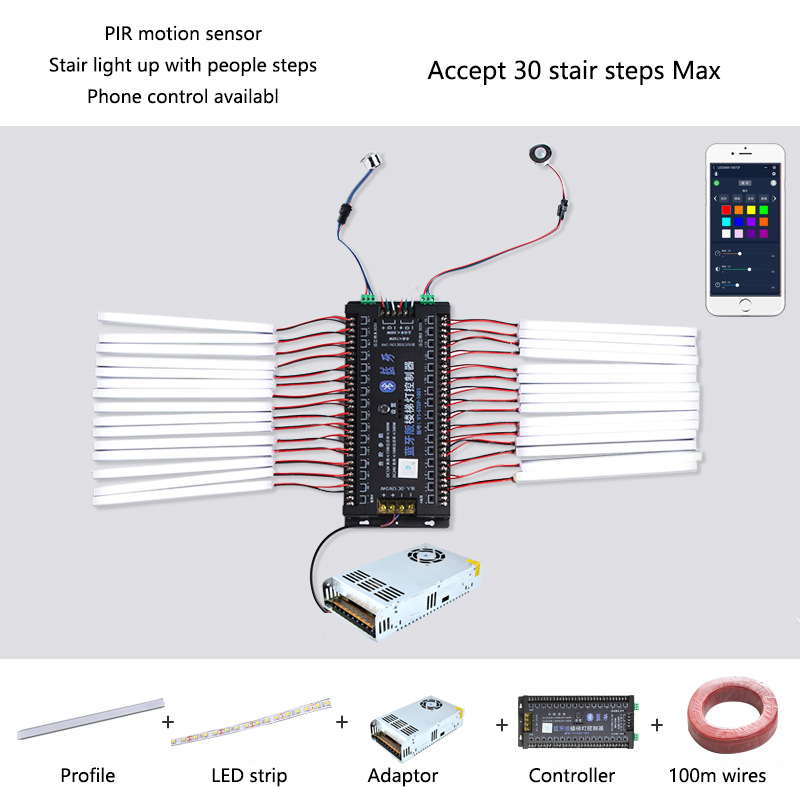

packing list:
Transformer* 1pcs
Controller*1pcs
Standard light strip *20 (1m/piece)
pixel led strip*2 pcs ( 5m/pc)
Package weight: about 6 kg.
Standard LED Strip Kit
packing list:
Transformer* 1pcs
Controller*1pcs
Standard light strip *20 (1m/piece)
pixel led strip*2 pcs ( 5m/pc)
Package weight: about 6 kg.
Transformer* 1pcs
Controller*1pcs
Standard light strip *20 (1m/piece)
pixel led strip*2 pcs ( 5m/pc)
Package weight: about 6 kg.

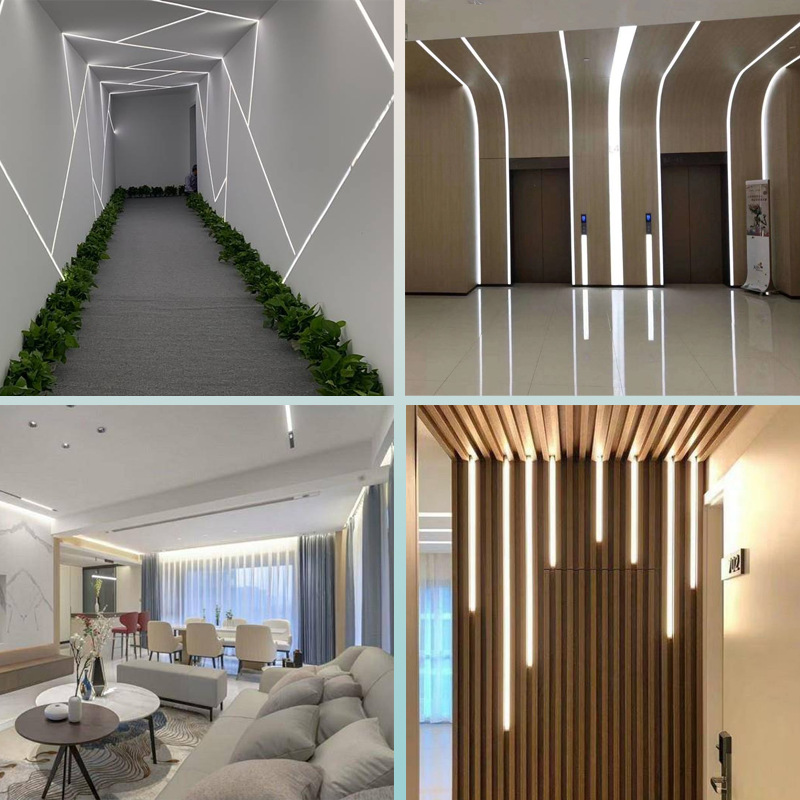

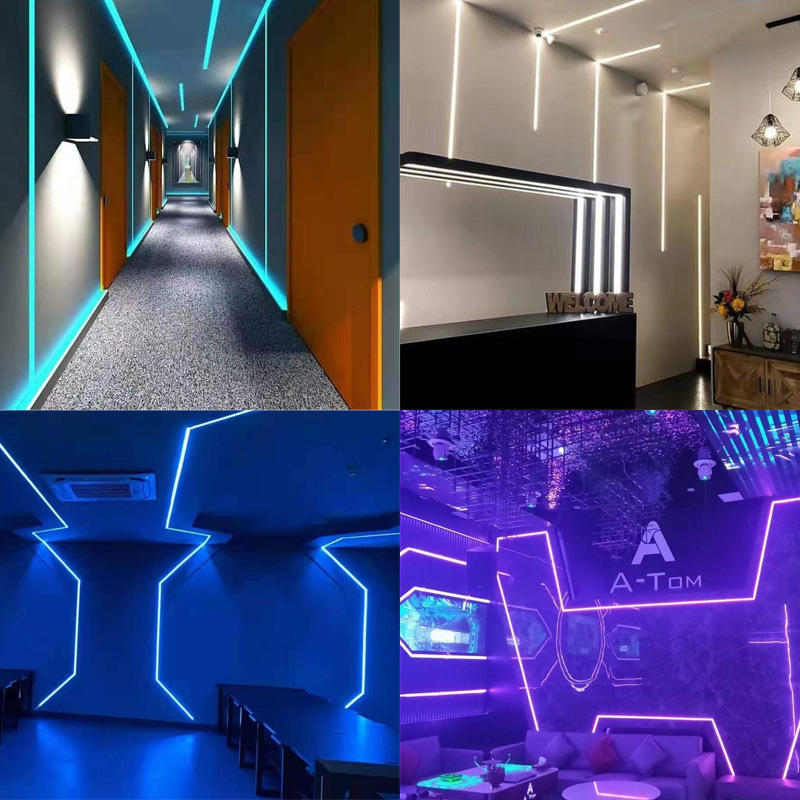

application
forward

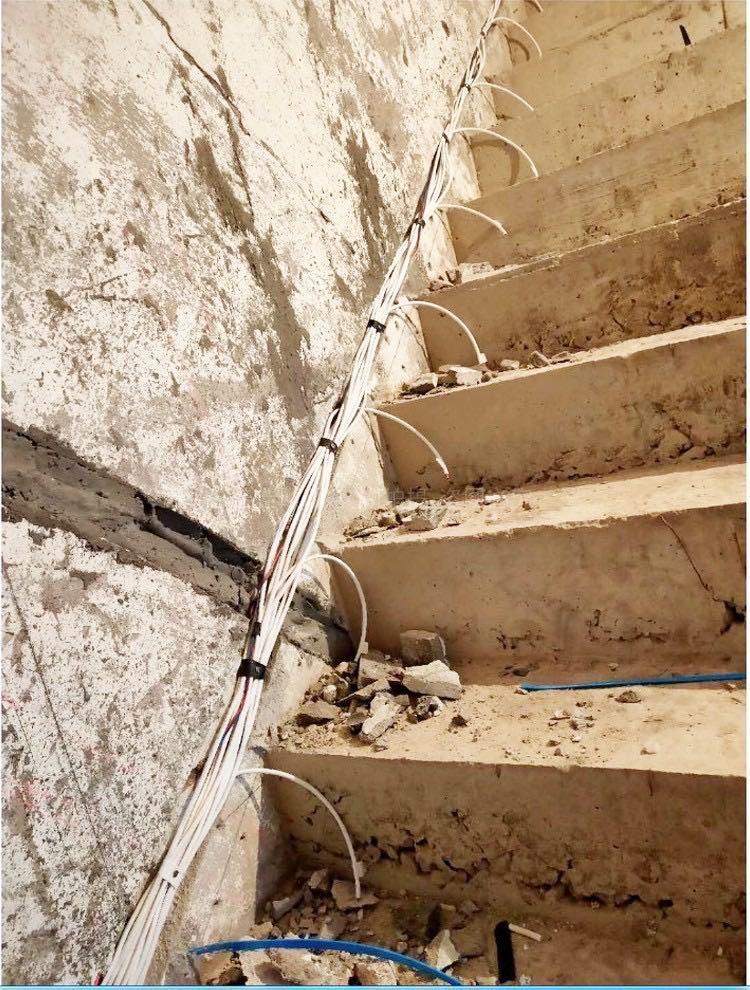

Install cables before house renovation
back

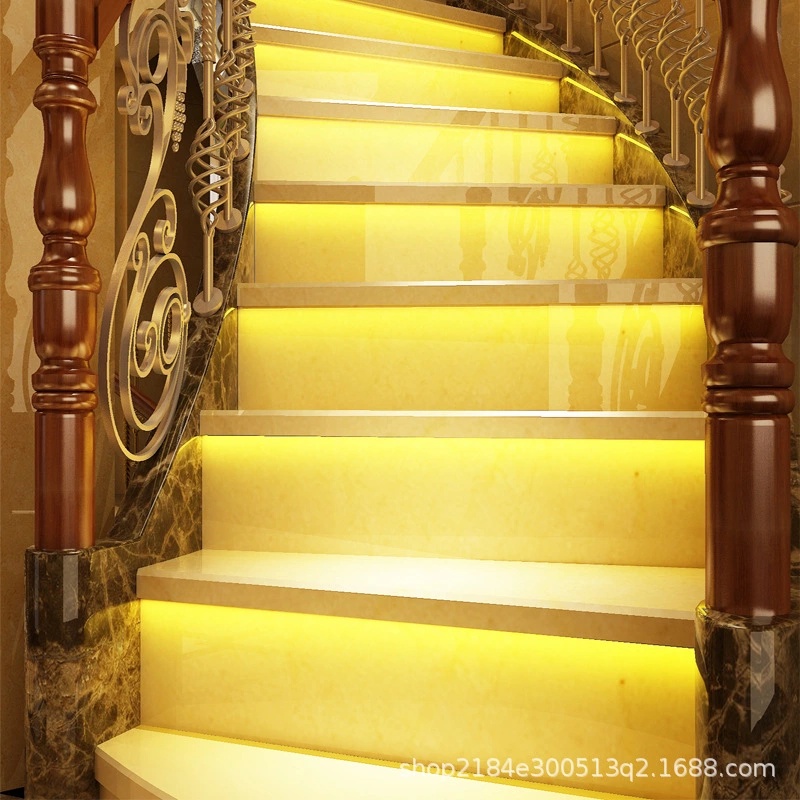

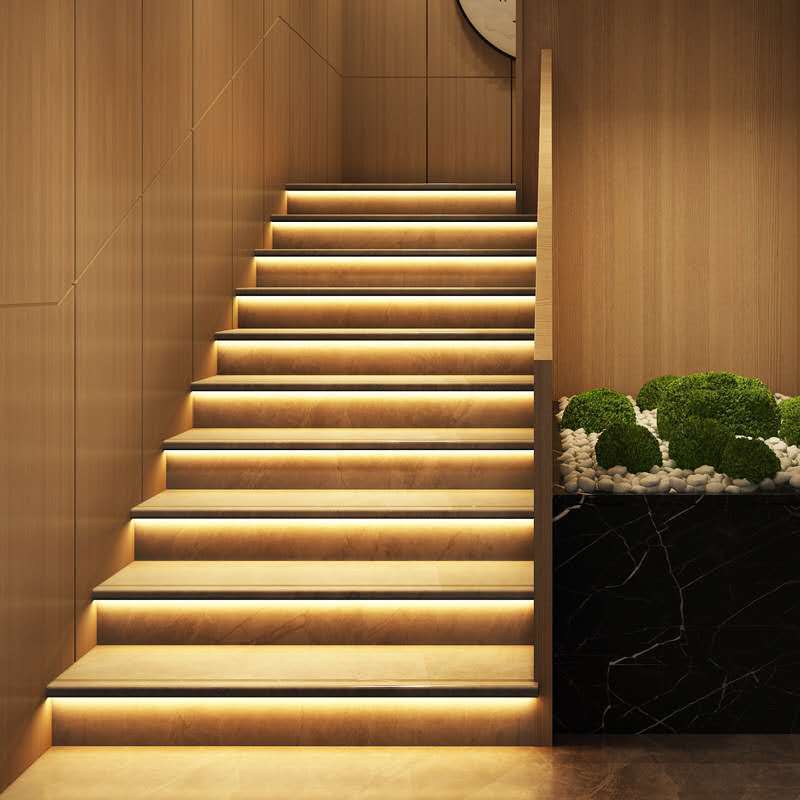

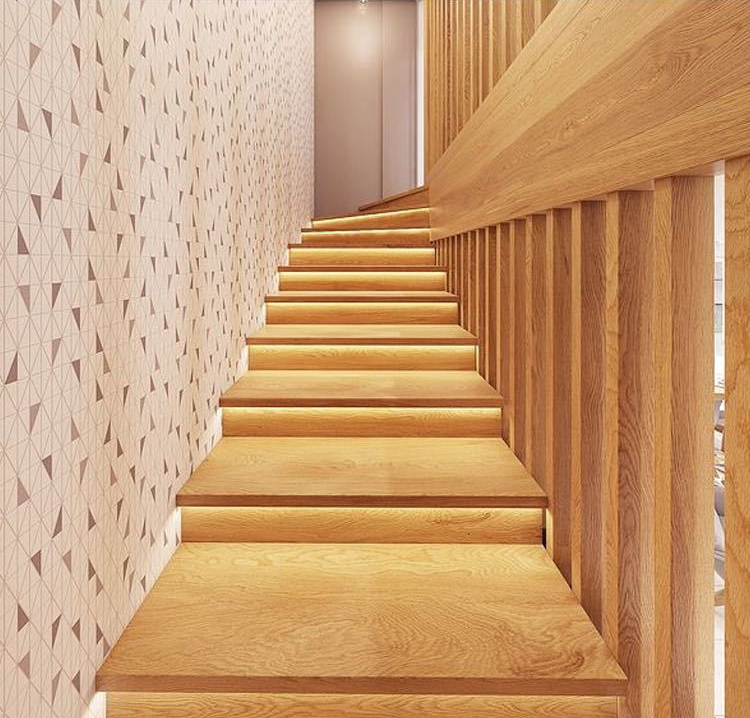

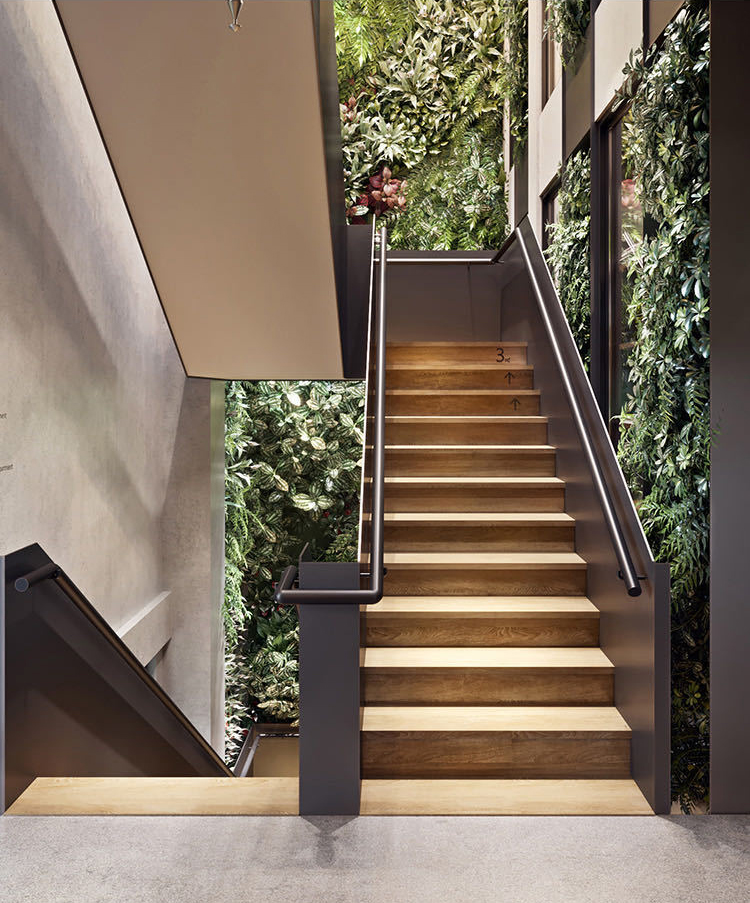

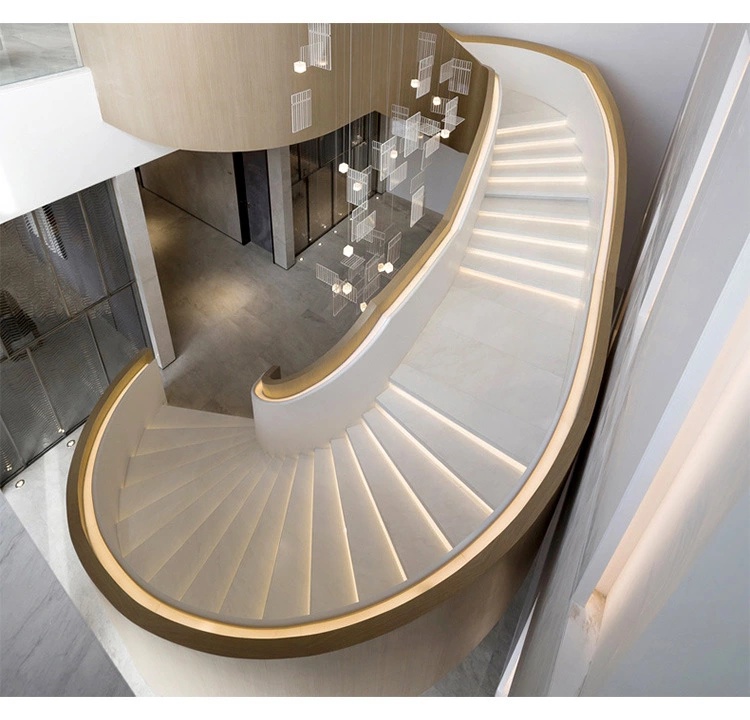

install led light on stairs
