Rolled Concrete Fabric Blanket Filled with Cement Canvas for Ditch Lining and Slope Protection
- $11.50 / >=100 square meters
- 100 square meters
- Shandong Jinling New Materials Co., Ltd.
- Shandong, China
- Mr jlwaterproof material
Product Detail
| Packaging Details: | PVC plastic bag | color: | grey |
| Lots of: | 15kg/square meter | Roll length: | 20m-100m |
| model: | CB10 | design style: | industrial |
| After-sales service: | Online technical support, on-site installation, on-site training, on-site inspection, free spare parts | type: | Geosynthetic cement-based composite mat |
| Roll width: | 1.25m/1.6m/2.0m | brand: | Jinling |
| port: | Qingdao, Tianjin, Shanghai, Guangzhou | pack: | PVC plastic bag |
| payment terms: | L/C, Western Union, T/T | thickness: | 10mm |
| Origin: | Shandong China | Warranty: | 5 years |
| density: | 1500-1600 kg/m3 | application: | Channel lining, slope protection, repair |
| Project solution ability: | Graphic design, 3D model design, overall project solution, cross-category integration | Supply capacity: | 100,000 square meters per month |
| MOQ: | 100 square meters |
Product Description
Concrete blanket is a special engineering composite material with three-dimensional structure. It is made of special cement, aggregate and other cementitious materials and three-dimensional fabrics. It can be widely used in water conservancy, railways, highways, environmental governance, slope protection, structural slope protection and other fields. The main functions are anti-seepage, lining emergency, etc.
Product parameters
thing | Test Methods | typical value |
thickness | ASTM C1185 | 10mm |
Lots of | 10 kg/m2 | |
density | 1500-1600kg/m3 | |
Coil size | 1.25m x 42m | |
area | 52.5 meters2 | |
Compressive strength | ASTM C109 | 37.0MPa |
Bending strength MD | ASTM C1185 | 21.0 MPa |
Bending strength CMD | ASTM C1185 | 18.7 MPa |
*Thickness is subject to actual production. Tolerance is usually +10%.
*Length and width dimensions listed are typical values and tolerances are typically +5%/-2.5%. Coil size can be customized according to project requirements.*Information is provided based on current test data and is subject to change as new information becomes available.
feature
1. Convenient construction.

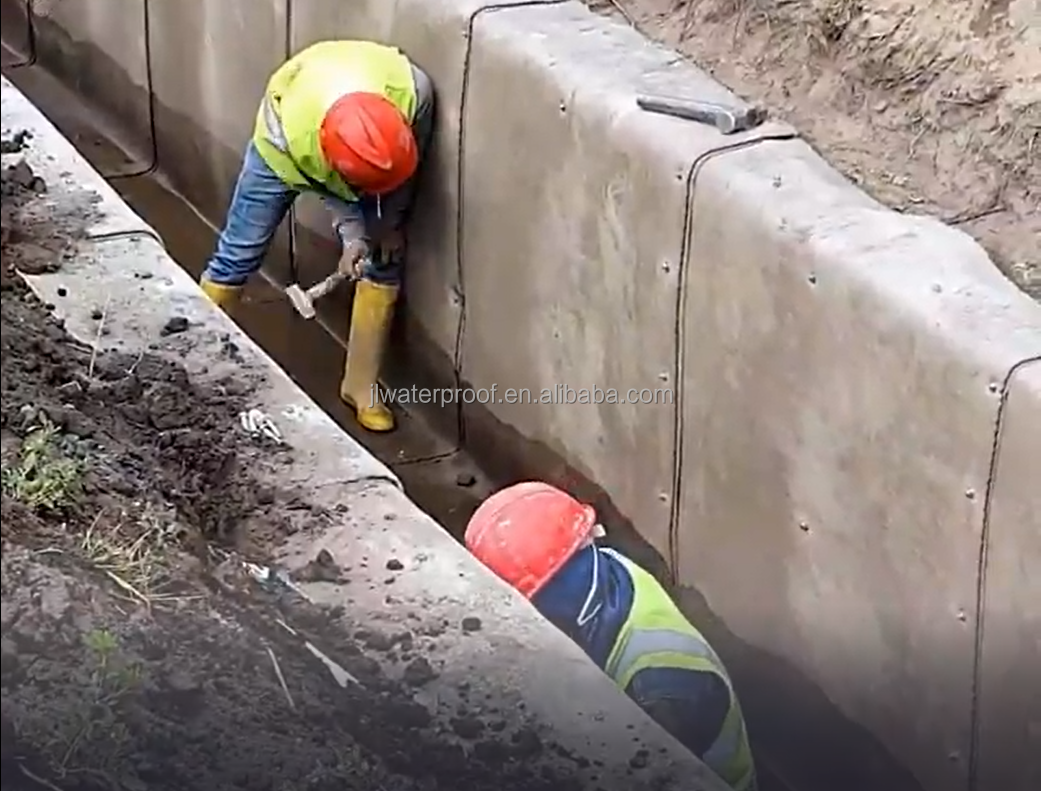

It's done in just 4 steps: Cut, Lay, Grind, Moisturize. No need for large machinery. Available in rolls or bulk
For transport, handling and installation.
For transport, handling and installation.
2. Fire prevention and UV resistance.
Classification of combustion performance of building materials and products: Class A.Anti-ultraviolet aging: 500 hours>95% strength retention
3. Environmental protection and low carbon.
Compared with traditional methods, the amount of crushed stone is greatly reduced, and CO2 is reduced by more than 90%.
4. Environmental protection.
No need to deal with the foundation, adapt to deformation.
5. Save labor and time.
Efficiency up to 400rice2/ day, 2 people can complete the work, the tools are simple and no professional skills are required. Quickly create prototypes of any shape without multiple cures.
6. Be strong.
Compressive/reflective strength > C 30 Concrete. Durable for 50 years.
7. Low cost.
Reduce labor costs and equipment costs. No cracking, settlement, dislocation.

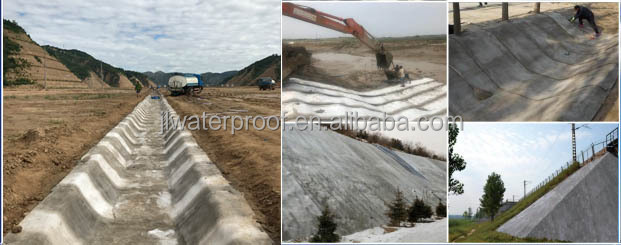

application

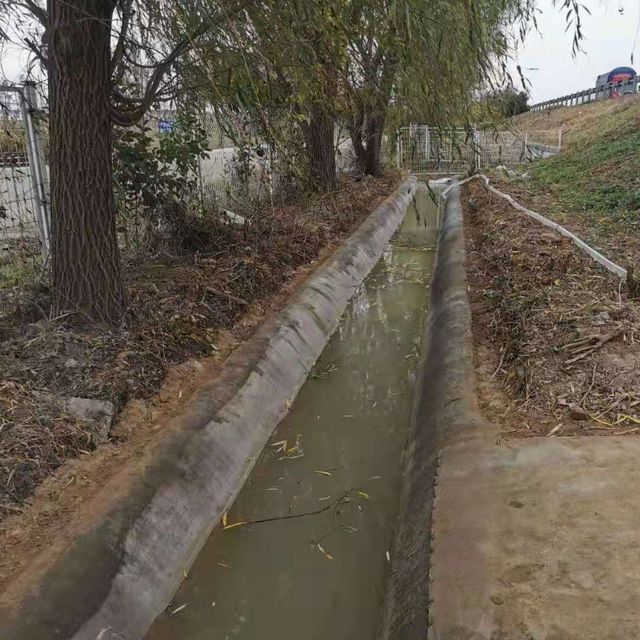

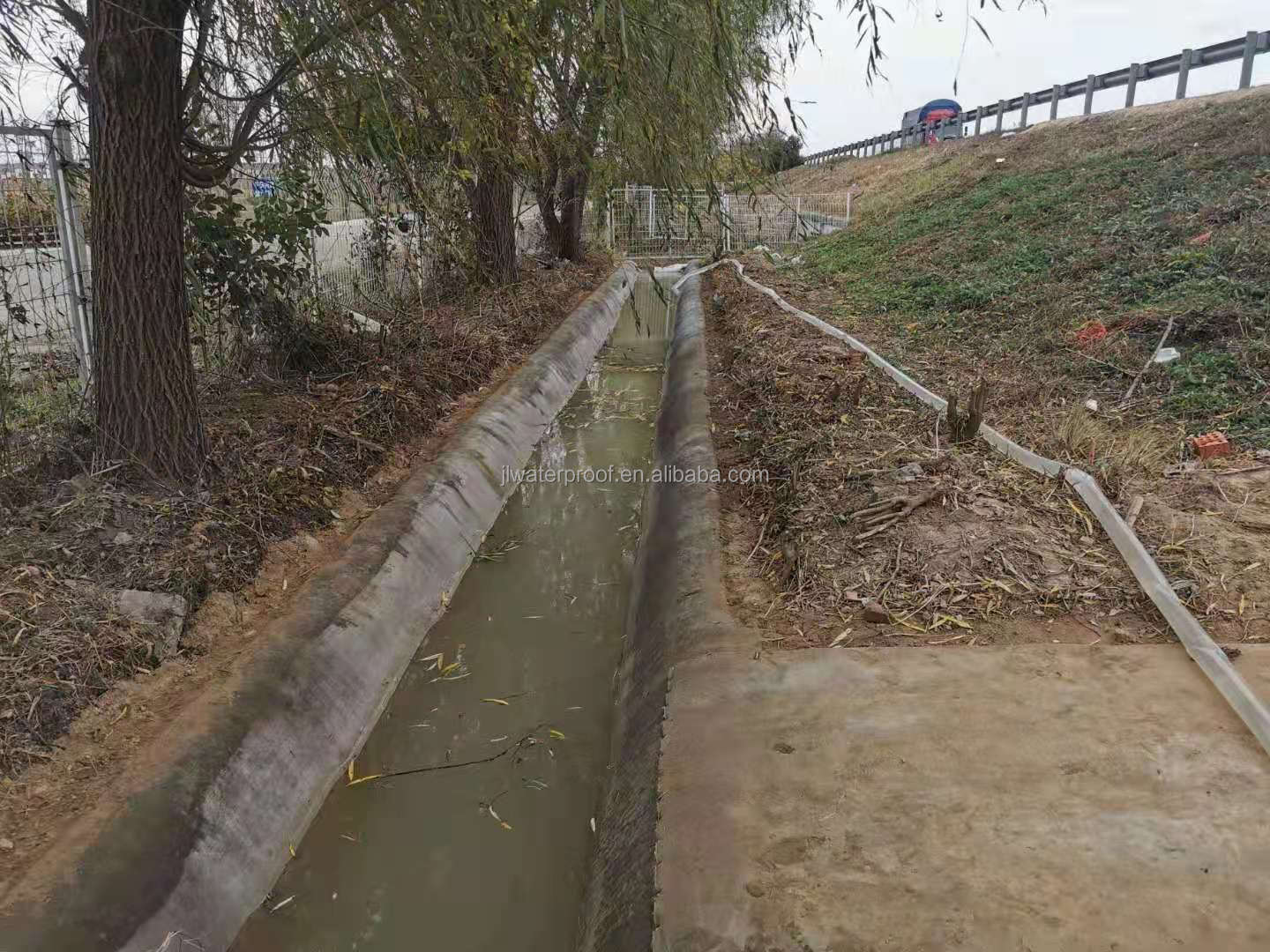

1. Ditch laying
2. Slope protection. Building foundation pit protection
3. Dam reinforcement
4. Reservoirs and ponds
5. Ocean engineering tidal flats
6. Sewage black and smelly water cofferdam and river course treatment
7. Sewage industry sewage related anti-corrosion, anti-scouring landfill leachate pool
8. Sandbag reinforcement, explosion-proof wall reinforcement
9. Light Path
10. Temporary diversion channel
11. Mine roadway support
12. Pipeline protection
13. Roofing material
14. Low temperature and construction work
15. Flood control, embankment reinforcement
2. Slope protection. Building foundation pit protection
3. Dam reinforcement
4. Reservoirs and ponds
5. Ocean engineering tidal flats
6. Sewage black and smelly water cofferdam and river course treatment
7. Sewage industry sewage related anti-corrosion, anti-scouring landfill leachate pool
8. Sandbag reinforcement, explosion-proof wall reinforcement
9. Light Path
10. Temporary diversion channel
11. Mine roadway support
12. Pipeline protection
13. Roofing material
14. Low temperature and construction work
15. Flood control, embankment reinforcement
