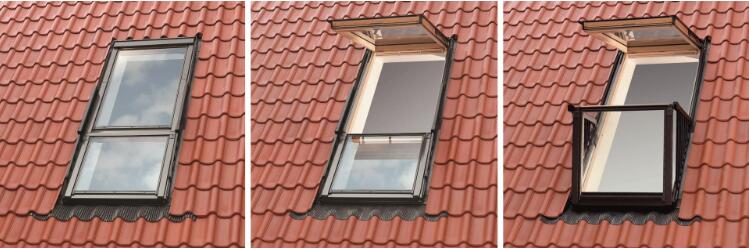

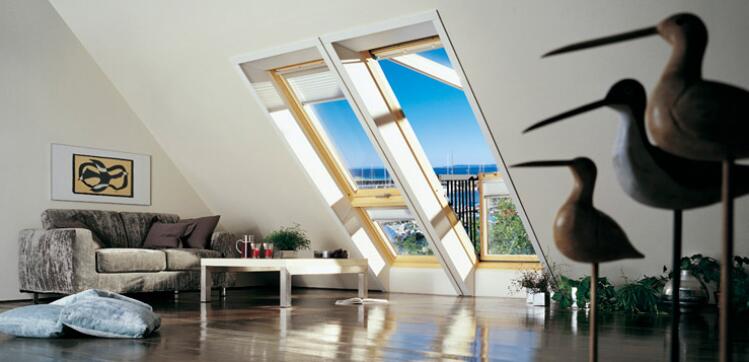

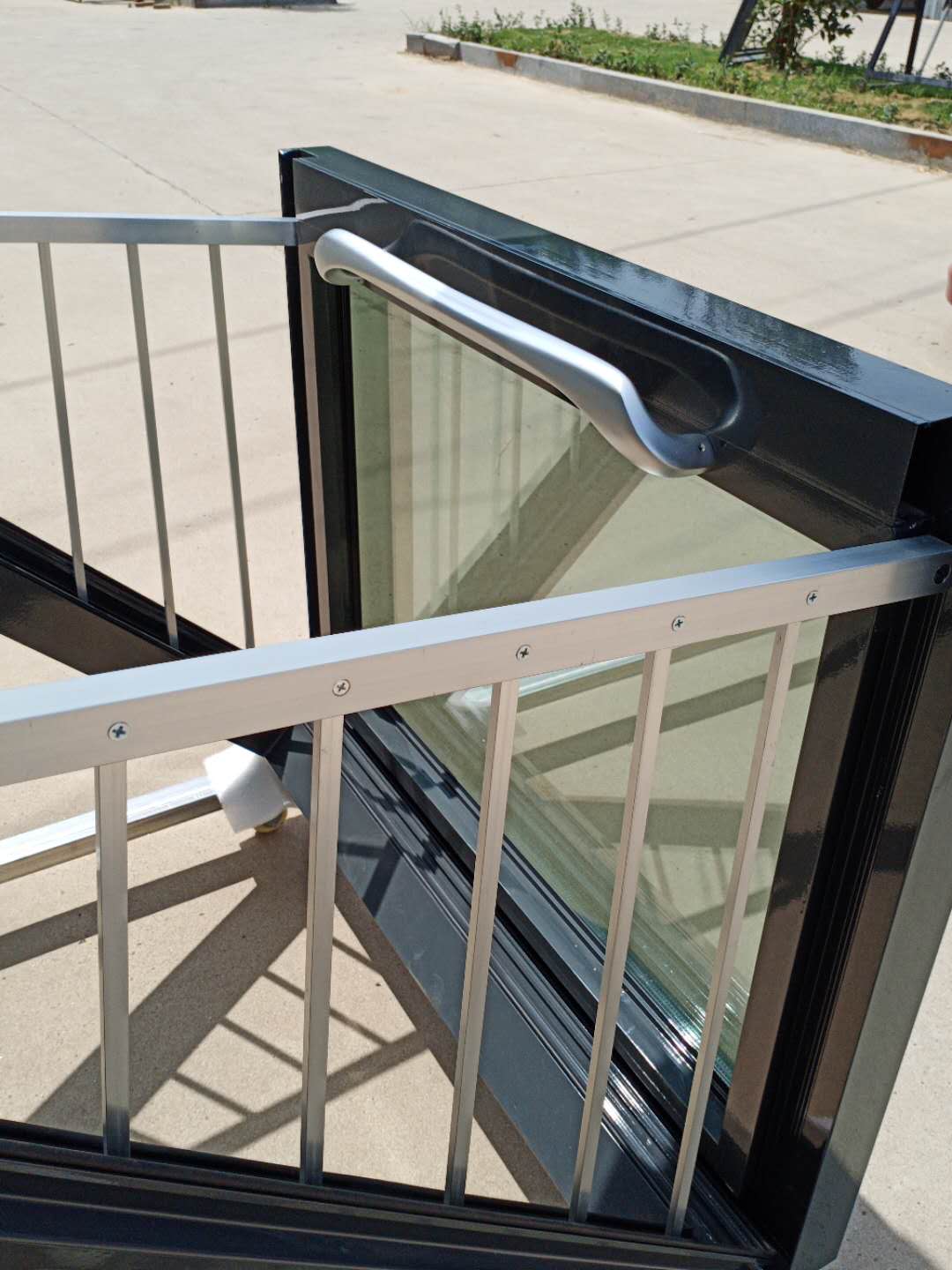

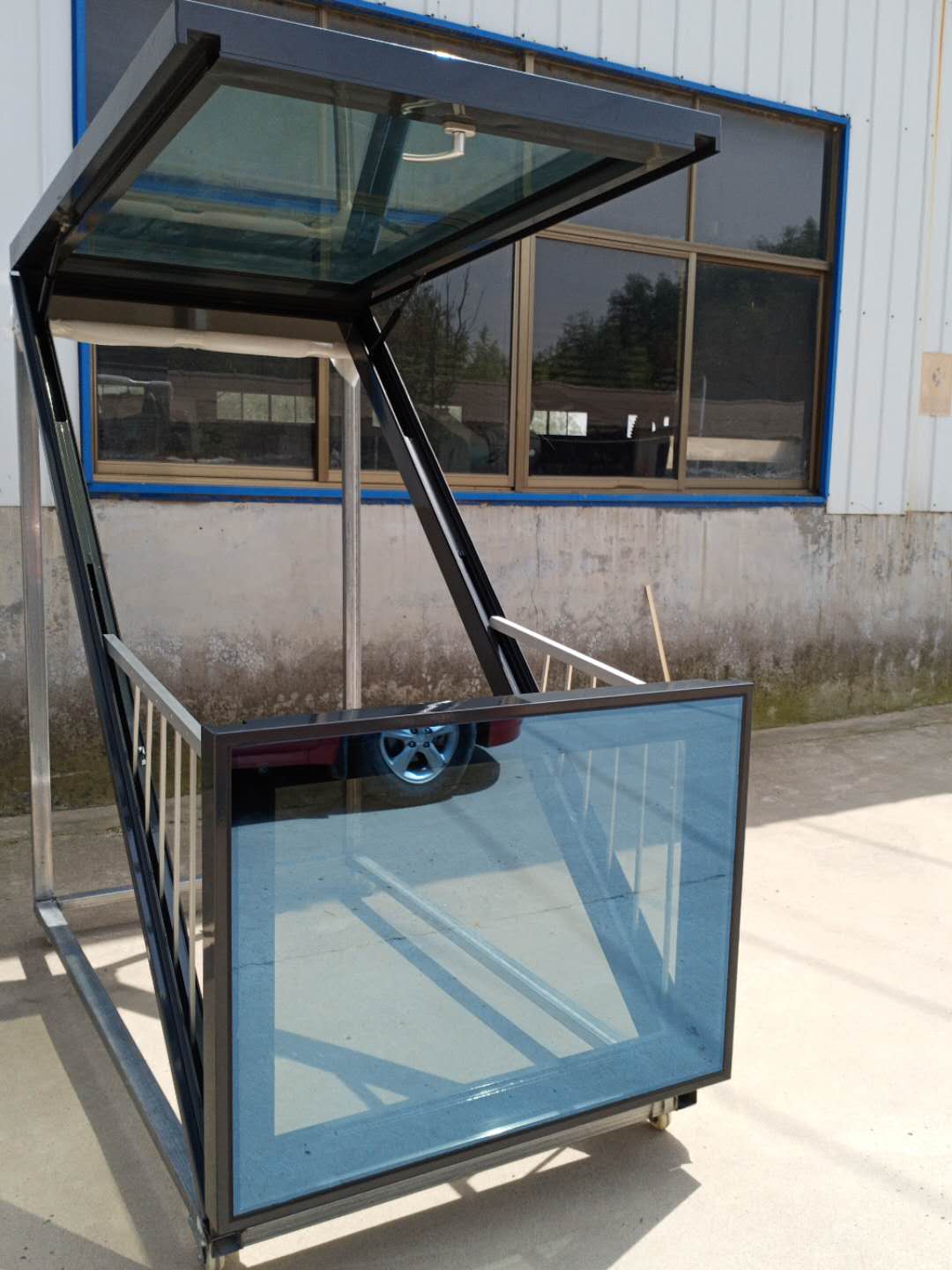

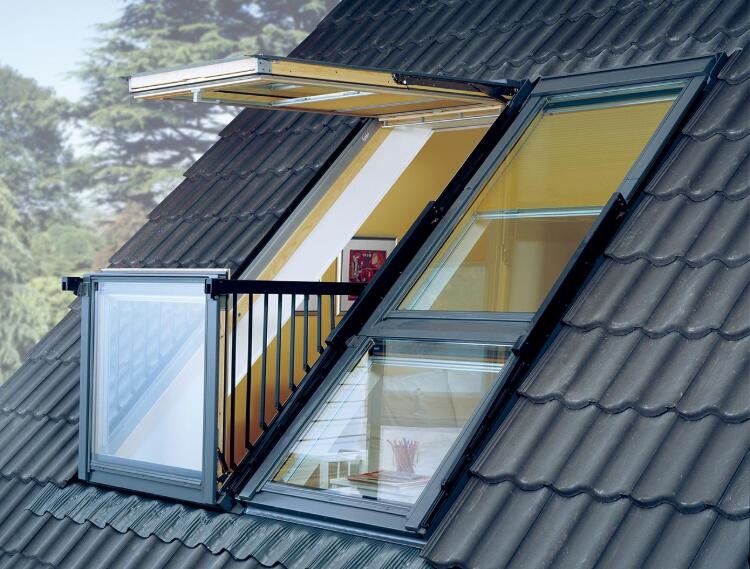

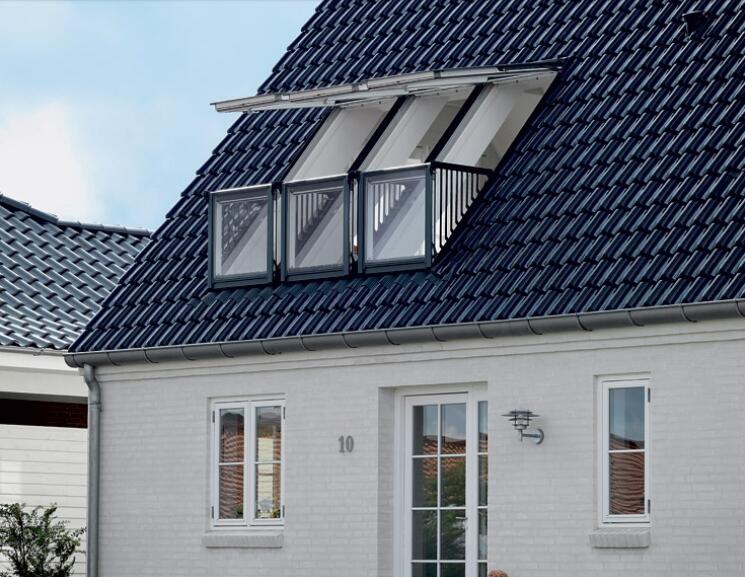

Skylight Balcony fits collapsible balconies in window frames
-
$3390.00 / 3 - 9 sets
$3200.00 / 10 - 19 sets
$2500.00 / >=20 sets - 3 sets
- Shanghai Xiangbihe Building Materials Co., Ltd.
- Shanghai, China
- Ms Ki Ki
Product Detail
| Warranty: | 2 years | Advantage: | ventilation |
| product name: | Electric sliding sunroof sunroof | Screen material: | Stainless steel |
| application: | roof, basement, hotel | After-sales service: | online technical support |
| payment terms: | L/C, Western Union, T/T, MoneyGram | Open: | electrical |
| Function: | insulation | size: | custom size |
| brand: | Xiangbi River | Package preview: | |
| Curtain Type: | blinds | Material: | aluminum alloy |
| Frame material: | aluminum alloy | Supply capacity: | 5000 square meters per month |
| model: | XBH-DDPY | Origin: | Shanghai, China, Shanghai, China |
| In public: | up to 99% | color: | custom color |
| Glass type: | single\double\tempered\floating\dyed\low-e | Quality Standard: | AS2047/CE/SONCAP/ISO9001:2008 |
| Open style: | automatic | port: | Shanghai |
| feature: | folding screen | Opening mode: | horizontal |
| Packaging Details: | 1. Accessories will be packed in zipper bags or small cartons; 2. The surface of profiles will be covered with plastic film; 3. Aluminum skylights will be wrapped with bubble film; 4. The goods will be packed into wooden boxes; 5. Wooden boxes will be fixed with packing straps . | design style: | modern |
| Project solution ability: | graphic design |
Balcony Skylight Specifications | ||
model: | XBH-B | |
Technology: | seamless welding | |
application: | Home: houses, villas, apartments, etc. | |
Commercial: commercial buildings, schools, restaurants, factories, etc. | ||
Typical installation: | Roof, conservatory, basement, atrium, etc. | |
The main function: | Ventilation, lighting, smoke exhaust, night lighting, fire protection, access, etc. | |
advantage: | 1. Excellent waterproof/heat insulation/heat insulation/sound insulation performance. | |
2. High-strength aluminum frame, suitable for heavy duty and large size. | ||
3. Durable electric drive system and stable control system. | ||
size: | 1. 1100mm*2400mm | |
2. 1200mm*2500mm | ||
3. 1300mm*2600mm | ||
Open method: | 1. Driven by brand motors, the opening area is 50% to 100%. | |
2. Remote control. | ||
3. Rain sensor control. | ||
Frame Material: | Top quality extruded aluminum alloy 6063 T6. | |
color: | Customized upon request. | |
Surface treatment: | Full window electrostatic treatment powder (color optional) | |
Glass: | Option 1 - 6+27A+6 with built-in shutters. | |
Option 2 - 8mm or 6+1.14+6 or 5+1.14PVB+5+21A+6LOW-E etc. | ||
Option 3 - Customized upon request. | ||
net: | Option 1 - Plastic dust fly screen, openable or fixed. | |
Option 2 - Stainless steel wire mesh, openable or fixed. | ||
Blind: | Hollow glass built-in shading system is optional, remote control. | |
installation angle | 0-70 degrees light ceiling or concrete roof | |
Package: | 1. Standard packing: bubble bag packing, wooden box packing. | |
2. Customized according to customer requirements | ||
delivery time: | within 25 days | |
Electrical Specifications | ||||||
Input voltage: | 90~260VAC | motor: | 110 VAC or 220 VAC | |||
Rated current: | 2.2 A or 1.1 A | remote control: | 3V CR2032 | |||
rated power: | 240 watts | Rain sensor: | 24 VDC | |||
Operating temperature: | -30～+70 degrees | Power plug: | by country | |||
configuration | ||||||||||
Version | rain sensor | net | to lead | Blind | Glass | |||||
basic | yes | no | no | Elective | Elective | |||||
comfortable | yes | yes | no | Elective | Elective | |||||
luxury | yes | yes | yes | Elective | Elective | |||||
Q: Are you a trading company or a factory?
Xingbihe is 100% real factory and has been verified by Alibaba.
Q: How about your production time?
About 25-30 working days. This depends on window type and profile (eg color requirements).
Q: What about your MOQ?
For windows, the MOQ is 10 square meters.
Q: Do you accept custom designs and sizes?
Yes, of course, windows are highly customized commodities. So the size and design is up to you.
Q: What's your payment term?
T/T, L/C, Trade Assurance and Paypal are available.
Q: What is your color?
Standard colors are black, white, dark gray, natural and coffee. Other RAL colors are also available but will cost
More time and money.
Q: What is the main hardware?
Chinese brands: HOPO, KIN LONG, PAGANI, YEAR, CHUANG
German brands: ROTO, SIEGENIA
Italian brands: SAVIO, GIESSE
Q: What profile does your factory have?
Aluminum (non-insulated and insulated), PVC (UPVC and vinyl), aluminum clad wood.
Q: Do you provide samples?
Of course, it is available. But we need to charge sample fee and freight.
Xingbihe is 100% real factory and has been verified by Alibaba.
Q: How about your production time?
About 25-30 working days. This depends on window type and profile (eg color requirements).
Q: What about your MOQ?
For windows, the MOQ is 10 square meters.
Q: Do you accept custom designs and sizes?
Yes, of course, windows are highly customized commodities. So the size and design is up to you.
Q: What's your payment term?
T/T, L/C, Trade Assurance and Paypal are available.
Q: What is your color?
Standard colors are black, white, dark gray, natural and coffee. Other RAL colors are also available but will cost
More time and money.
Q: What is the main hardware?
Chinese brands: HOPO, KIN LONG, PAGANI, YEAR, CHUANG
German brands: ROTO, SIEGENIA
Italian brands: SAVIO, GIESSE
Q: What profile does your factory have?
Aluminum (non-insulated and insulated), PVC (UPVC and vinyl), aluminum clad wood.
Q: Do you provide samples?
Of course, it is available. But we need to charge sample fee and freight.
