High Strength PP Woven Geotextile Bag Geobag/Geotube For Wastewater Treatment Or Ocean Dredging Projects
- $0.96 /square meter
- 1 square meter
- Anhui Zhonglu Engineering Materials Co., Ltd.
- Anhui, China
- Mr Jack Zhao
Product Detail
| Packaging Details: | High Strength PP Woven Geotextile Bag Geobag/Geotube for Wastewater Treatment or Ocean Dredging Projects Standard Export Packing or Packing According to Customer's Requirements | length: | 164.01ft -328.08ft/roll (or 50-100m) |
| payment terms: | L/C, Western Union, T/T | Project solution ability: | Graphic design, 3D model design, cross-category integration |
| design style: | modern | size: | 3x4ft, 3.5x7ft, 6x6ft, 7.5x10ft, 10x1 |
| application: | sludge dewatering, building construction, sludge dewatering, building construction | Origin: | Anhui, China |
| color: | white, black, green or as required | weight: | 100-1000 g/m2 |
| Warranty: | 5 years | After-sales service: | Online technical support, on-site installation, on-site training |
| width: | 2-6 meters | Geotextile Type: | Non-woven geotextile |
| Material: | Polyester, polypropylene, nylon | Supply capacity: | 60000 square meters per week |
| port: | Qingdao Port; Shanghai Port; Ningbo Port or according to customer requirements | brand: | bell tower |
| model: | Geotube | Package preview: | |
| product name: | Advanced geotextile non-woven fabric | Key words: | PP Woven Geotextile |
High Strength PP Woven Geotextile Bag Geobag/Geotube For Wastewater Treatment Or Ocean Dredging Projects
Product Description
The geotechnical tube is made of high-strength polypropylene bags, and woven fabric materials can also be used. Select the product material according to the actual needs of the project; ordinary black; adjust the commonly used material 400gsm according to different specifications of the product; the length is not limited, and the width can be multi-picture splicing without limit width , but directly affects the material strength range of the dehydration tube bag, the wider the material strength is required; the filling height of the basic order of two-thirds of the diameter
Pipe bag; According to the habit of the construction site on the diameter of the grouting machine, agents can be added according to the actual situation (increase the solidification speed and accelerate the separation of mud).
Geotextiles are one of the most effective components most commonly used in waterproof and erosion protection structures. Cover the cushion where the water flows to reduce the impact energy of the water flow, and protect the soil particles from being blown away by the water flow through its filtering function, so as to ensure the stability of the soil.
Pipe bag; According to the habit of the construction site on the diameter of the grouting machine, agents can be added according to the actual situation (increase the solidification speed and accelerate the separation of mud).
Geotextiles are one of the most effective components most commonly used in waterproof and erosion protection structures. Cover the cushion where the water flows to reduce the impact energy of the water flow, and protect the soil particles from being blown away by the water flow through its filtering function, so as to ensure the stability of the soil.
feature
1. High strength, low deformation
2. Durability: stable performance, not easy to decompose, air-dried, can maintain the original performance for a long time
3. Anti-corrosion: anti-acid, anti-alkali, anti-insect, anti-mildew
4. Permeability: the size of the sieve hole can be controlled to maintain a certain permeability
5. Effective bulk containment
6. Efficient dehydration and volume reduction
7. Cost-effective
8. No special equipment required
1. High strength, low deformation
2. Durability: stable performance, not easy to decompose, air-dried, can maintain the original performance for a long time
3. Anti-corrosion: anti-acid, anti-alkali, anti-insect, anti-mildew
4. Permeability: the size of the sieve hole can be controlled to maintain a certain permeability
5. Effective bulk containment
6. Efficient dehydration and volume reduction
7. Cost-effective
8. No special equipment required
Technical data
thing | unit | Technical Parameters | ||||||
Tube 500 | Tube 750 | Tube 1000 | ||||||
Breaking strength | Medical PhD | kN/m>= | 70 | 120 | 200 | |||
CD | kN/m>= | Post-90s | 120 | 200 | ||||
elongation at break | Medical PhD | %<= | 20 | 20 | 20 | |||
CD | %<= | 10 | 10 | 10 | ||||
Sewing Tensile Strength | >=% | 80 | 80 | 80 | ||||
Bursting strength (CBR) | KN>= | 8 | 14 | 18 | ||||
Equivalent opening size (O90) | mm | 0.2-0.6 | 0.2-0.6 | 0.2-0.6 | ||||
Permeability (Q50) | Liter/square meter/second>= | 20 | 13 | 15 | ||||
Anti-ultraviolet (500HRS intensity maintenance) | %>= | Post-90s | 80 | 80 | ||||
application
1. Bank protection
2. Dike protection
3. Base Protection
4. Embankment engineering
5. Dam engineering
6. Cofferdam project
1. Bank protection
2. Dike protection
3. Base Protection
4. Embankment engineering
5. Dam engineering
6. Cofferdam project
Geotextile pipe bag dehydration technology is an effective technology and solution, which has been widely used.
Has been proven safe against dehydration by many research centers around the world. Made of high performance, specialty polypropylene monofilament, flat or split yarn for fabric processing and special sewing
Has been proven safe against dehydration by many research centers around the world. Made of high performance, specialty polypropylene monofilament, flat or split yarn for fabric processing and special sewing

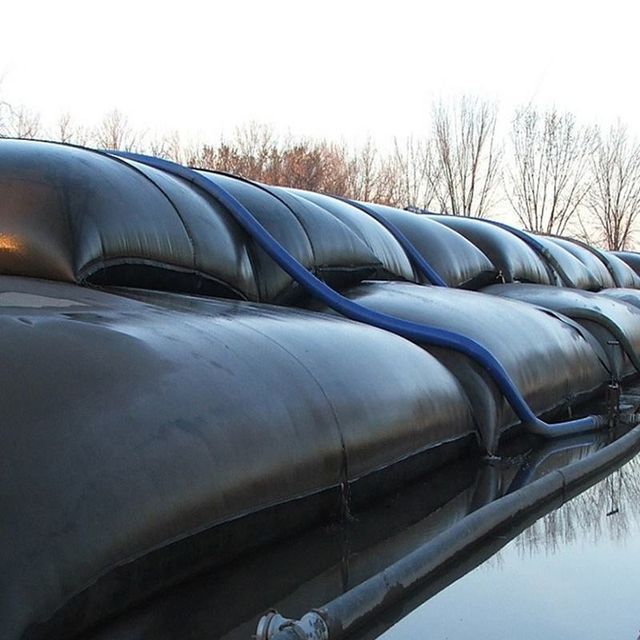

Solids are contained within the Geotube dewatering unit for easy removal and treatment of solids in sewage.

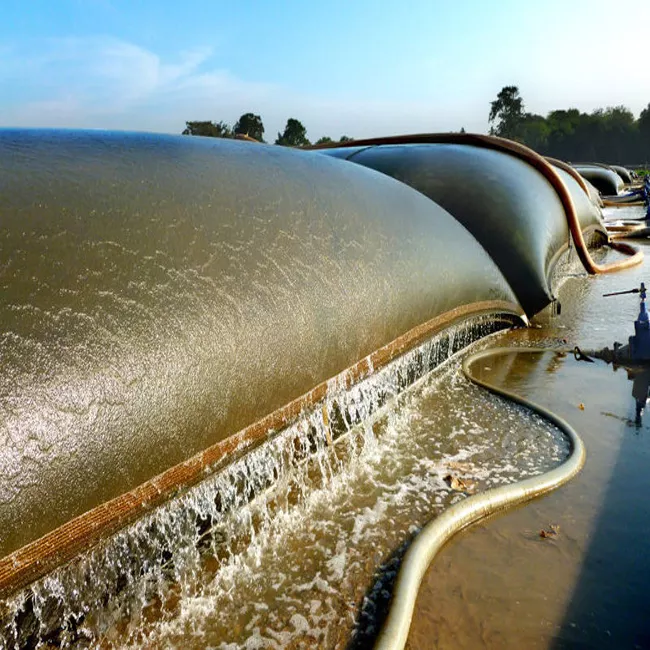

Efficient, versatile and environmentally friendly solutions to reduce carbon emissions. The wastewater discharge rate is high and the filtrate is clear and can be recycled through the system.
Custom-sized containers save expensive and limited land space, and the Geotube dewatering unit can be cut open to reveal highly dewatered solids that can be easily excavated and transported away.
Cost-effective, low maintenance, saves time. Reliable in all weather conditions and reduces operational safety risks.
