ADTO Aluminum Concrete Formwork System, Aluminum Modular Formwork for Construction
- $100.00 / >=100 square meters
- 100 square meters
- Hubei ADTO Aluminum Formwork Manufacturing Co., Ltd.
- Hubei, China
- Ms Crystal Lee
Product Detail
| port: | Wuhan, Tianjin, Qingdao | type: | aluminum formwork |
| brand: | ADTO | application: | High-rise buildings/airports/towers, apartments |
| Supply capacity: | 30000 square meters per month | model: | ADTO-F11 |
| Origin: | Hubei, China | design style: | modern |
| Project solution ability: | Graphic design, 3D model design, overall project solution, others | Aluminum Thickness: | 4mm (design can be strengthened) |
| Aluminum weight per square meter: | 20-28kg (standard formwork) | Warranty: | 5 years |
| Element: | Beam/column/wall/pillar/floor/reinforcement system | Certification: | ISO9001:2008;CE |
| Packaging Details: | wood packaging | Standard template length: | 2.7m, 2.4m, 1.2m |
| feature: | More than 200 times of repeated use in one pour | Aluminum series model: | 6061-T6 (GB5237-2008 standard) |
| Serve: | OEM service and after-sales service | After-sales service: | Online technical support, on-site installation, on-site training, others |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Carrying capacity: | 60KN/m2 |
Product Description

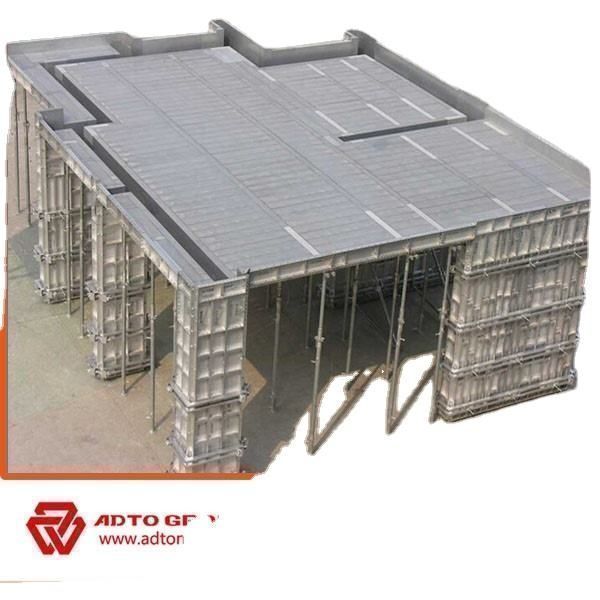

Introduction of ADTO 6061-T6 aluminum formwork system:
|
Material |
6061-T6 aluminum alloy |
|
main ingredient |
Beams, columns, walls, stairs, others: floors, slabs... |

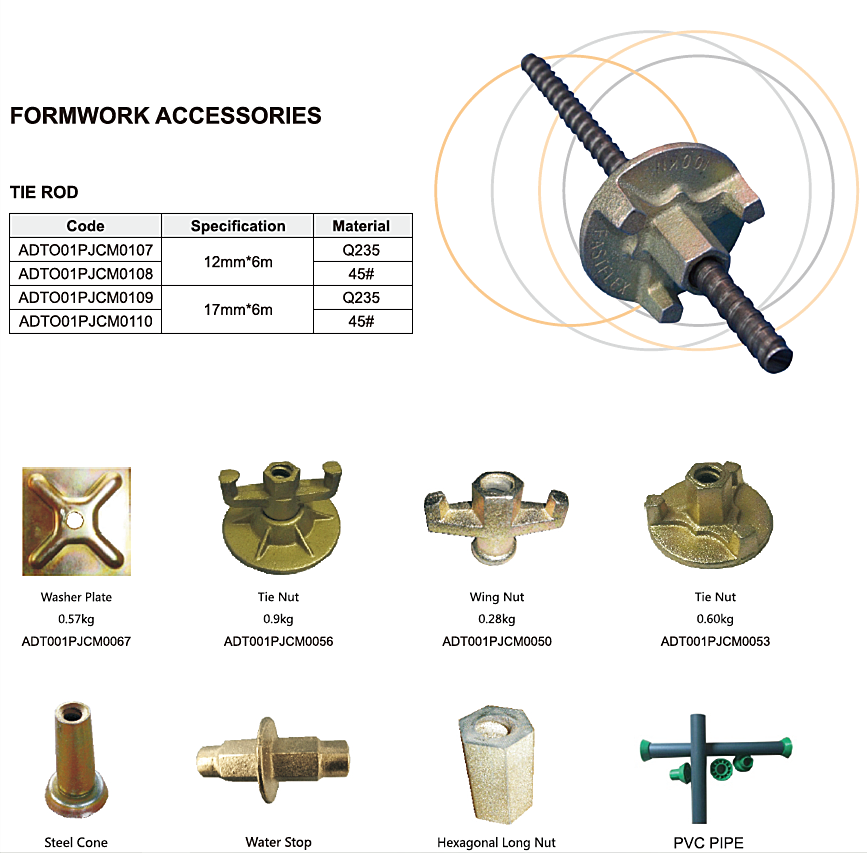

| Aluminum Formwork Accessories |

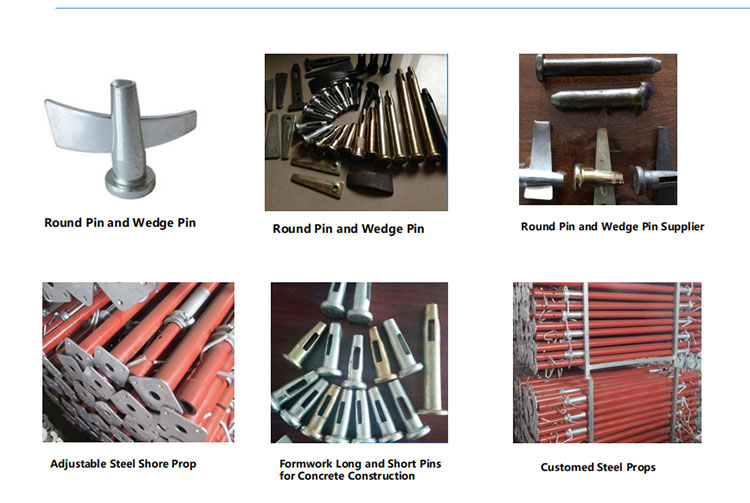

Wedges, Pins, Tie Rods, Wing Nuts, Washers, Bolts, Cones, Brace Plugs, Formed Ties, Couplers, Clamps, Push Rods, etc. |
|
Safe Workload |
60KN/m2 |
|
duration |
3-5 days per layer |
|
wall panel size |
Length: 2300mm; 2450mm; Width: 300-600mm; or customized |
| Beam panel size |
Length: 1500mm; Width: 100-400mm; or customized |
| Panel size | Length: 1200mm; Width: 200-600mm; or customized |
| column panel size | Length: 3000mm; Width: 100-600mm; or customized |
|
feature |
light |
|
one-time pouring |
|
|
Cost-effectiveness |
|
|
Moisture resistance |
|
|
Reuse more than 300 times |
|
|
recyclable |
|
|
Environmental friendly |

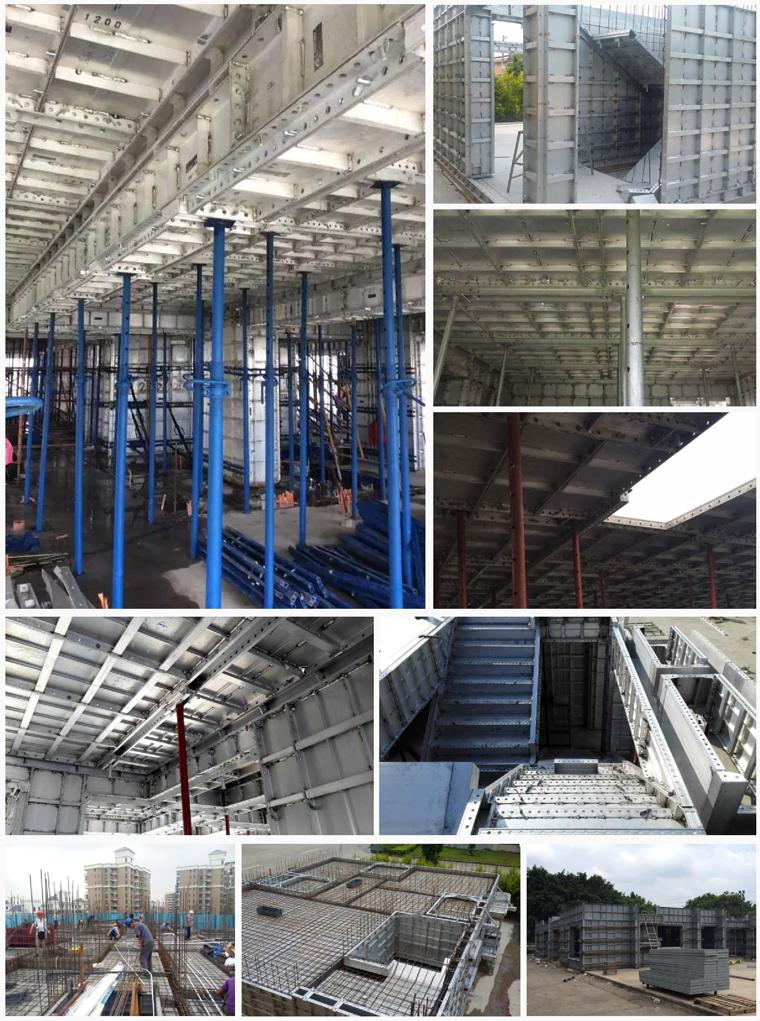

ADTO aluminum formwork can be widely used in constructionTall buildings, residential units and large residential projects.
It's fast, easy, adaptable and cost-effective.
The overall quality work it produces requires minimal maintenance and durability is a primary consideration.

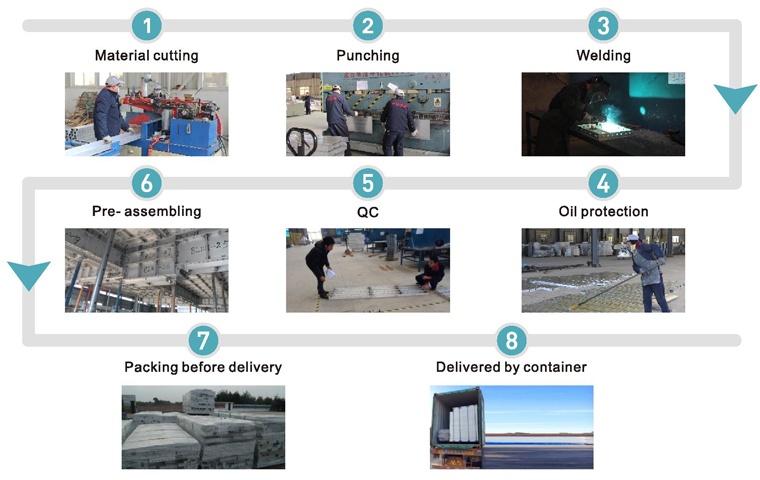

production process
1.The extruded product will be cut to suitable size.
2. Some products will be drilled for fastening holes.
3. Some products require additional welding work.
4. Check product quality
5. The finished product will be coated with a release agent.
6. Complete pre-assembly before leaving the factory to ensure no mistakes.

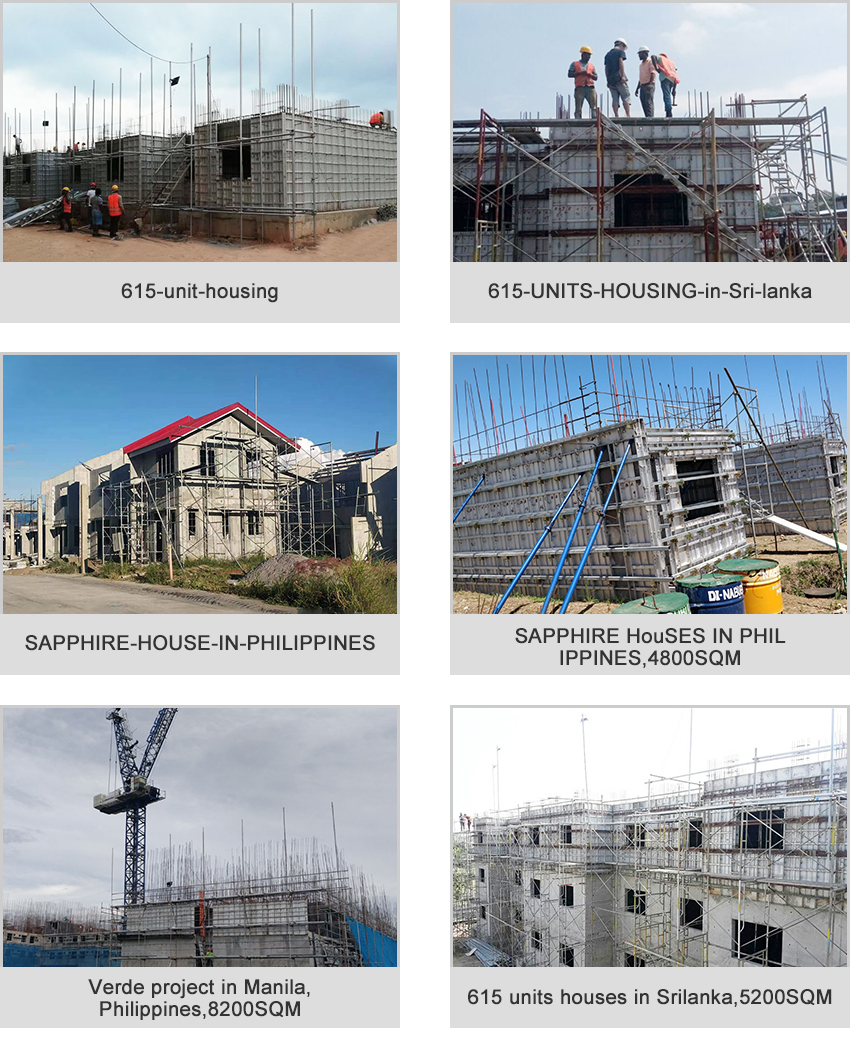

project reference
