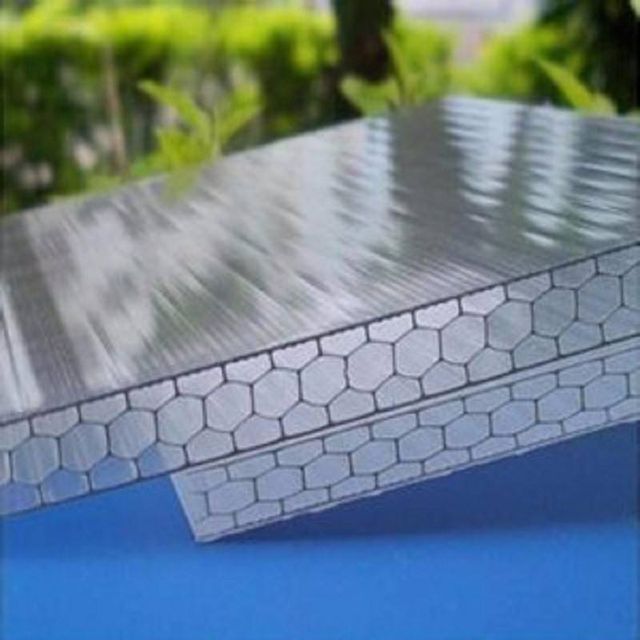

Plastic Hollow Polycarbonate Honeycomb Panel Greenhouse Roof

project name:

Plastic Hollow Polycarbonate Honeycomb Panel Greenhouse Roof

Material:

100% bayer material or sabic material or customized

Origin:

Hebei china

color:

Clear, Blue, Lagoon, Green, Bronze, Opal or Customized

Regular width:

1220mm, 1560mm, 1820mm, 2100mm or available

thickness:

8 mm - 12 mm

Regular length:

2400mm, 5800mm, 6000mm, 11800mm, 12000mm

or as per your request

Warranty:

10 years

Certification:

ISO 9001:2008

surface:

Anti-fog, anti-ultraviolet

UV Thickness:

50 microns

sample:

Free samples will be sent to you for testing

1) Impact strength:

850 J/m. About 200-350 times that of ordinary glass.

2) Light weight:

It is about 1/2 times that of glass of the same thickness.

3) Optical transmission:

80%-92% transparent color with different thickness

4) specific gravity:

1.2 g/cm3

5) Coefficient of thermal expansion:

0.065 mm/m°C

6) Temperature range:

-40°C to 120°C

7) Thermal conductivity:

2.3-3.9 W/m2º

8) Tensile strength:

>=60N/mm2

9) Bending strength:

100N/mm2

10) Heat distortion temperature

140°C

11) Modulus of elasticity:

2. 400mPa

12) Break Stretch Street:

>=65mPa

13) Elongation at break:

>100%

14) Specific heat:

1.16 J/kg

15) Sound insulation indicators:

4mm-27dB, 10mm-33dB
