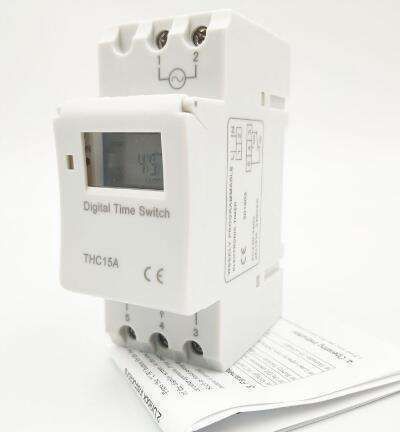

Product DescriptionYP15A, THC15A microcomputer control switch 35mm rail timing switch

Working voltage: 220V/ 50-60hz

Control output: 16A (direct), also available for extended control

Setting times: 16 groups of switches (day/week)

Setting time: 1 minute to 168 hours

Travel time error: 11/24h

Power failure memory: 60 days (1.2v rechargeable battery)

Dimensions: Same as dz47/2p, 80x56x36mm

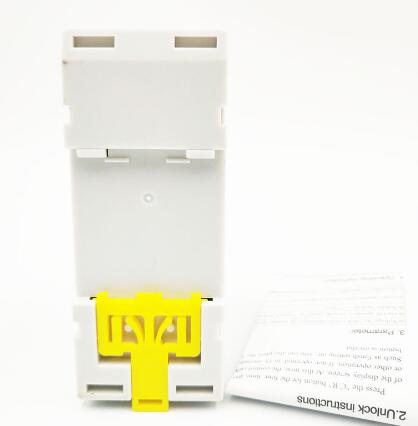

Attachment: 35MM guide rail

Product application: Advertisement light boxes, street lamps, ovens, broadcasting equipment and other electrical appliances, set up once a week and work all year round

How to apply

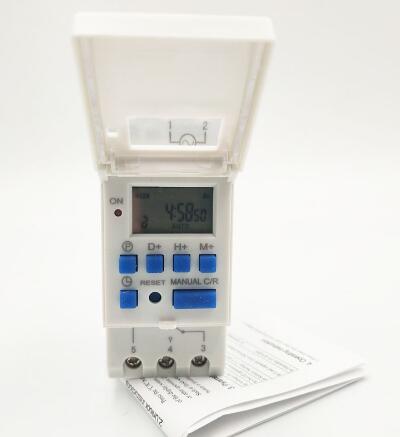

A. Press the "Timer" button, and the word "1 ON" will be displayed on the lower left of the screen (indicating the first turn-on time). Press the "minute", "hour" and "week" keys to input the required opening time.

B. Press the "Timer" key, and the word "1 OFF" will be displayed on the lower left of the screen (indicating the first time of closing). Press the "minute", "hour" and "week" keys to input the desired closing time.

C. Continue to press the "timer" key, and the lower left of the display will display (2 ON, 2 OFF ... 17 ON, 17 OFF). Refer to steps A and B to set the time of each switch and the subsequent time. If you only need to set the switches once, you must press the Cancel/Resume button to cancel them for future set times.

D. Press the "Settings" button, and then press "Week", you can set the same every day, different every day, the same from Monday to Friday, Monday to Saturday, different cycles or the same way from Saturday to Sunday.

Troubleshooting:

1. If the time set by this switch is not turned on, or the time from start to end is irrelevant, please check if the "week" is correct, otherwise please readjust.

2. If you confirm that the "on" and "off" time settings are completely correct, but the switch is turned on when it should not be on, or it is not turned off when it is off, please check whether the redundant switch time setting has been eliminated. If not, please refer to " The method introduced in "Time Setting" to eliminate (note: the switch time display "-:--" just means, don't think that "prefer" means to eliminate)

3. If the above two items are correct, but the switch still does not work normally, please check whether the switch is in the automatic position.

notes:

1. In order to prevent electric shock and heating due to strong current, this product is used for electrical appliances to make firm contact with the power supply.

2. The incoming line of this switch can only be connected to the power supply of the specified voltage, and other power supplies are not allowed. Wrong wiring damage is not a quality problem (please order if you need special specification voltage).

3. For those personal equipment (such as medical equipment and large equipment, etc.) that may cause related accidents or have a significant impact on society due to the wrong time control switch, please do not use this control switch

4. The switch should work in a gas environment without moisture, corrosion, and heavy metals, and must not be contaminated with oil or water.
