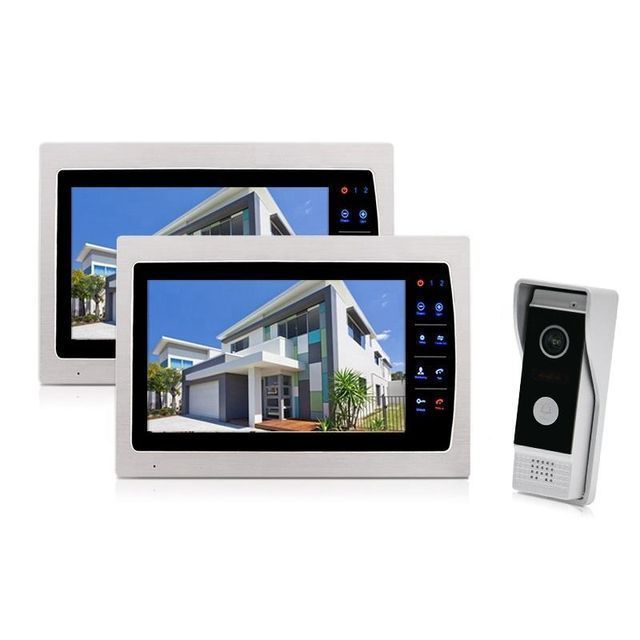

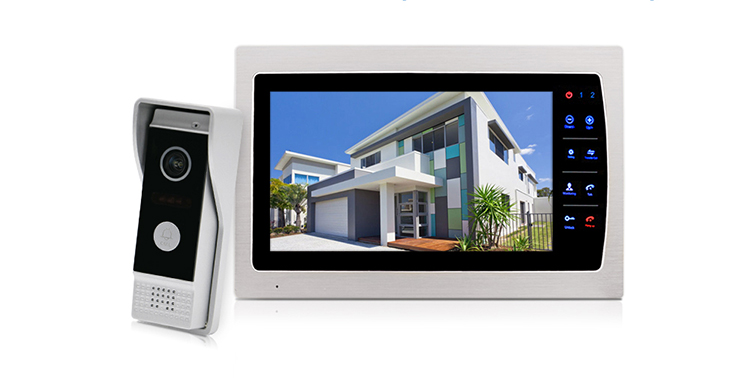

Bifamiliar Video Intercom Display, Fashion Design Kit 10.1 Inch IP65 Waterproof and 10.1 Inch TFT-LCD Night Vision Display

Why Choose Bcomtech Video Doorphone Intercom?

♦ 10.1-inch LCD touch screen, storage resolution 1024*3*600
♦ Store photos and videos in 32GB TF card

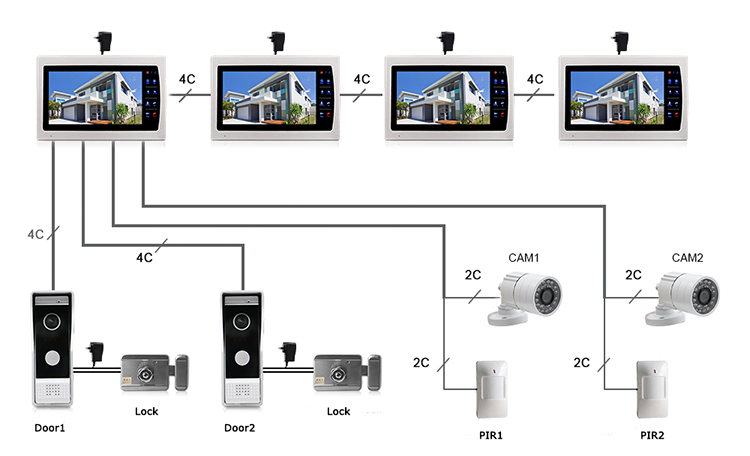

♦ Support 2 call panels + 4 indoor monitors + 2 CCD cameras and 2 alarms
♦ Two-way intercom between monitors
♦ Menu function, easy to operate
♦ Time and clock remain on display in monitor standby mode
♦ Built-in motion detection function
♦ Internal memory, picture shooting (up to about 86 pictures, automatic cycle)
♦ Camera and monitor volume can be adjusted
♦ IR or LED night vision is clear

scope

indoor monitor

Model

84103EM

84103-EMB

monitor

10.1" TFT LCD Video Doorbell

solve

1024(horizontal)*3(RGB)*600(vertical)

memory

Support maximum 32GB SD card

intercom mode

Hands-free two-way talk

call time

120s

keyboard

sensor screen

energy consumption

500mA max

power supply

External power supply DC12V

Built-in power supply AC100-240V

support

2 call panels + 4 indoor monitors + 2 CCD cameras & 2 alarms

Material

Aluminum brushed shell

Operating temperature

-10℃ ~ +60℃

Install

surface mount

EM as the suffix -sensor key + memory

EMB suffix-sensor's key + memory + built-in power

The outdoor unit

Model

84203-CP42

84203-CP60

84203-CP80

camera sensor

1/4" CMOS, 420TVL

1/4" CMOS, 600TVL

1/3" CMOS, 800TVL

3.7mm lens

3.7mm lens

2.8mm lens

angle of view

Pinhole Lens: 3.7mm 68º / Wide Angle Lens: 2.8mm 110°

LED night LED

Infrared LED(120º)

energy consumption

200mA max

power supply

Courtesy of Indoor Monitor

Material

Aluminum alloy panel

waterproof

IP65

Operating temperature

-40°C +50°C

Install

surface mount

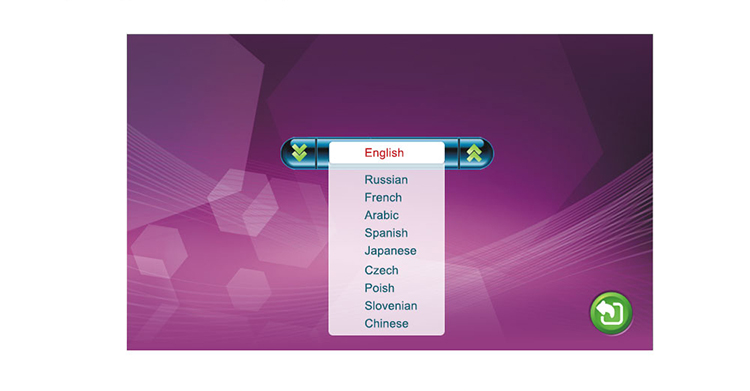

support multi-languauge

The system supports six different languages

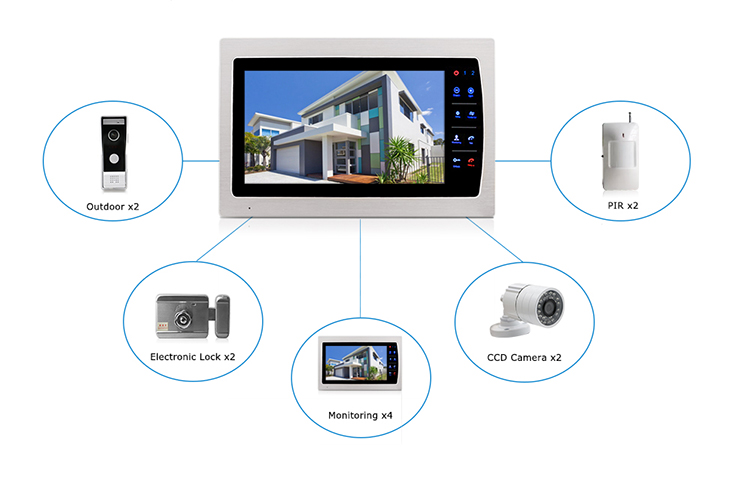

Support electronic lock, CCD camera, alarm

Our 7" video doorbell set supports connecting PIR detectors, CCD cameras and alarm systems. It can protect your home and property in all directions.

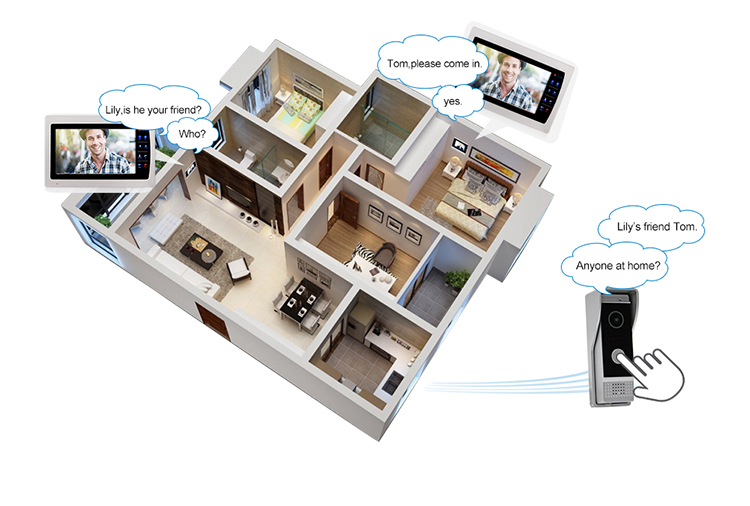

Two-way intercom, call transfer between monitors

This item is hands-free and can be used for two-way communication. Supports communication between indoor monitors and outdoor cameras, and also supports communication between monitors.

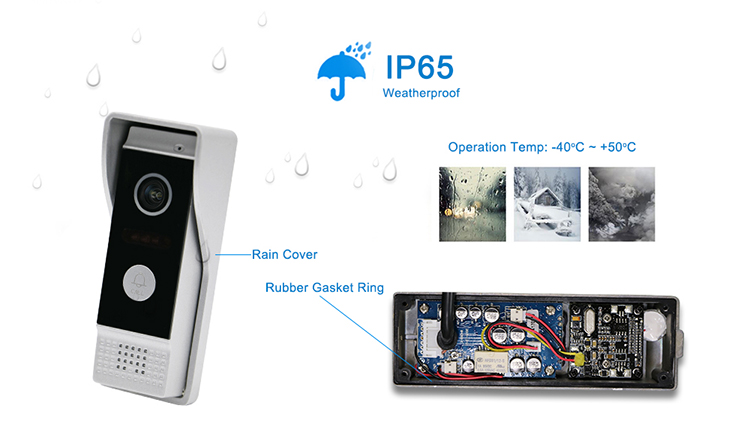

IP65 waterproof and thunderstorm-proof design

Outdoor panels work well even in bad weather.

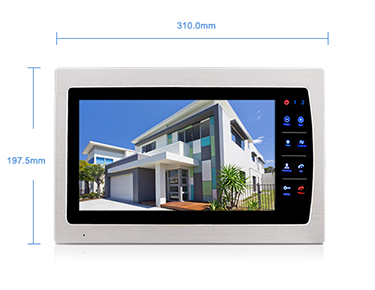

indoor monitor

♦7-inch TFT display, acrylic brushed shell

♦Each call panel can set different ringtones and different volume levels for morning/afternoon/evening (10 levels)

♦Support 2 call panels + 4 indoor monitors + 2 CCD cameras and alarms

♦One-button unlocking, monitoring, internal communication of indoor unit, call transfer, recording and taking pictures

♦External motion detection (trigger alarm video or picture optional)

♦Monitor built-in battery time memory (restart the machine, need to reset the time)

♦Support to set unlock time, suitable for different electronic locks

♦Built-in or external power supply optional

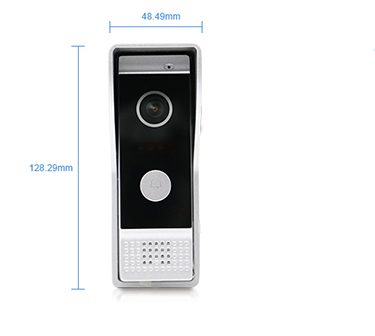

outdoor call panel

♦Strong and thin metal structure

♦Includes rain cover

♦Easy installation and DIY installation

♦All-weather IP65 aluminum alloy panel

♦Adjustable intercom volume

♦CMOS 420TVL, 600TVL, 800TVL optional

♦IR LED offset lighting for better nighttime viewing

Model

84103EM

Model

84203-CP80

monitor

7" TFT LCD Video Doorbell

camera sensor

1/3" CMOS, 800TVL

solve

1024(horizontal)*3(RGB)*600(vertical)

2.8mm lens

memory

Support maximum 32GB SD card

angle of view

Pinhole lens: 2.8mm 110°

intercom mode

Hands-free two-way talk

Model

Model

call time

120s

LED night LED

Infrared LED(120º)

keyboard

touch button

energy consumption

200mA max

energy consumption

500mA max

power supply

Courtesy of Indoor Monitor

power supply

External power supply DC12V

Material

Aluminum alloy panel

Operating temperature

-10°C +60°C

Operating temperature

-40°C +50°C

Install

surface mount

Install

surface mount

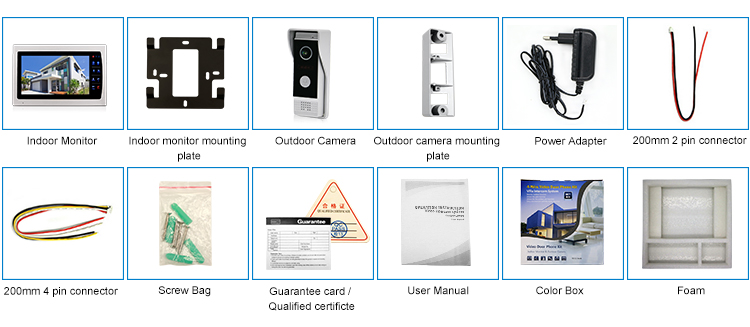

pack

Villa intercom system
